Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Locations

Instrument Panel Control Module: Locations

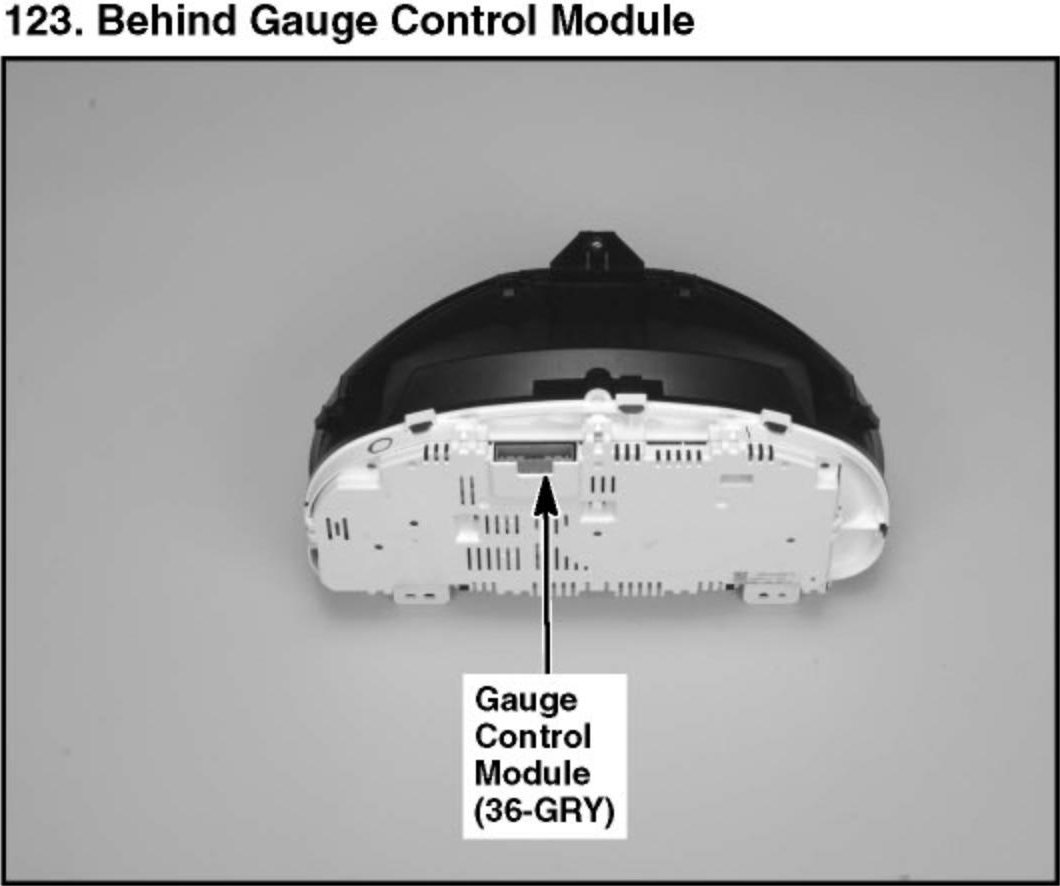

123. Behind Gauge Control Module:

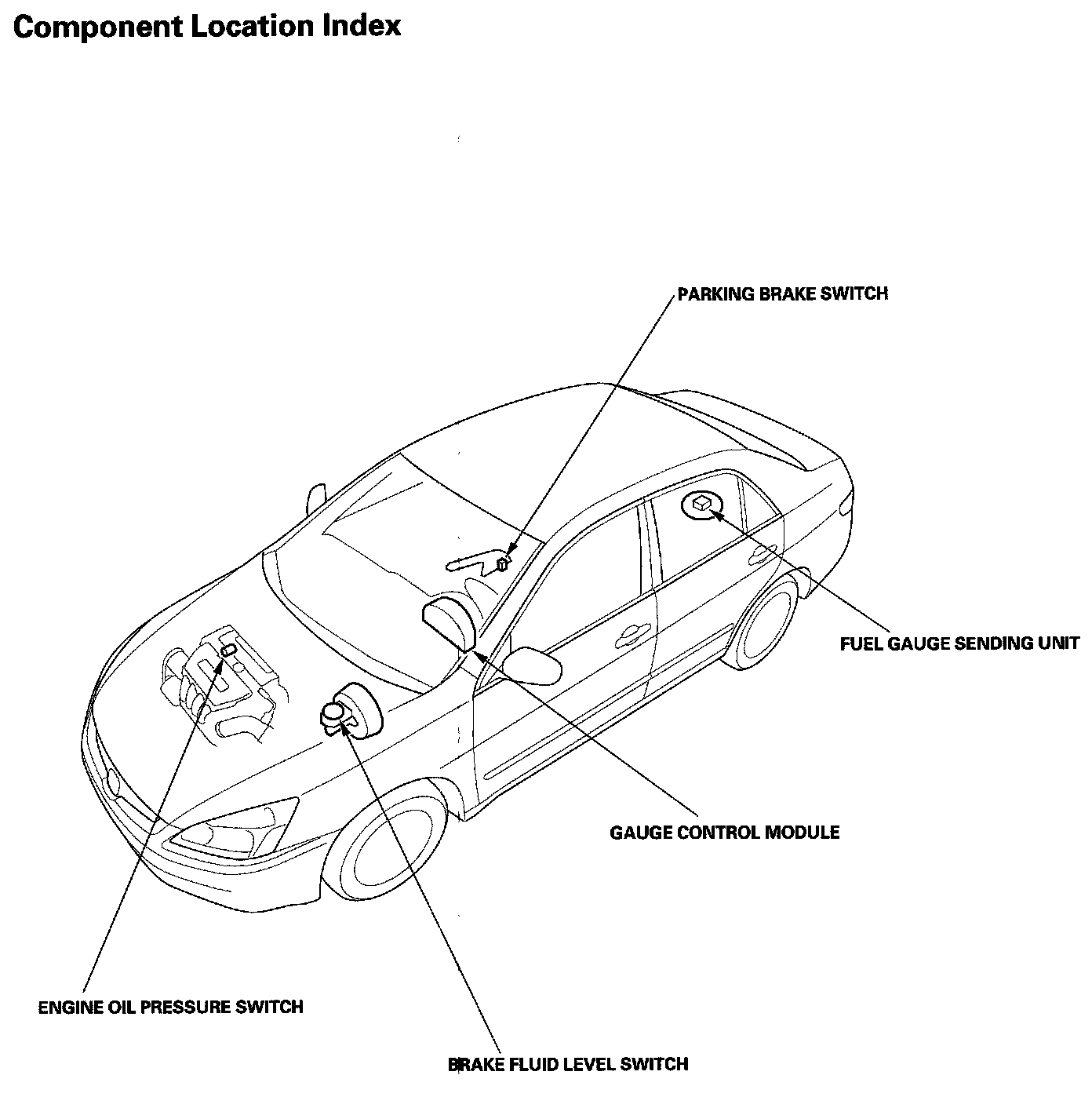

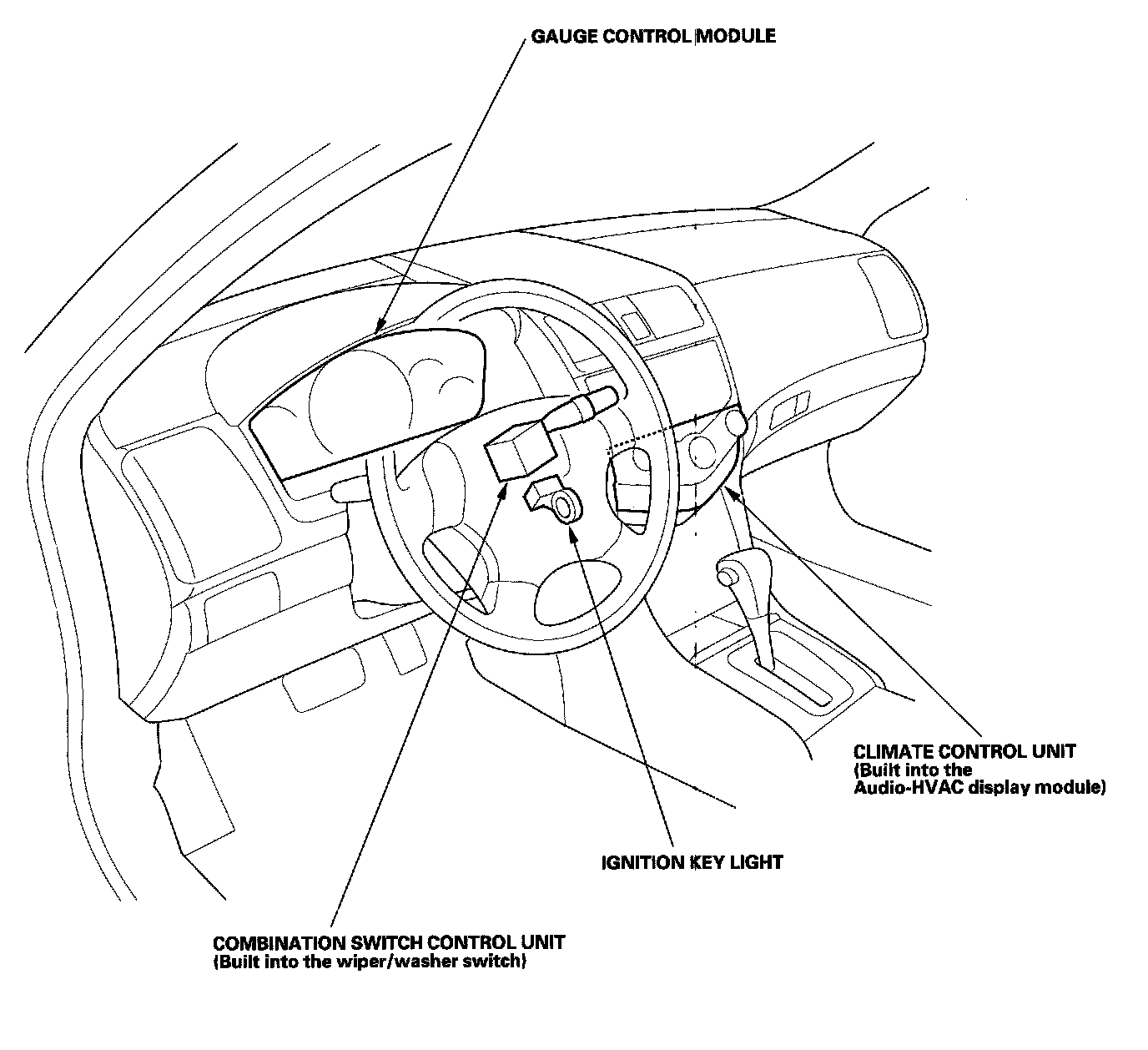

Gauges Component Location Index:



Multiplex Integrated Control System Component Location Index:



Entry Lights Control System Component Location Index:
