ECM/PCM Inputs and Outputs

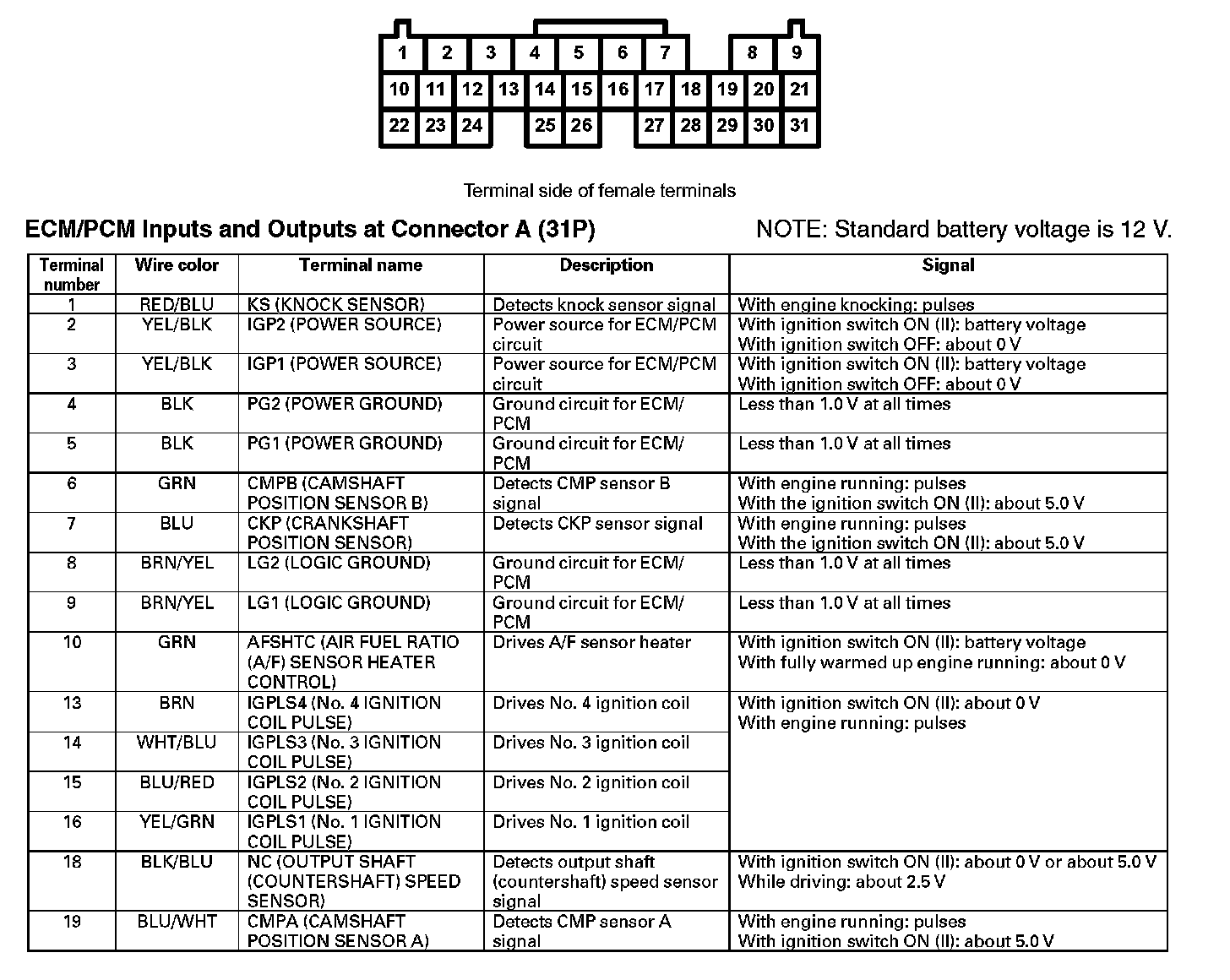

ECM/PCM Inputs And Outputs at Connector A (31P) Part 1:

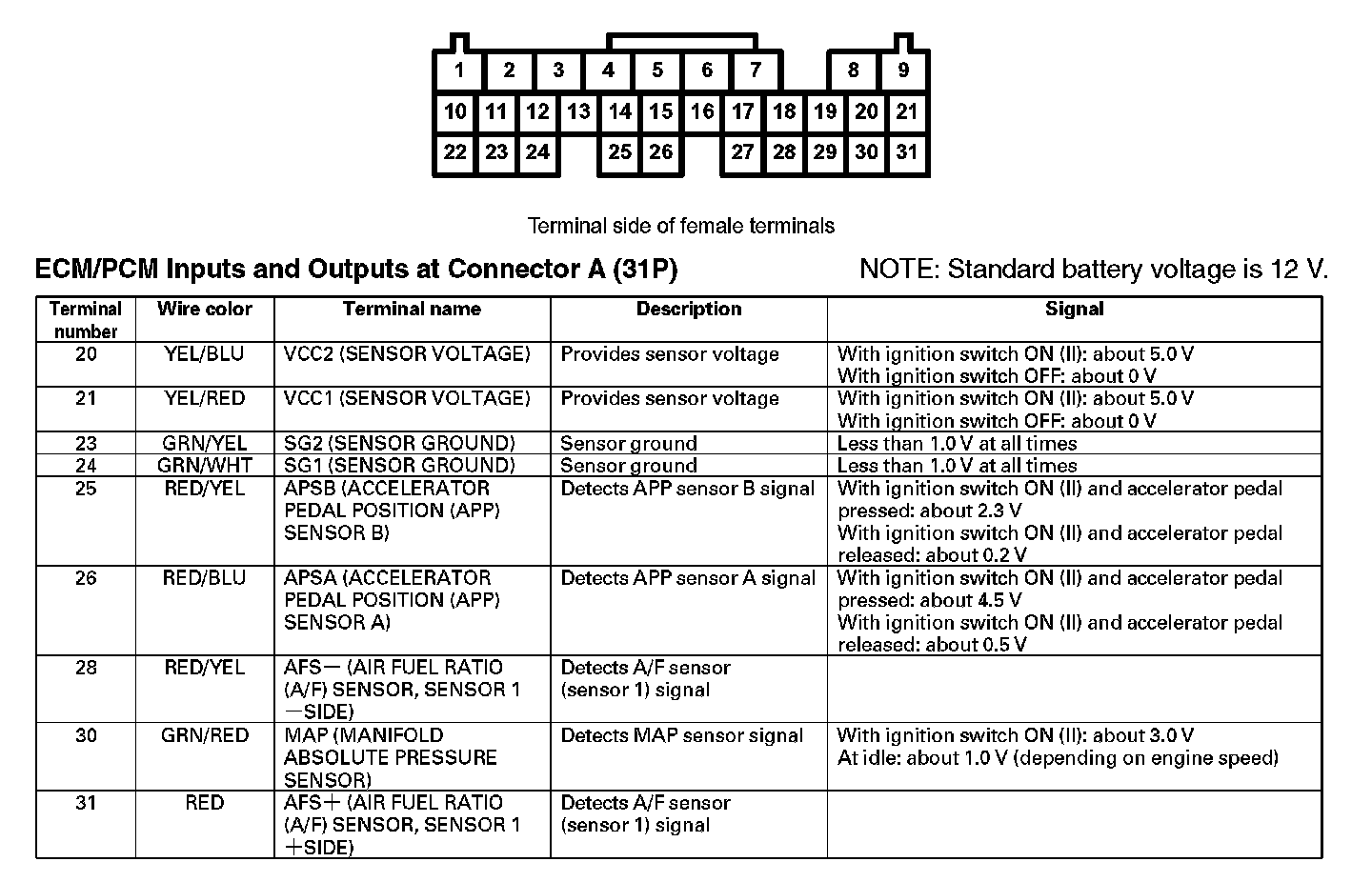

ECM/PCM Inputs And Outputs At Connector A (31 P) Part 2:

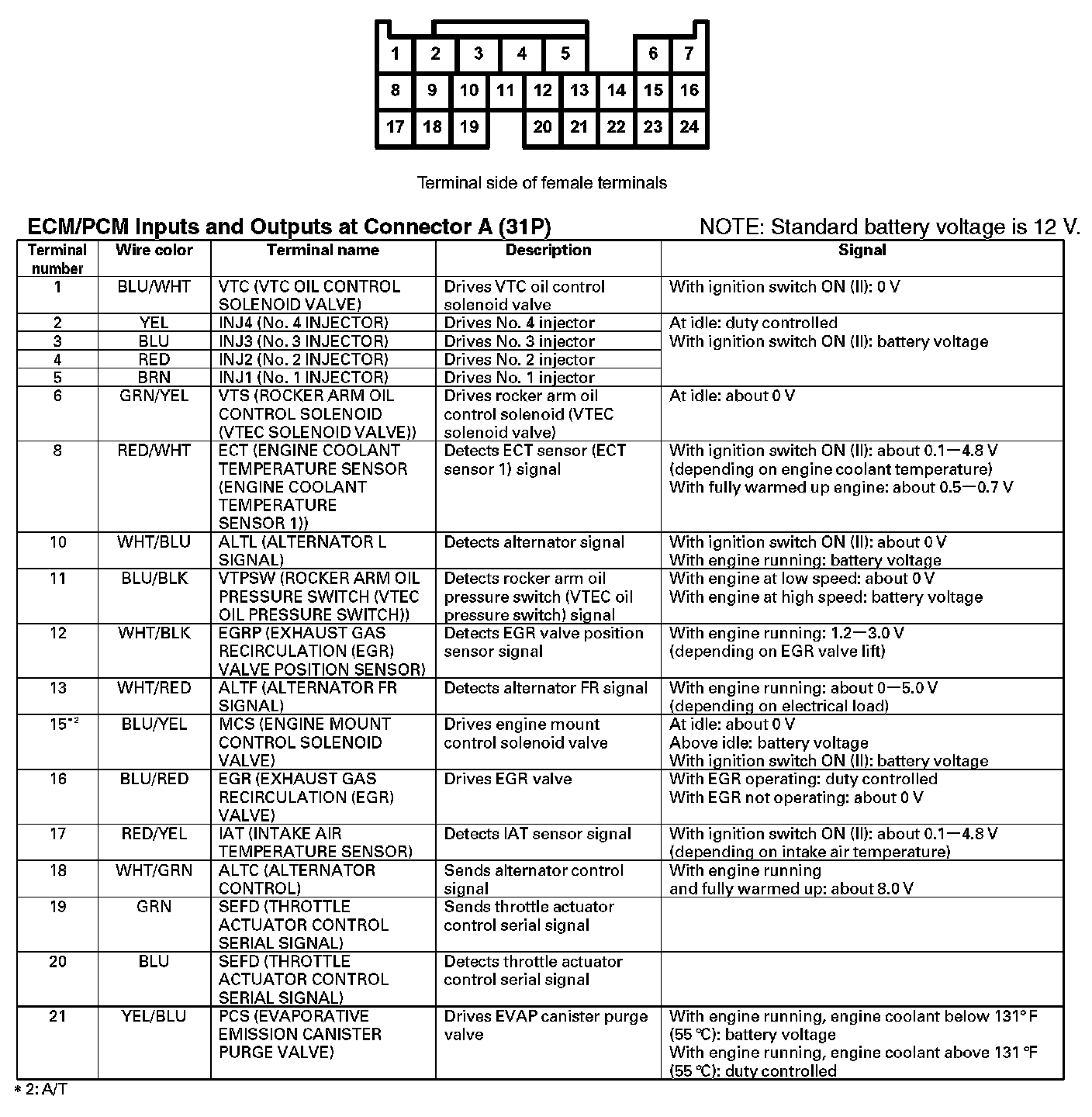

ECM/PCM Inputs And Outputs at Connector A (31P) Part 3:

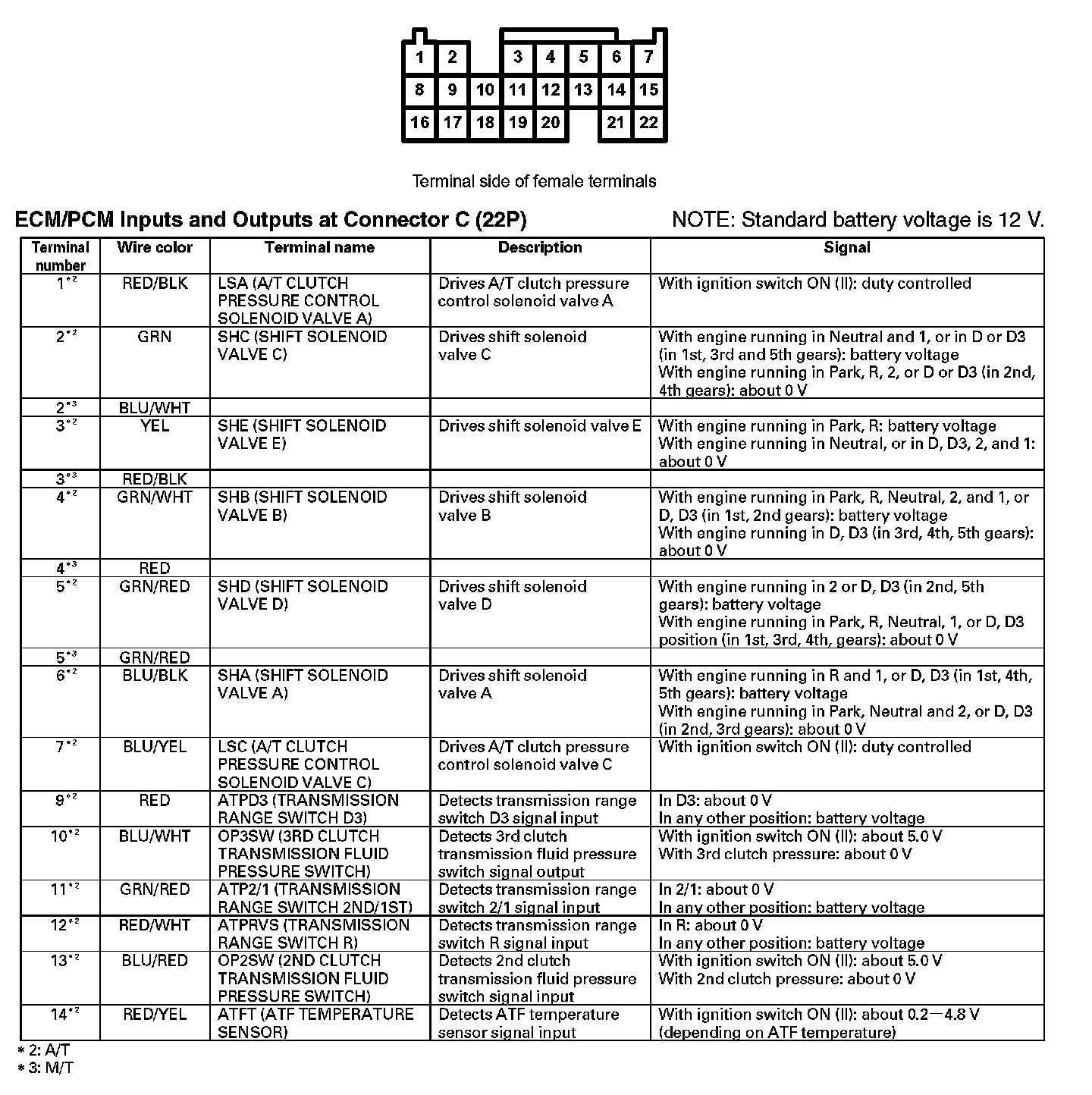

ECM/PCM Inputs And Outputs at Connector C (22P) Part 1:

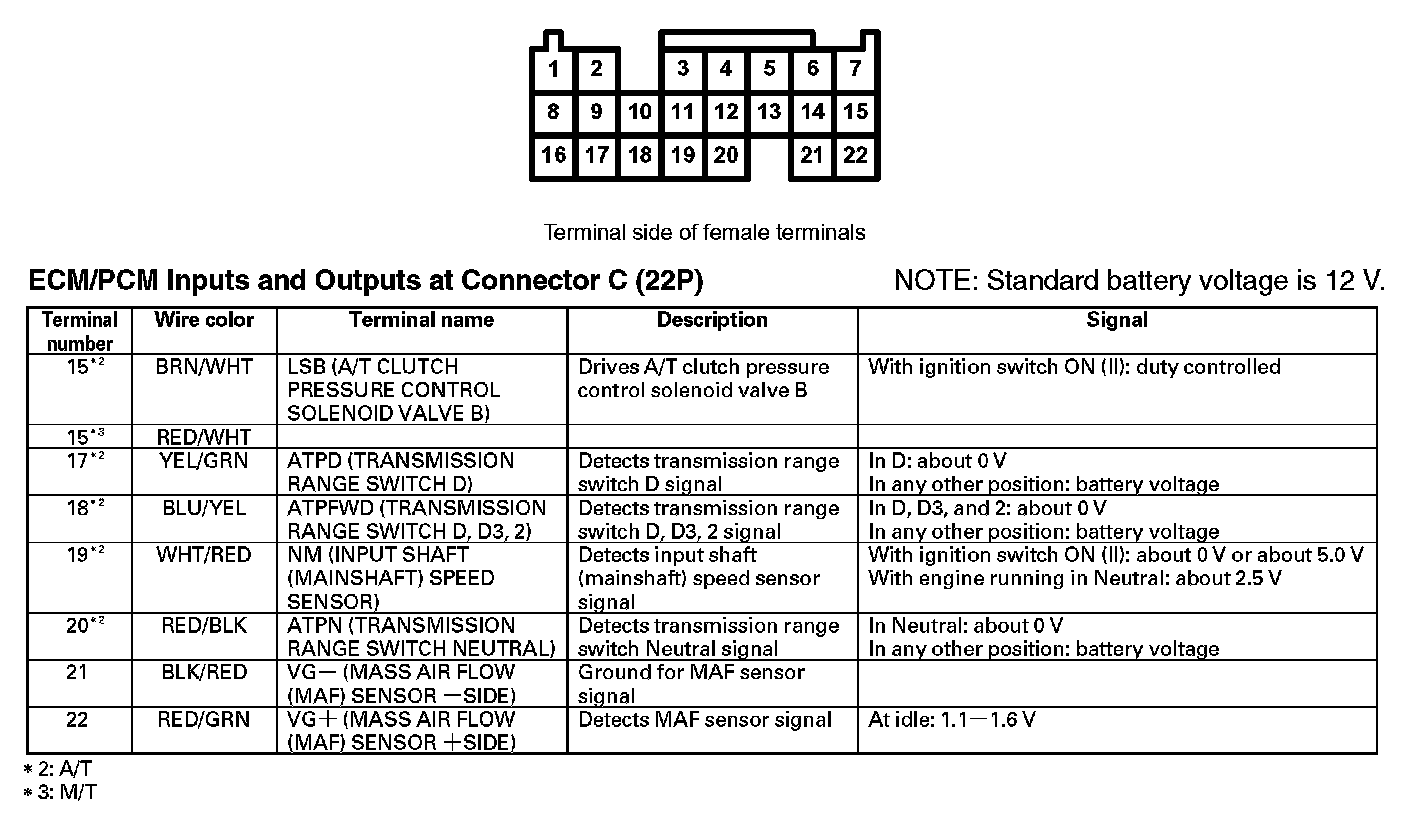

ECM/PCM Inputs And Outputs at Connector C (22P) Part 2:

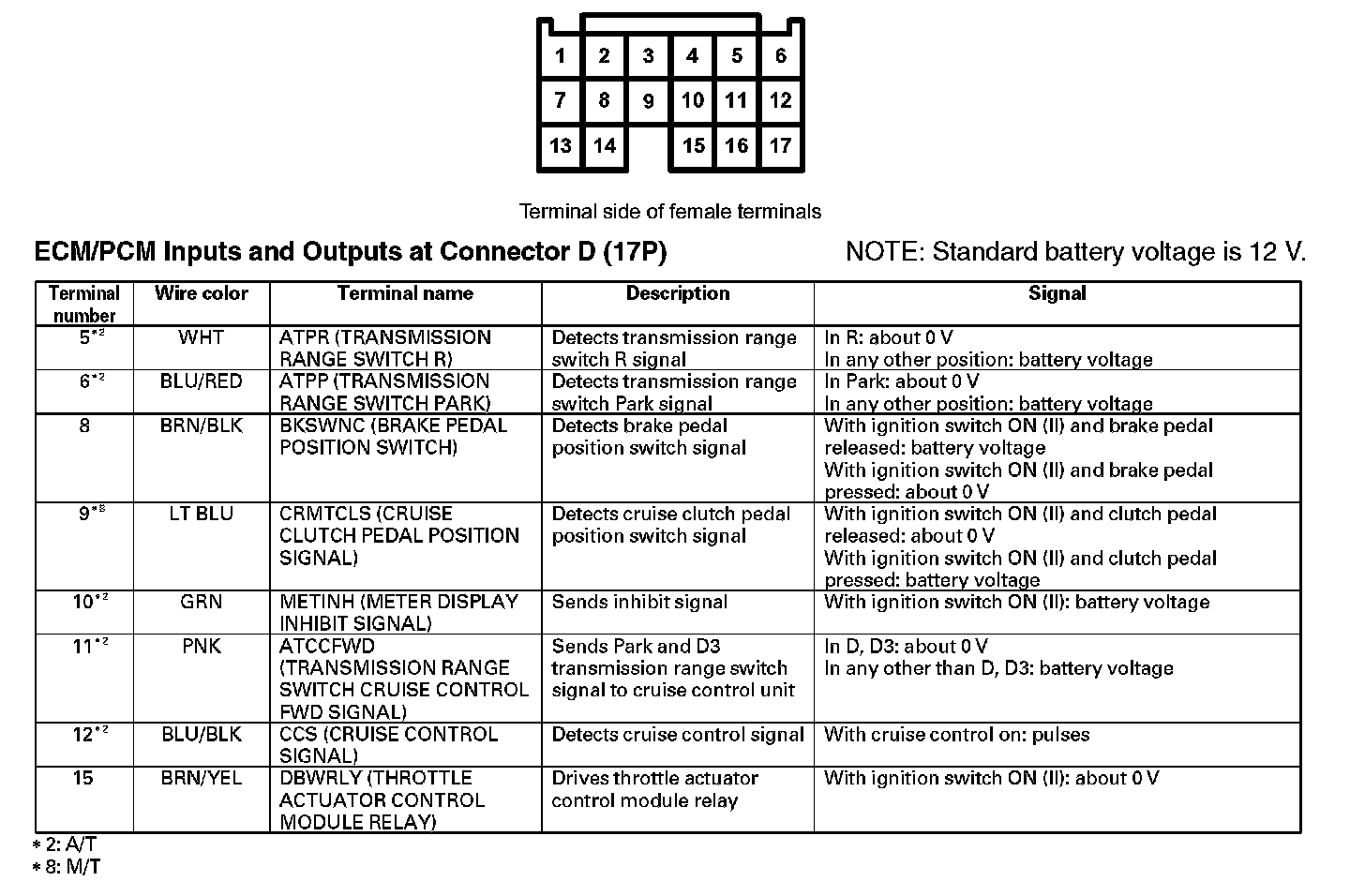

ECM/PCM Inputs And Outputs at Connector D (17P):

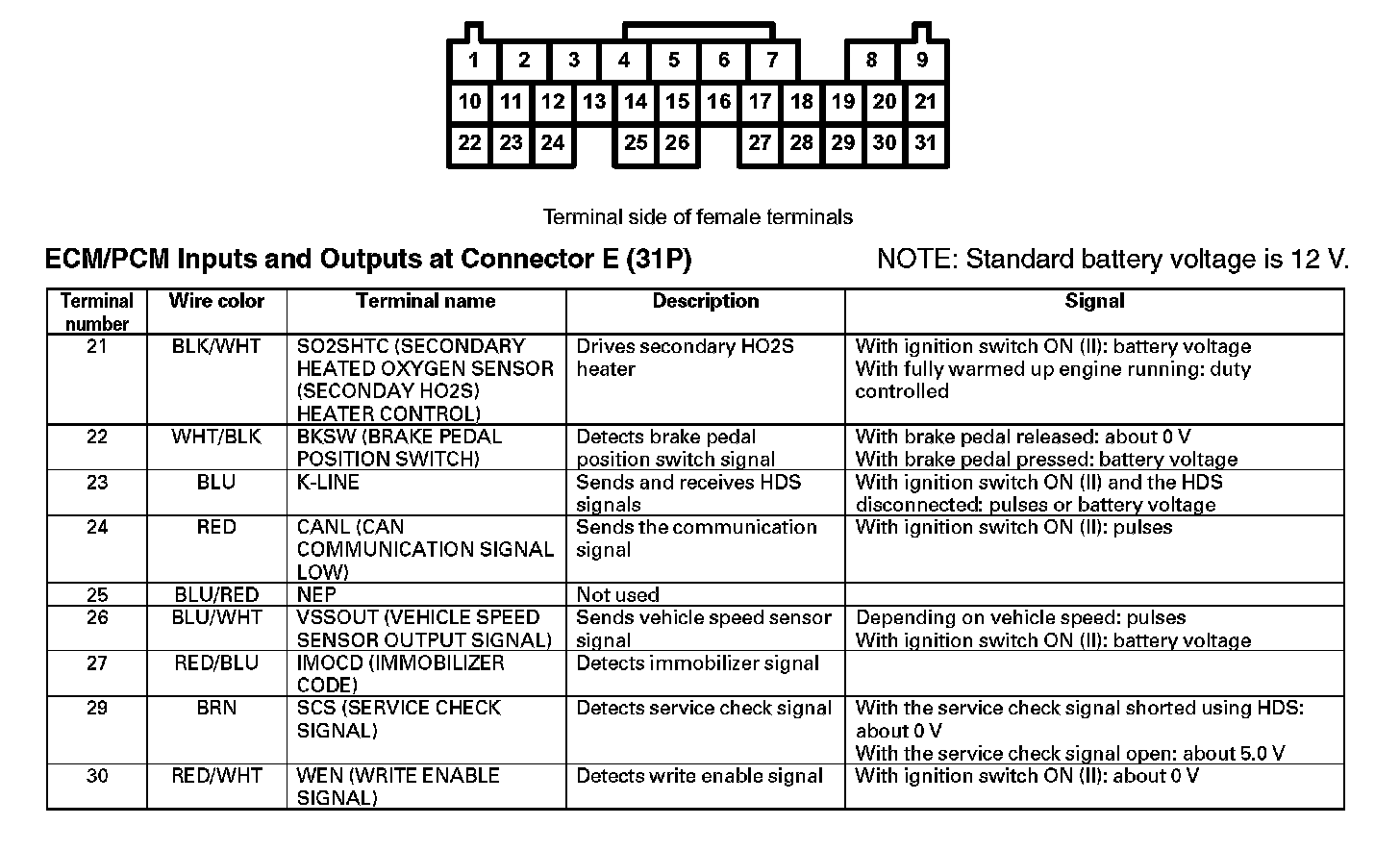

ECM/PCM Inputs And Outputs at Connector E (31P) Part 1:

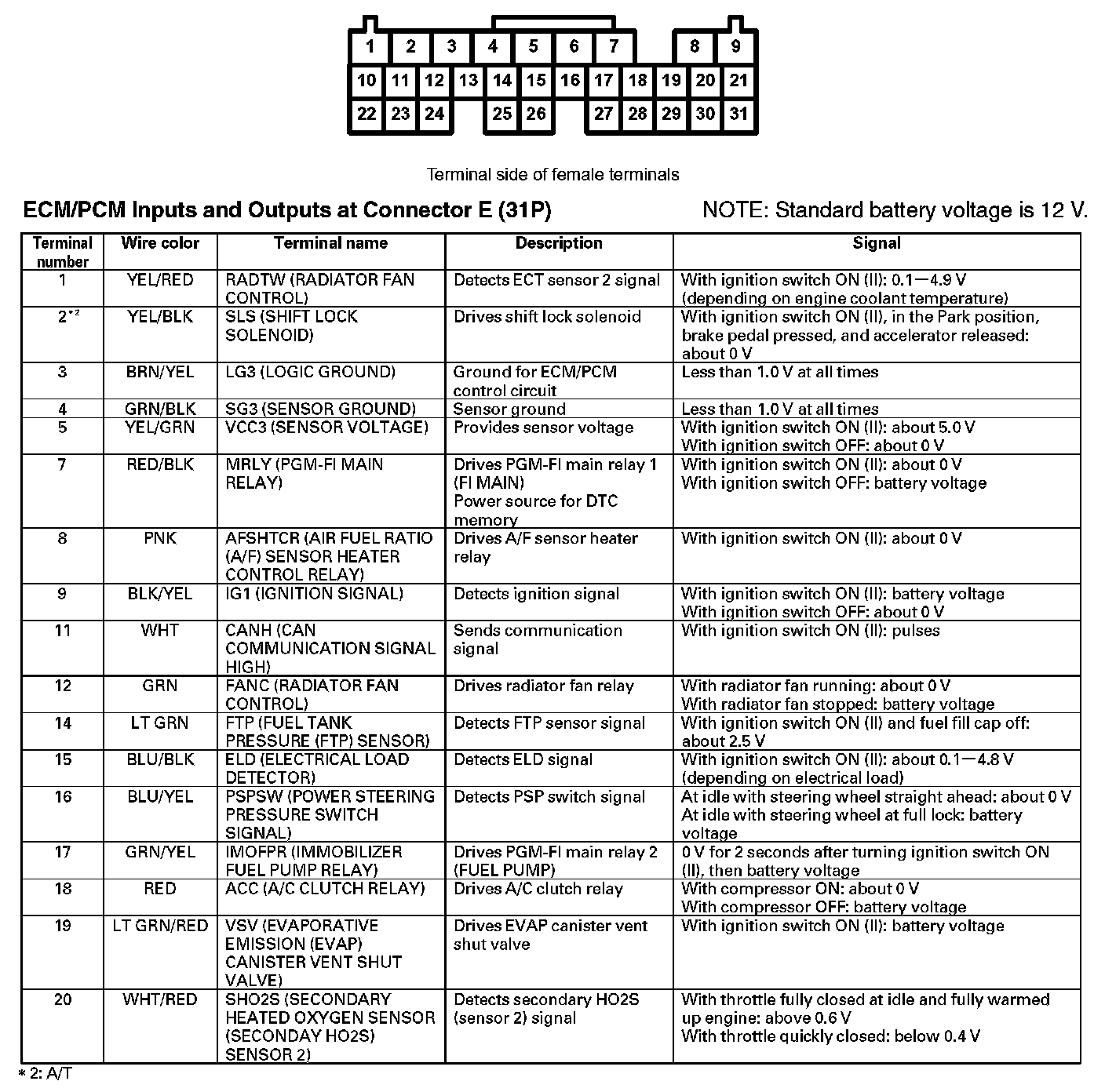

ECM/PCM Inputs And Outputs at Connector E (31P) Part 2:
