Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

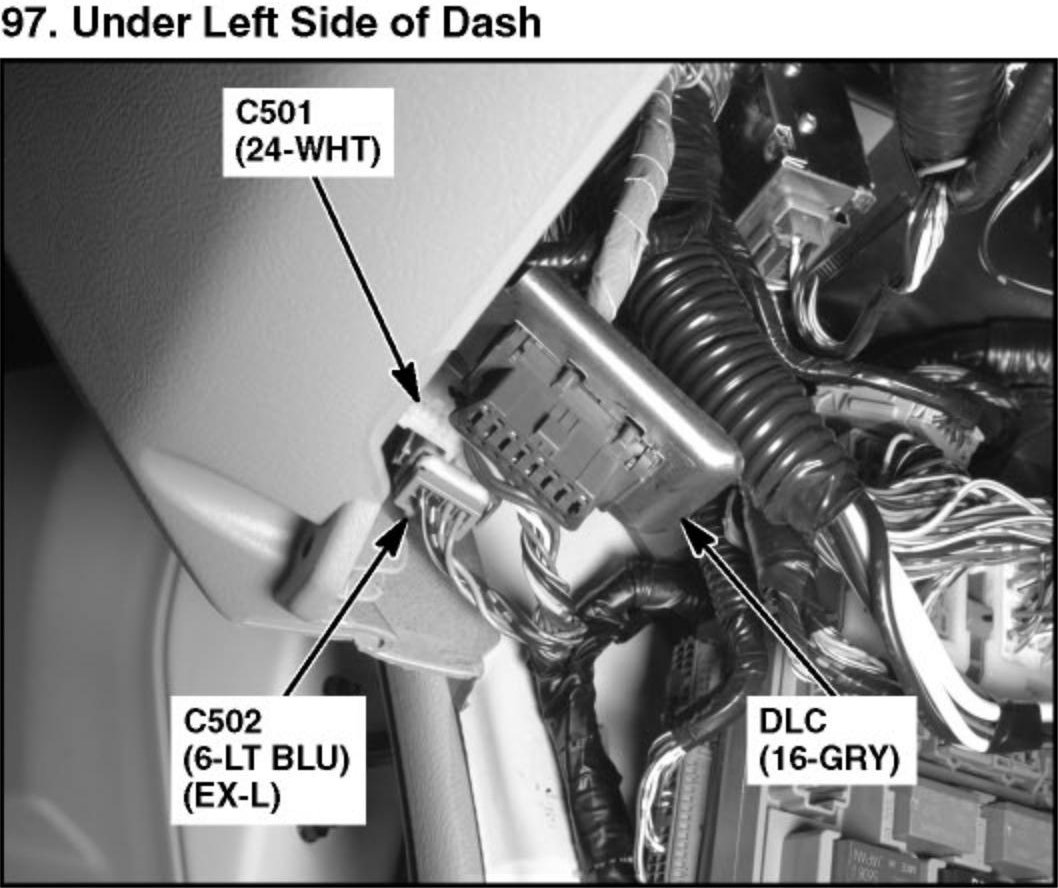

97. Under Left Side of Dash:



PGM-FI System Component Location Index:

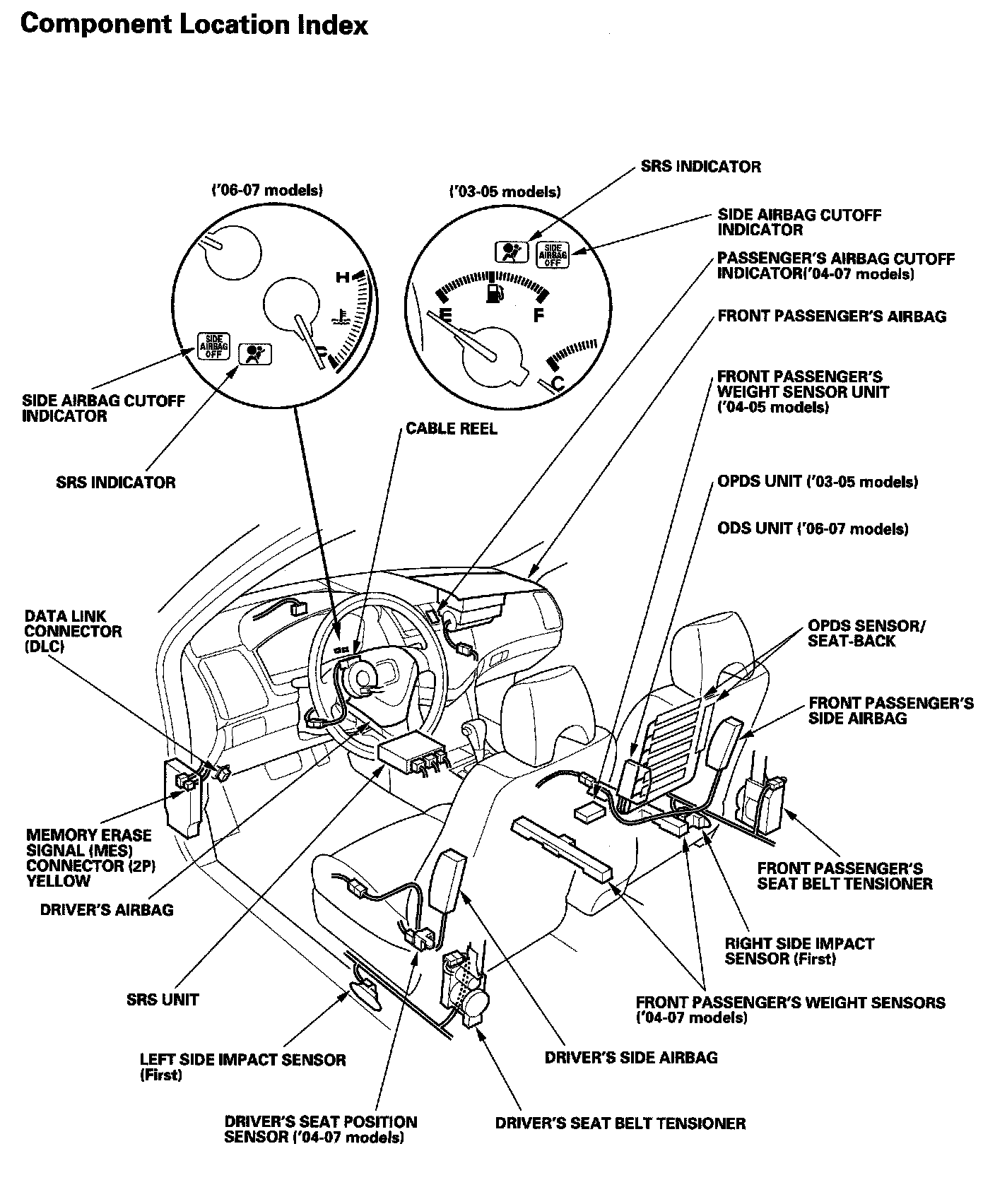

SRS Component Location Index:
