Air Flow Meter/Sensor: Service and Repair

MAF Sensor/IAT Sensor Replacement

'05-07 models

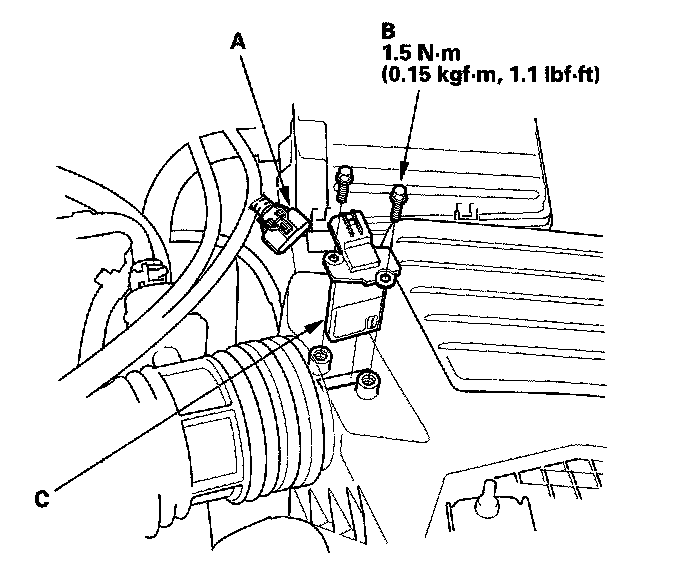

1. Disconnect the MAF sensor/IAT sensor connector
2. Remove the bolts (B).
3. Remove the MAF sensor/IAT sensor (C).
4. Install the parts in the reverse order of removal.
