Honda
>>
2007
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Display
Navigation Display

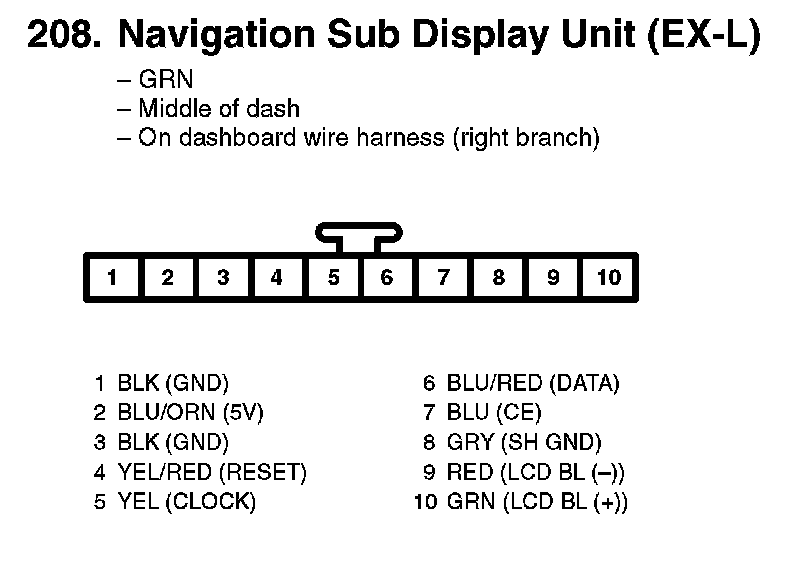

208. Navigation Sub Display Unit (EX-L):

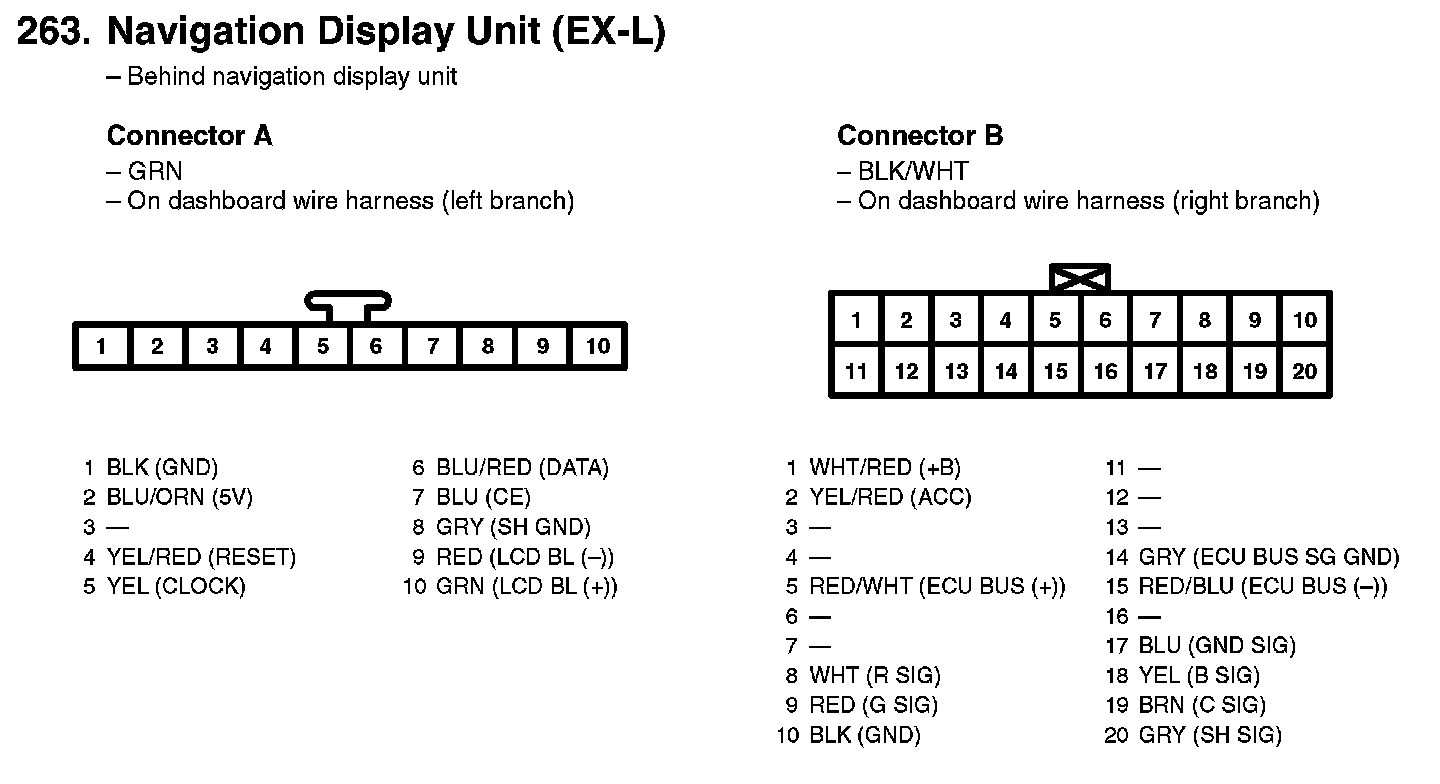

263. Navigation Display Unit (EX-L):
