Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

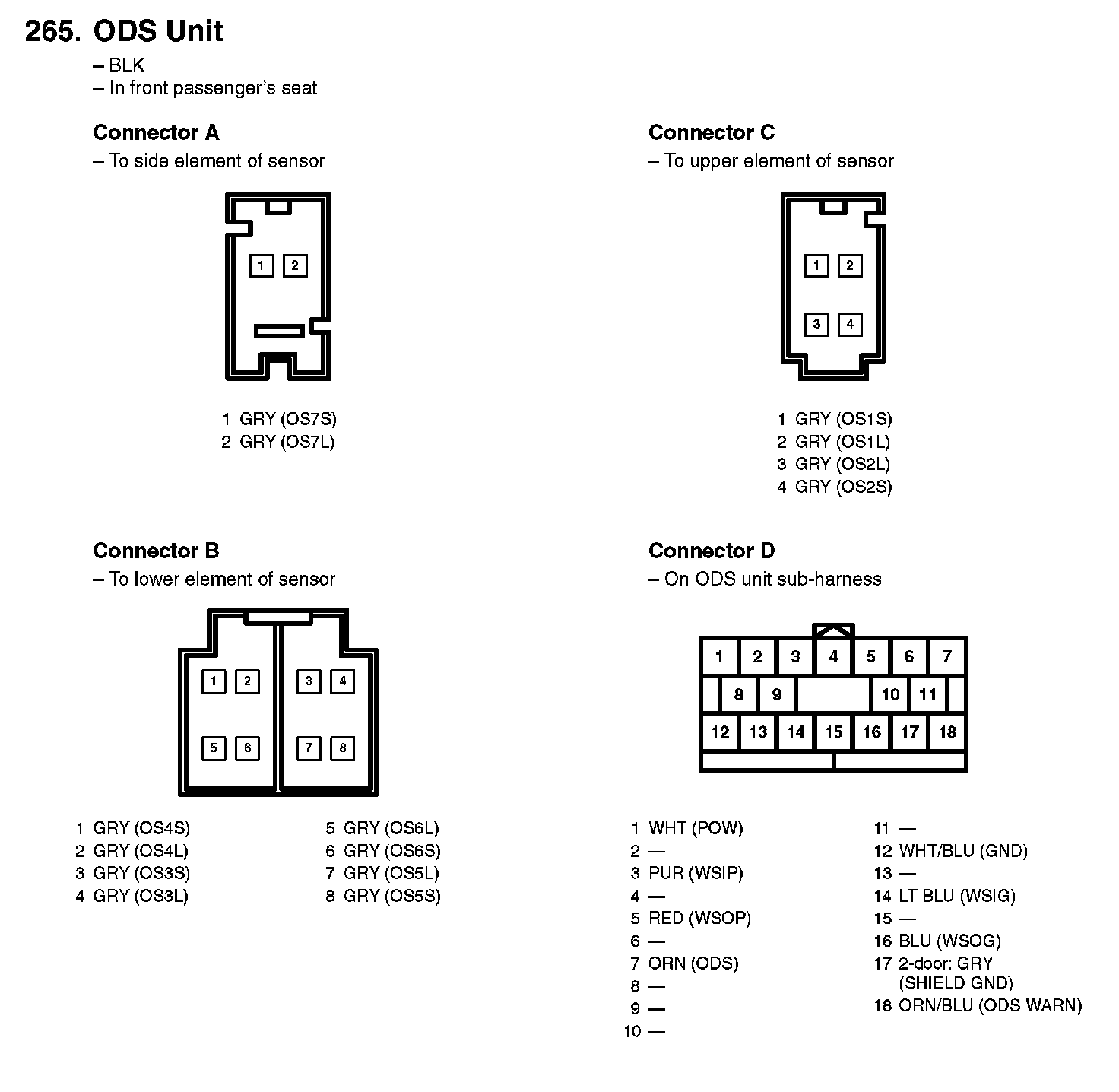

265. ODS Unit:

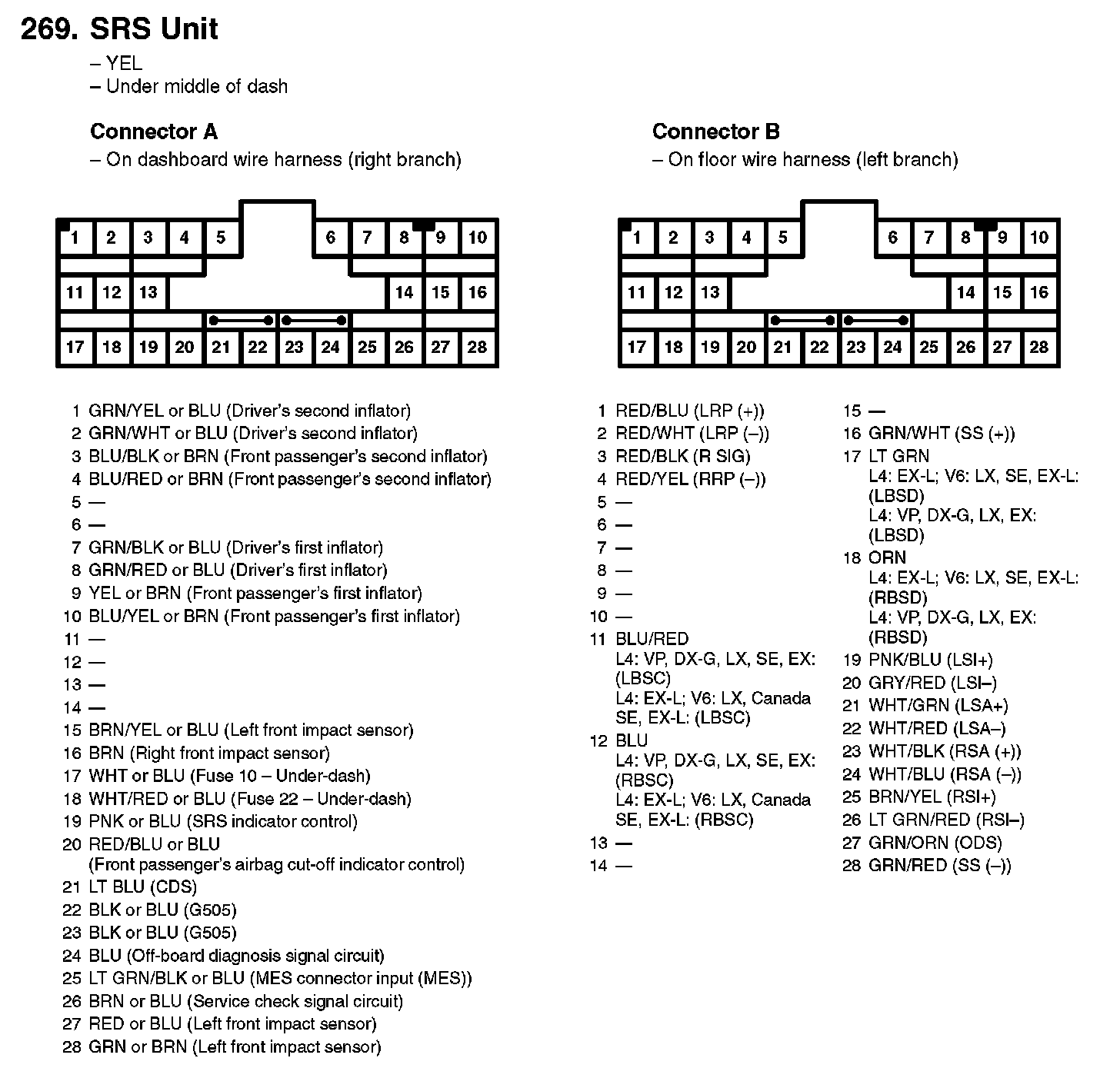

269. SRS Unit:

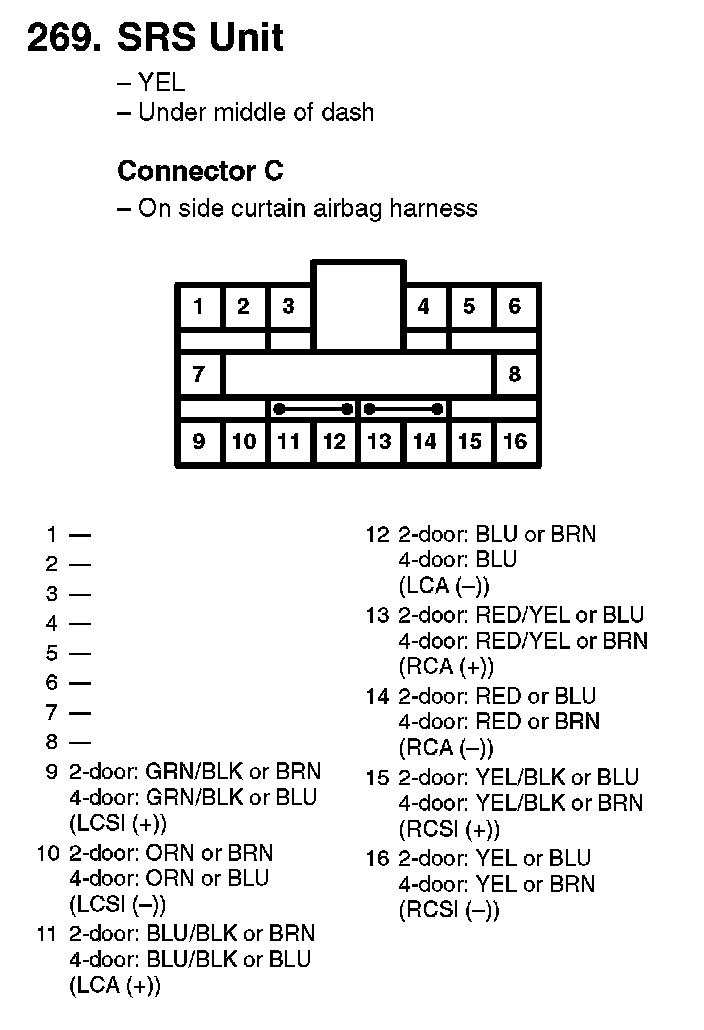

269. SRS Unit:
