Home >> Honda >> 2006 >> S2000 L4-2.2L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

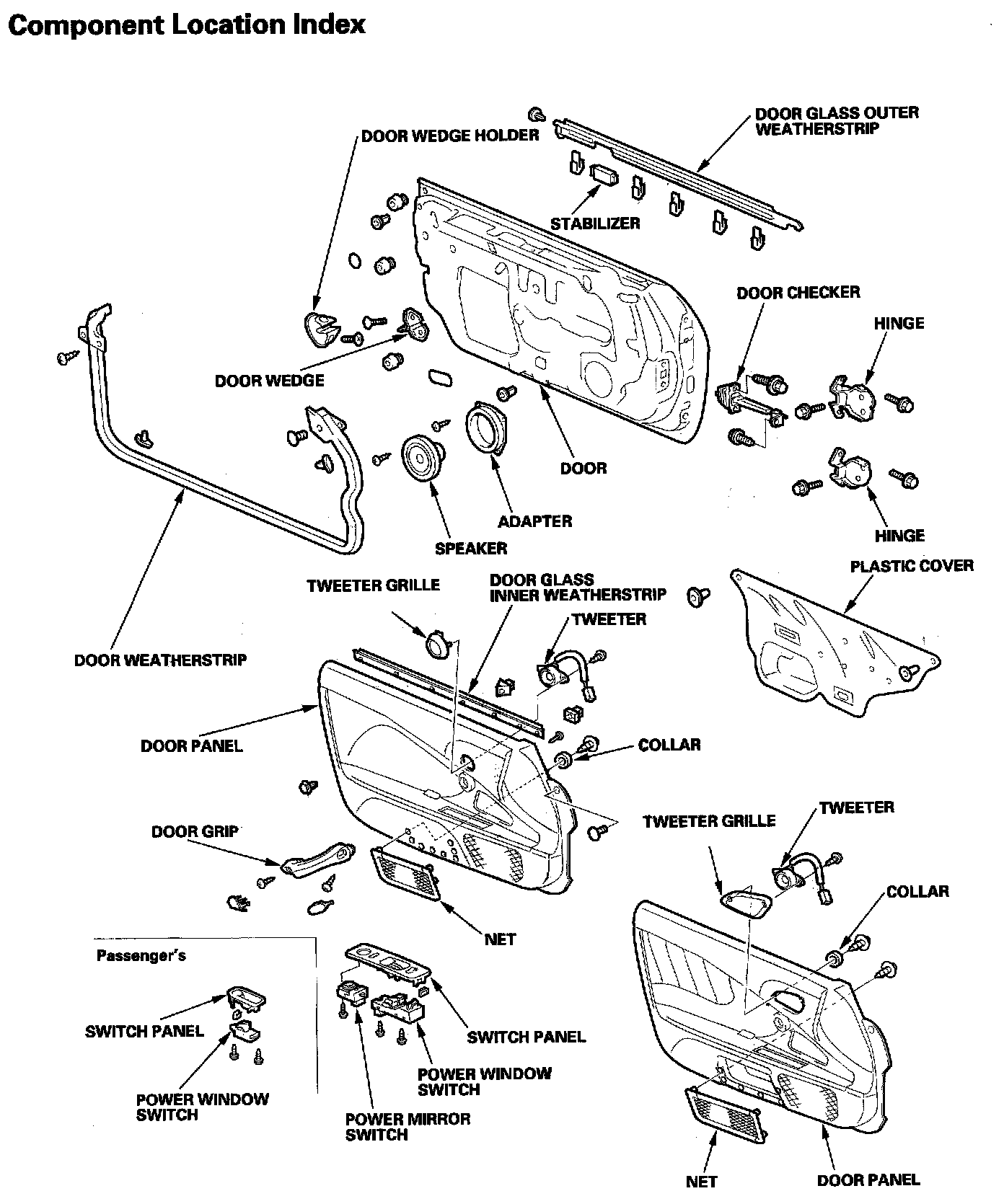

Doors - Component Location Index:

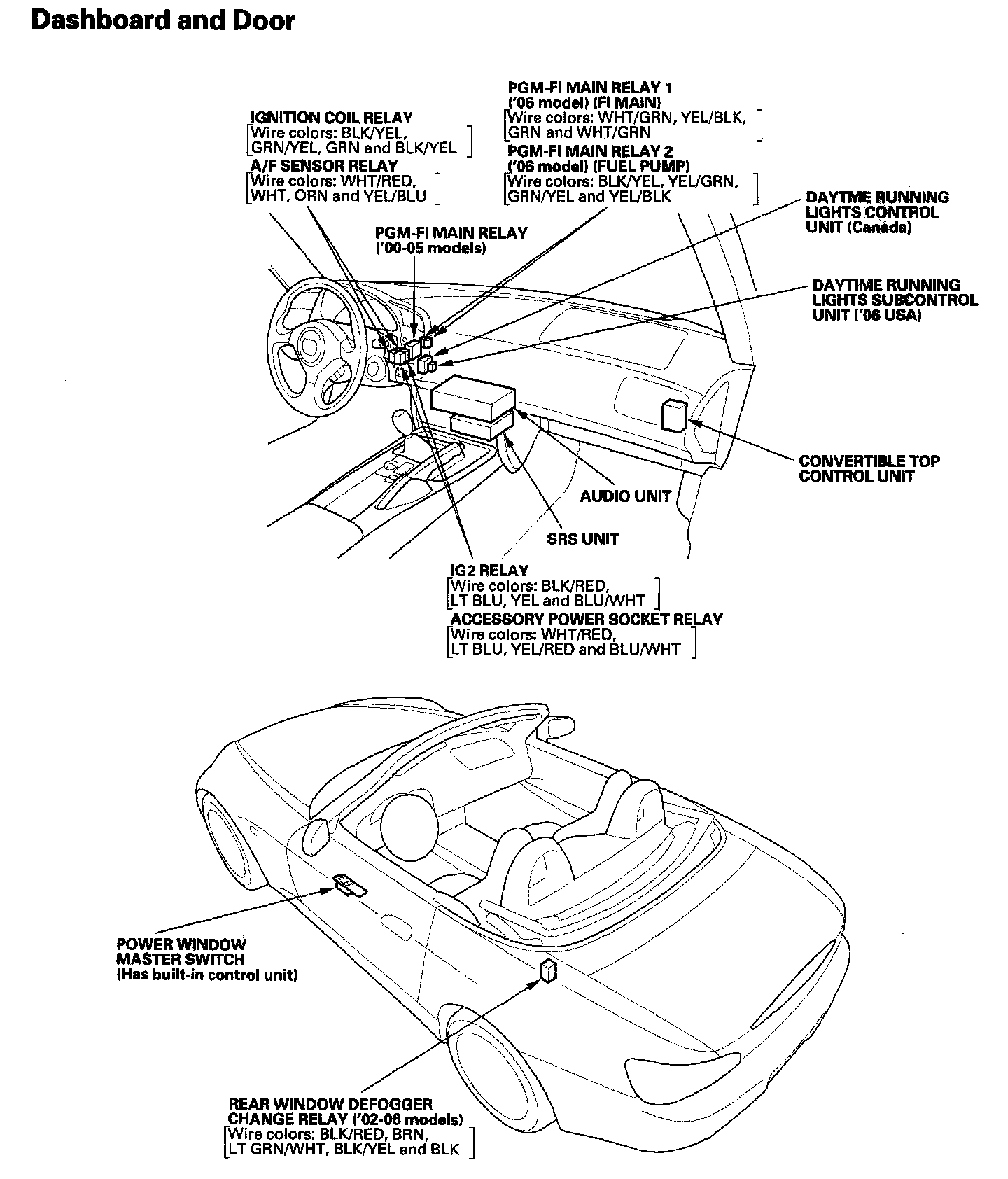

Relay And Control Unit Locations - Dashboard And Door:



Power Windows - Component Location Index:

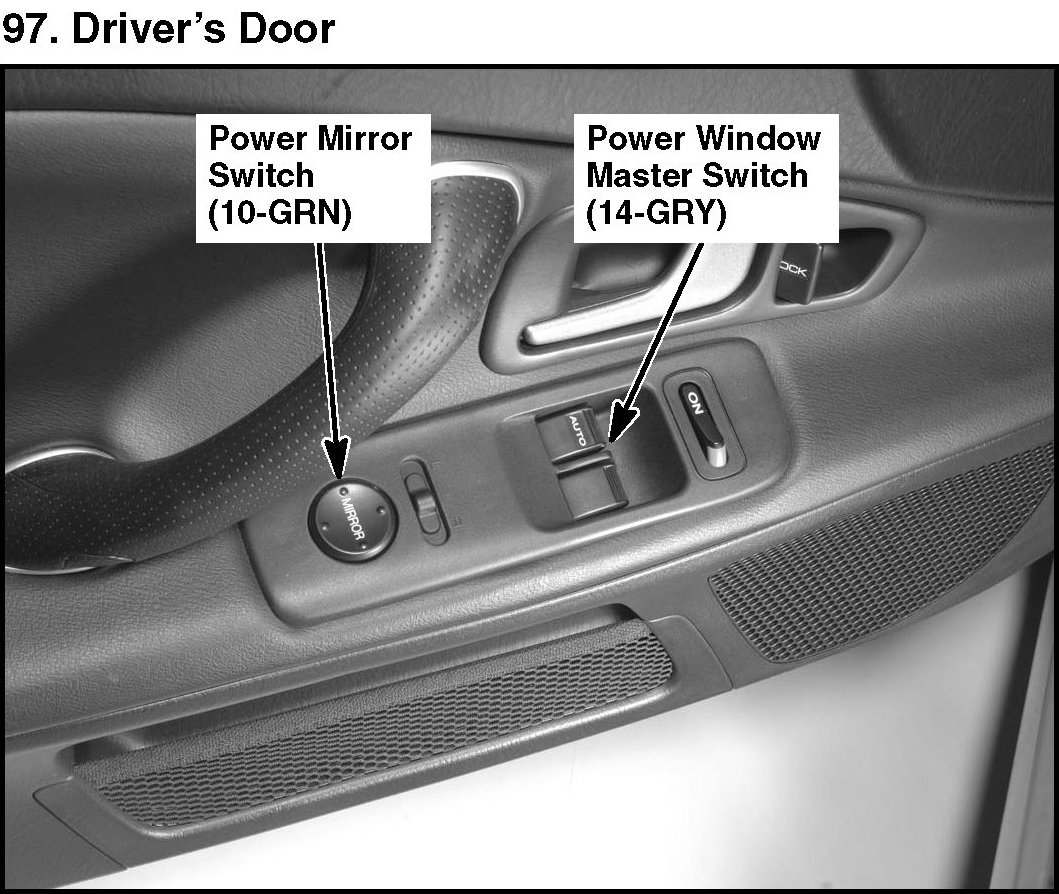

97. Driver's Door:

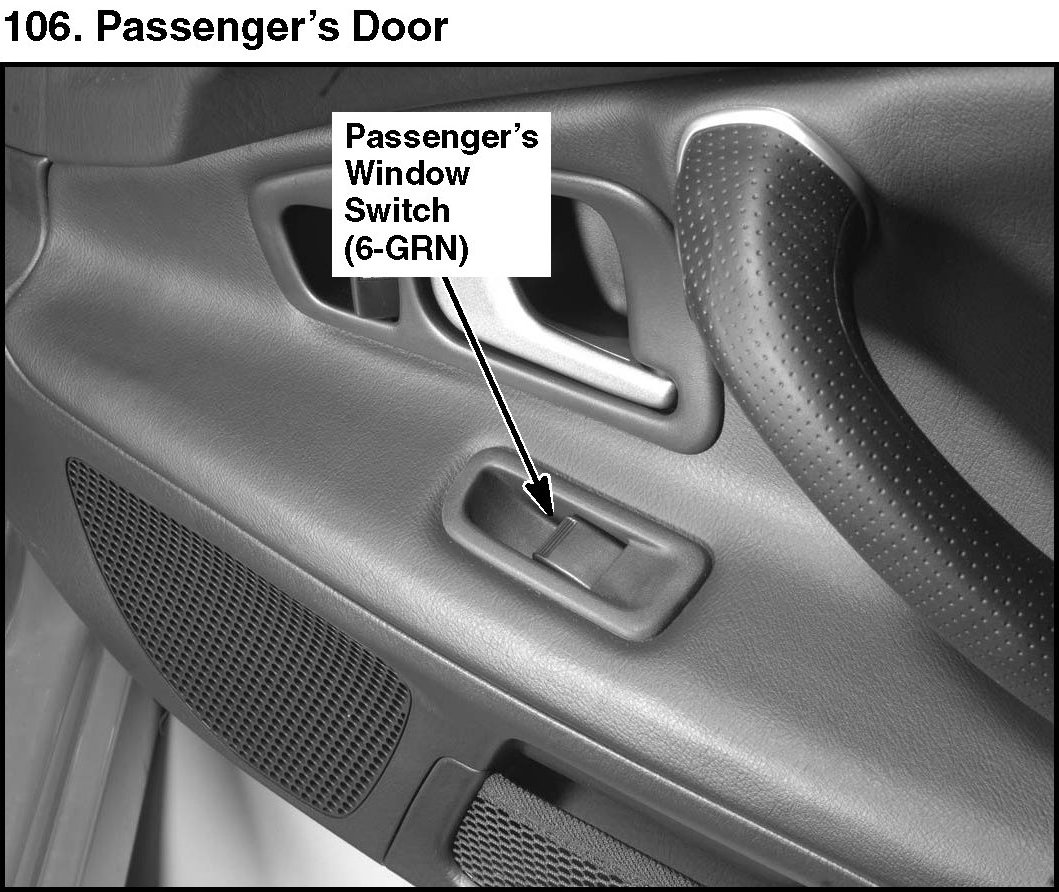

106. Passenger's Door:
