Electronic Brake Control Module
Electronic Brake Control Module

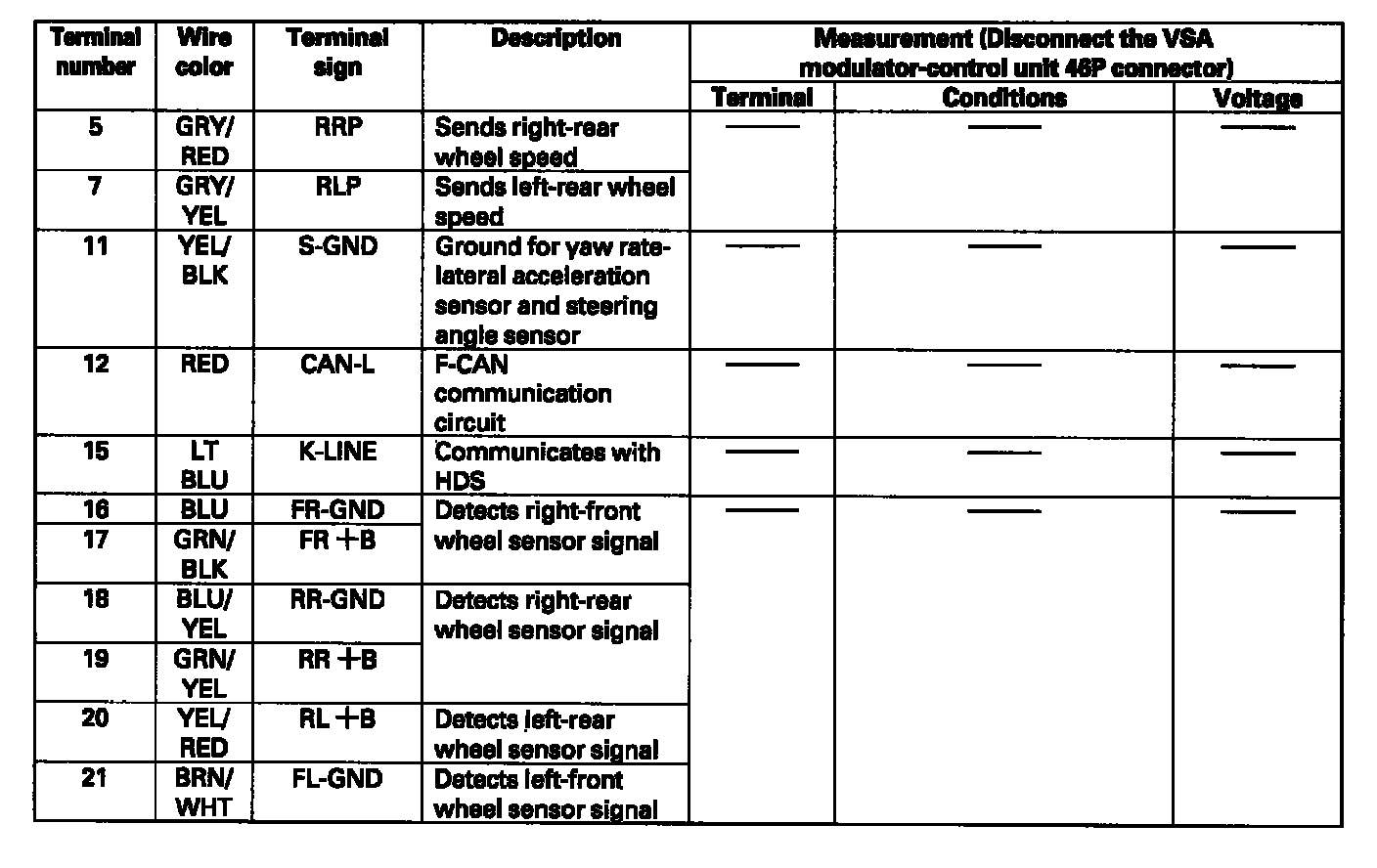

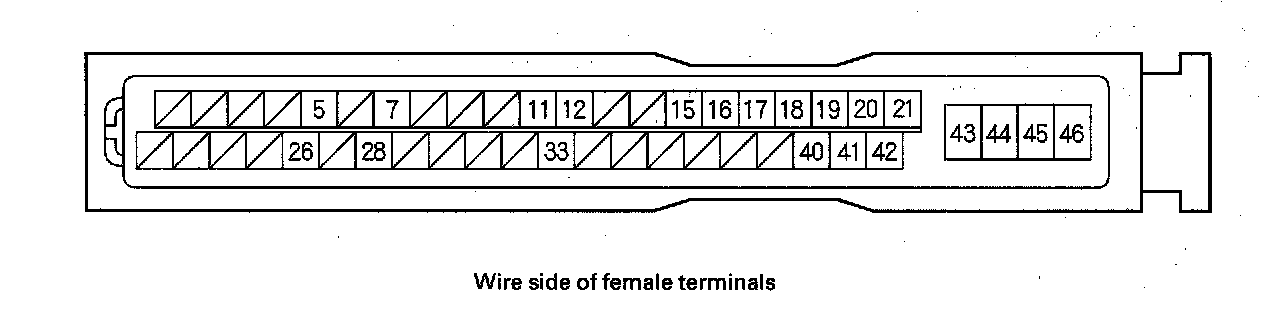

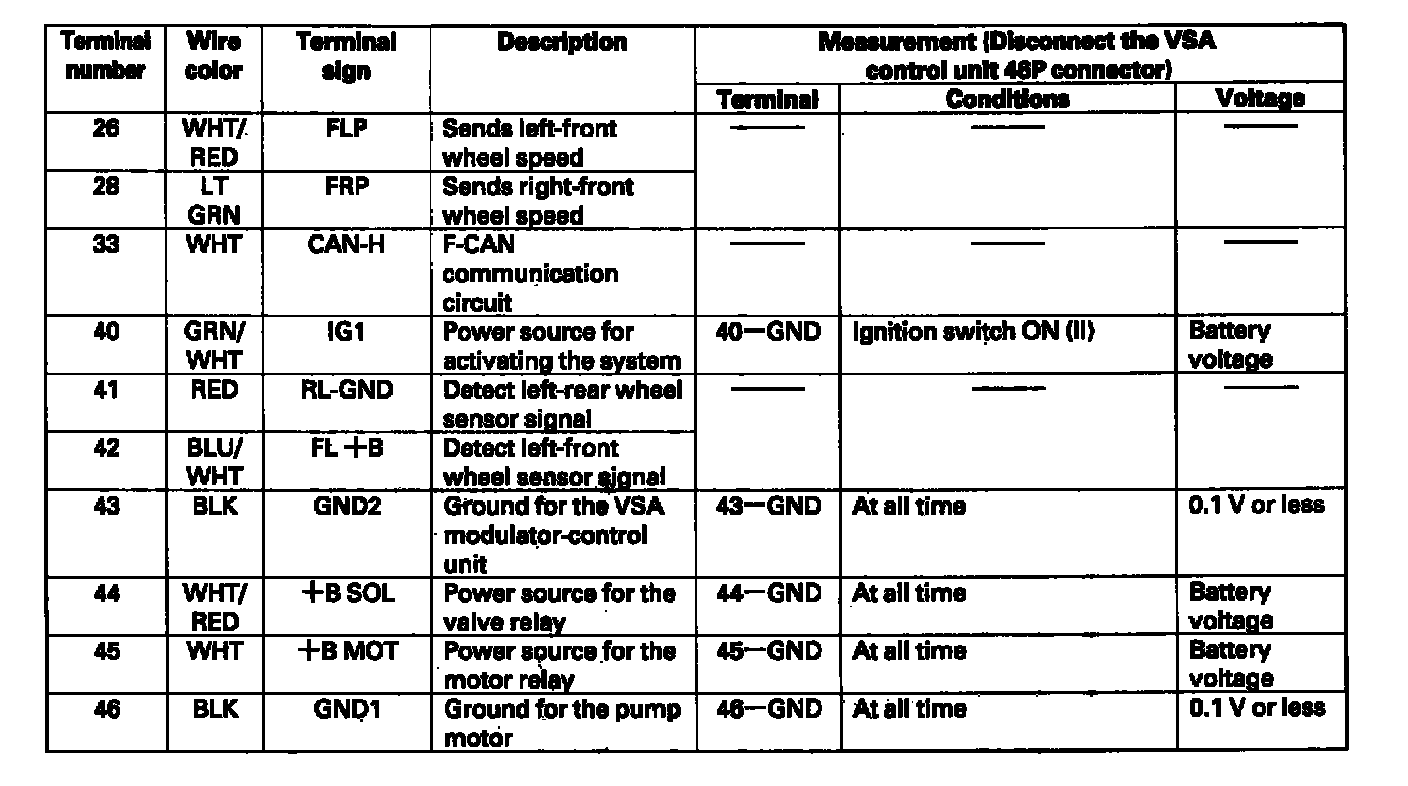

VSA Modulator-Control Unit Inputs and Outputs:
VSA Modulator-Control Unit Inputs and Outputs:
VSA Modulator-Control Unit Inputs and Outputs:
