Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

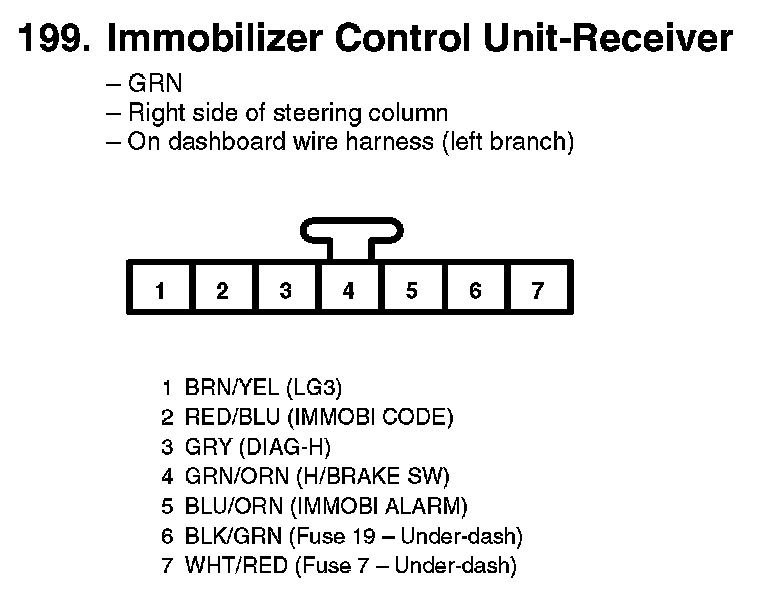

199. Immobilizer Control Unit-Receiver:

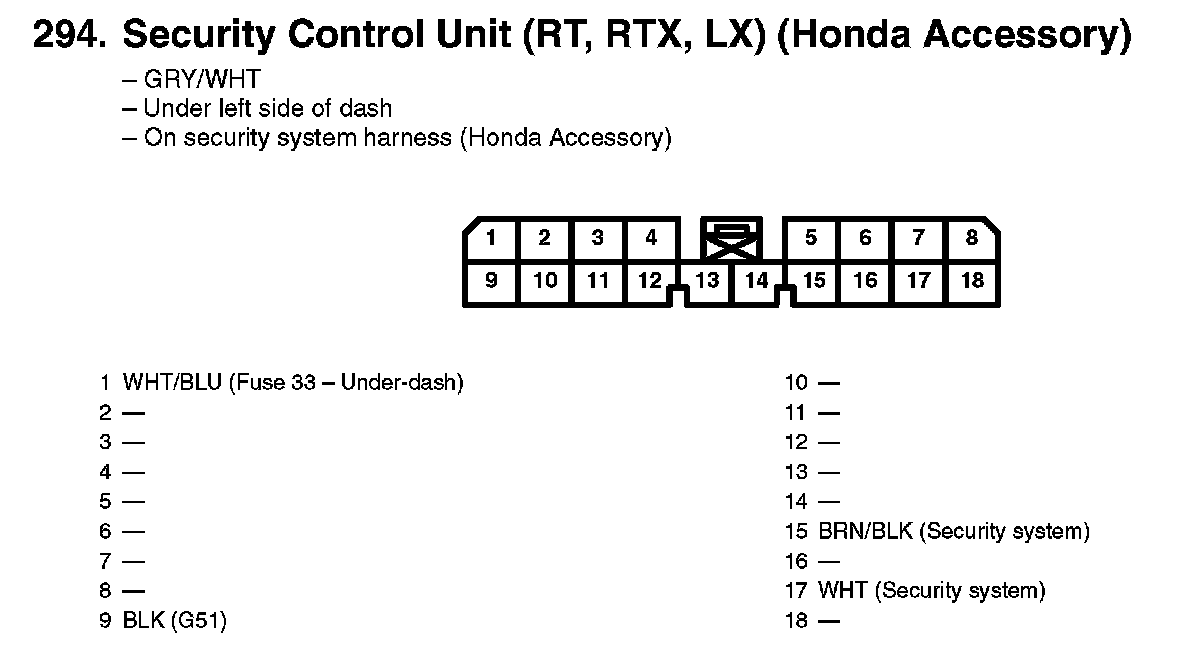

294. Security Control Unit (RT, RTX, LX) (Honda Accessory):
