Transmission Position Sensor/Switch: Locations

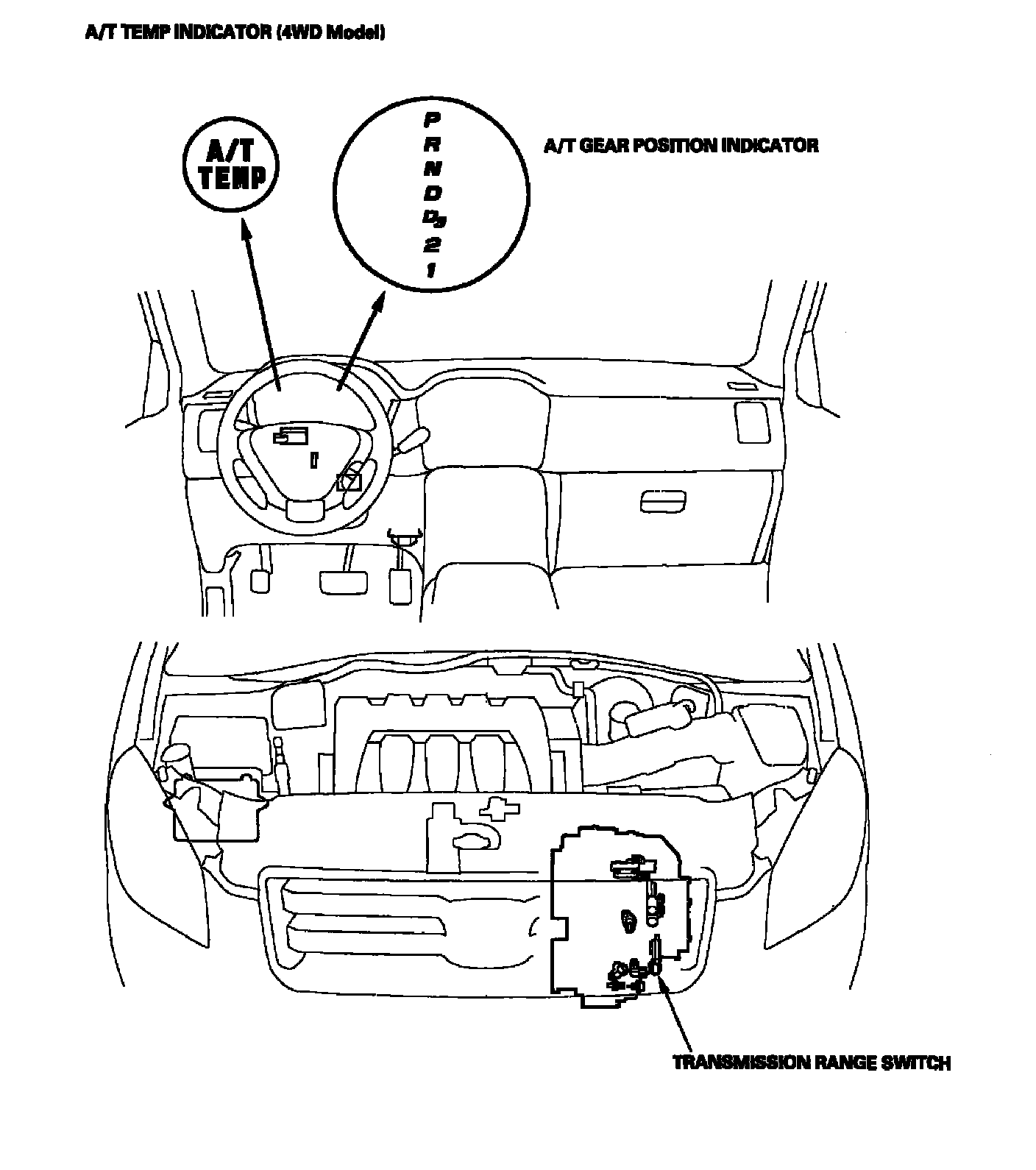

A/T Gear Position Indicator Component Location Index:

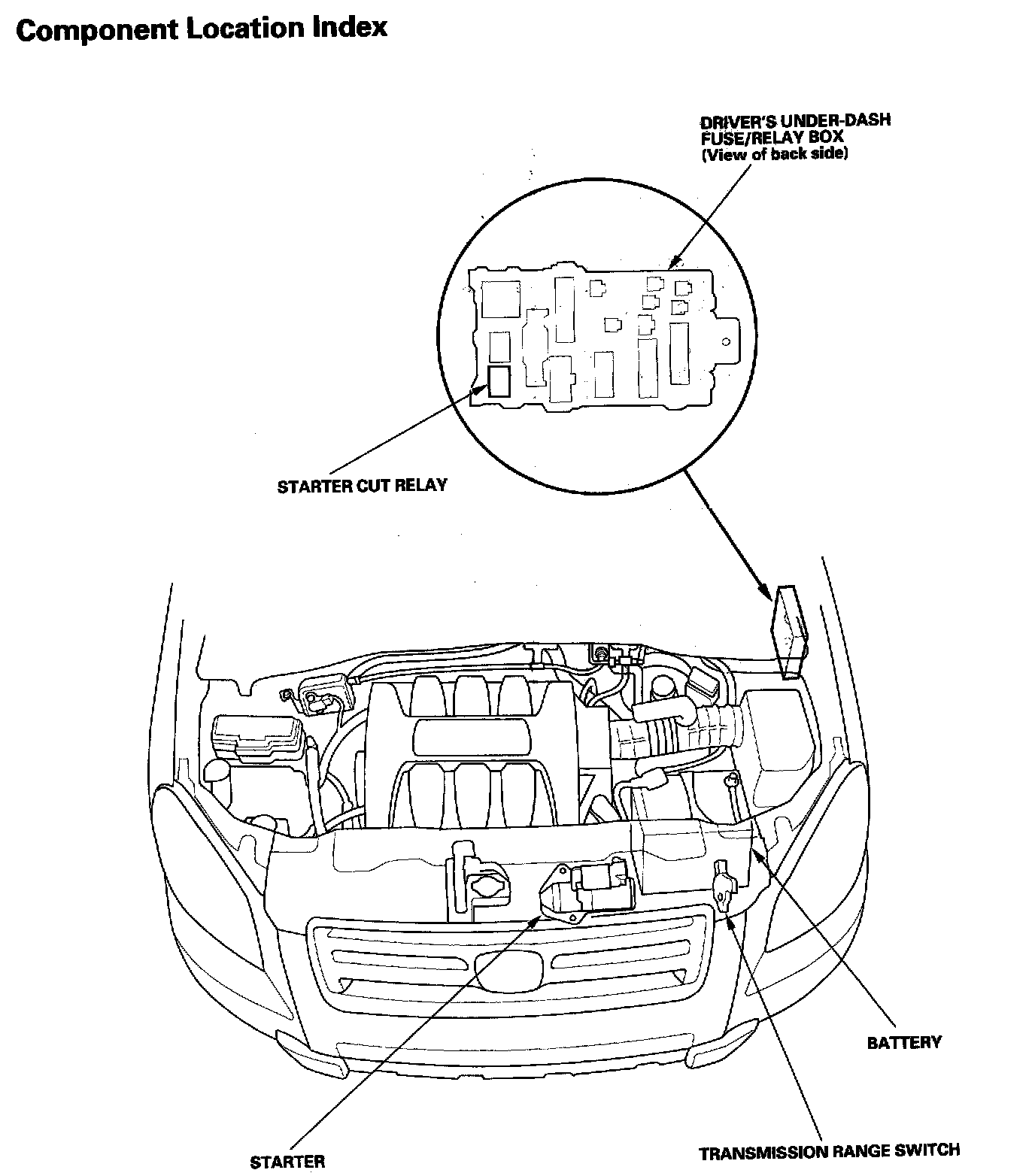

Starting System - Component Location Index:

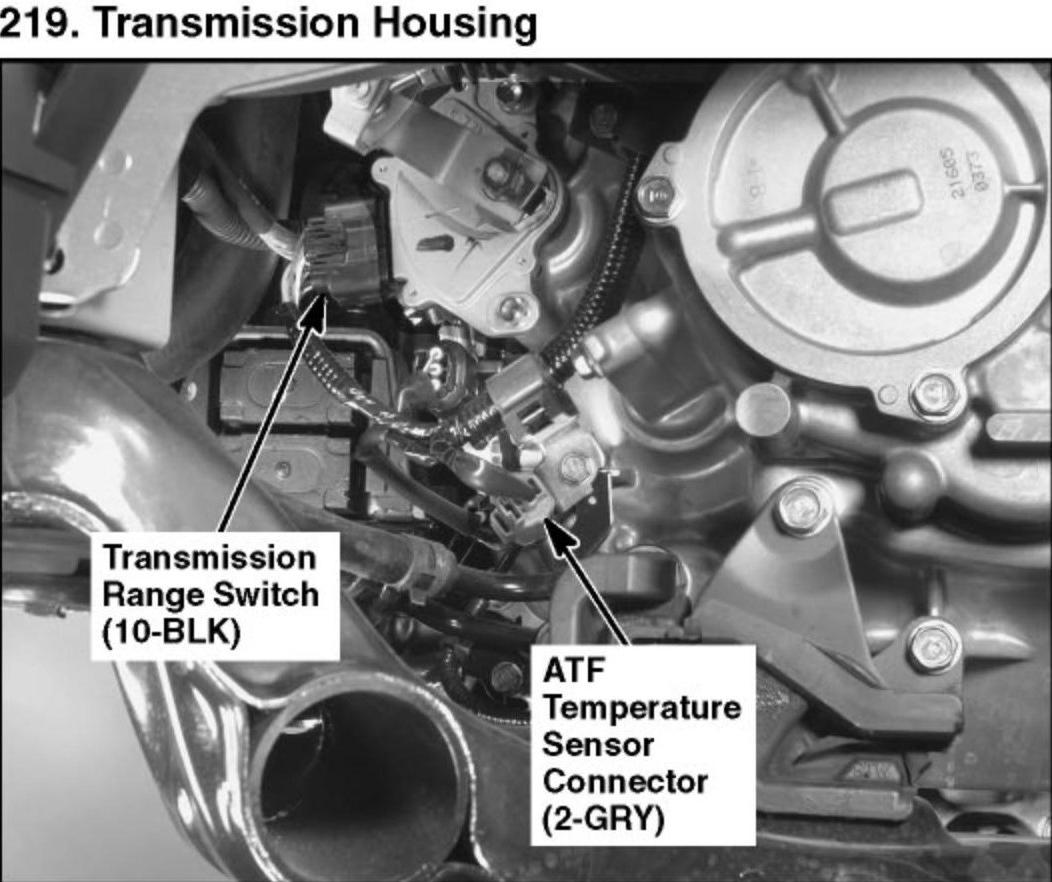

219. Transmission Housing:
