Keyless Entry Receiver: Locations

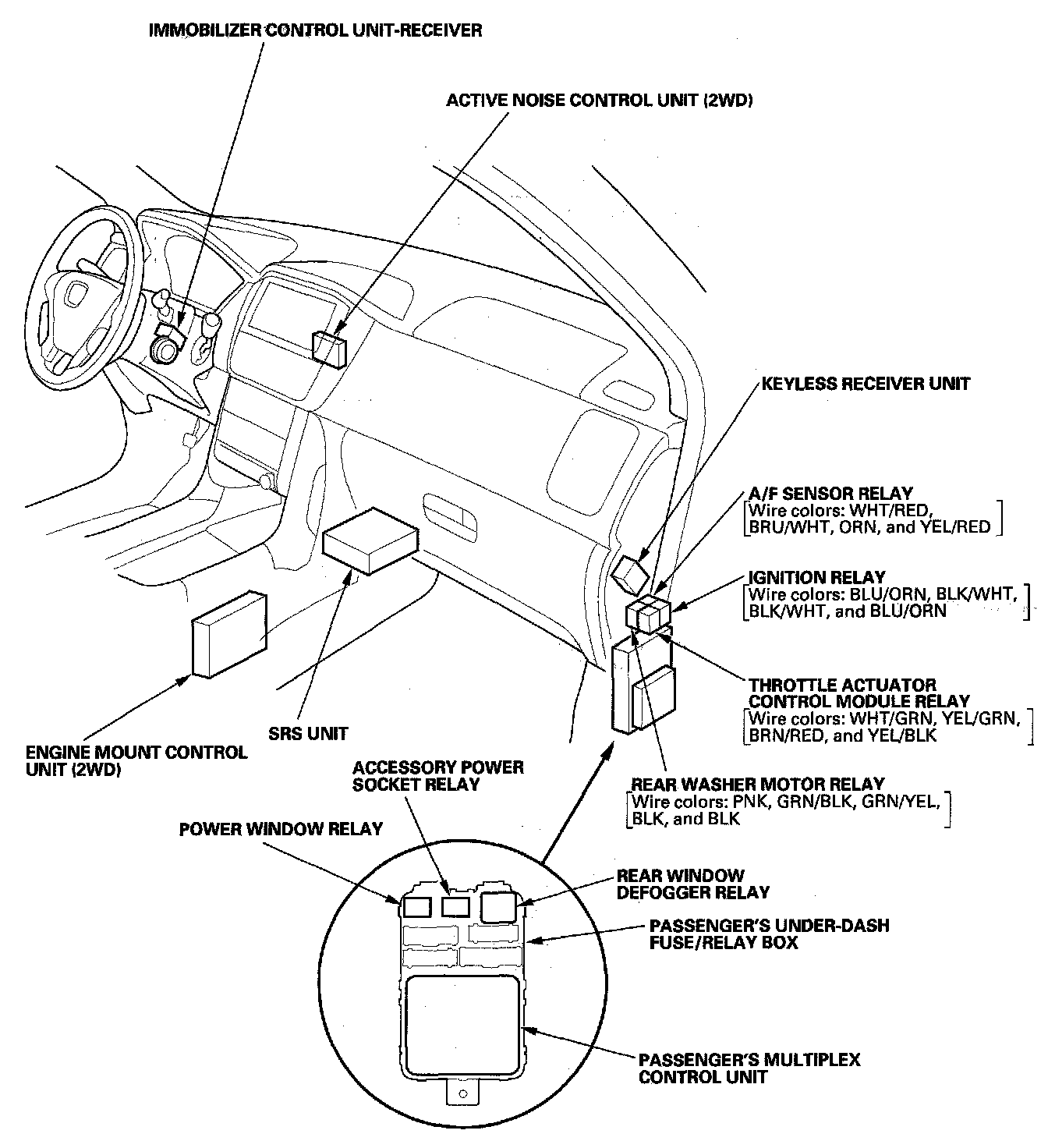

Relay And Control Unit Locations - Dashboard:

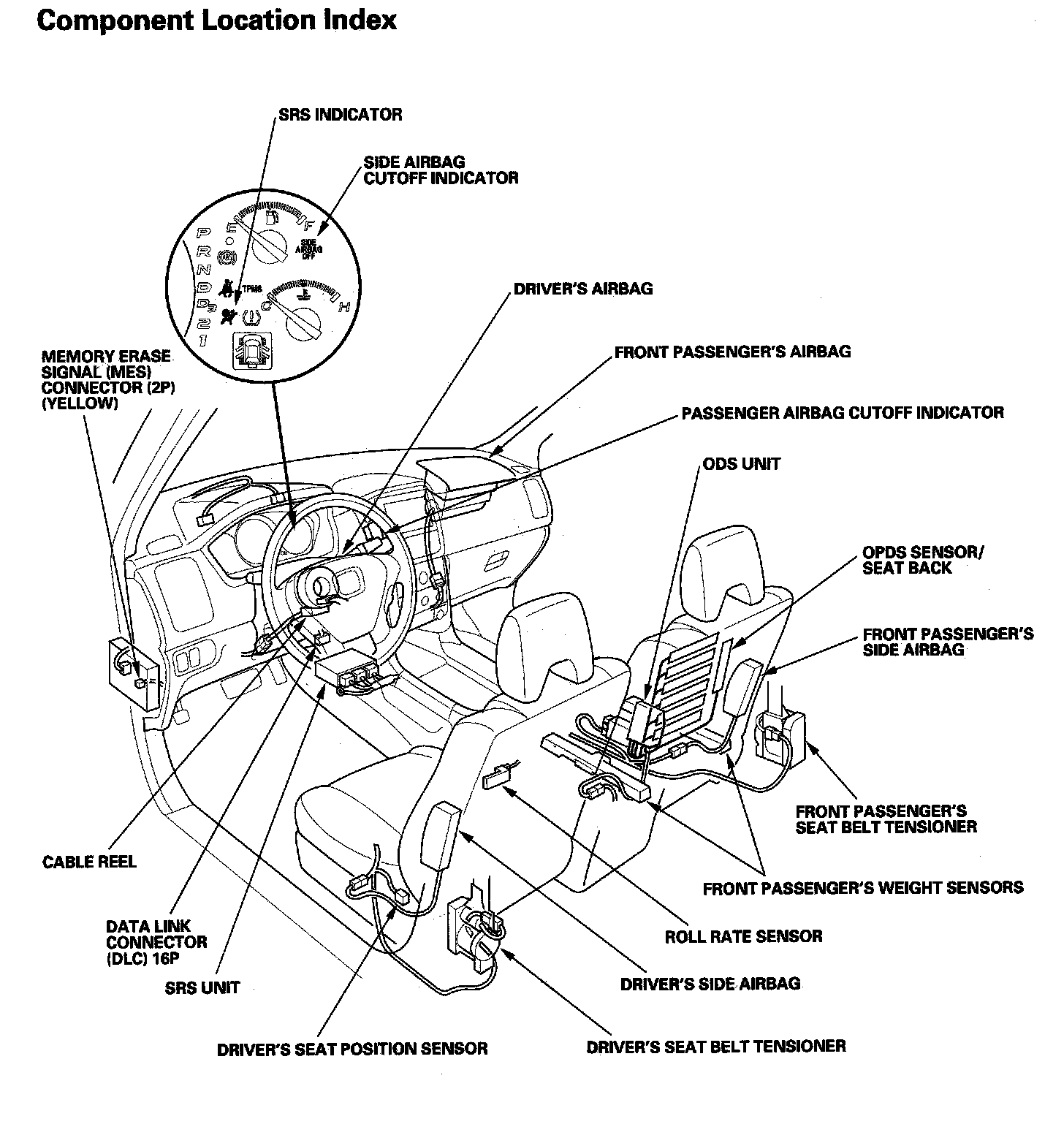

SRS - Component Location Index:

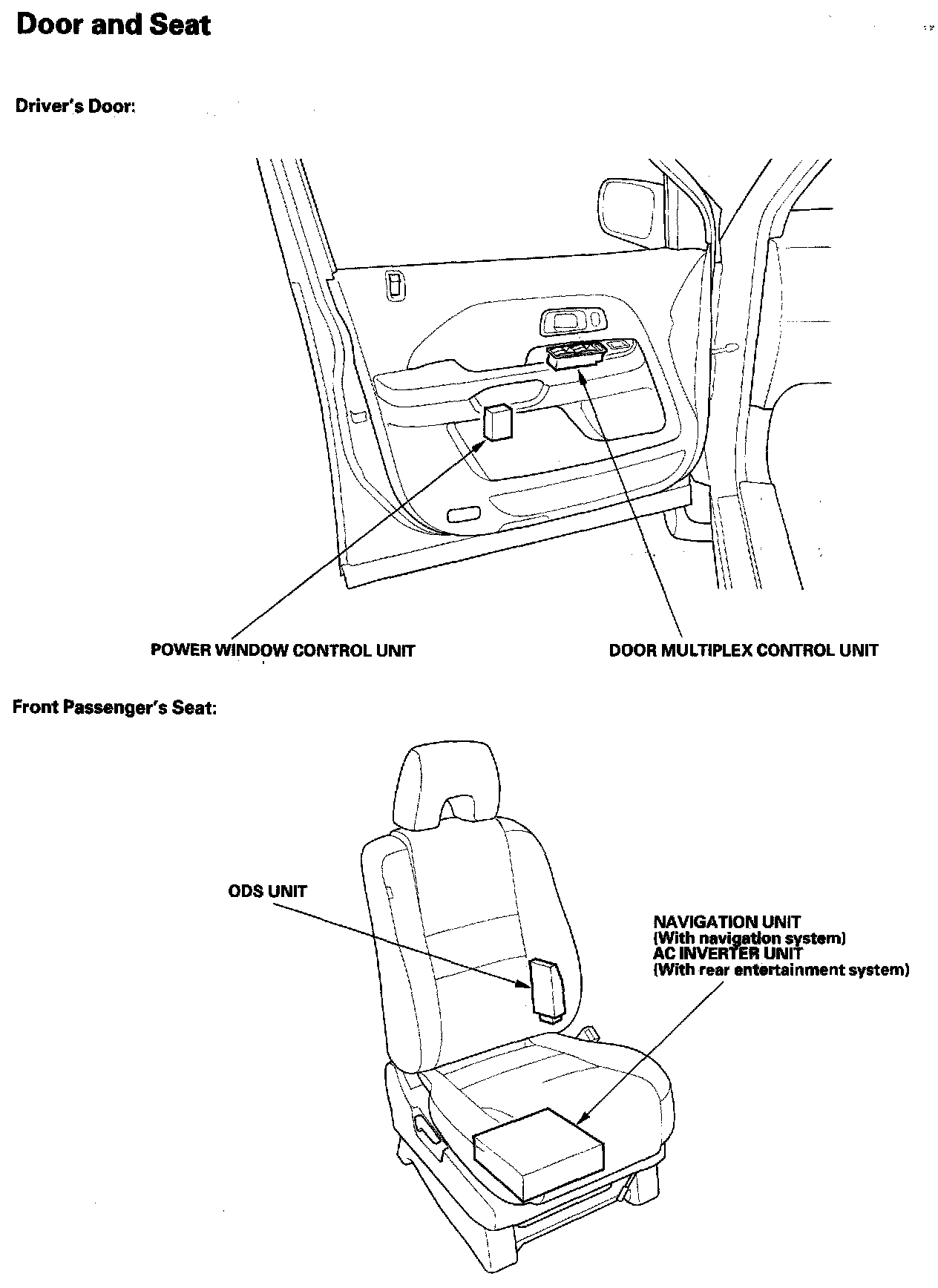

Relay And Control Unit Location - Door And Seat:

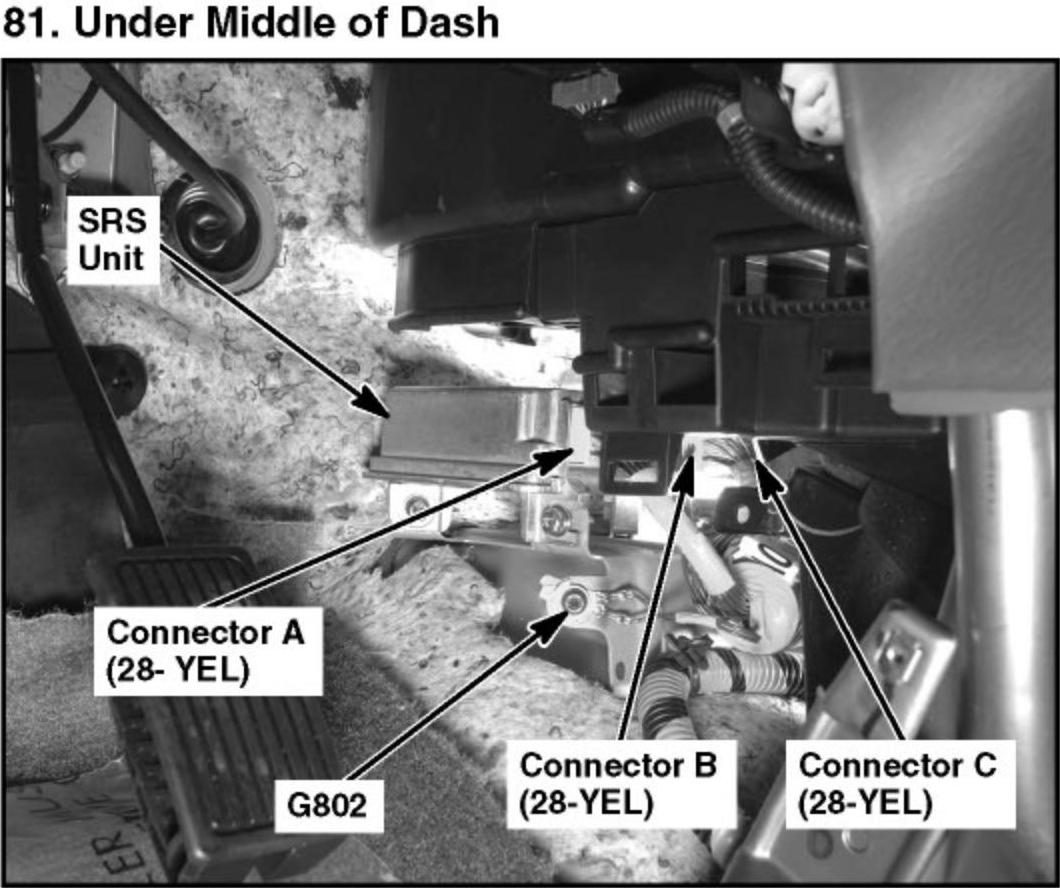

81. Under Middle Of Dash:

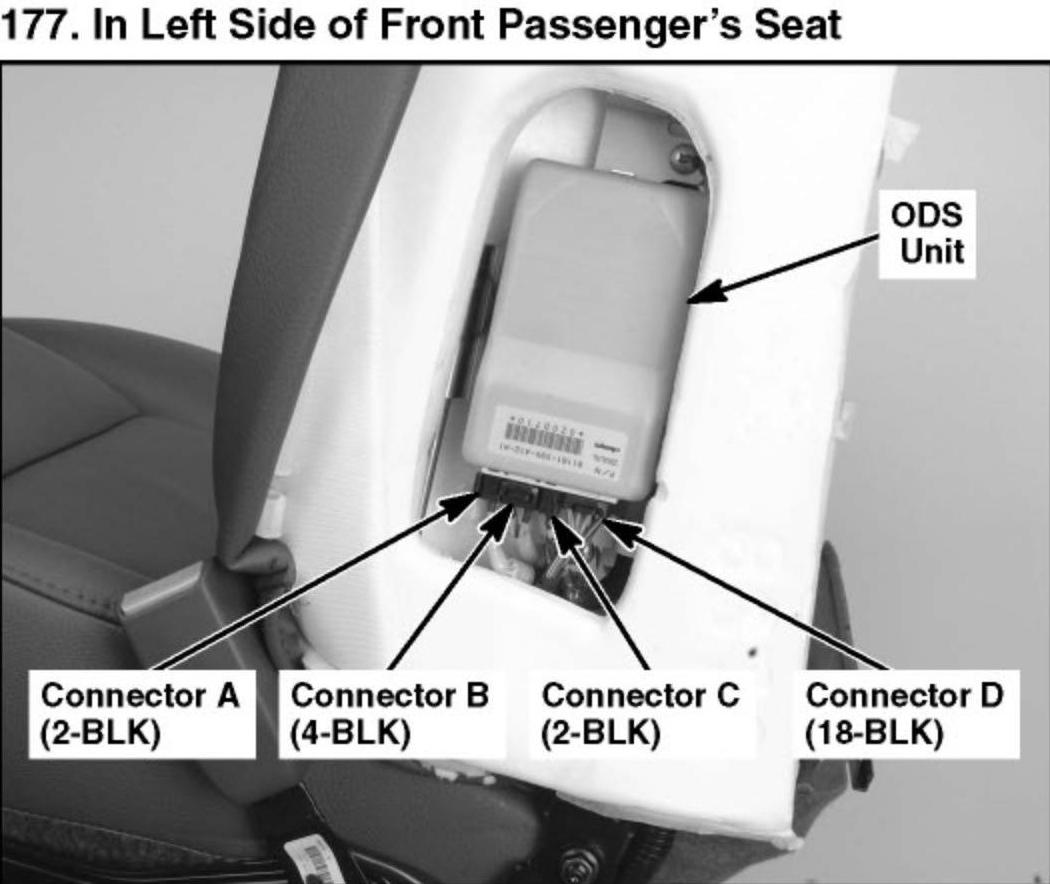

177. In Left Side Of Front Passenger's Seat:
