Navigation Module: Locations

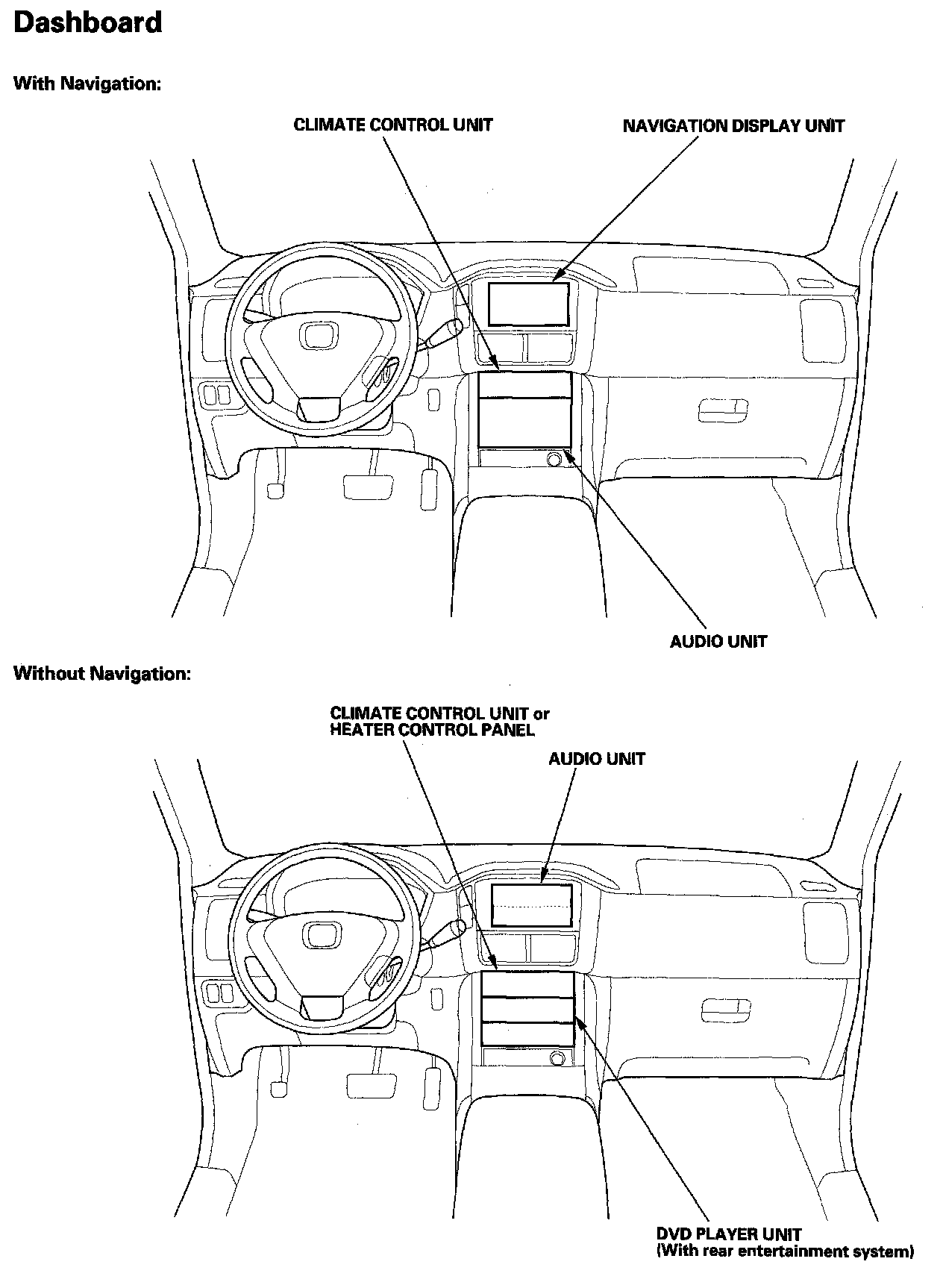

Relay And Control Unit Locations - Dashboard:
Relay And Control Unit Location - Door And Seat:

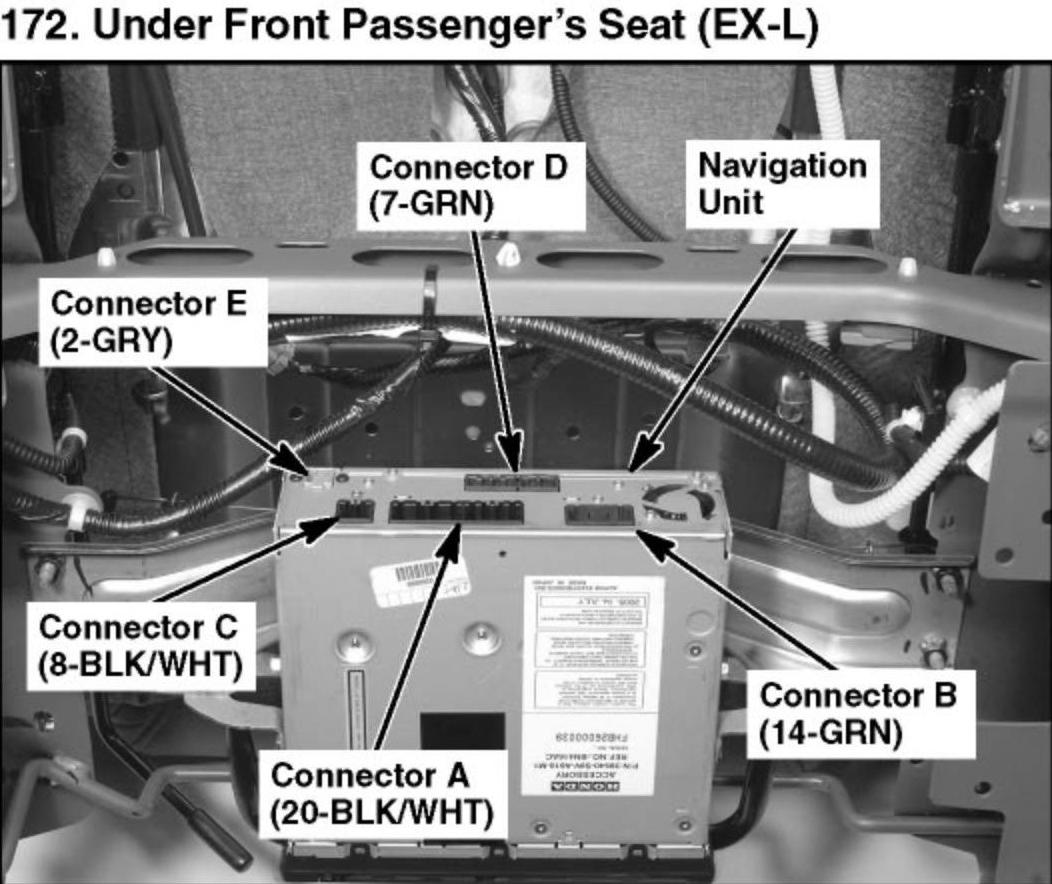

172. Under Front Passenger's Seat (EX-L):
