Wheel Speed Sensor
Wheel Speed Sensor

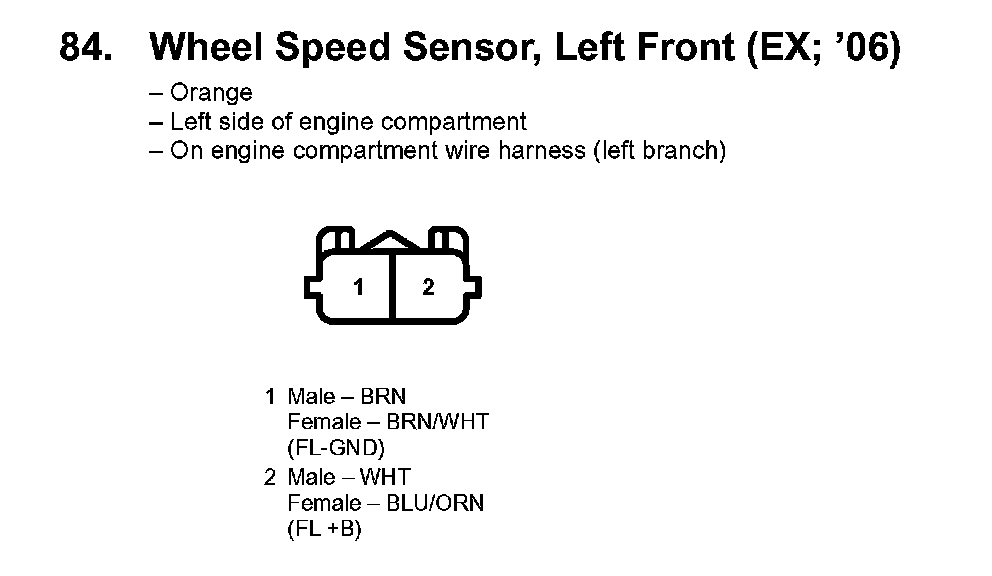

84. Wheel Speed Sensor, Left Front (EX;'06):

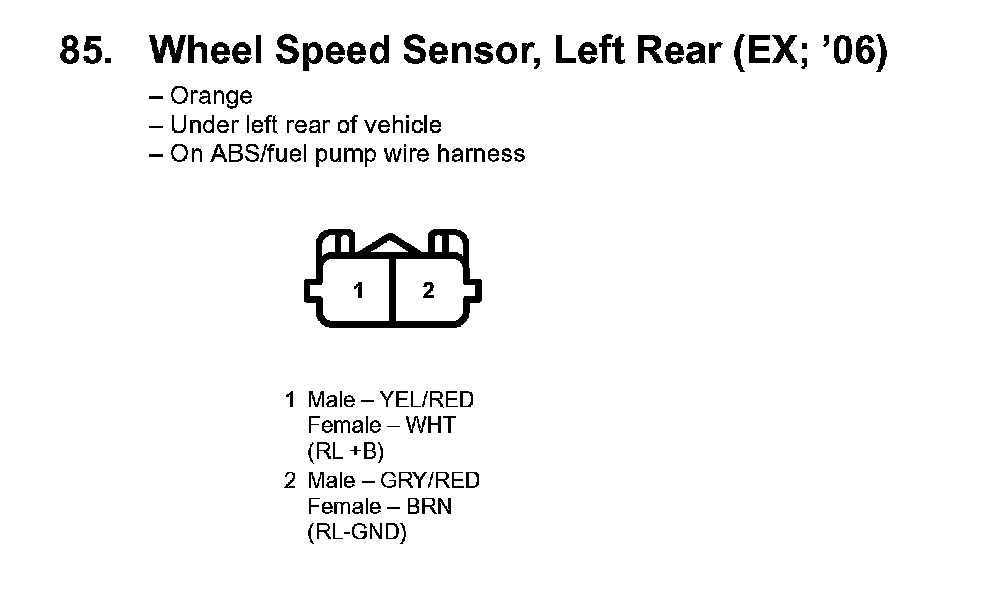

85. Wheel Speed Sensor, Left Rear (EX; '06):

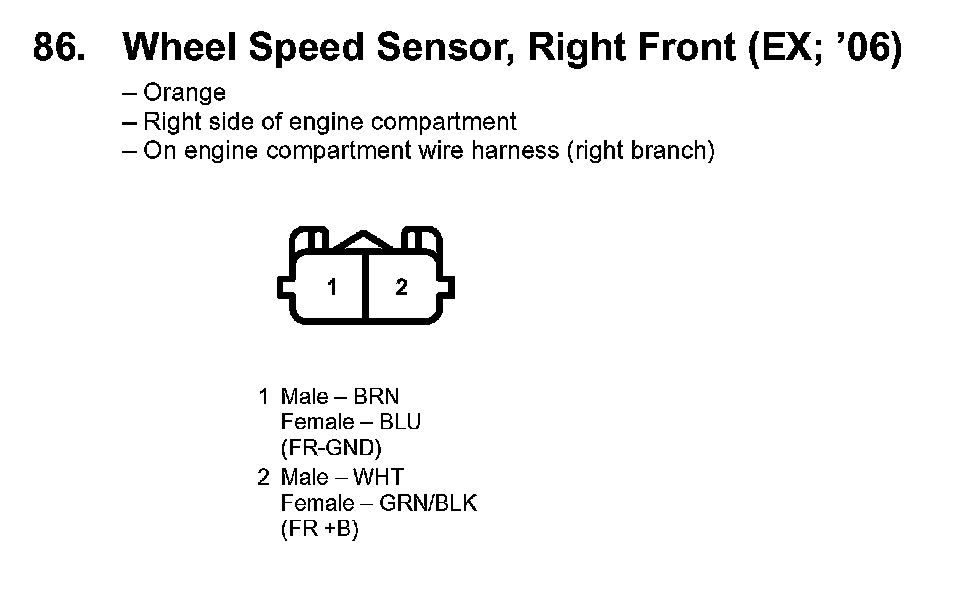

86. Wheel Speed Sensor, Right Front (EX; '06):

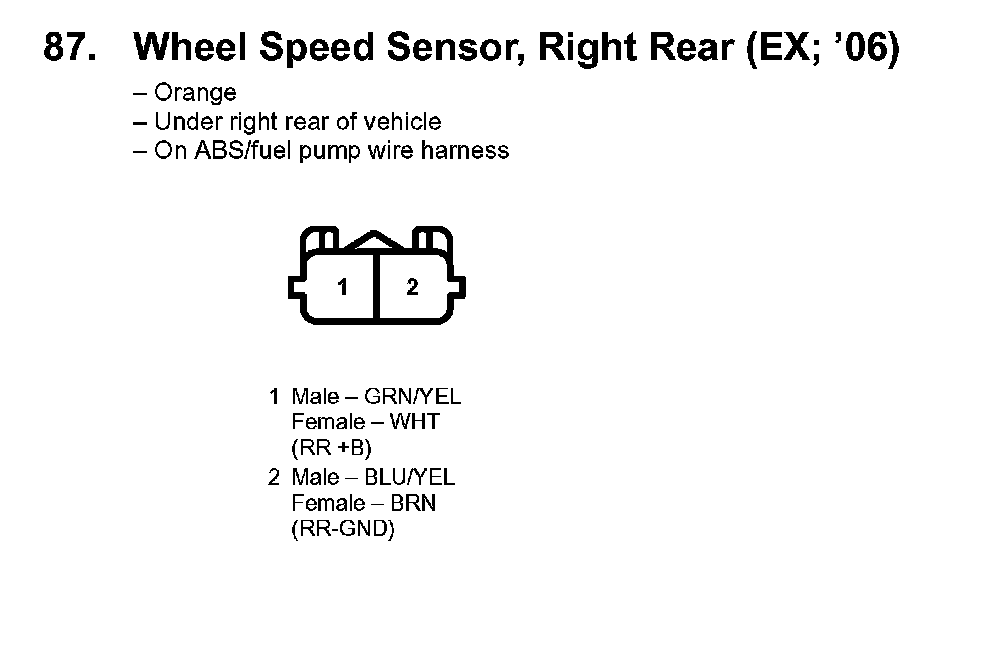

87. Wheel Speed Sensor, Right Rear (EX; '06):
