Pinout Values and Diagnostic Parameters

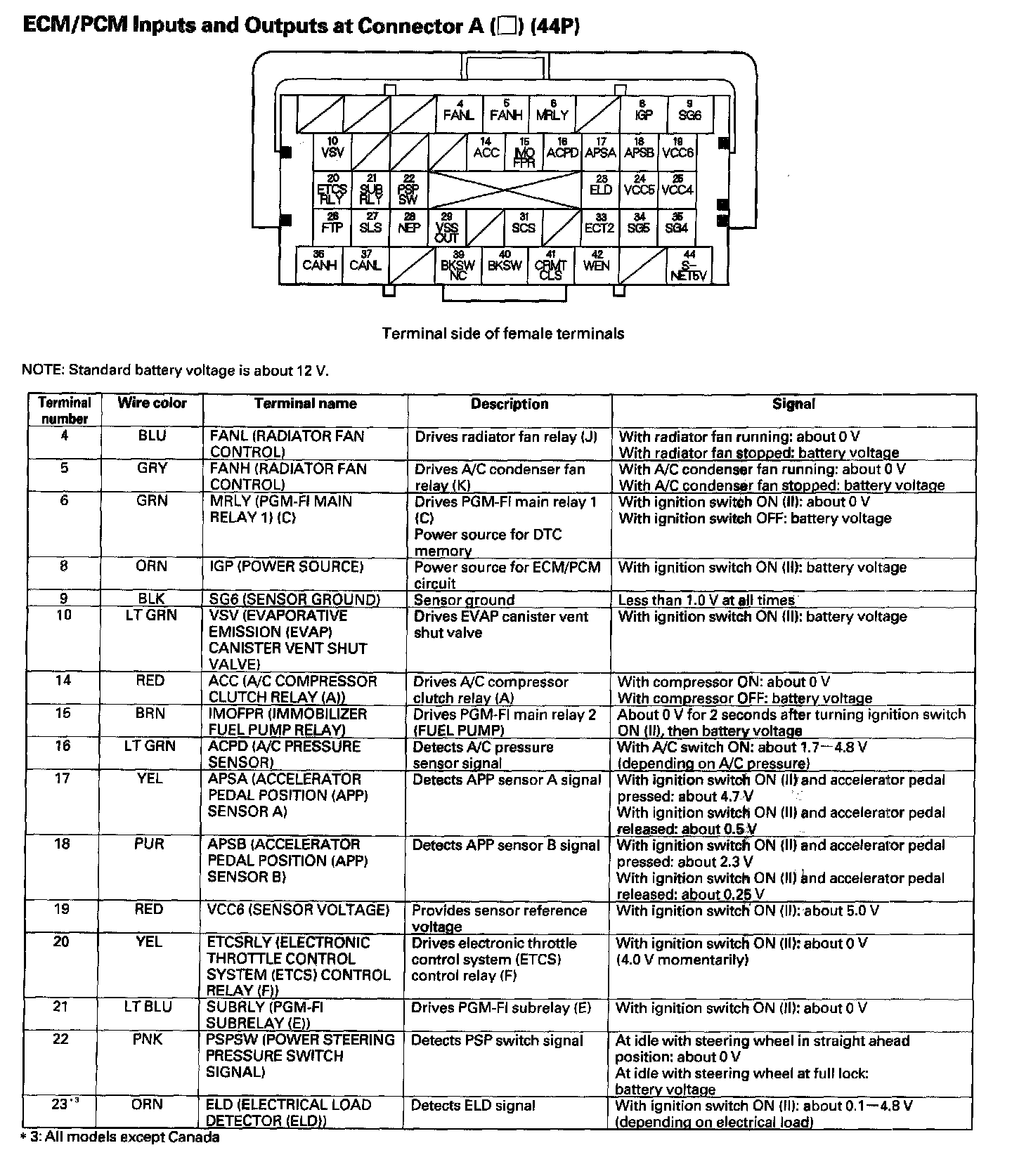

ECM/PCM Inputs And Outputs At Connector A (44P) Part 1:

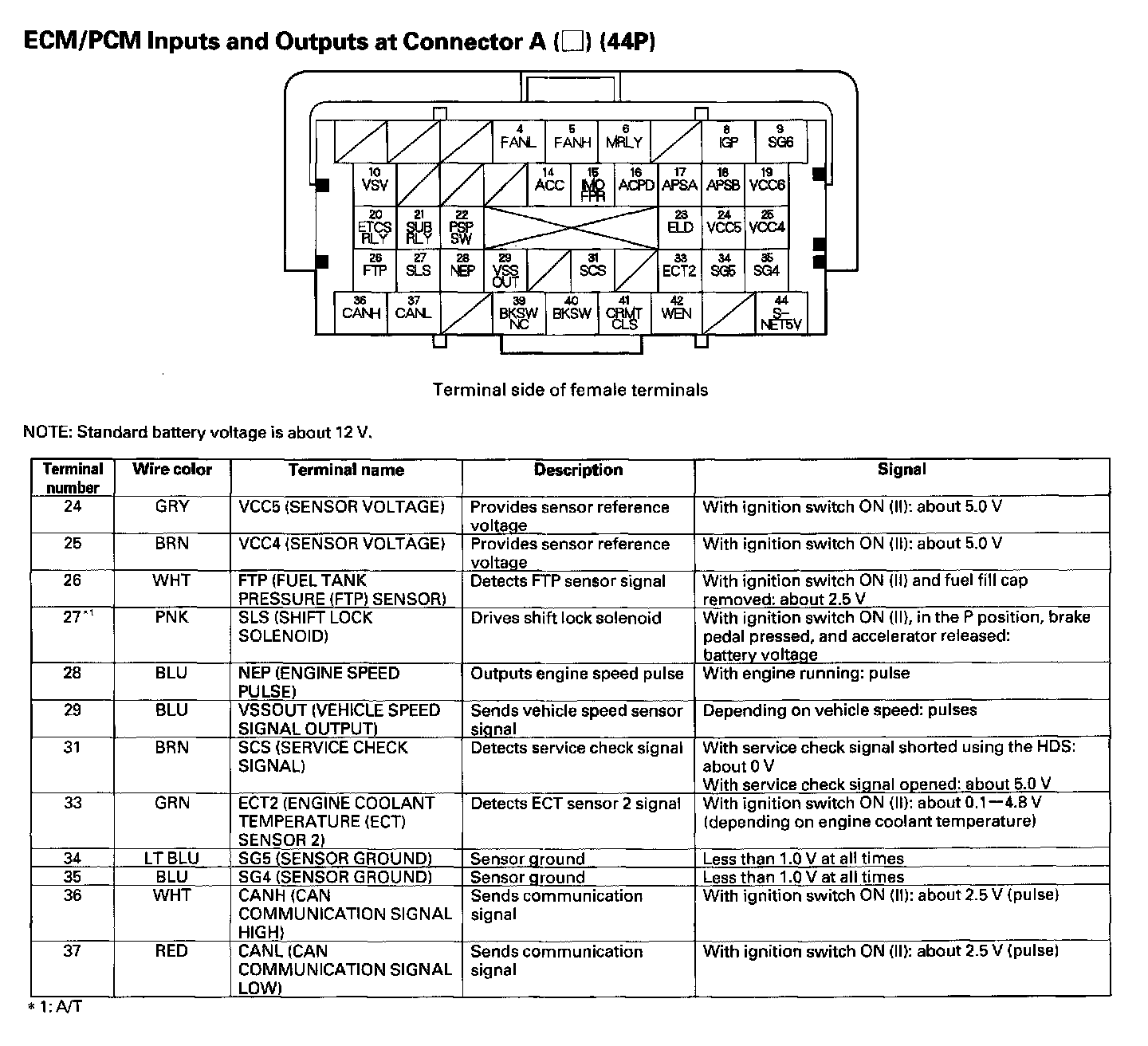

ECM/PCM Inputs And Outputs At Connector A (44P) Part 2:

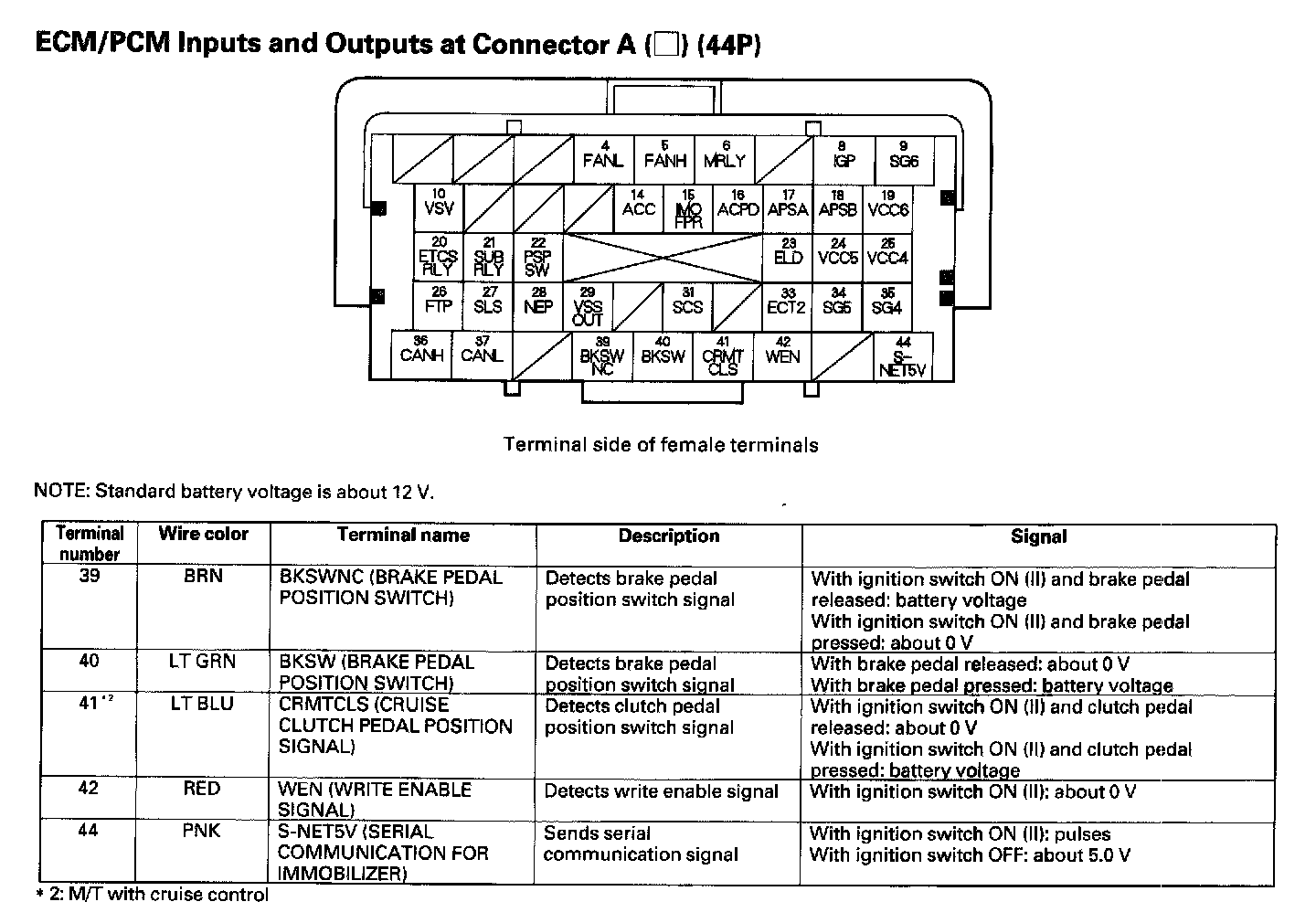

ECM/PCM Inputs And Outputs At Connector A (44P) Part 3:

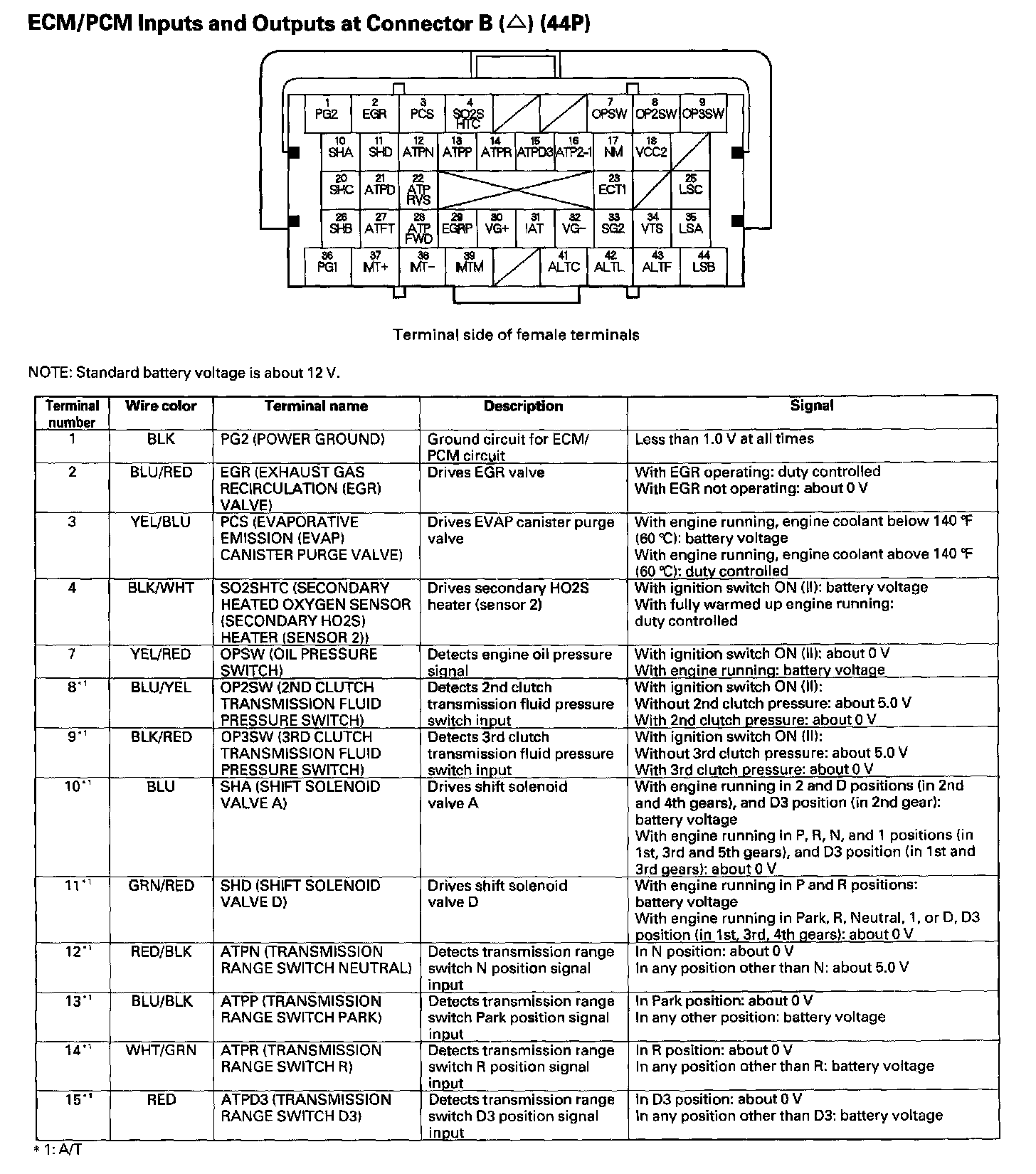

ECM/PCM Inputs And Outputs At Connector B (44P) Part 1:

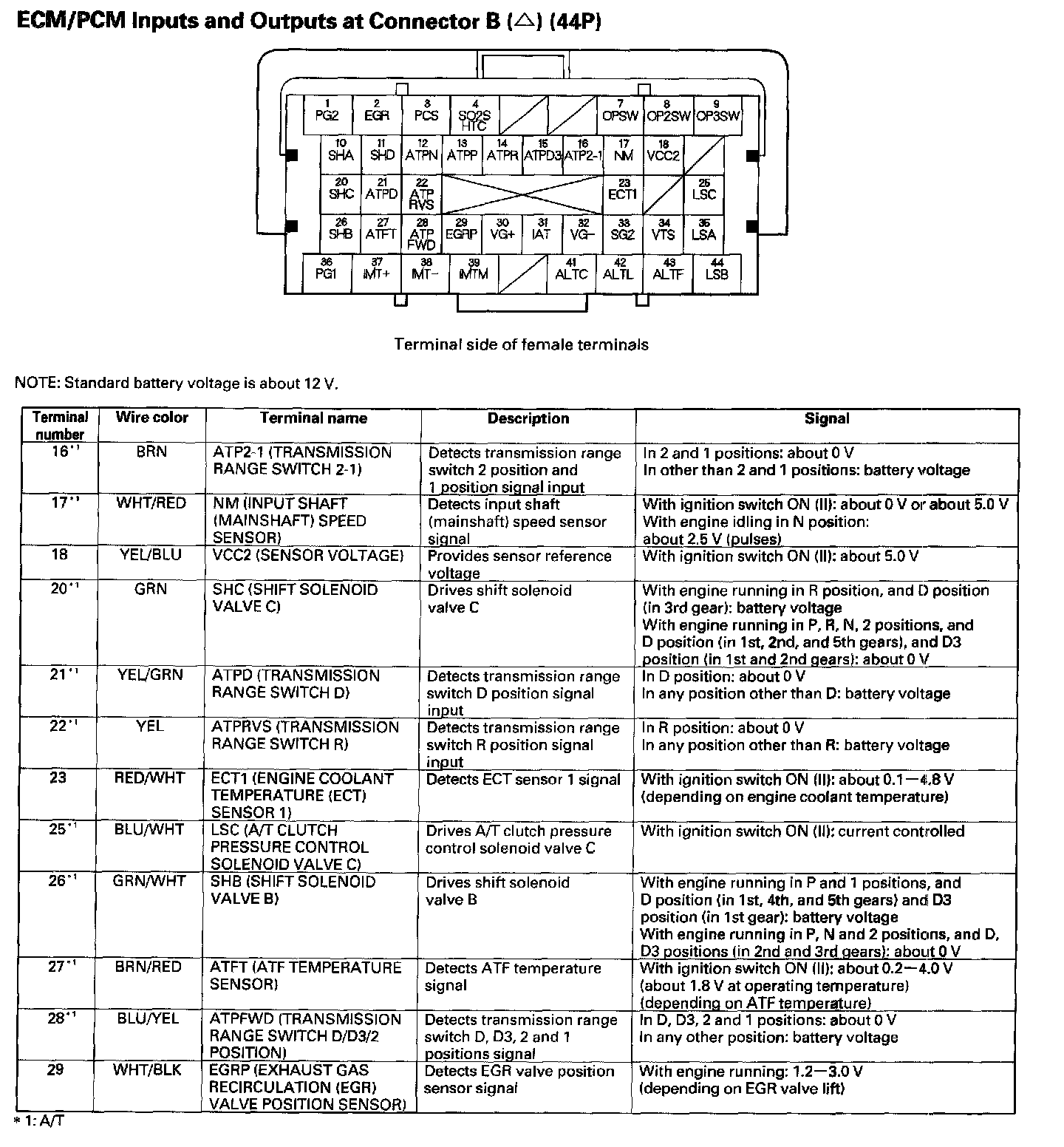

ECM/PCM Inputs And Outputs At Connector B (44P) Part 2:

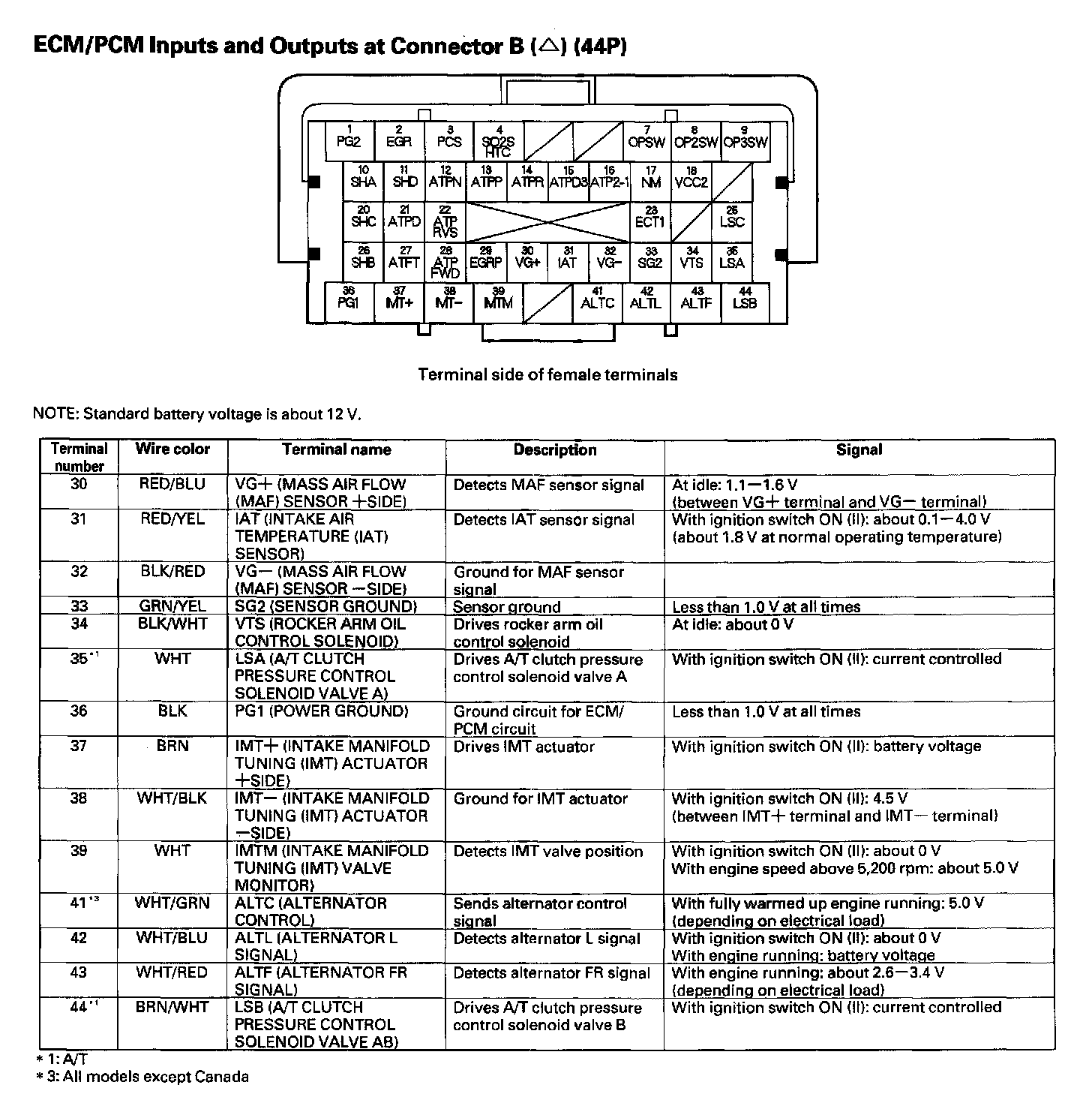

ECM/PCM Inputs And Outputs At Connector B (44P) Part 3:

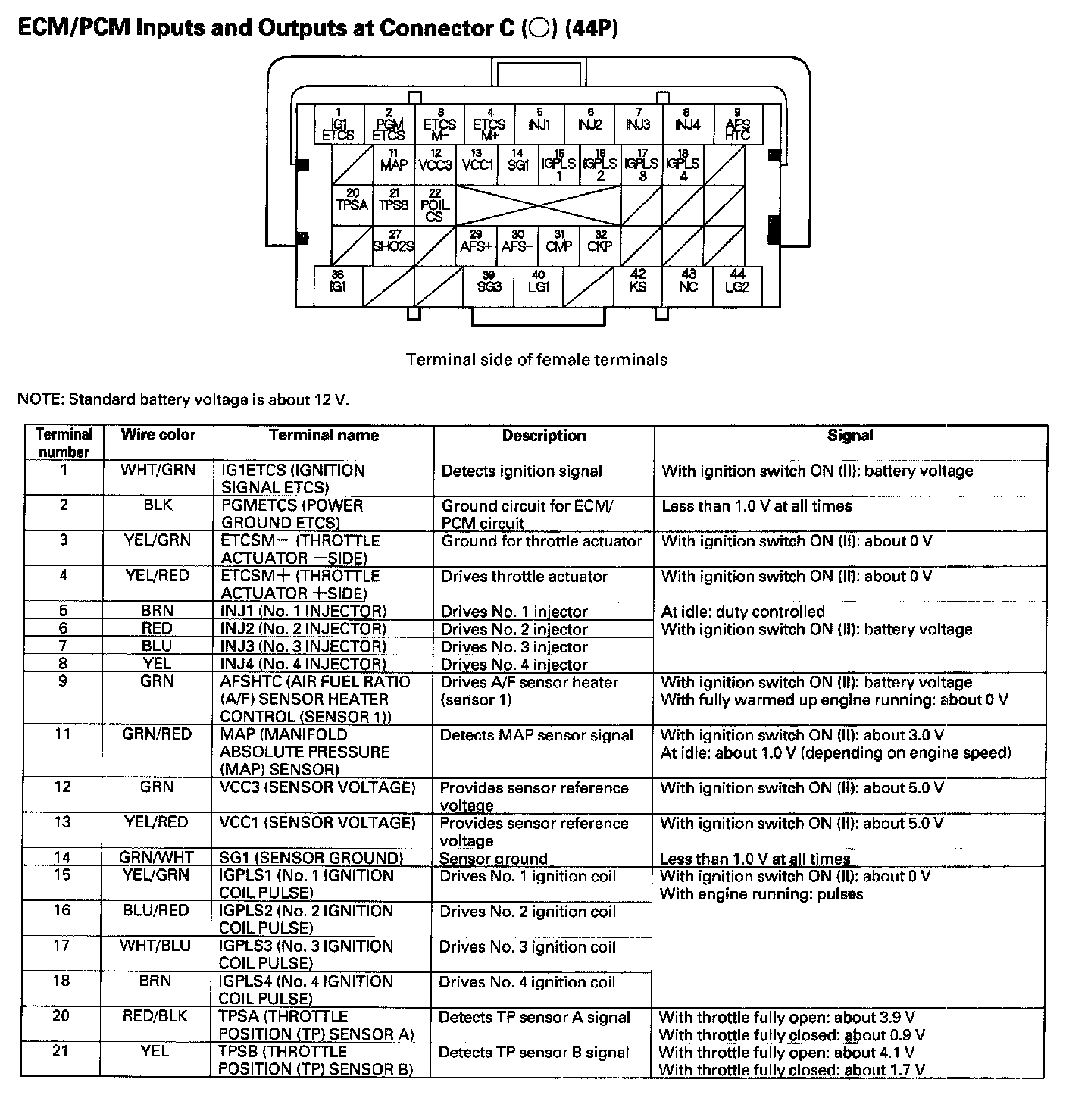

ECM/PCM Inputs And Outputs At Connector C (44P) Part 1:

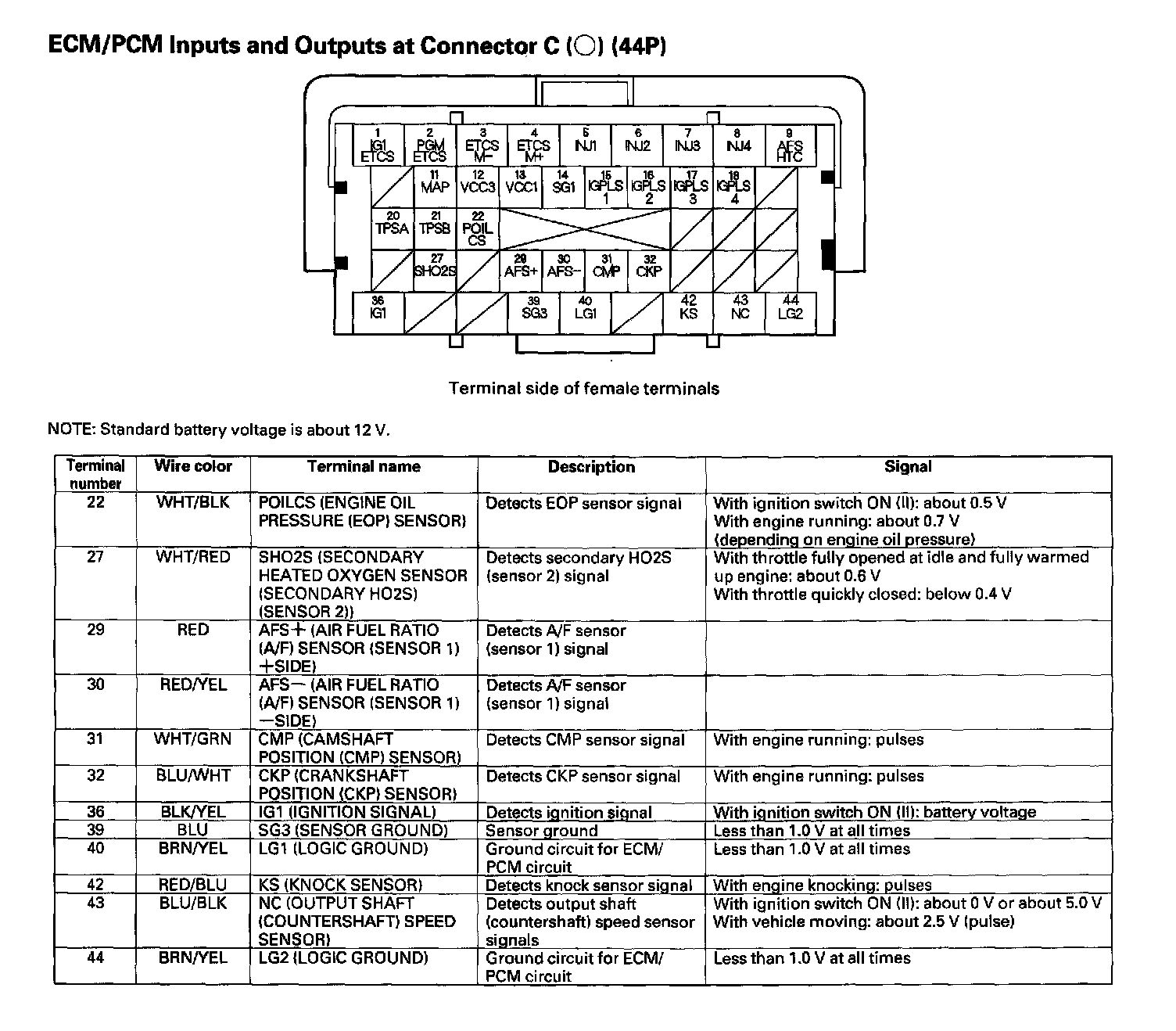

ECM/PCM Inputs And Outputs At Connector C (44P) Part 2:
