Home >> Honda >> 2006 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

108. Right Quarter Panel:

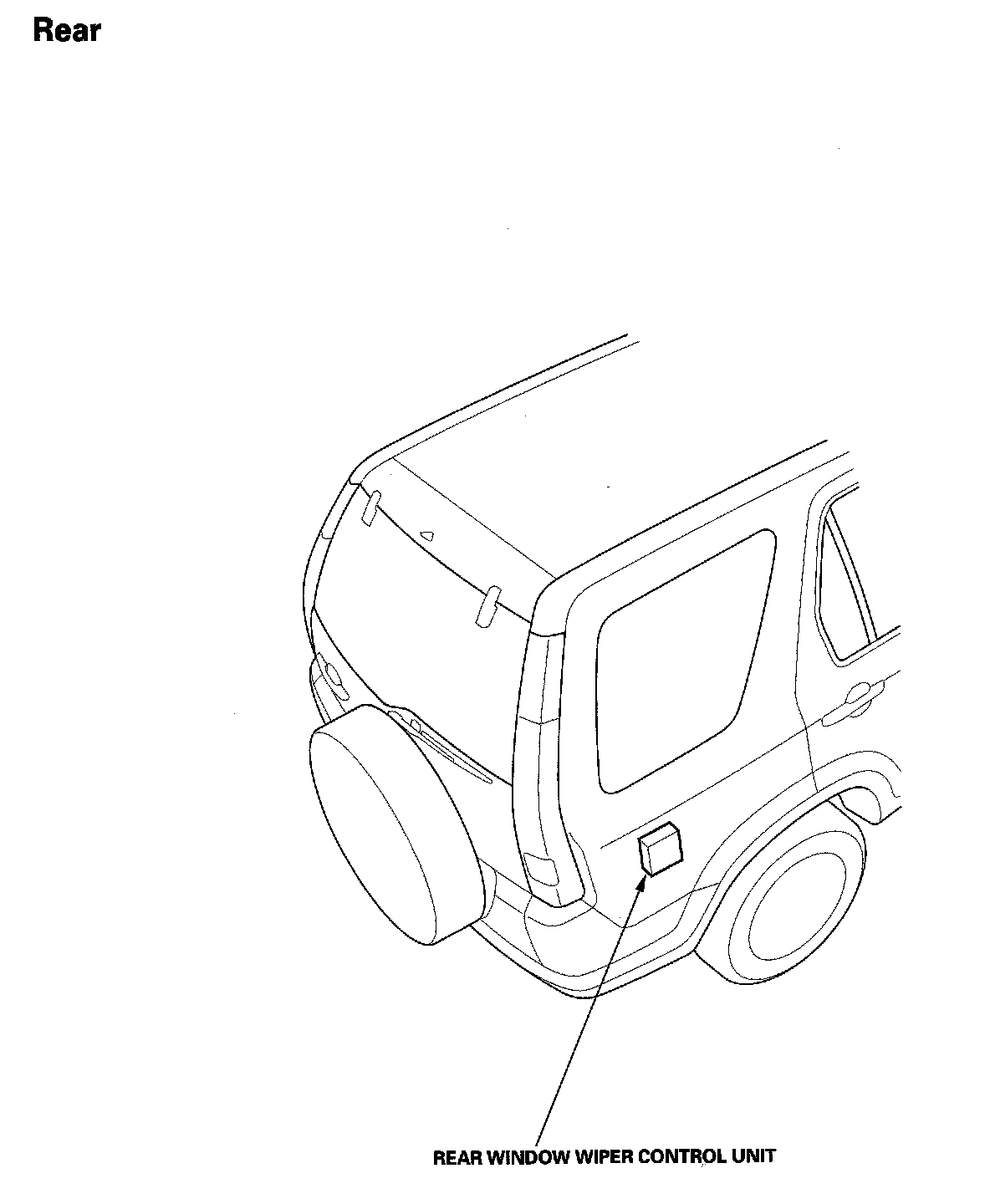

Relays And Control Unit Locations - Rear:

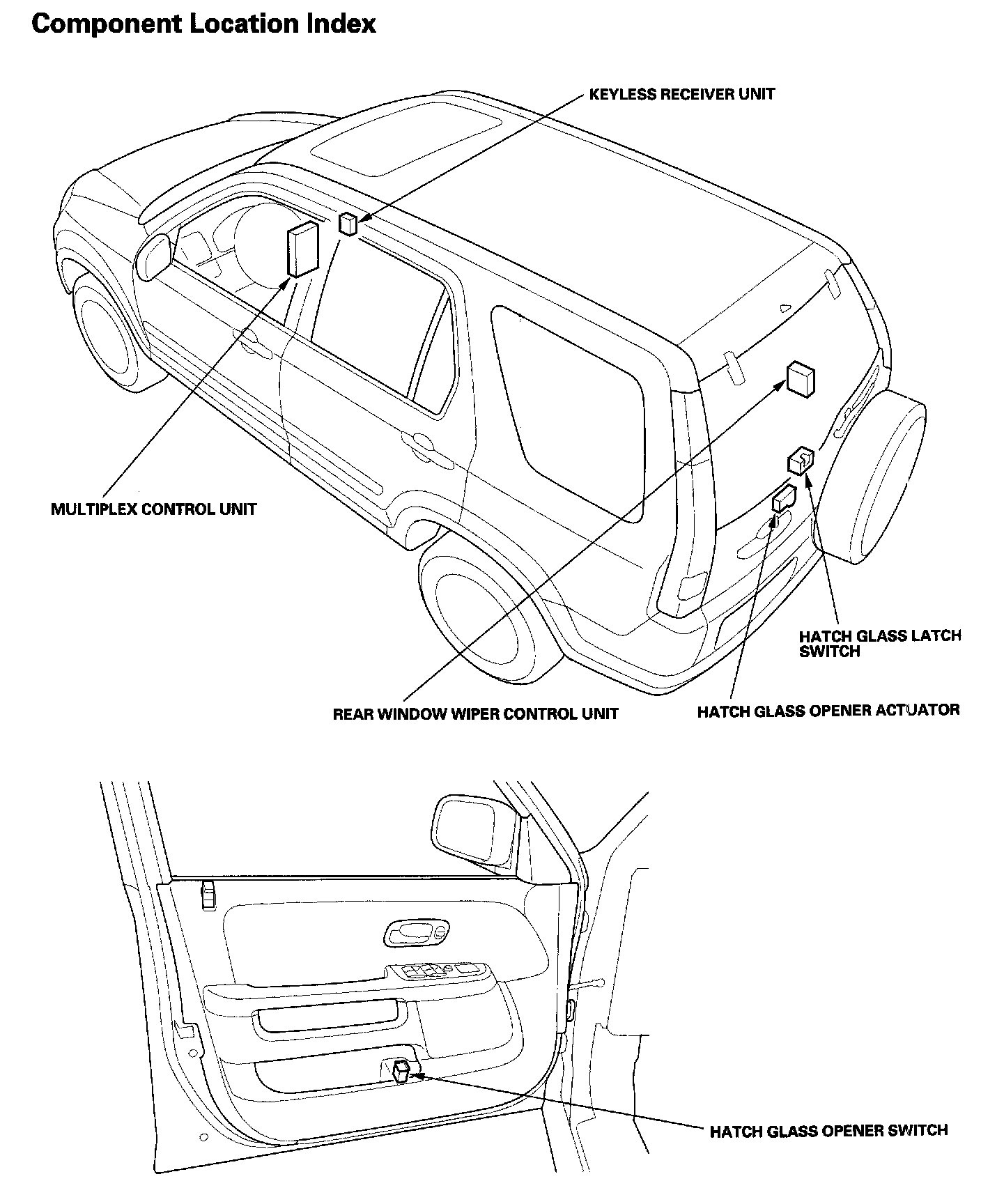

Hatch Glass Opener - Component Location Index:

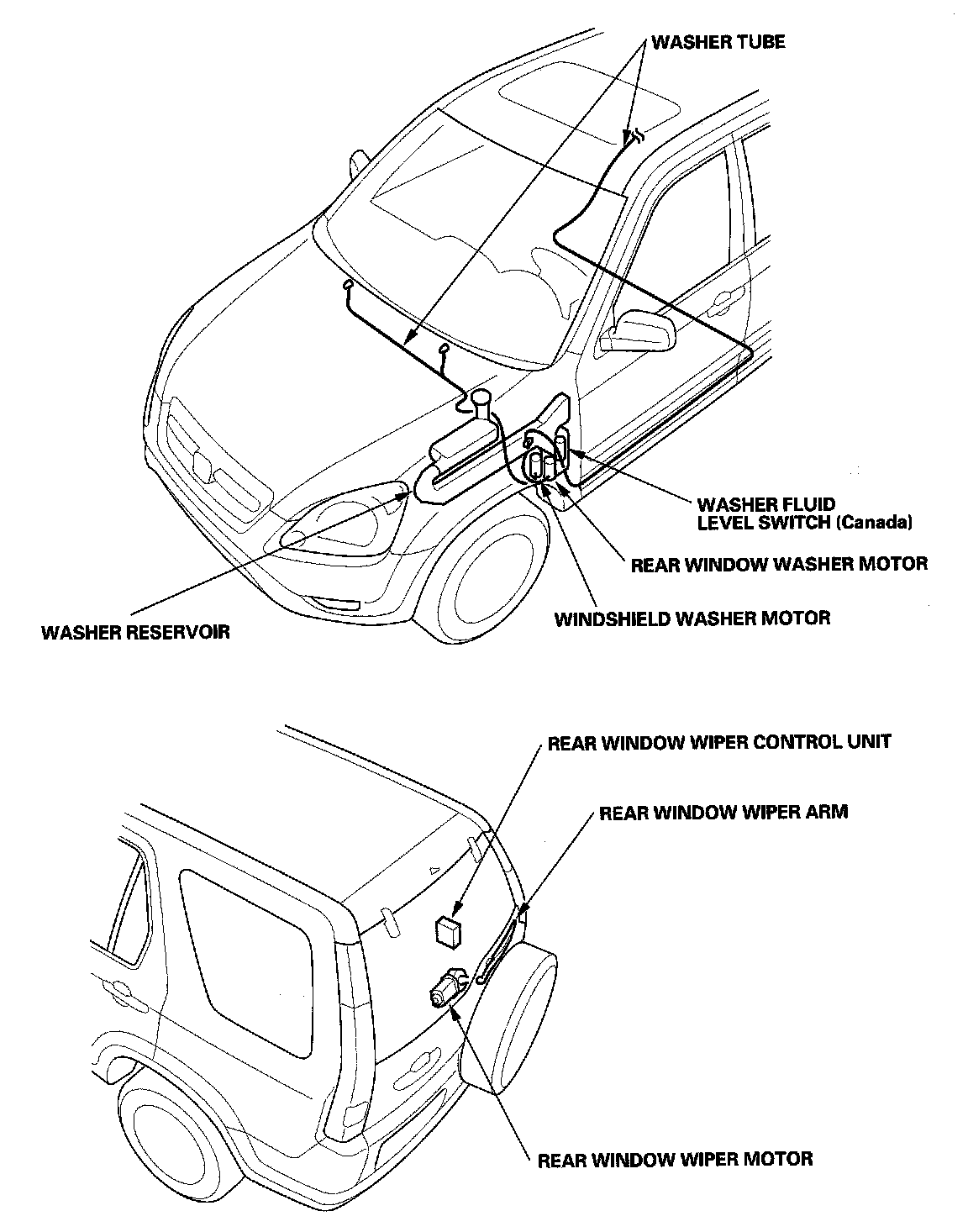

Wipers/Washers - Component Location Index:
