Electronic Brake Control Module

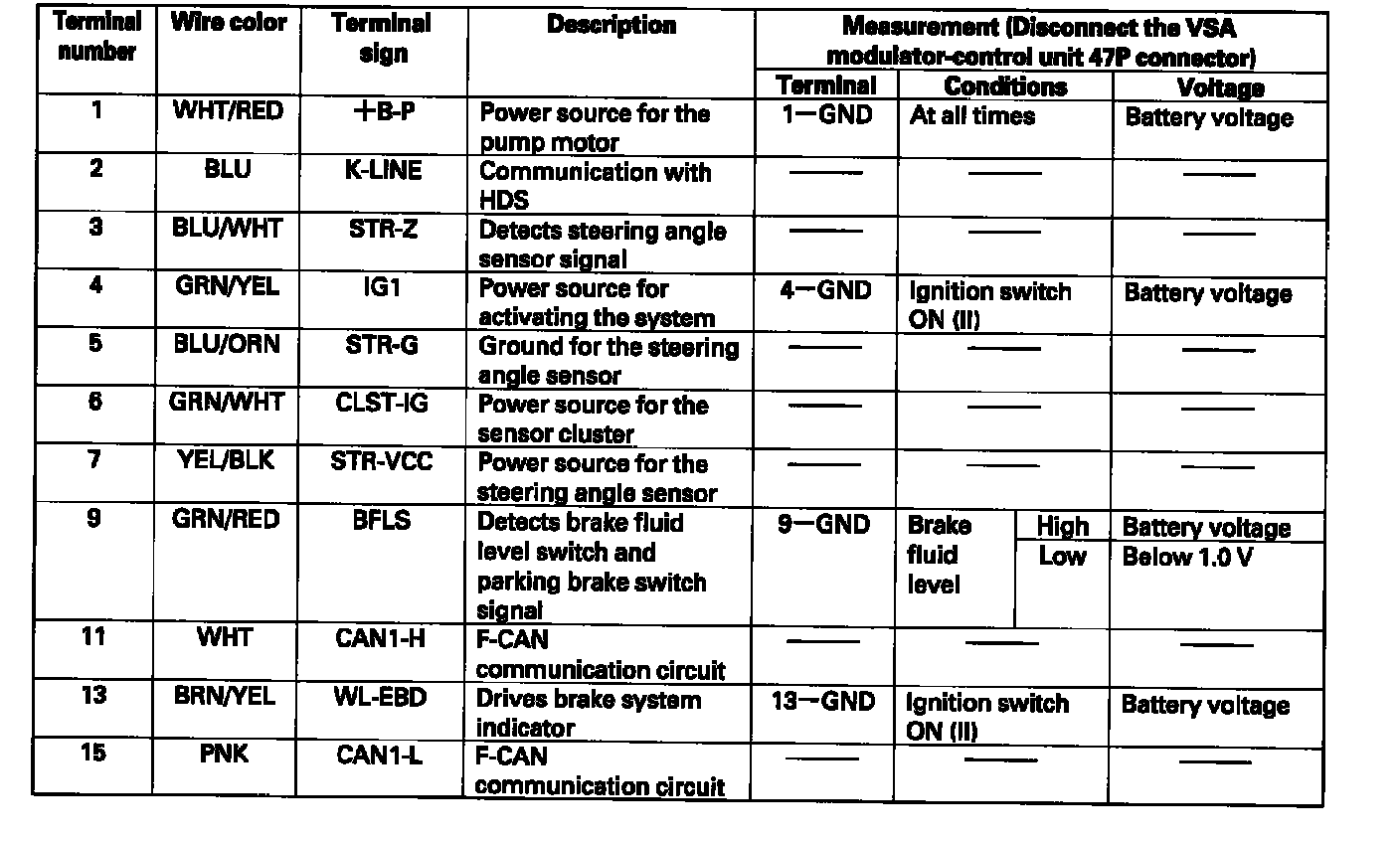

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector:

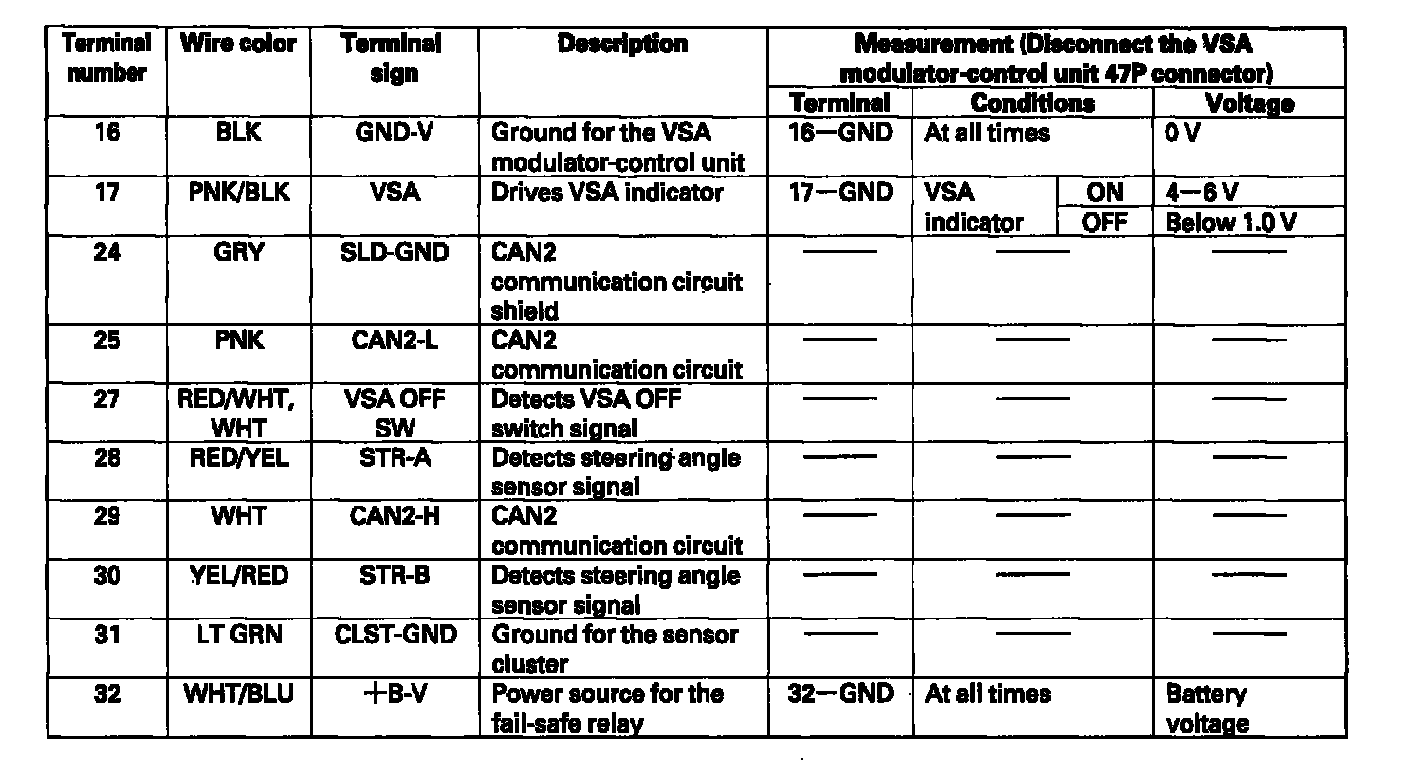

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector:

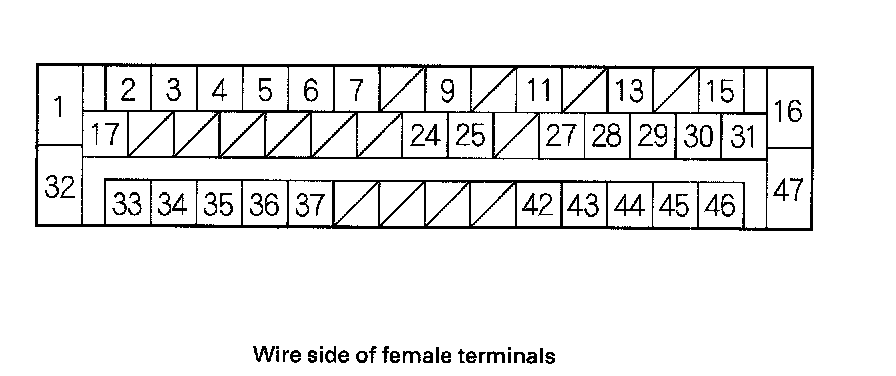

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector:

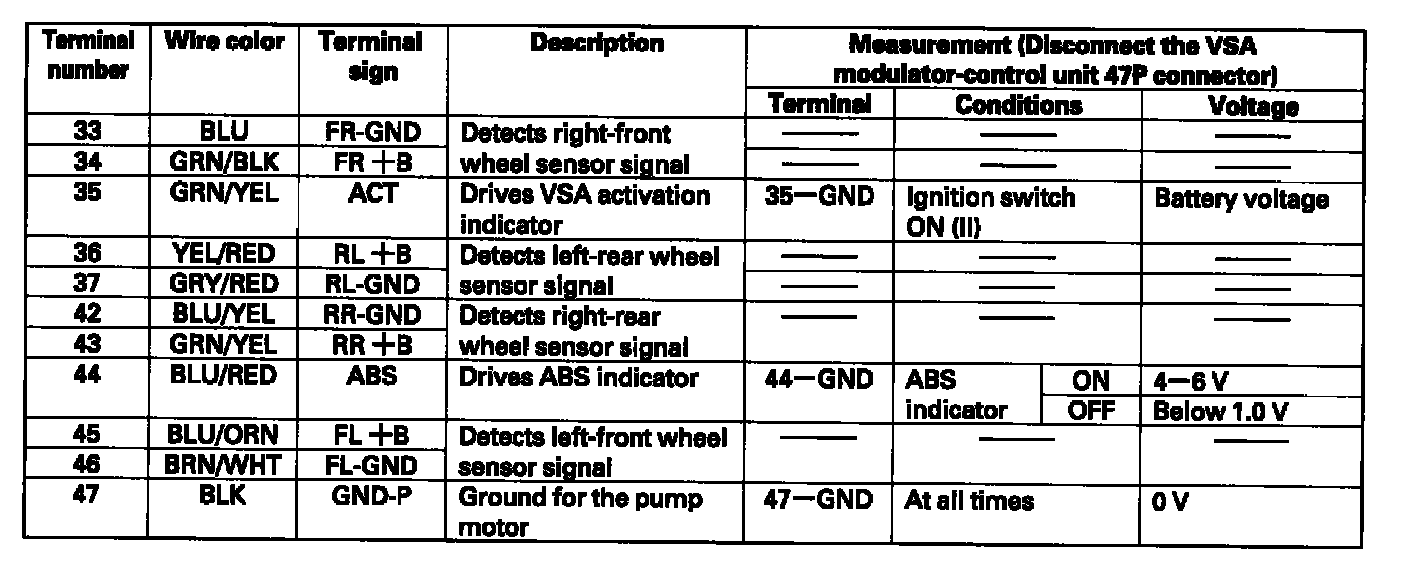

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector:

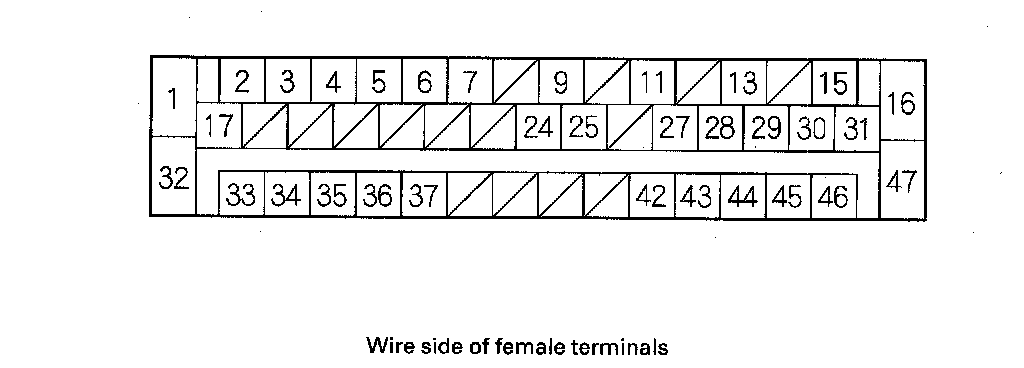

VSA Modulator-Control Unit Inputs and Outputs for 47P Connector:
