Home >> Honda >> 2006 >> Accord V6-3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Locations

Instrument Panel Control Module: Locations

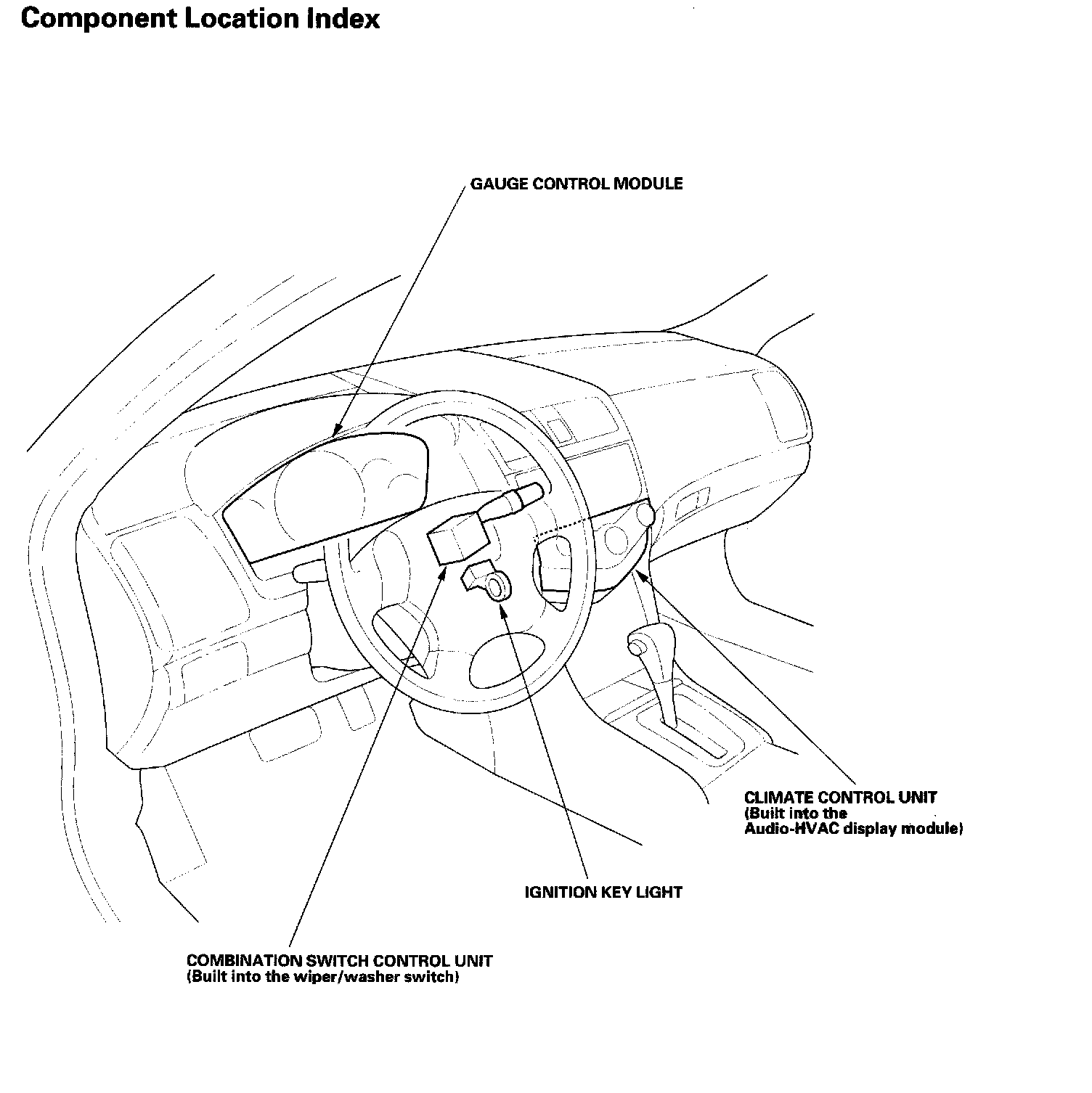

Multiplex Integrated Control System (MICS) - Component Location Index:

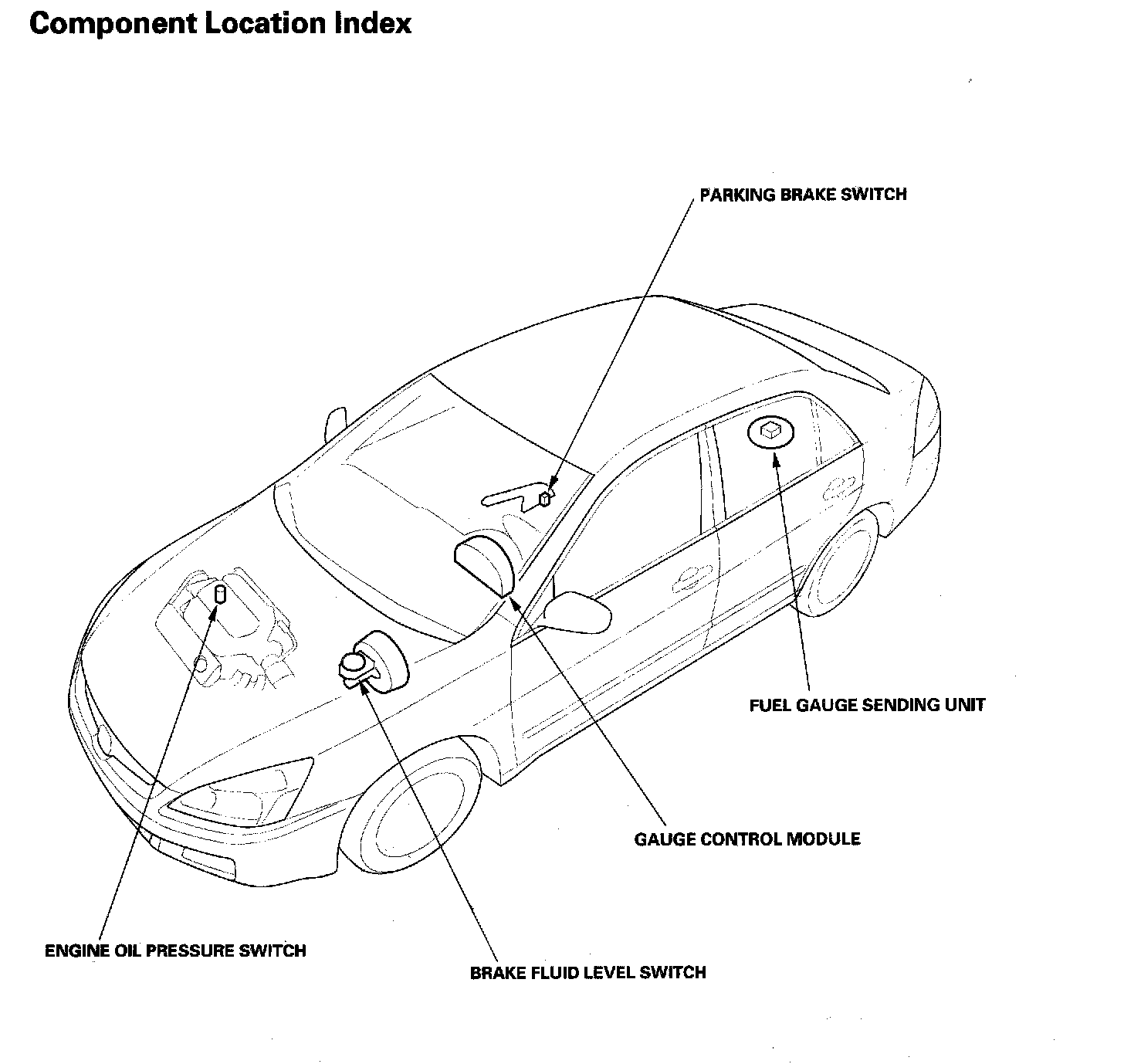

Gauges - Component Location Index:

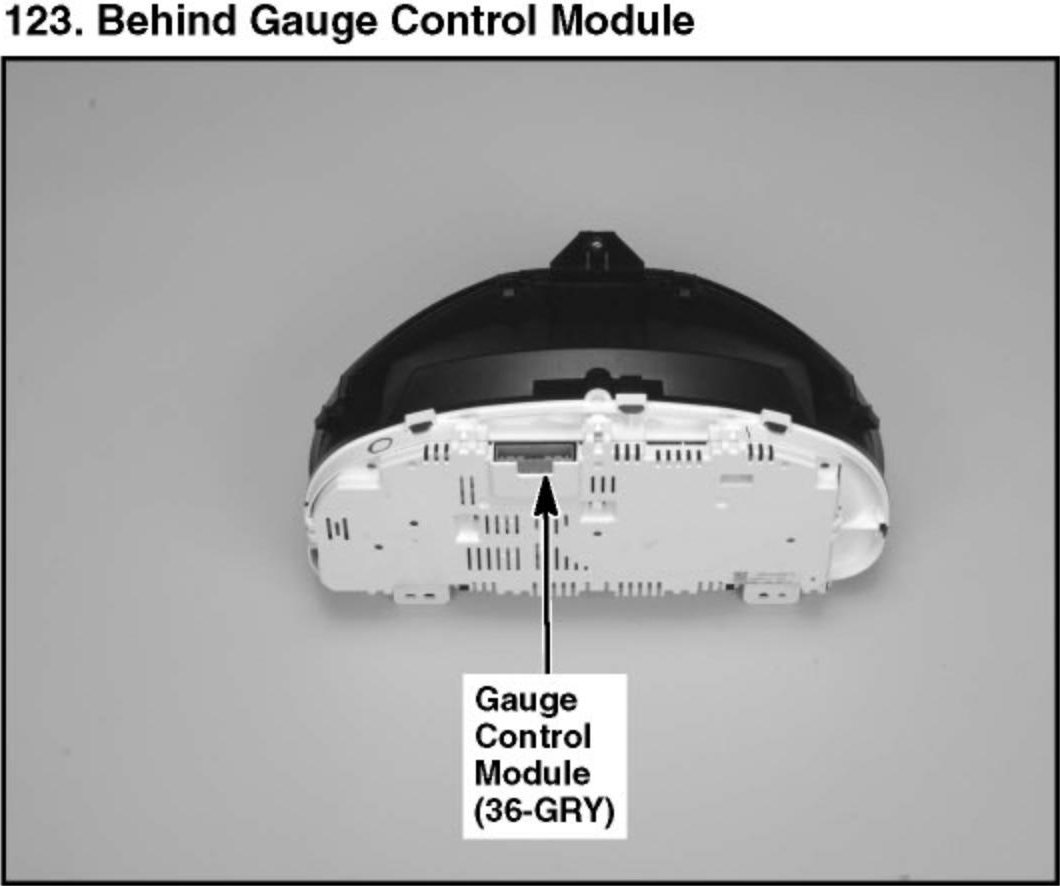

123. Behind Gauge Control Module:
