Procedures

How to Remove the ECM/PCM Connectors for Testing

If DTC troubleshooting requires voltage or resistance checks at the ECM/PCM connectors, remove the ECM/PCM connectors and test it:

1. Turn the ignition switch OFF.
2. Jump the SCS line with the HDS.

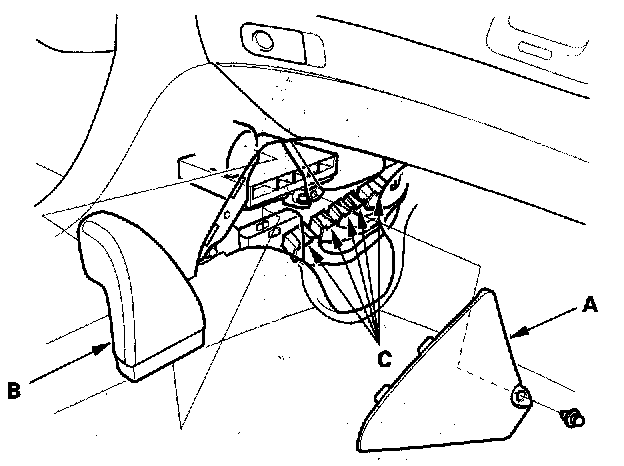

3. Remove the center lower cover (A).
4. Remove the duct (B).
5. Disconnect ECM/PCM connectors (C).
6. Open the SCS line with the HDS.
