Home >> Honda >> 2005 >> S2000 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

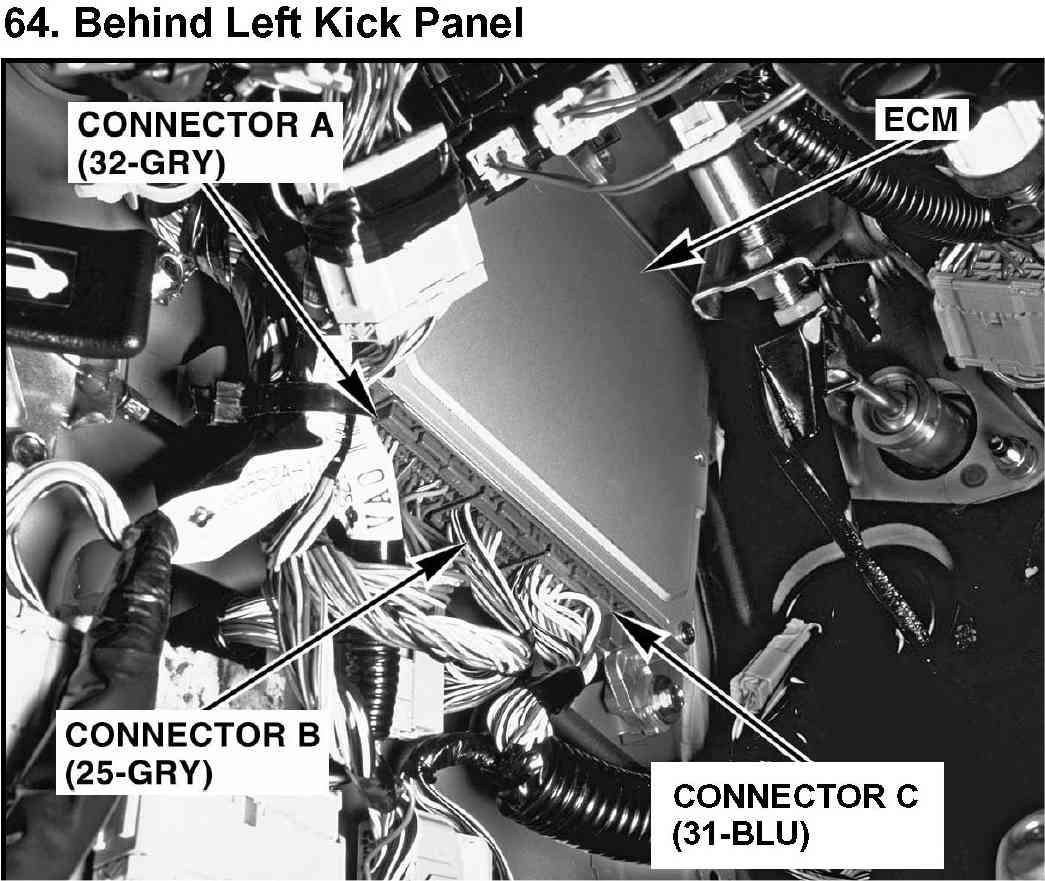

64. Behind Left Kick Panel:

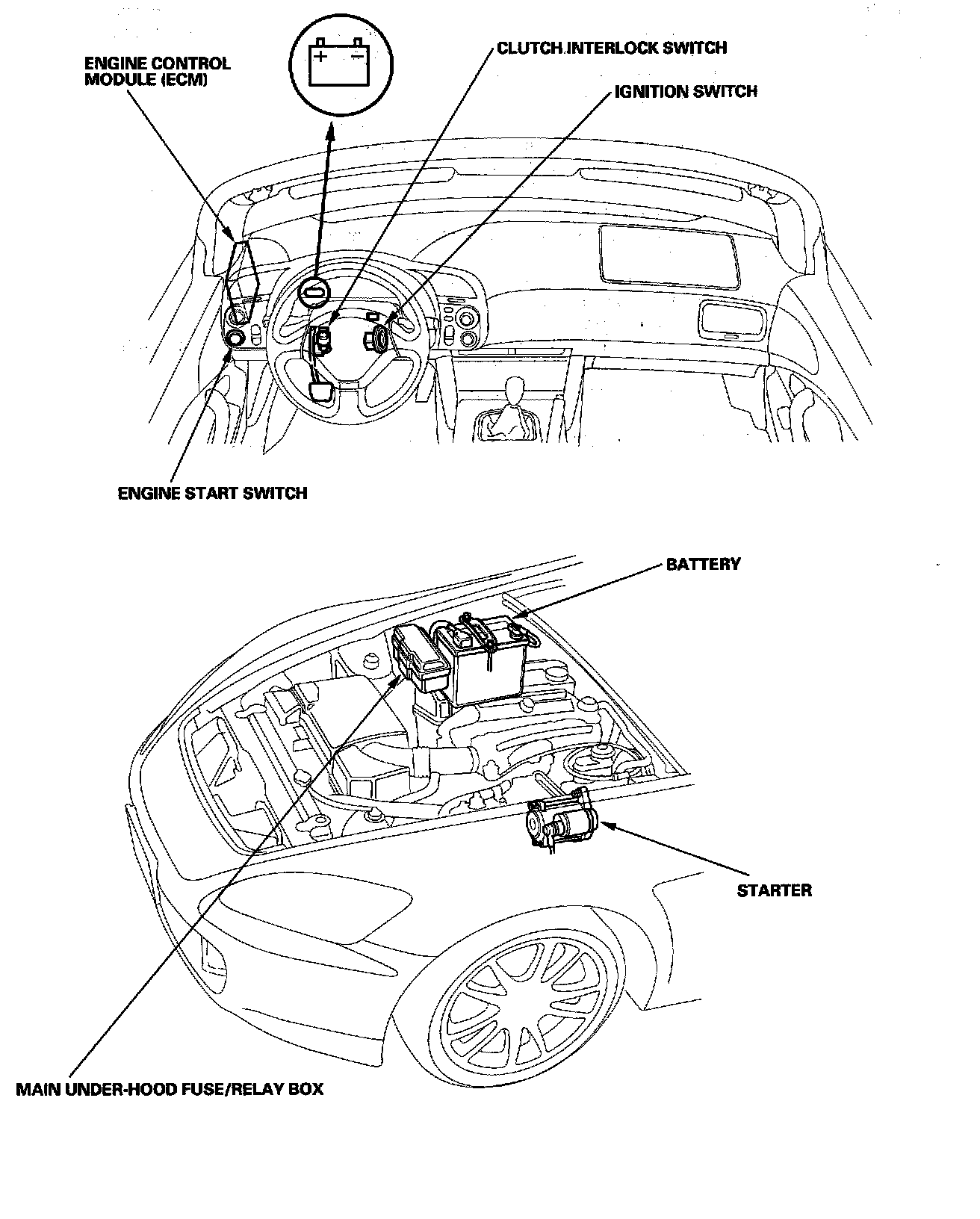

Starting System - Component Location Index:



Relay And Control Unit Locations - Dash Board:

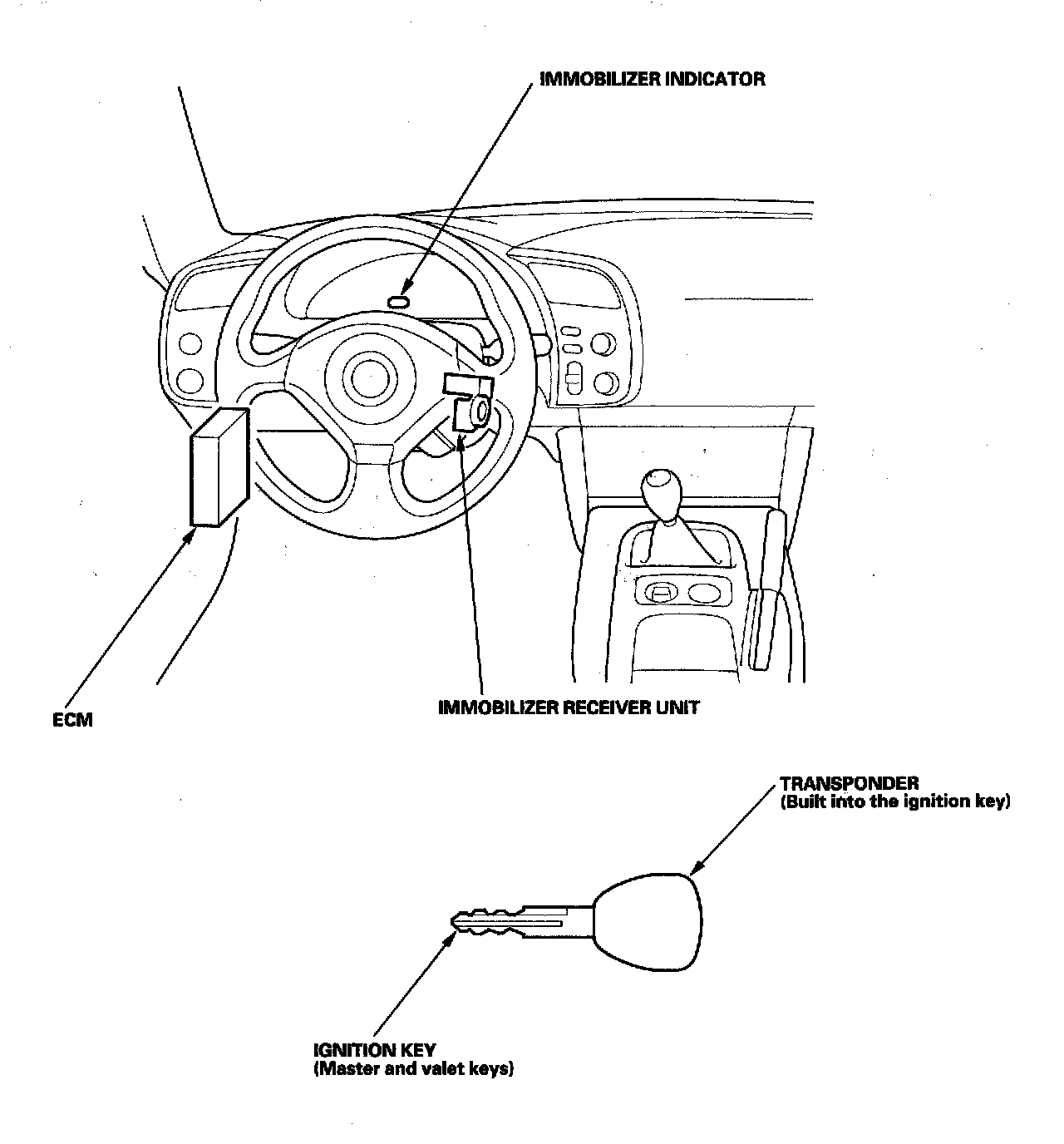

Immobilizer System - Component Location Index:

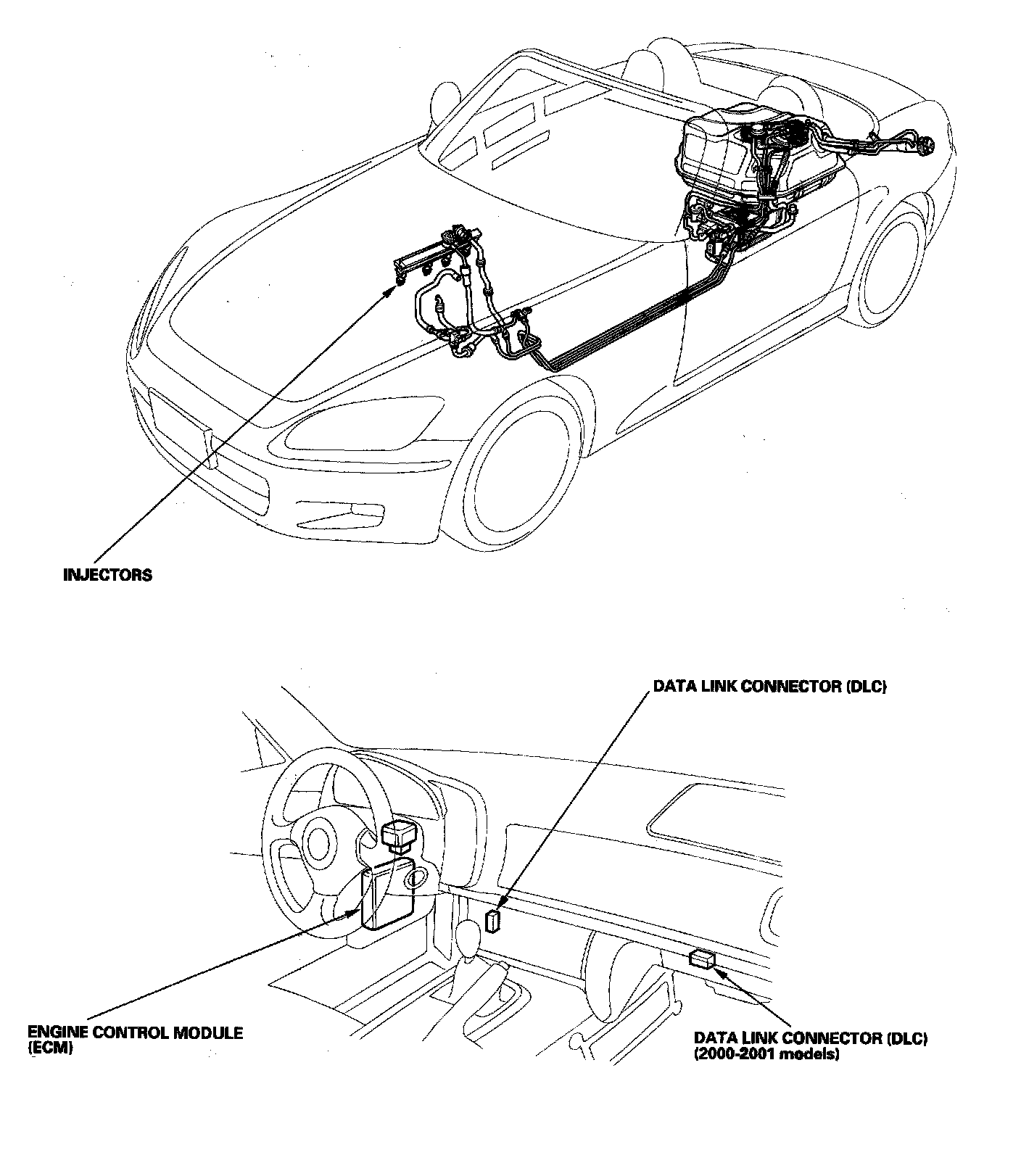

PGM-FI System - Component Location Index:
