Pinout Values and Diagnostic Parameters

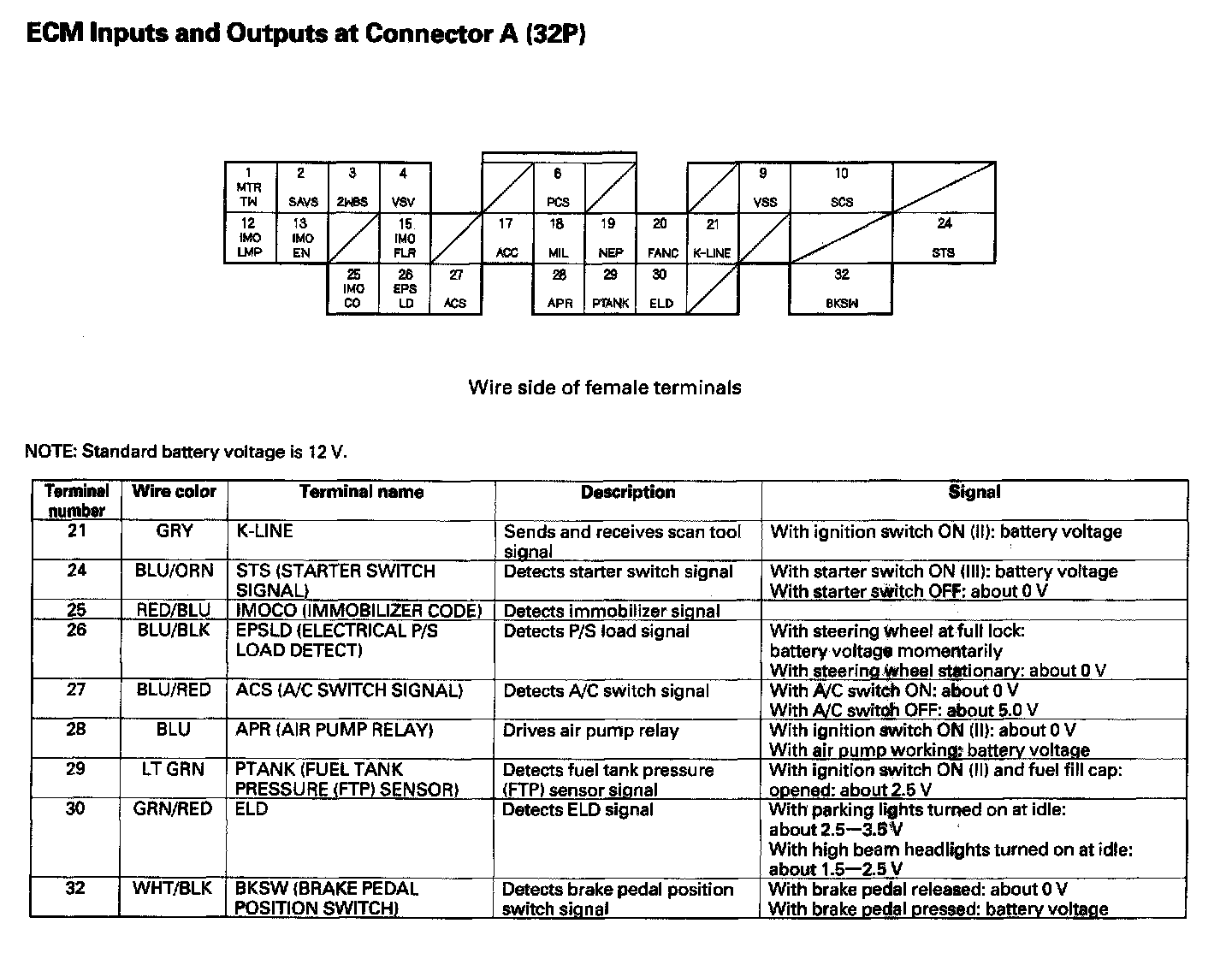

ECM Inputs And Outputs At Connector A (32P):

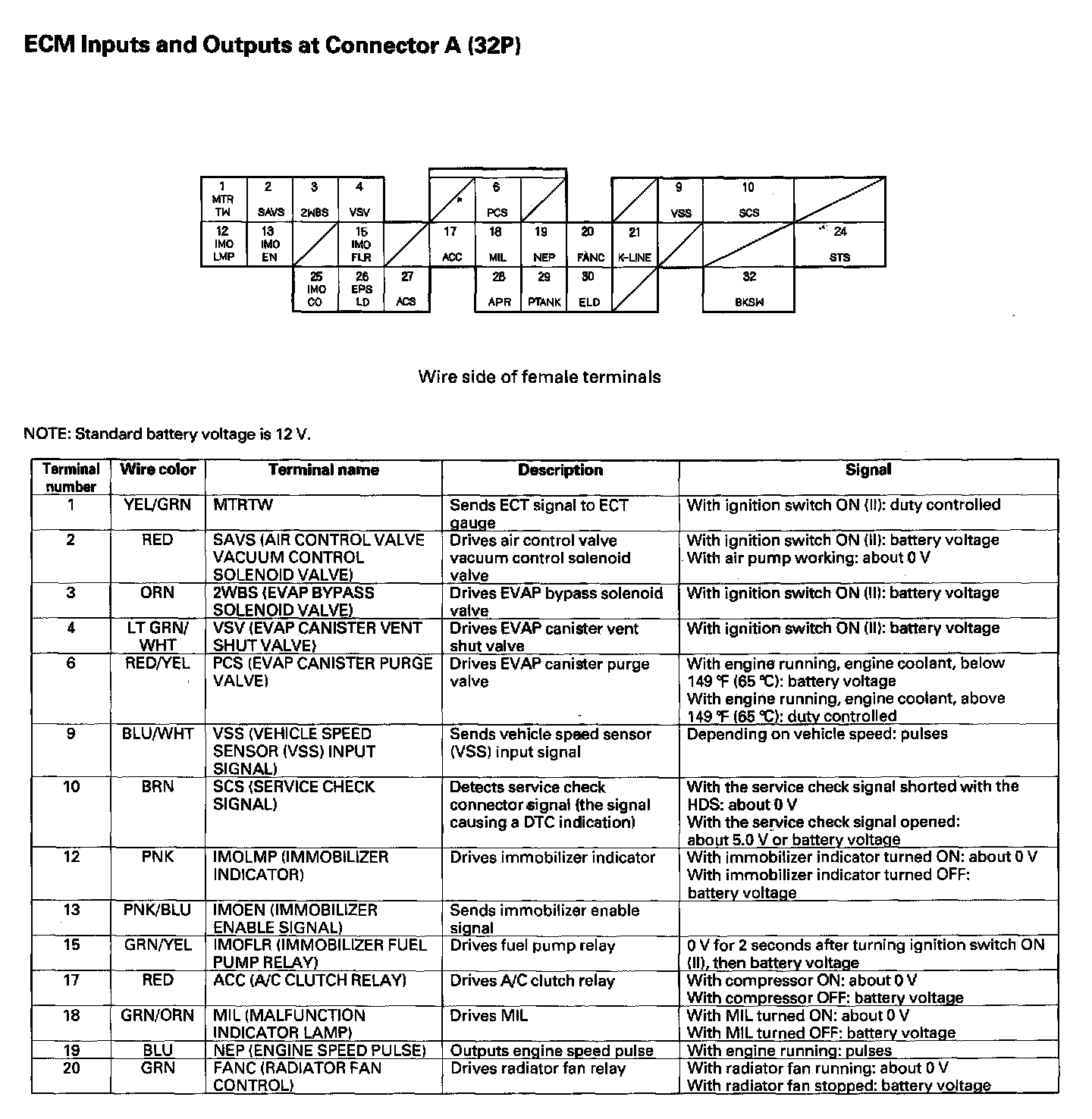

ECM Inputs And Outputs At Connector A (32P):

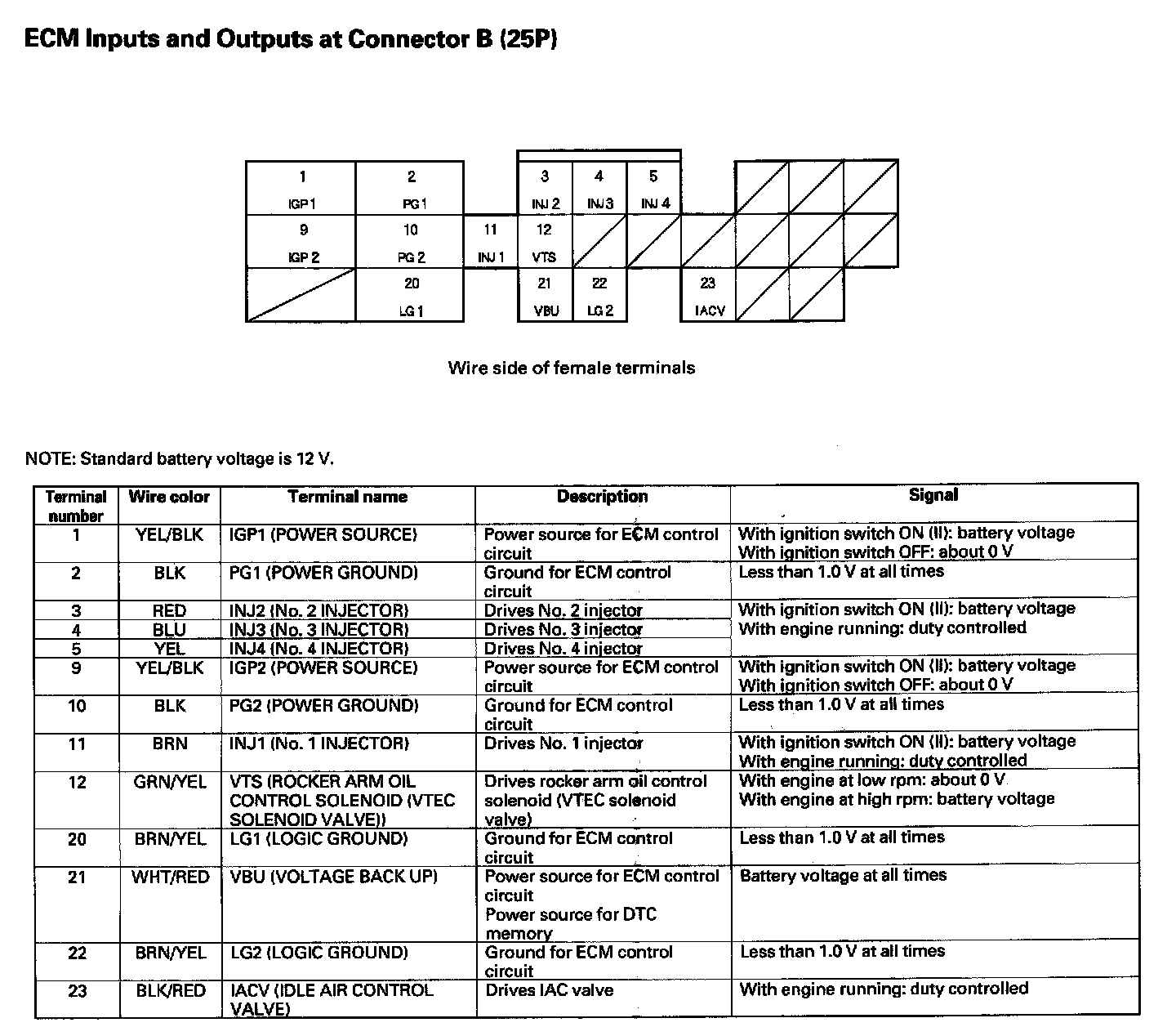

ECM Inputs And Outputs At Connector B (25P):

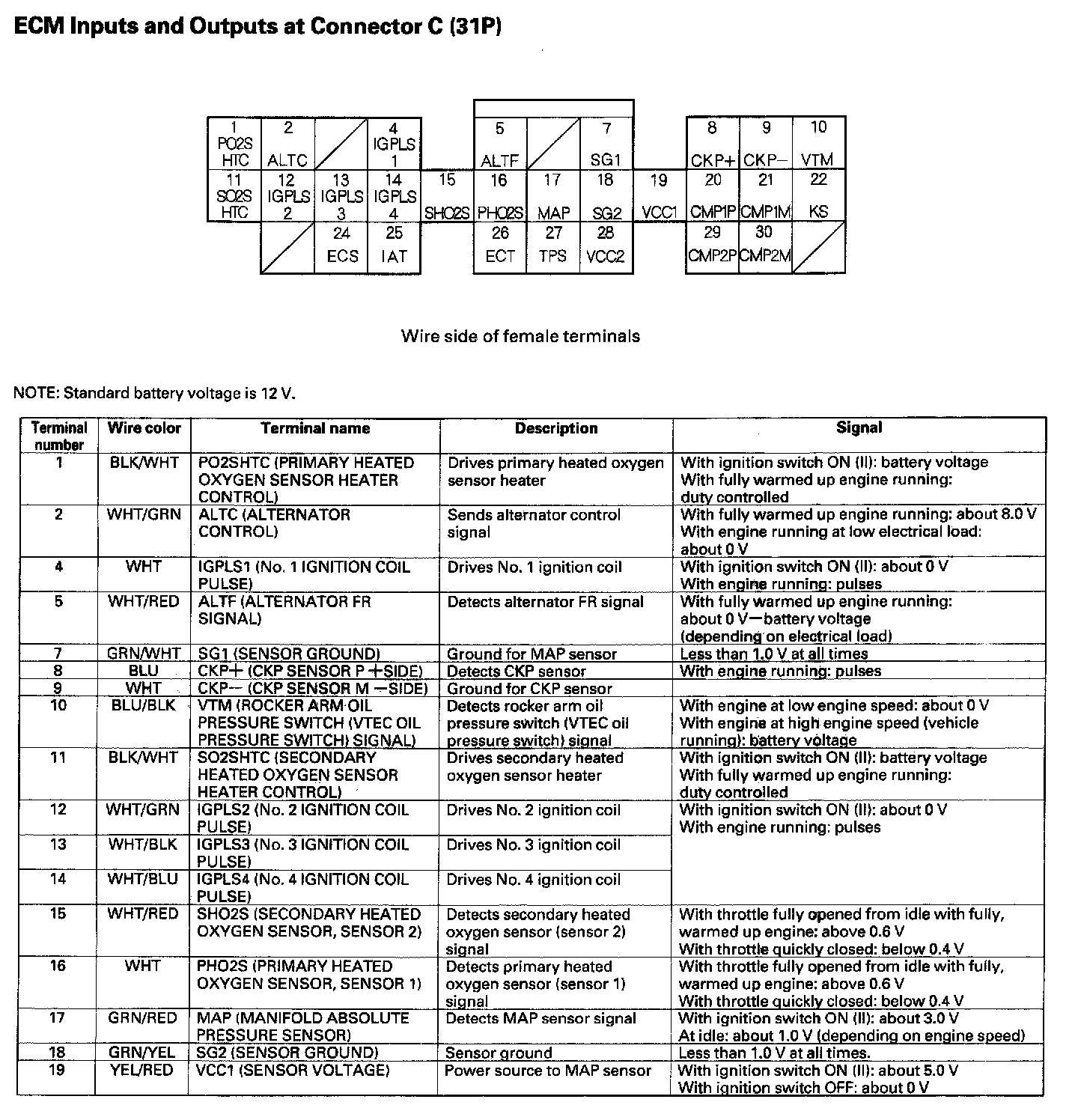

ECM Inputs And Outputs At Connector C (31P):

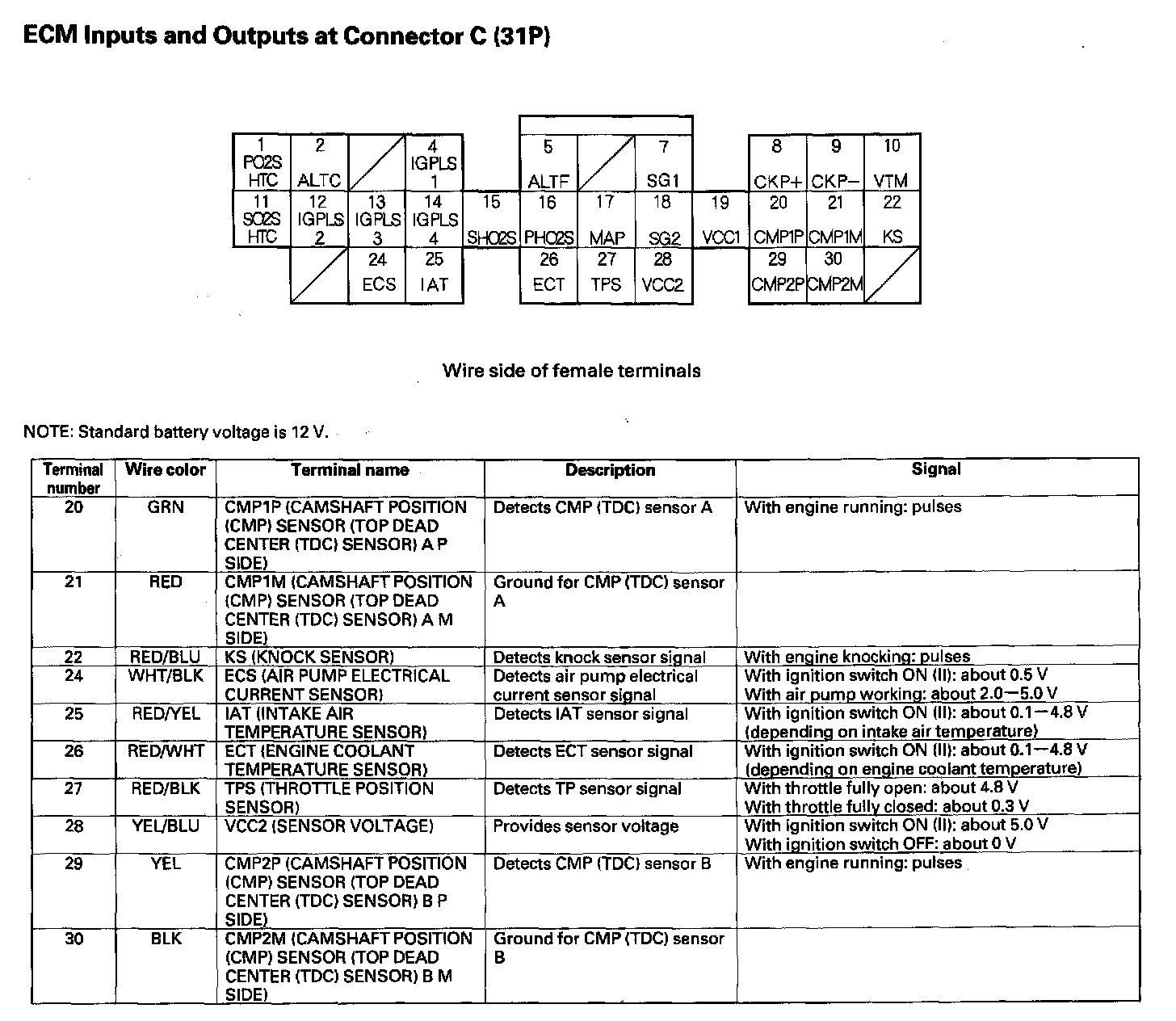

ECM Inputs And Outputs At Connector C (31P):
