Home >> Honda >> 2005 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

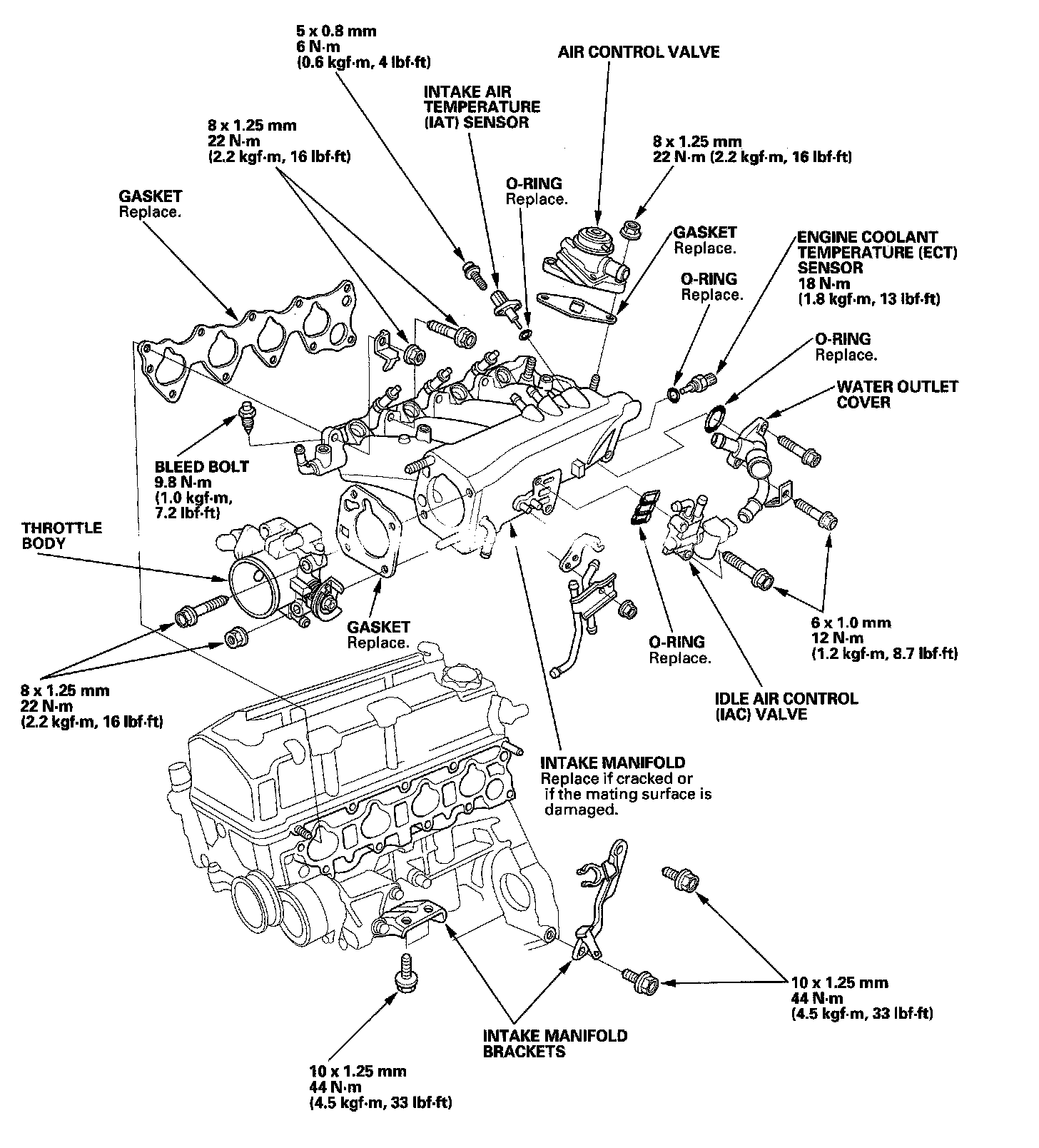

Intake Manifold

Intake Manifold Removal and Installation

NOTE: Use new O-rings and gaskets when reassembling.
