Engine Control Module Terminal Arrangement

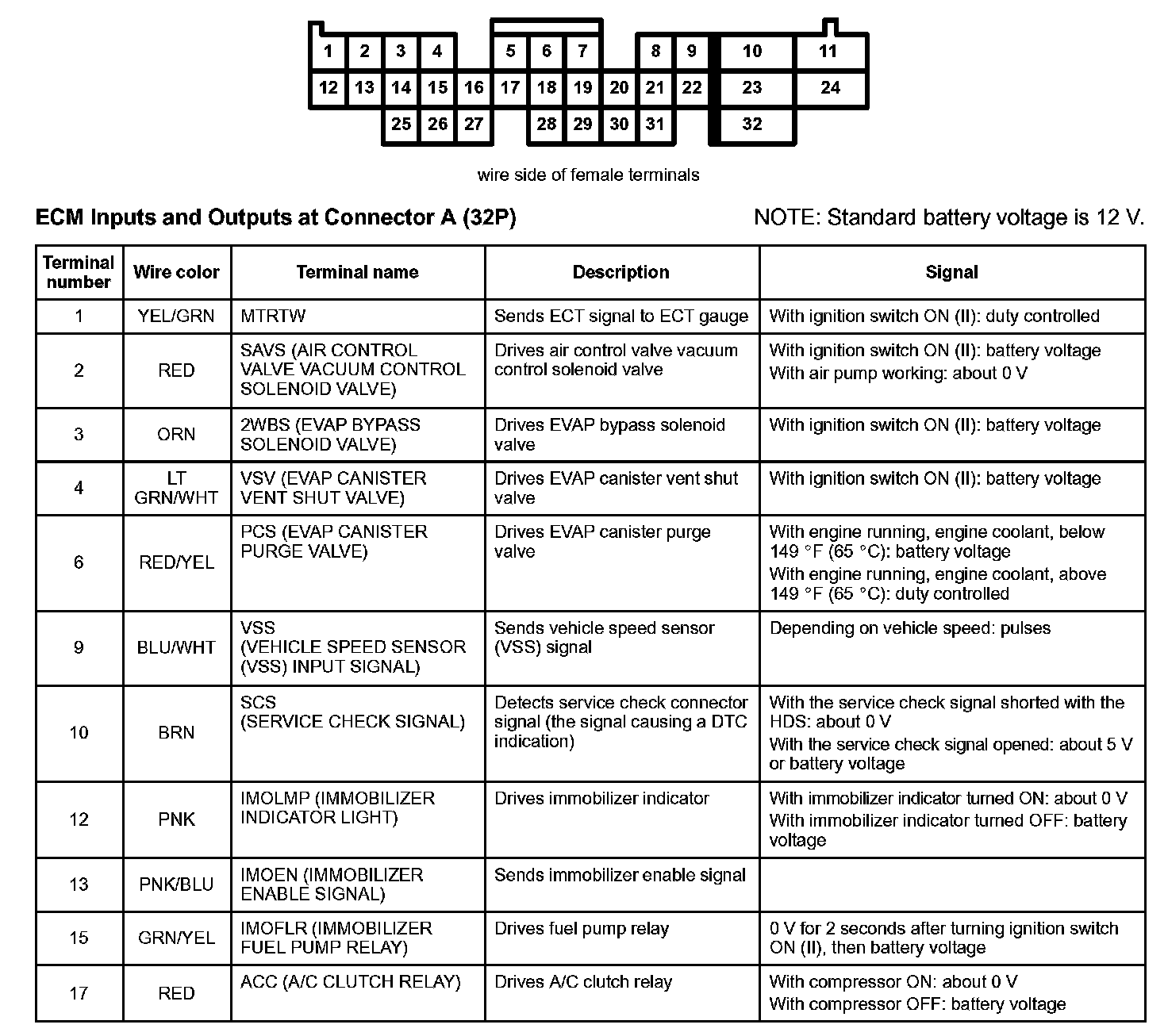

ECM Inputs And Outputs At Connector A (32P) Part 1:

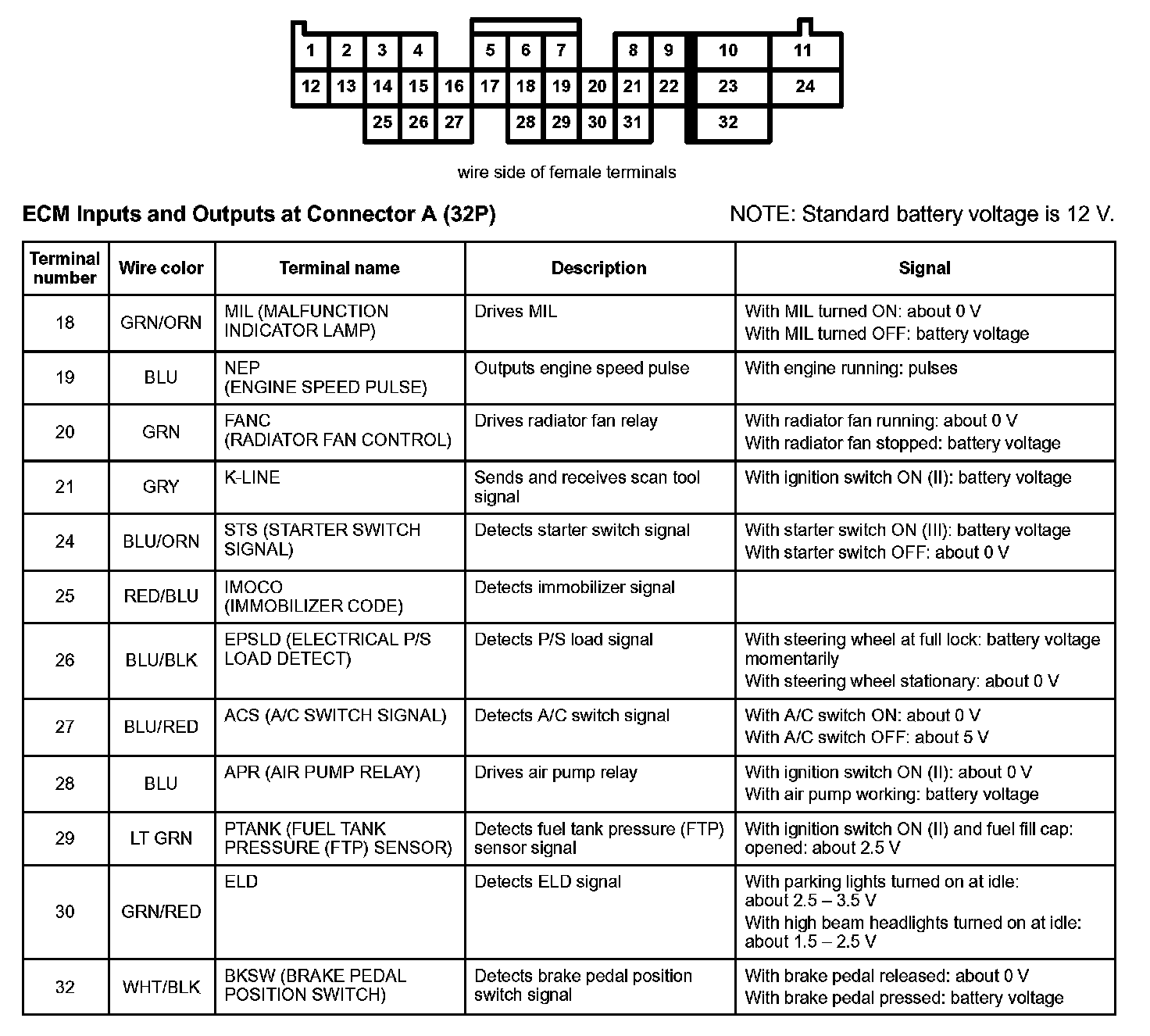

ECM Inputs And Outputs At Connector A (32P) Part 2:

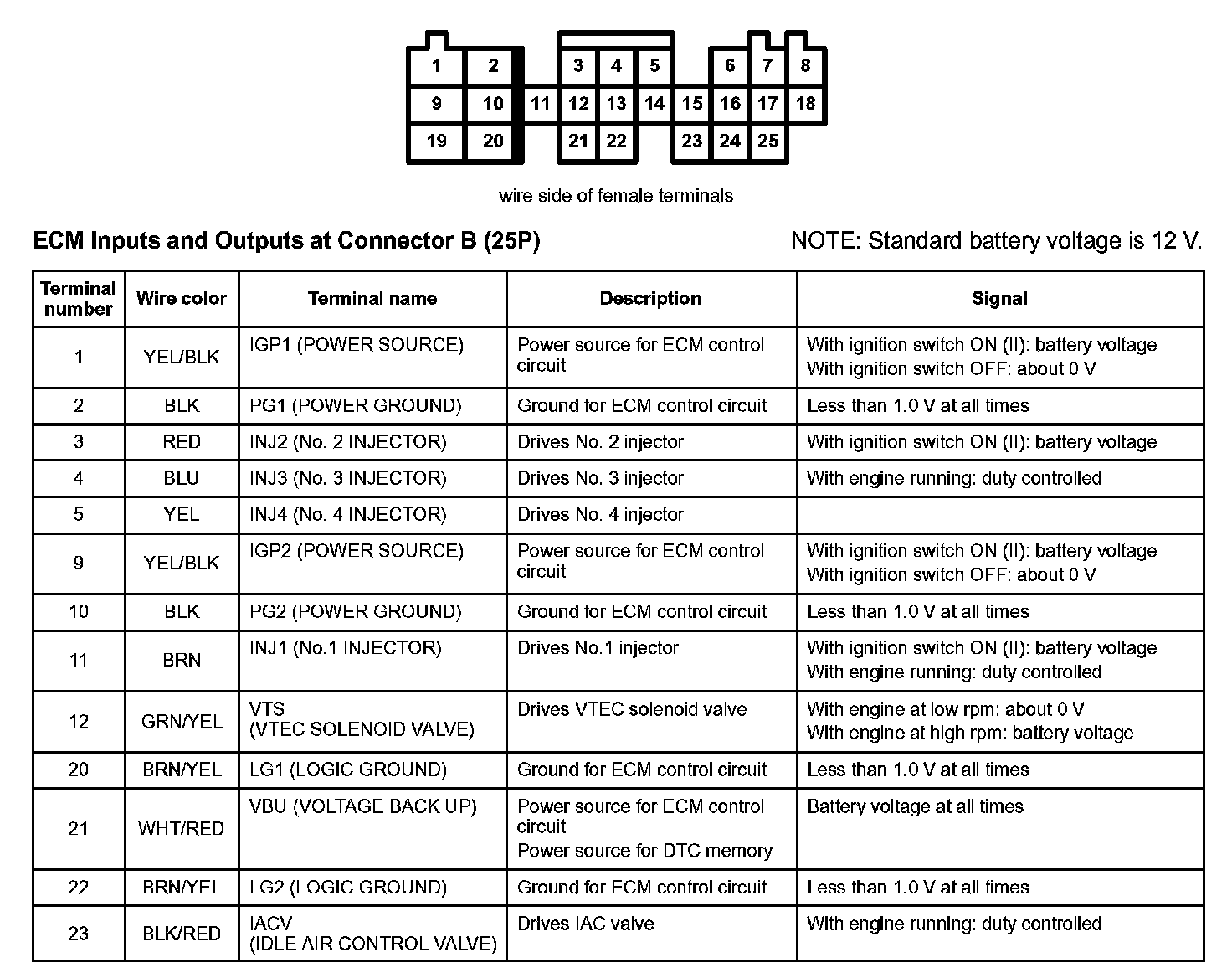

ECM Inputs And Outputs At Connector B (25P):

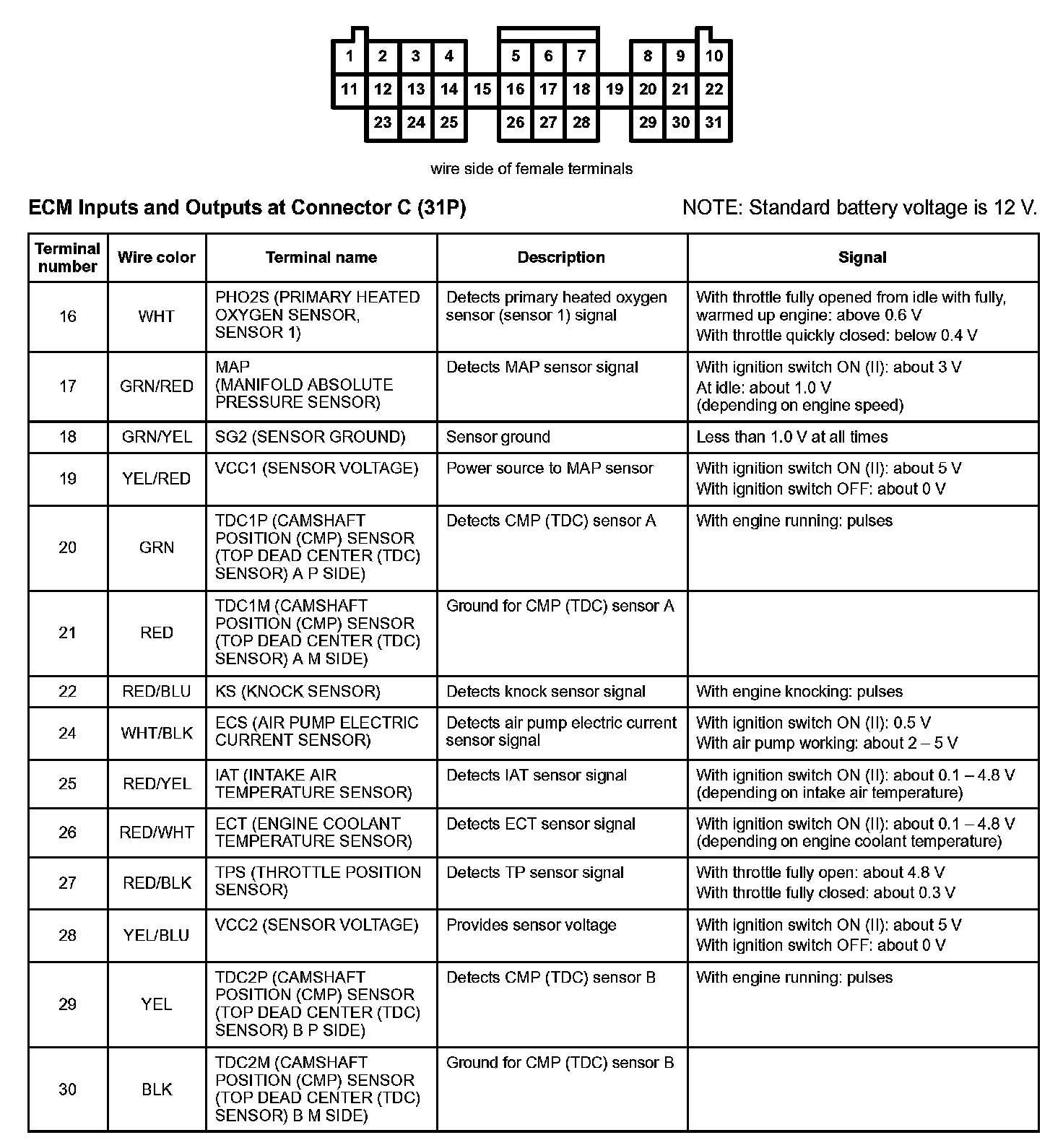

ECM Inputs And Outputs At Connector C (31P) Part 1:

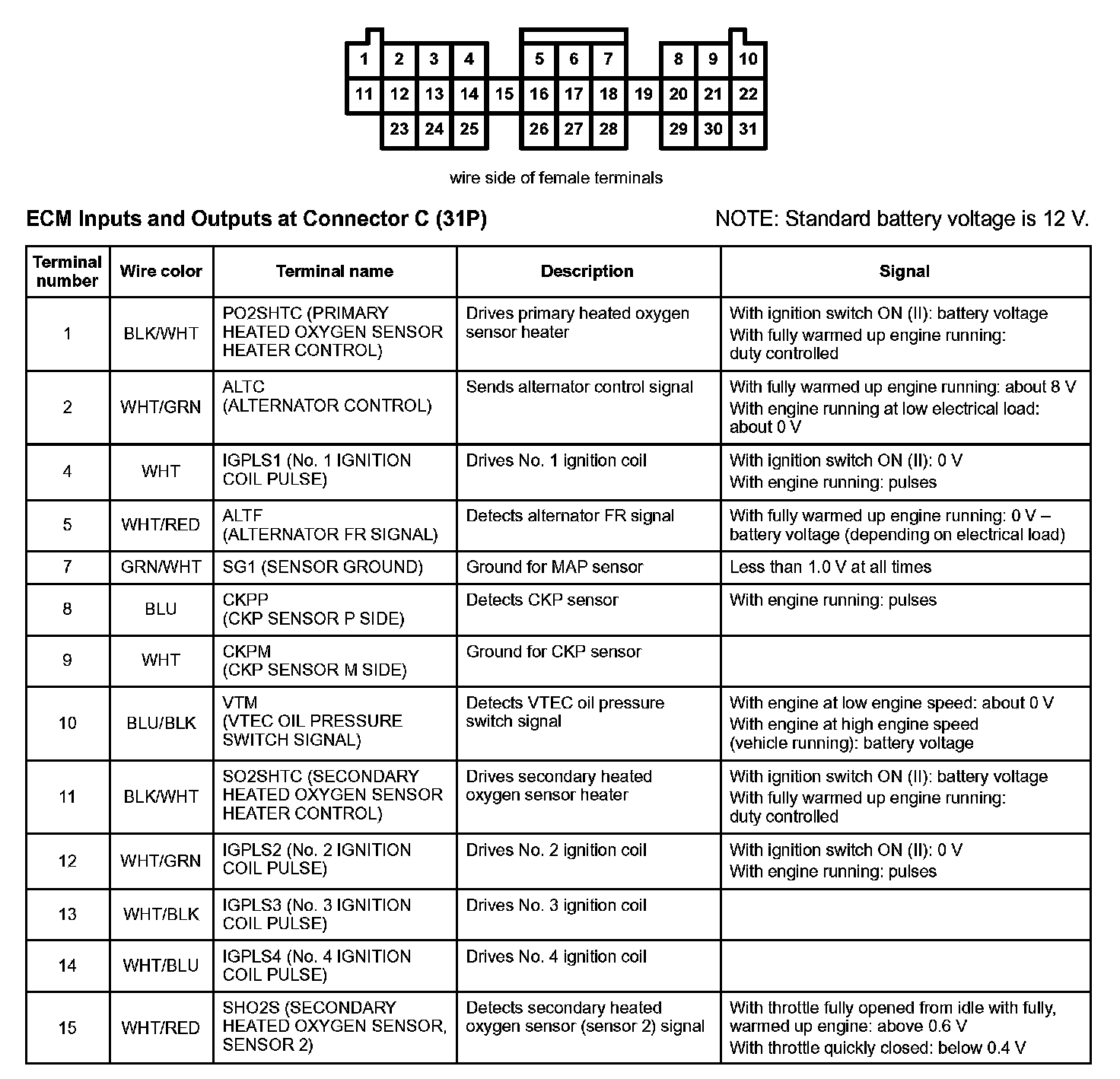

ECM Inputs And Outputs At Connector C (31P) Part 2:
