Ignition Relay: Locations

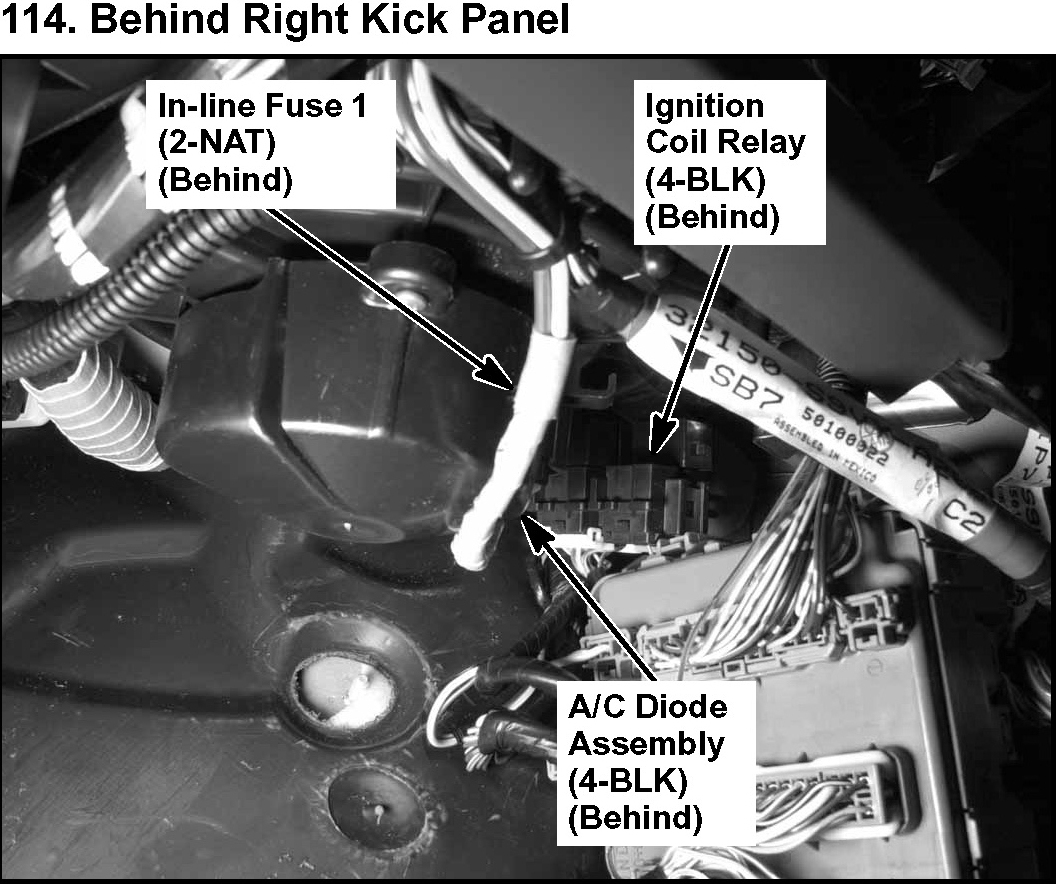

114. Behind Right Kick Panel:
Ignition System - Component Location Index:
Relay And Control Unit Locations - Dashboard:
