Variable Valve Timing Pressure Switch: Service and Repair

VTEC Oil Pressure Switch Replacement

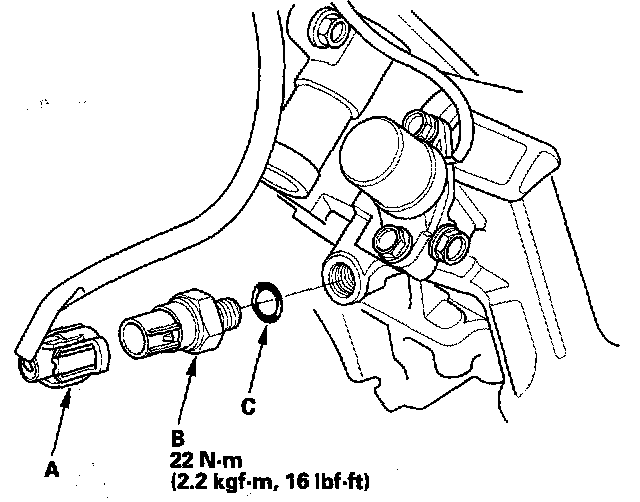

1. Disconnect the VTEC oil pressure switch 2P connector (A), then remove the VTEC oil pressure switch (B).
2. Install the switch in the reverse order of removal with a new O-ring (C).
