Component Locations

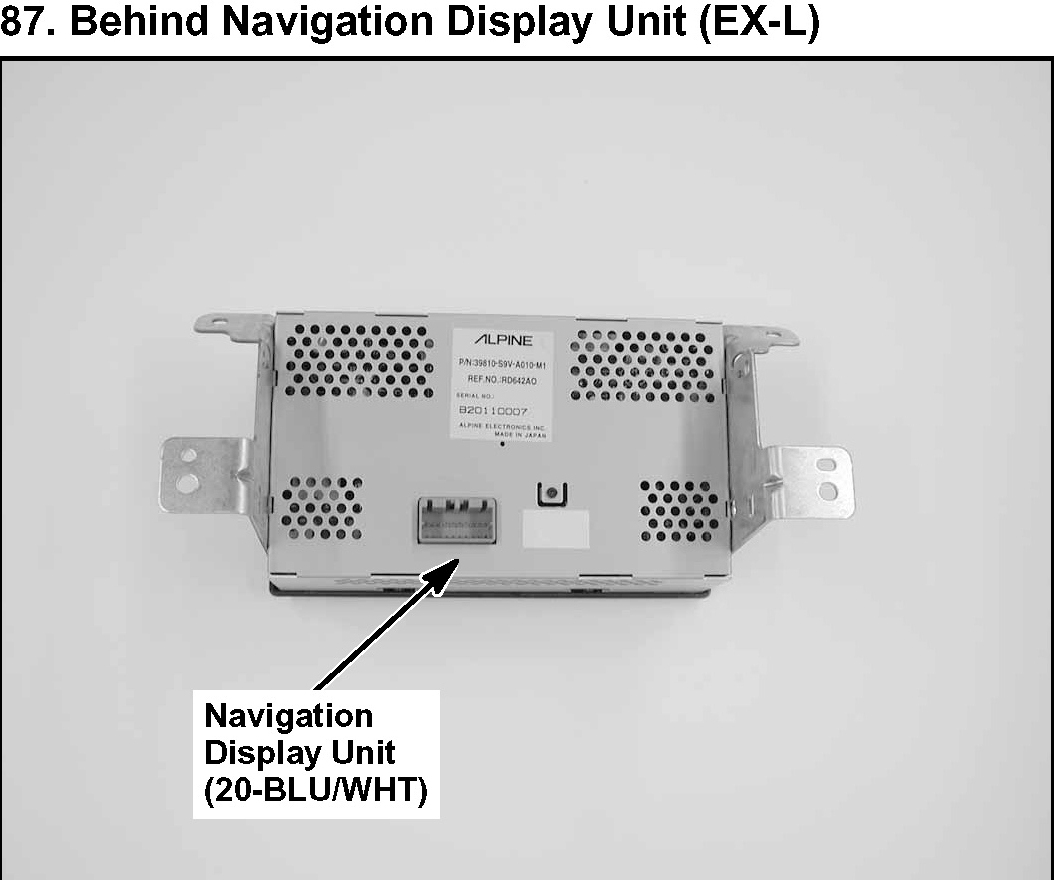

87. Behind Navigation Display Unit (EX-L):

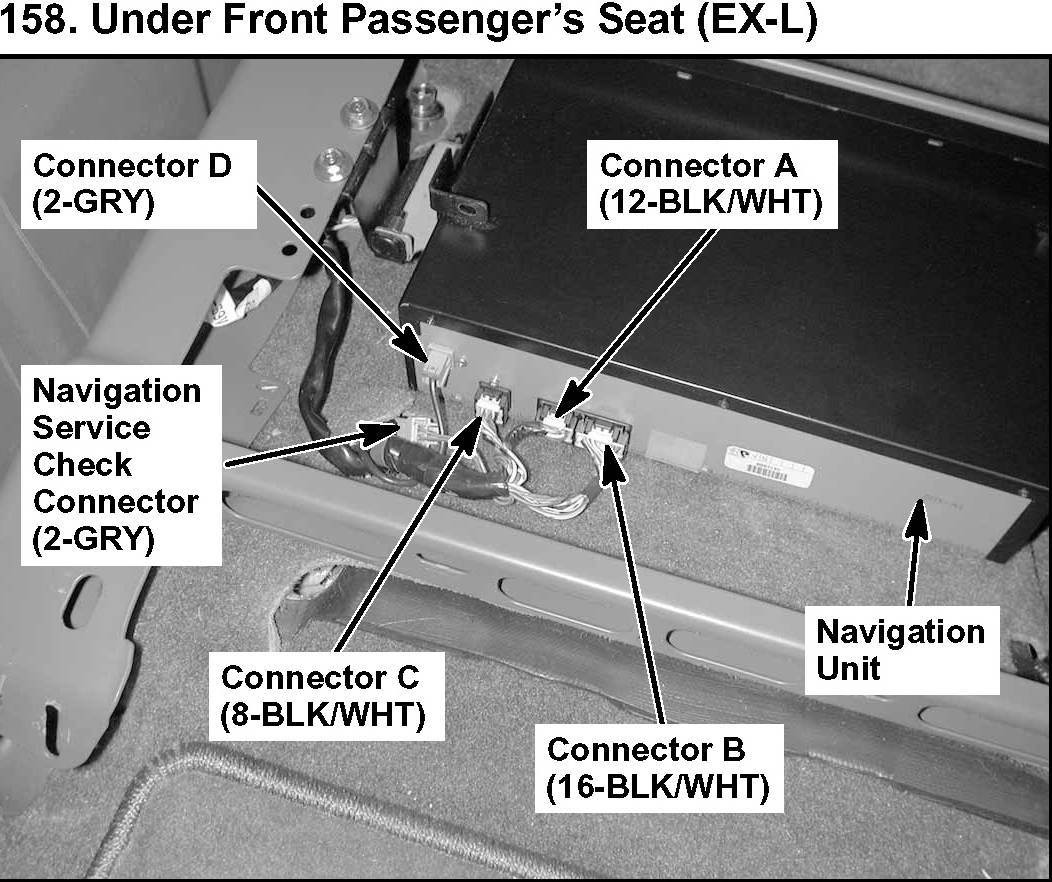

158. Under Front Passenger's Seat (EX-L):

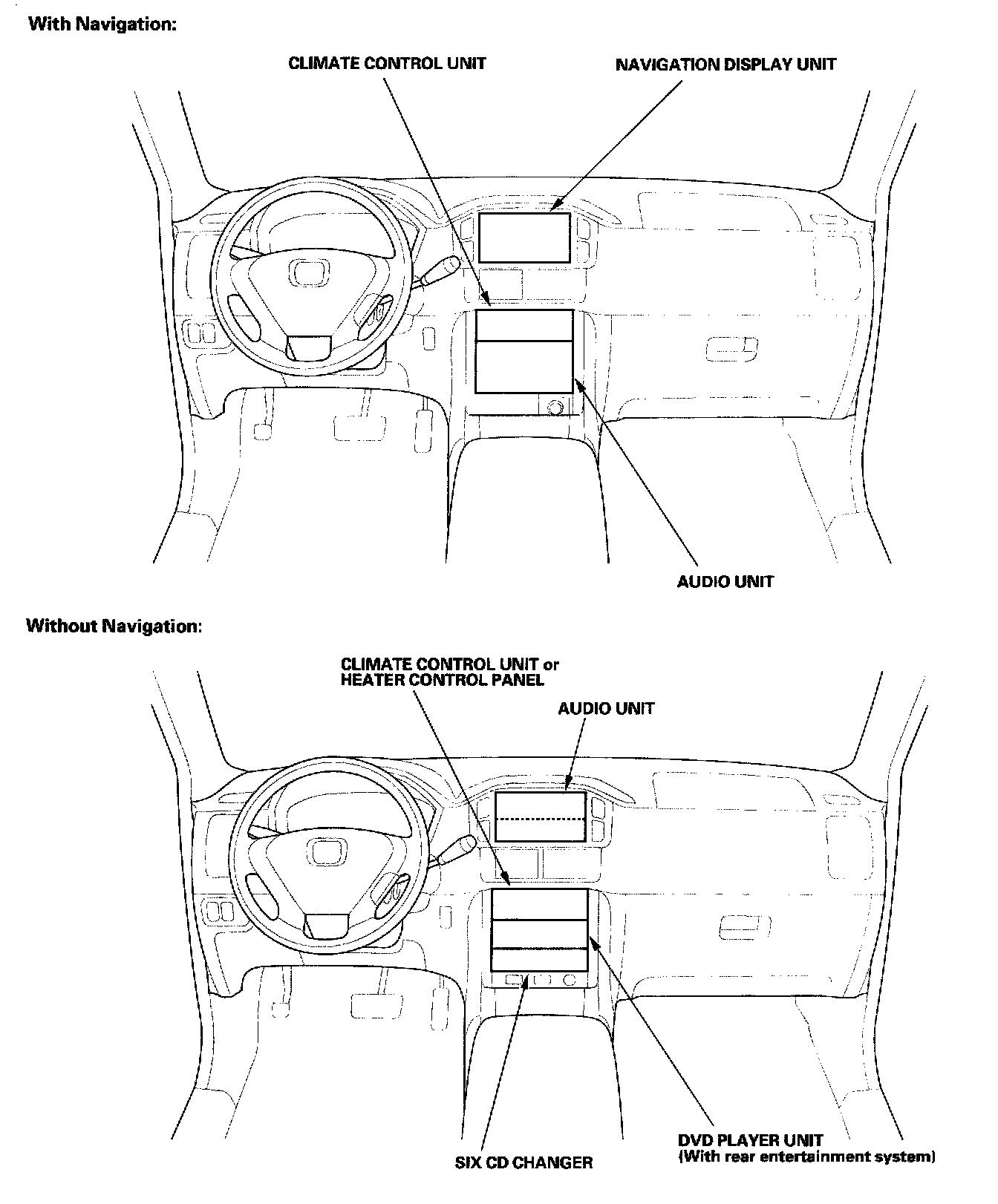

Relay And Control Unit Locations - Dashboard:



Relay And Control Unit Locations - Door And Seat:

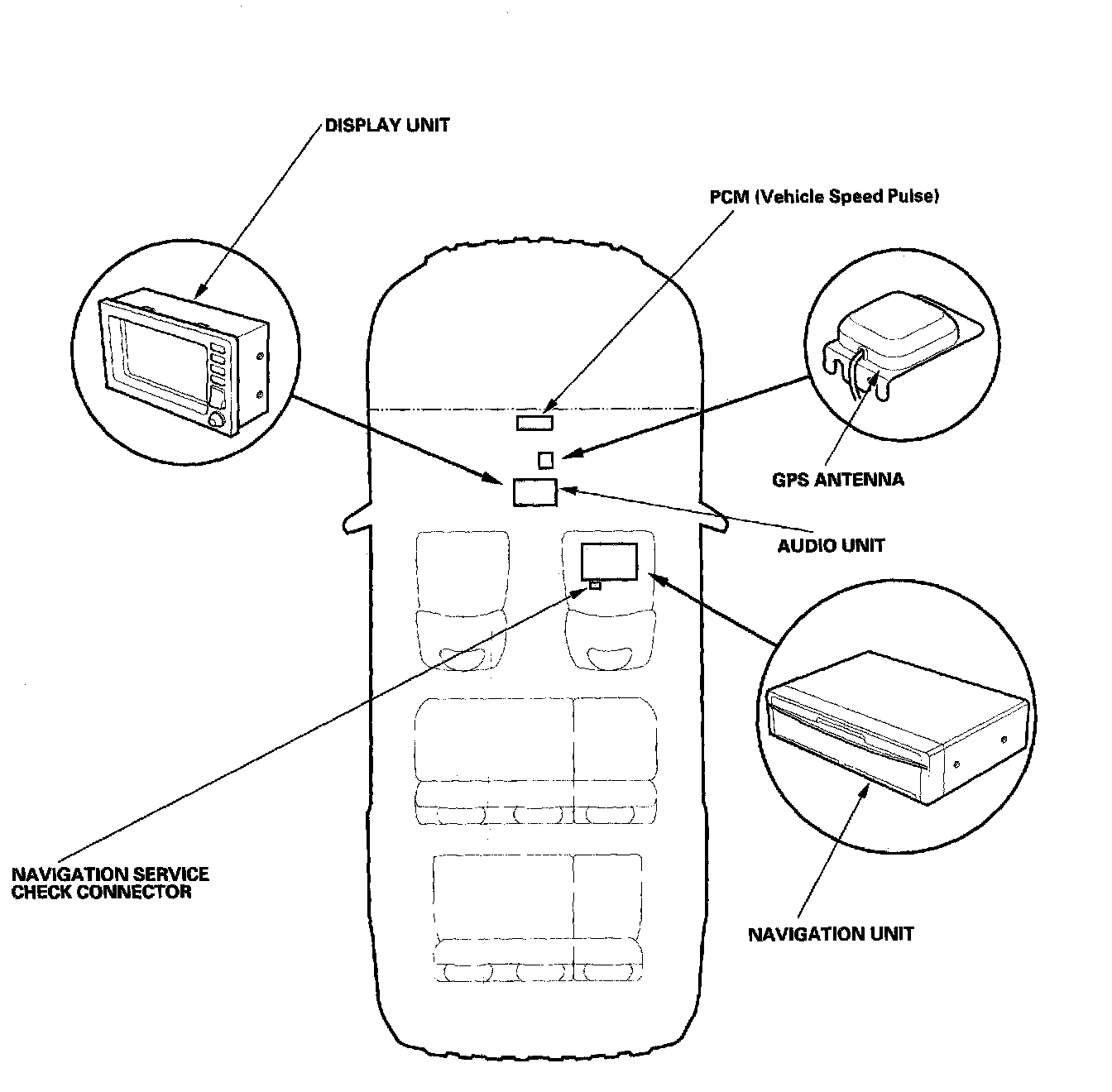

Navigation System - Component Location Index:
