Instrument Panel Control Module: Locations

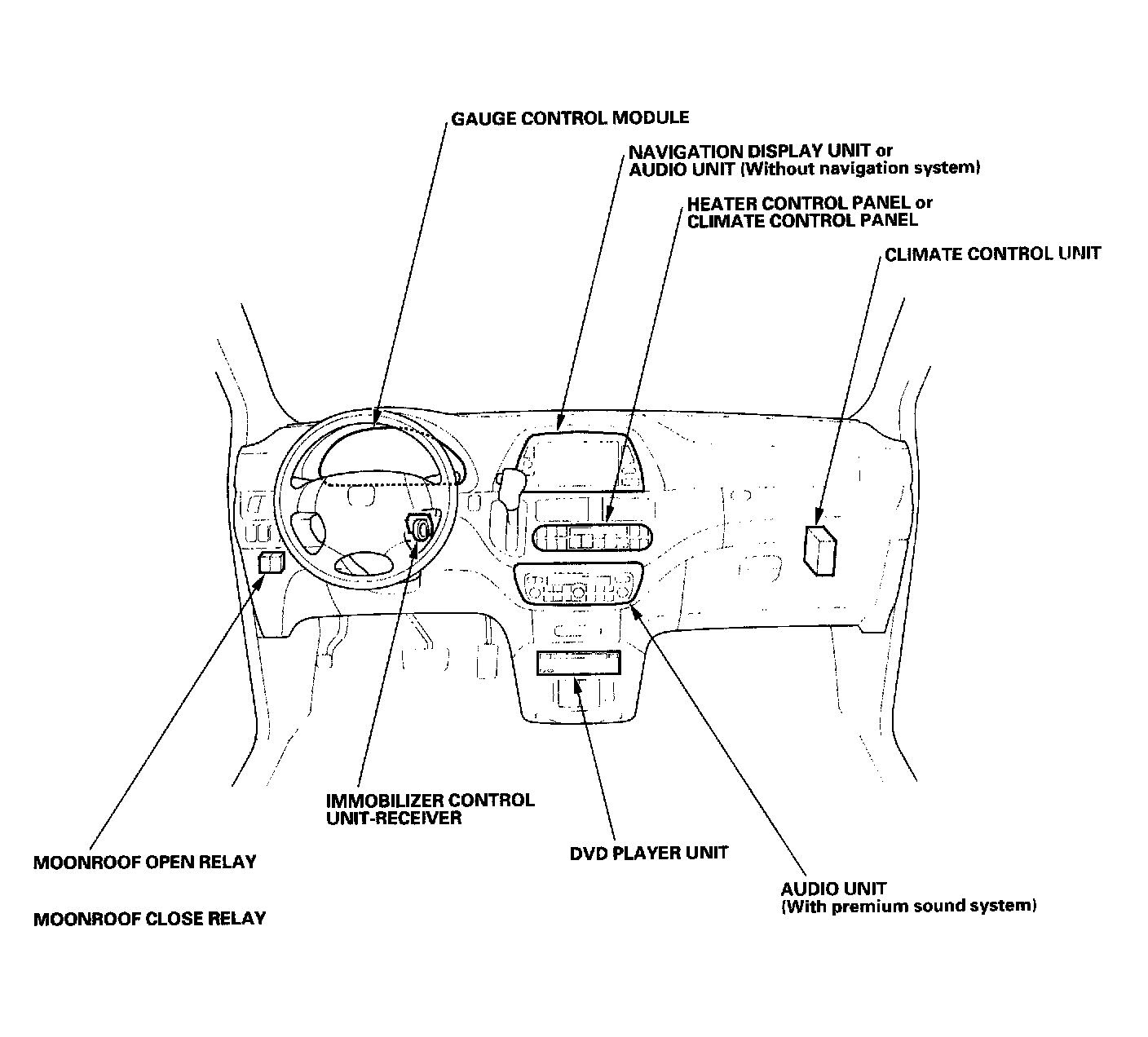

Relay And Control Unit Locations - Dashboard Part 2:

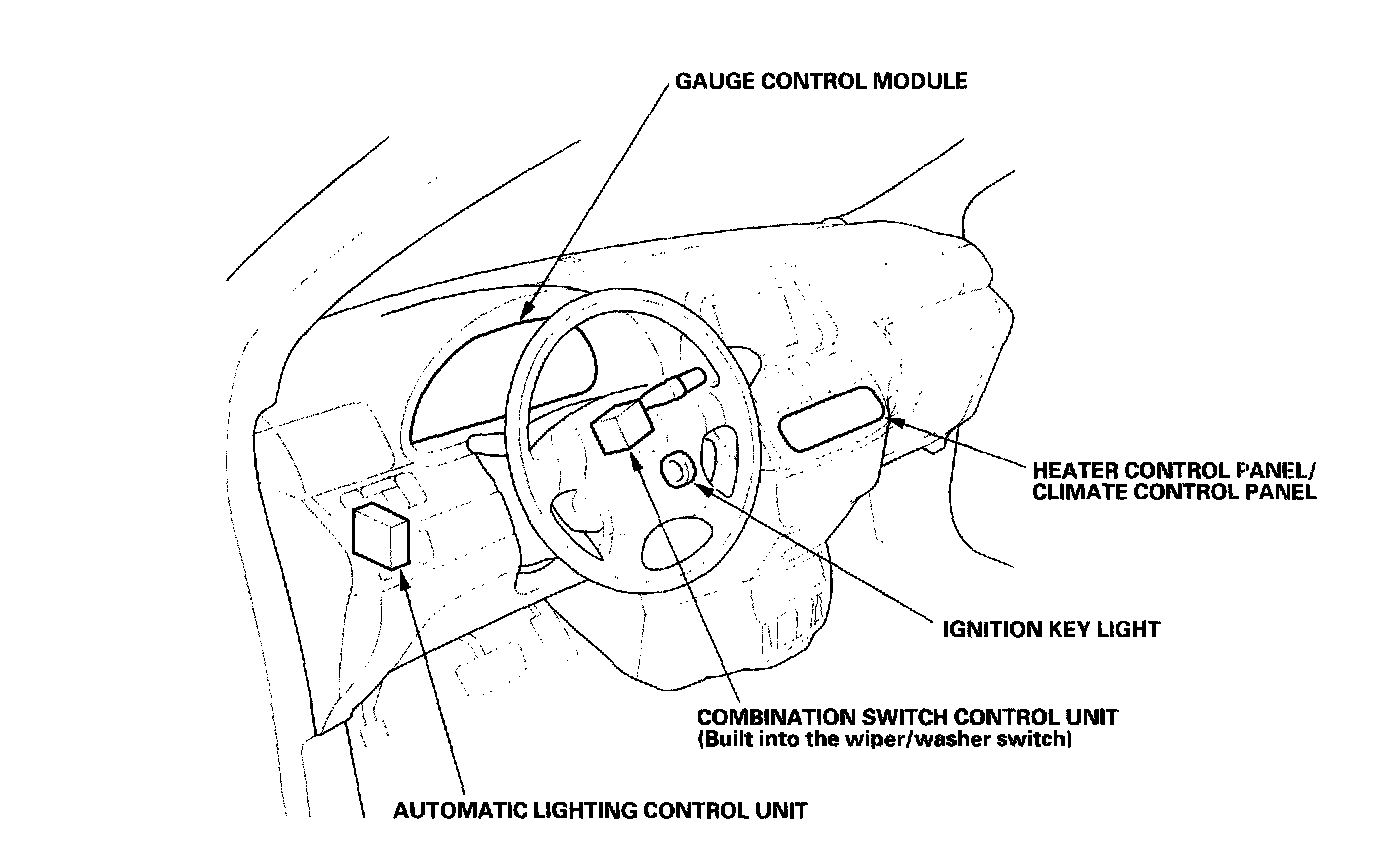

Multiplex Integrated Control Systems (MICS) - Component Location Index:

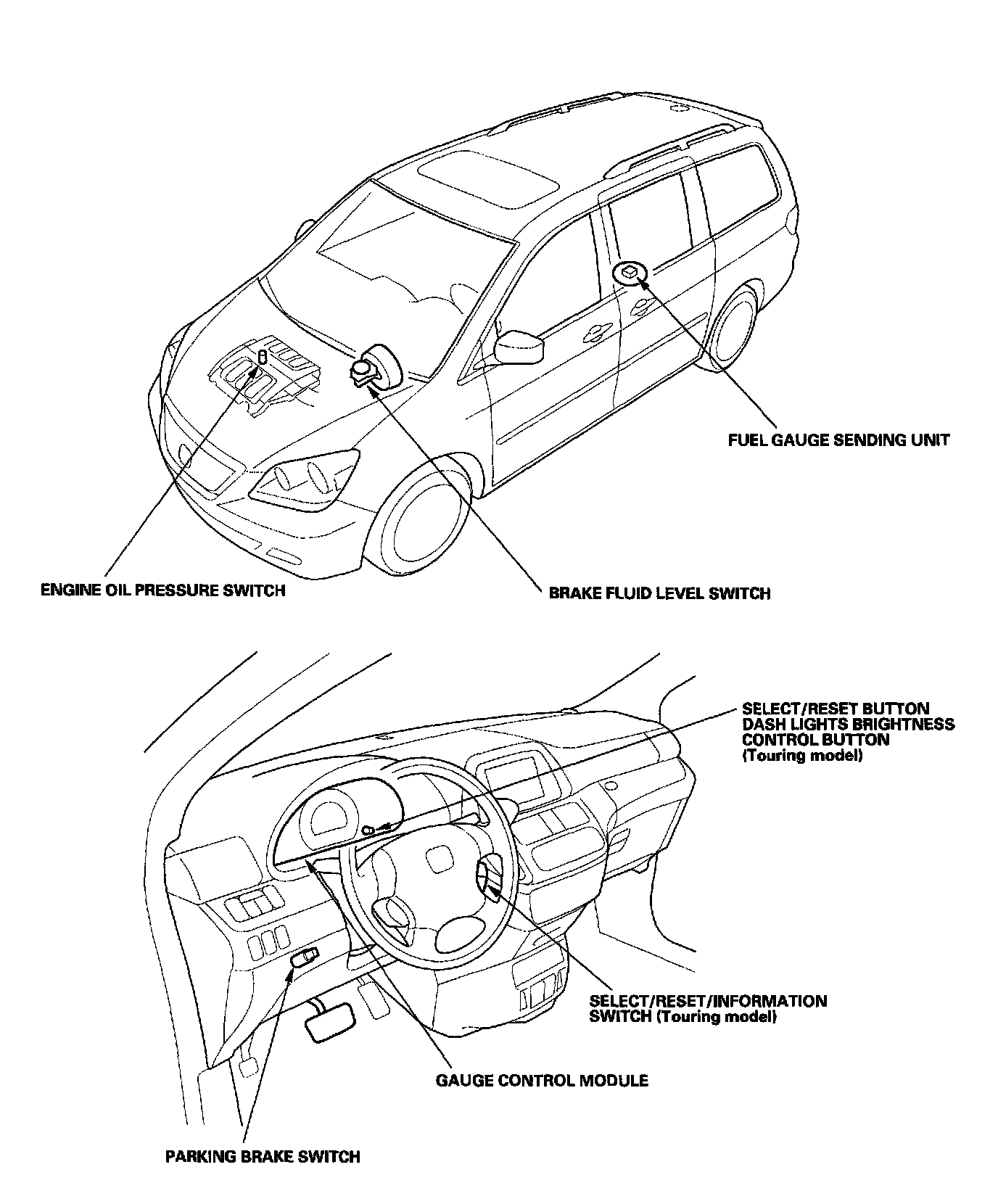

Gauges - Component Location Index - Part 1:
