Cylinder Block Assembly
Cylinder Block Assembly

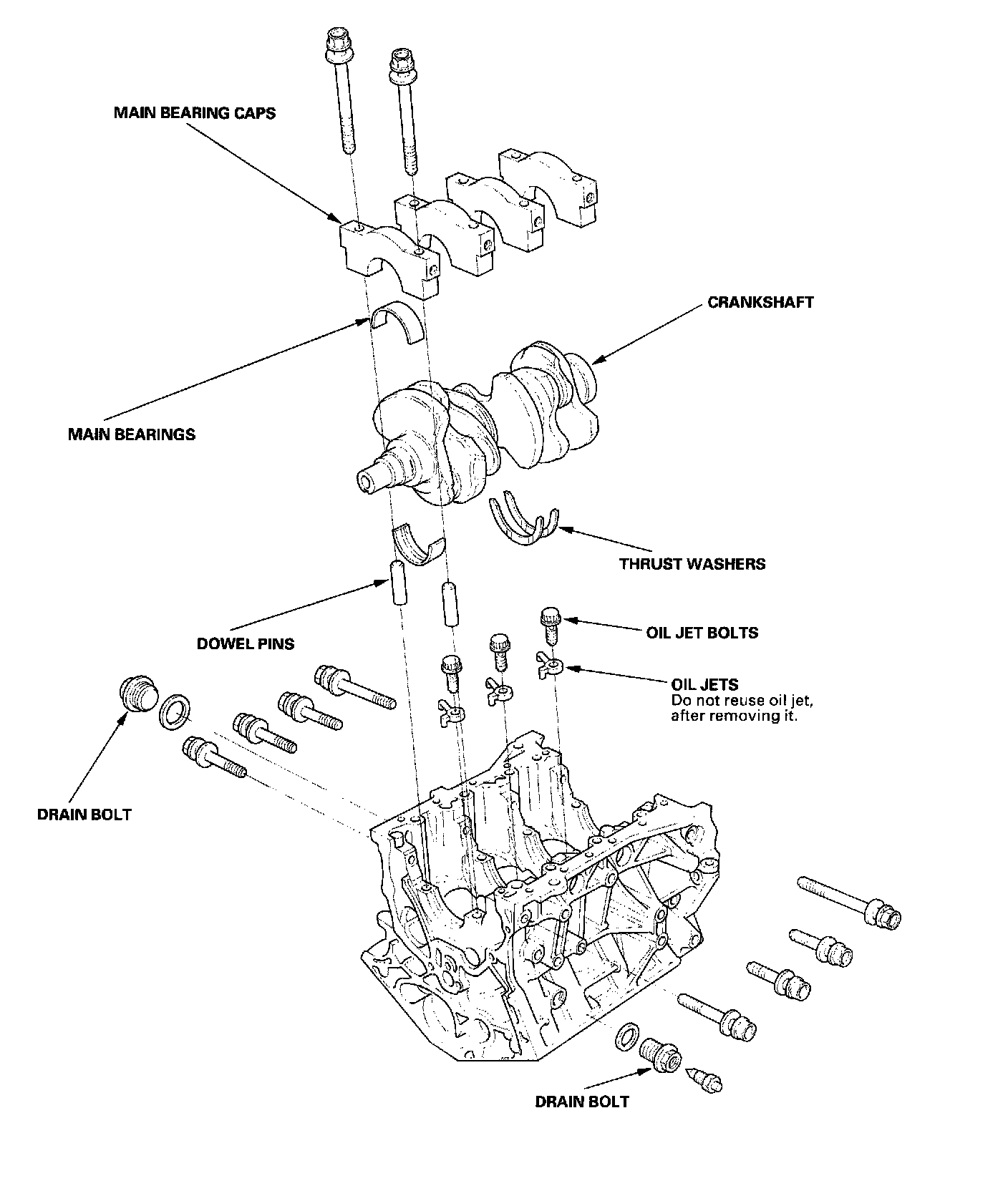

Component Location Index - Part 1:

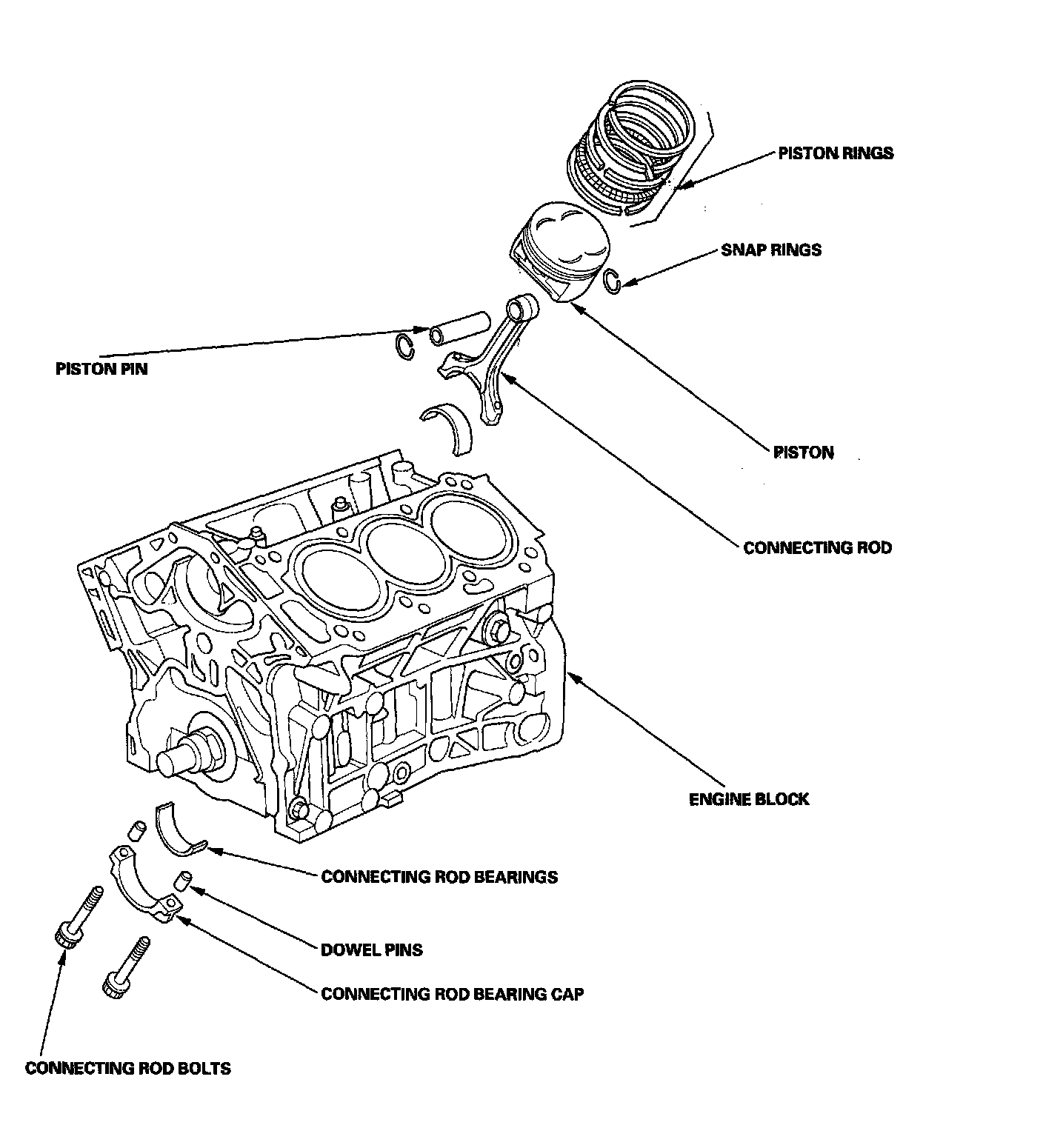

Component Location Index - Part 2:

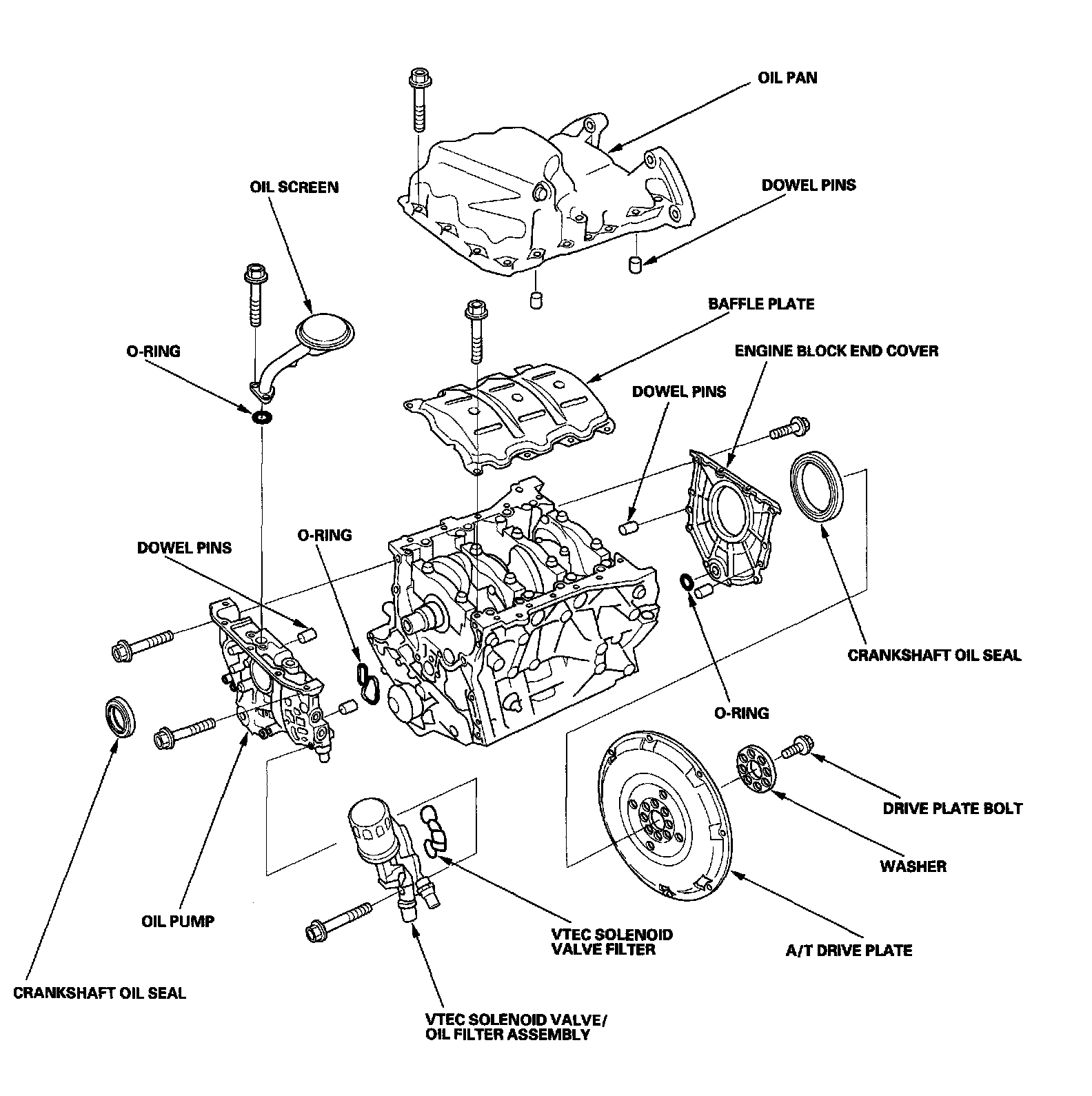

Component Location Index - Part 3:
