Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module

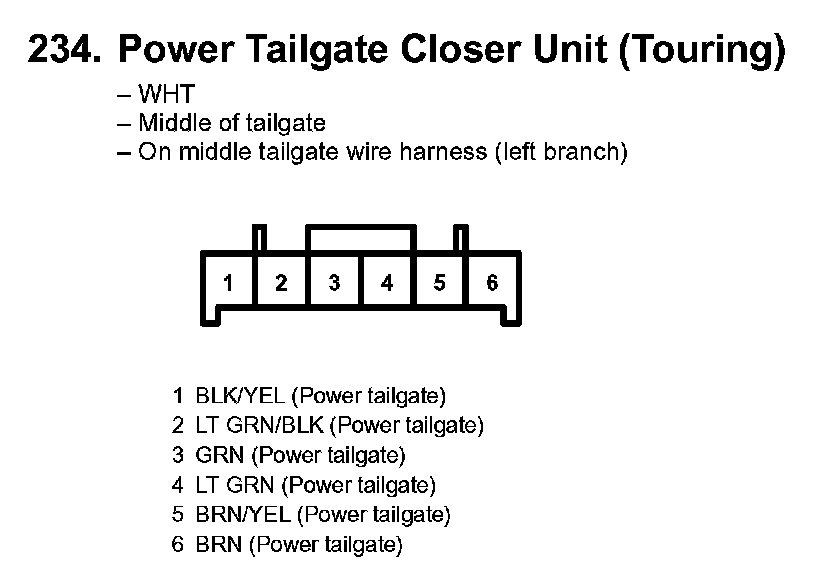

234. Power Tailgate Closer Unit (Touring):

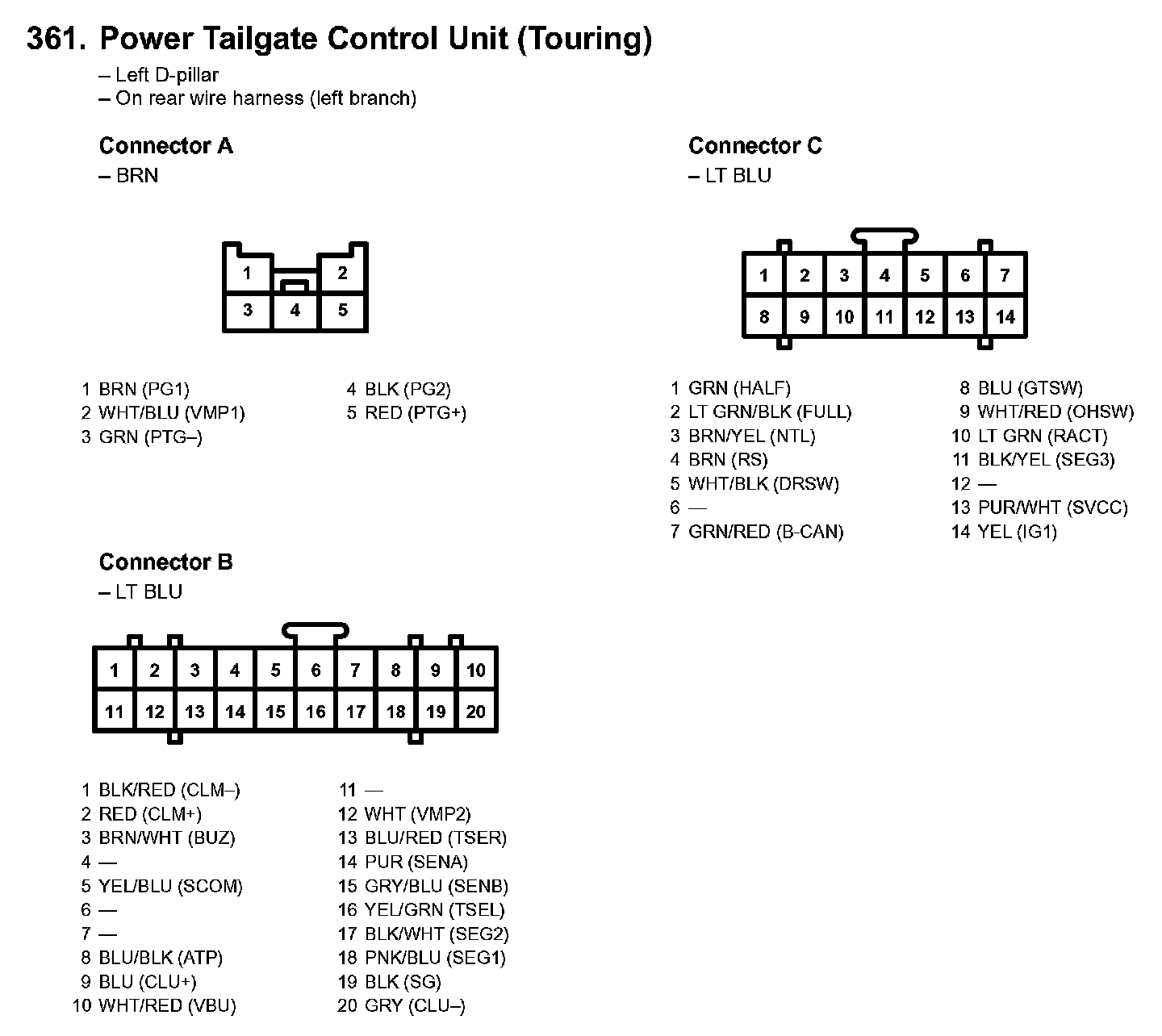

361. Power Tailgate Control Unit (Touring):

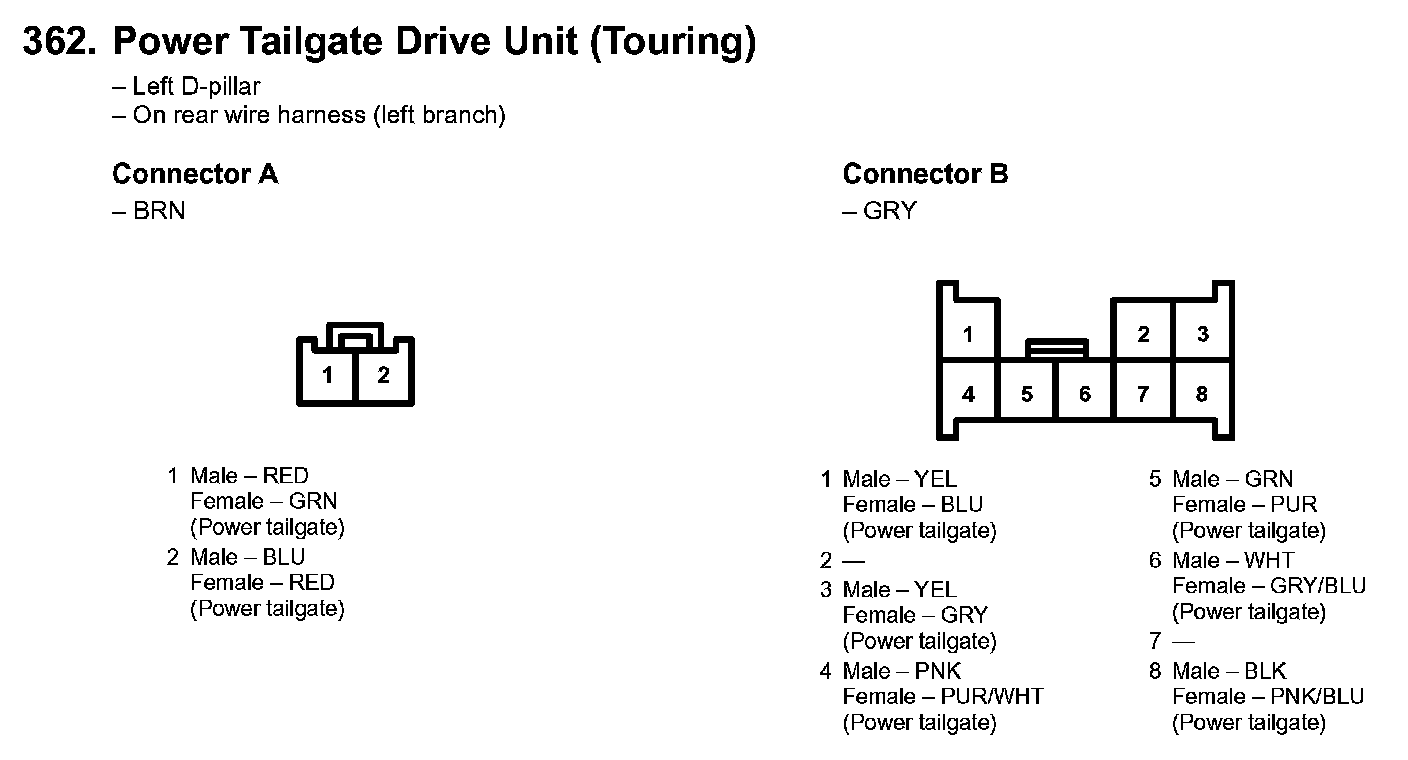

362. Power Tailgate Drive Unit (Touring):
