Home >> Honda >> 2005 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module

General Module

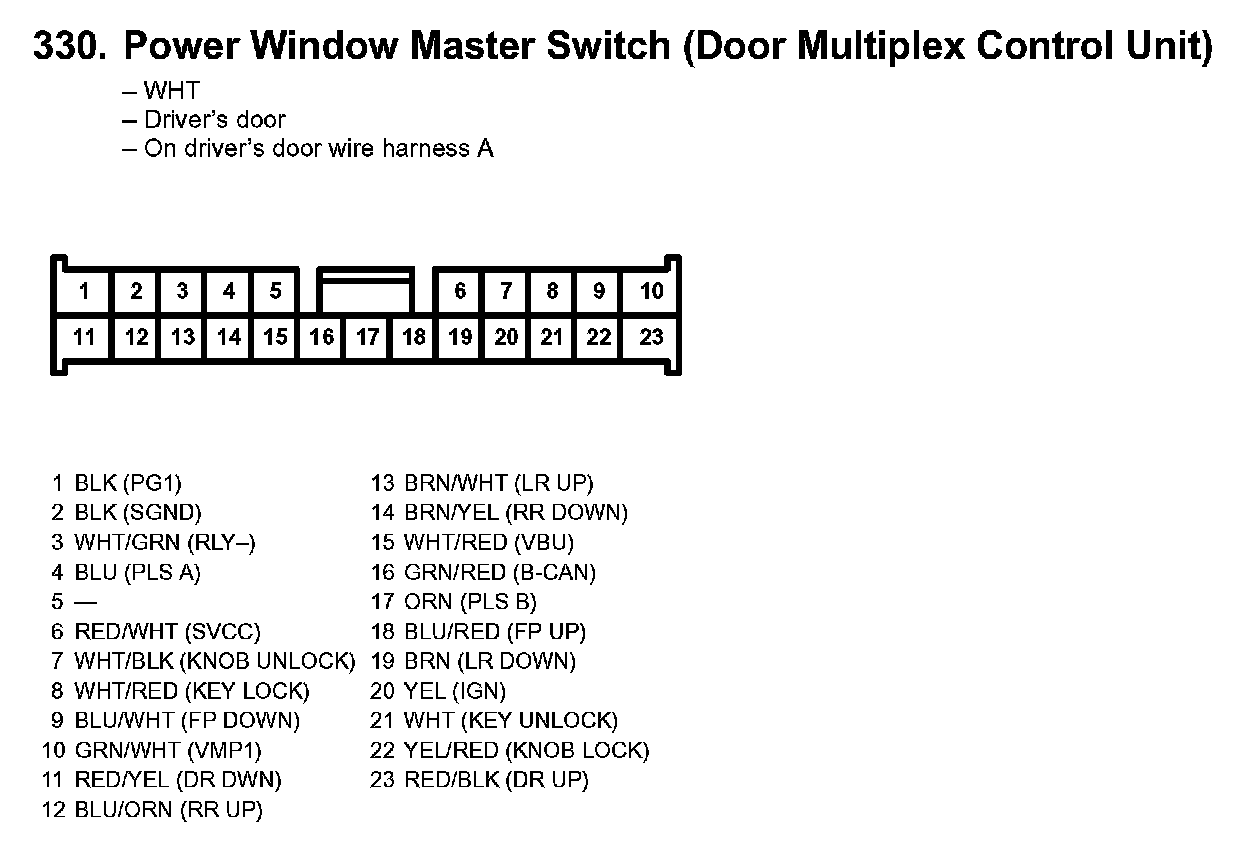

330. Power Window Master Switch (Door Multiplex Control Unit):
