Home >> Honda >> 2005 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> PCM

PCM

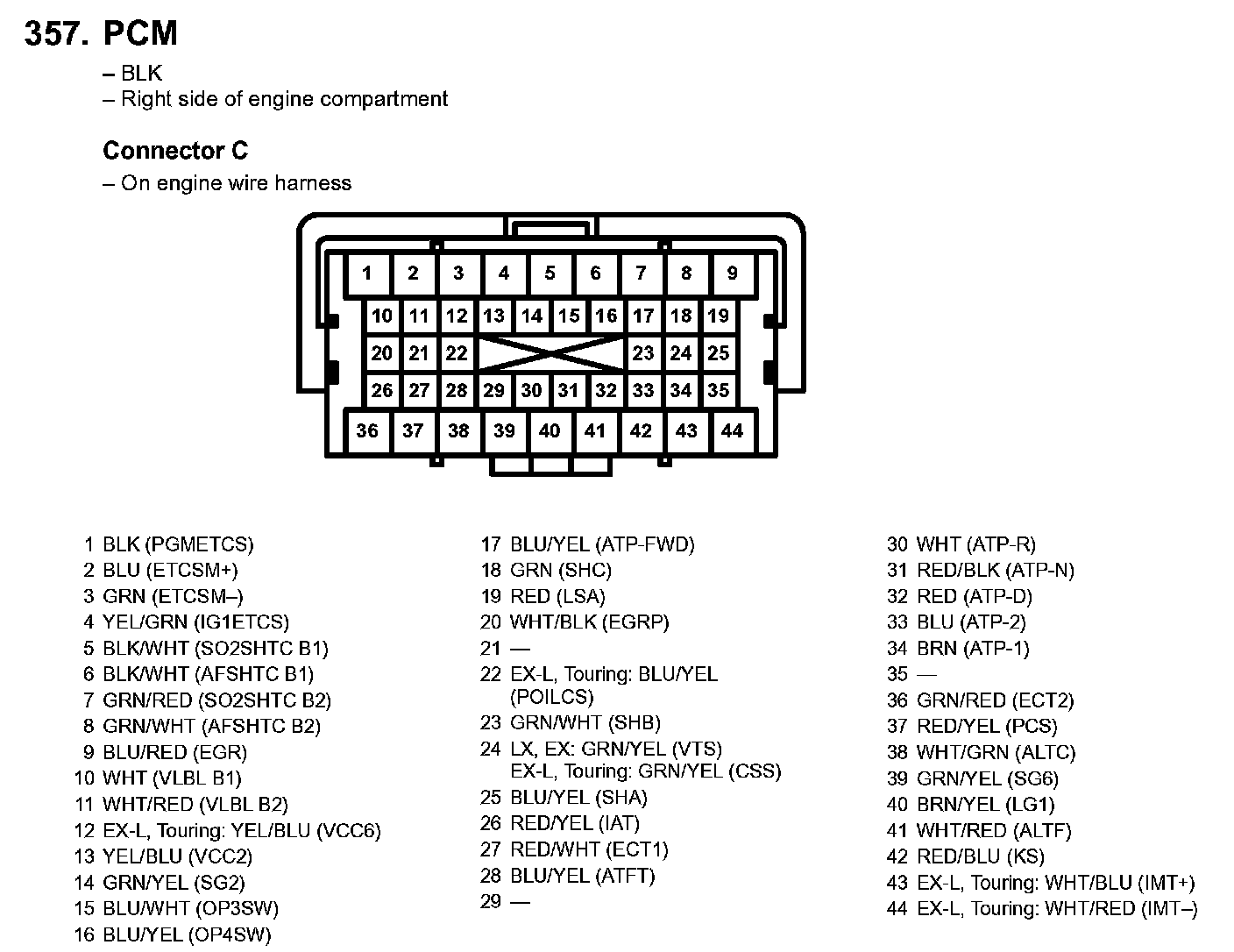

357. PCM Part 1:

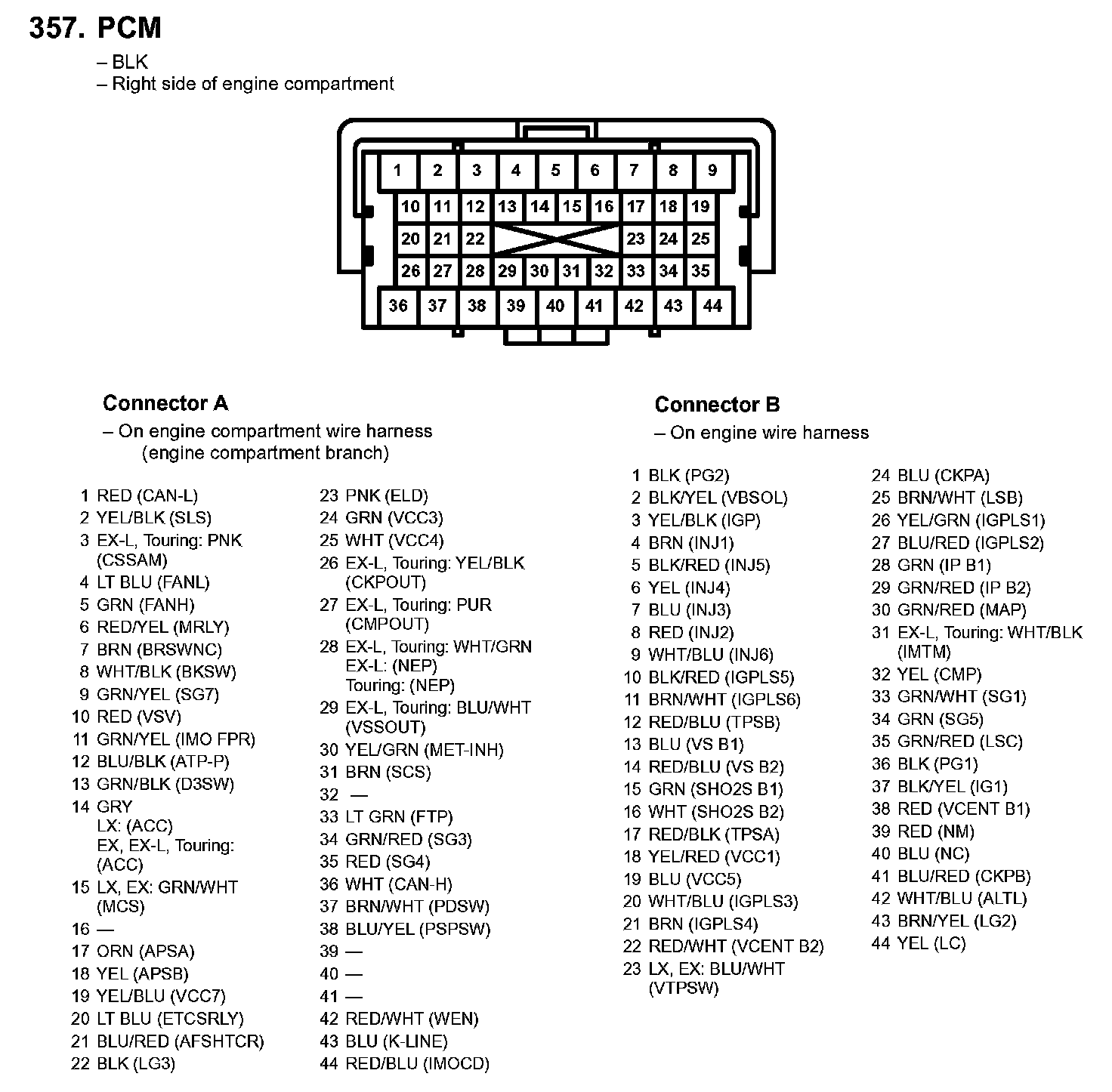

357. PCM Part 2:
