Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

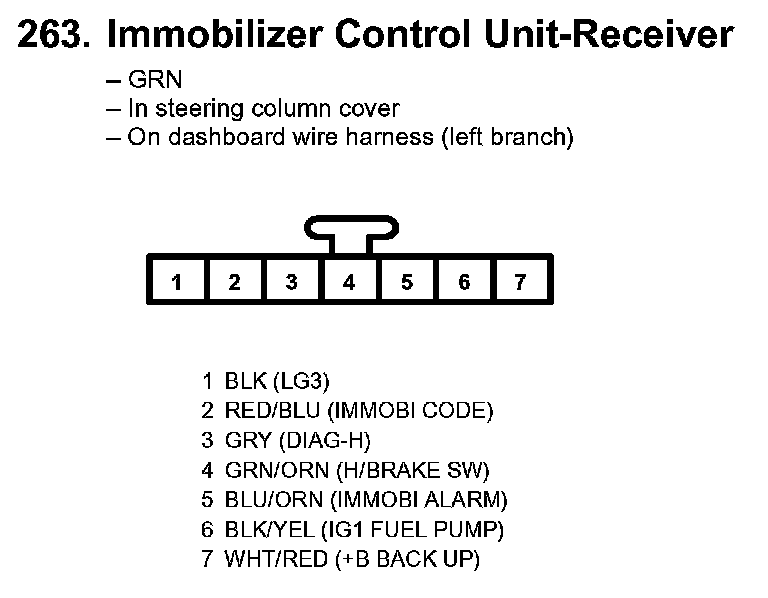

263. Immobilizer Control Unit-Receiver:

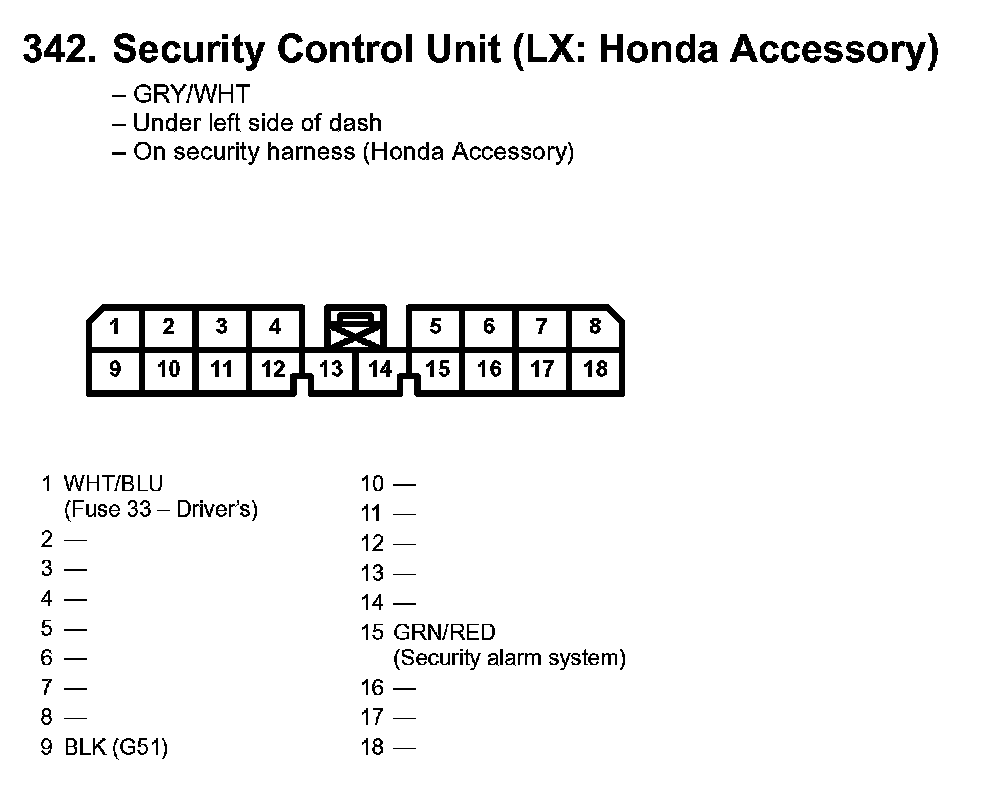

342. Security Control Unit (LX: Honda Accessory):
