Home >> Honda >> 2005 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

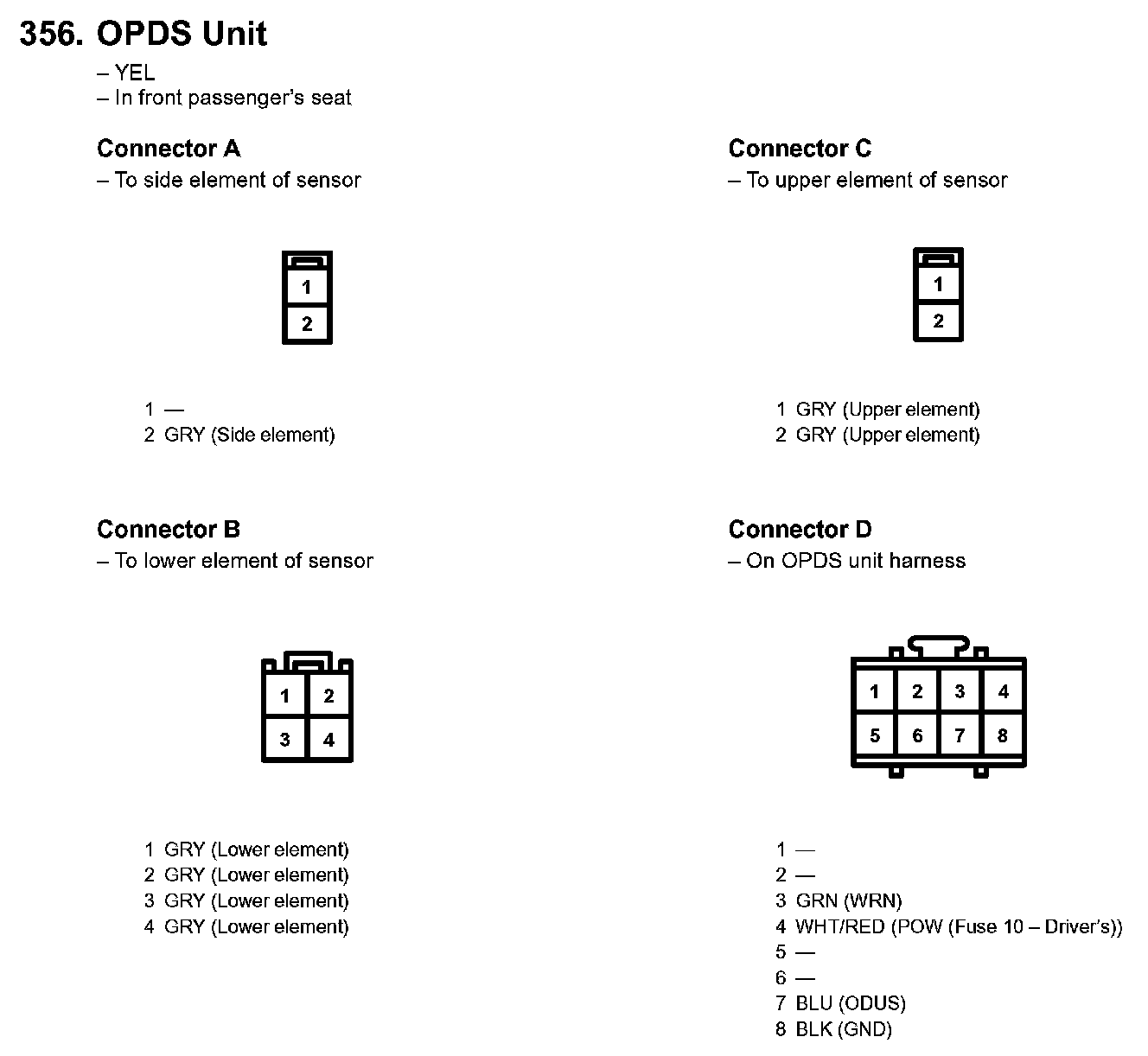

356. OPDS Unit:

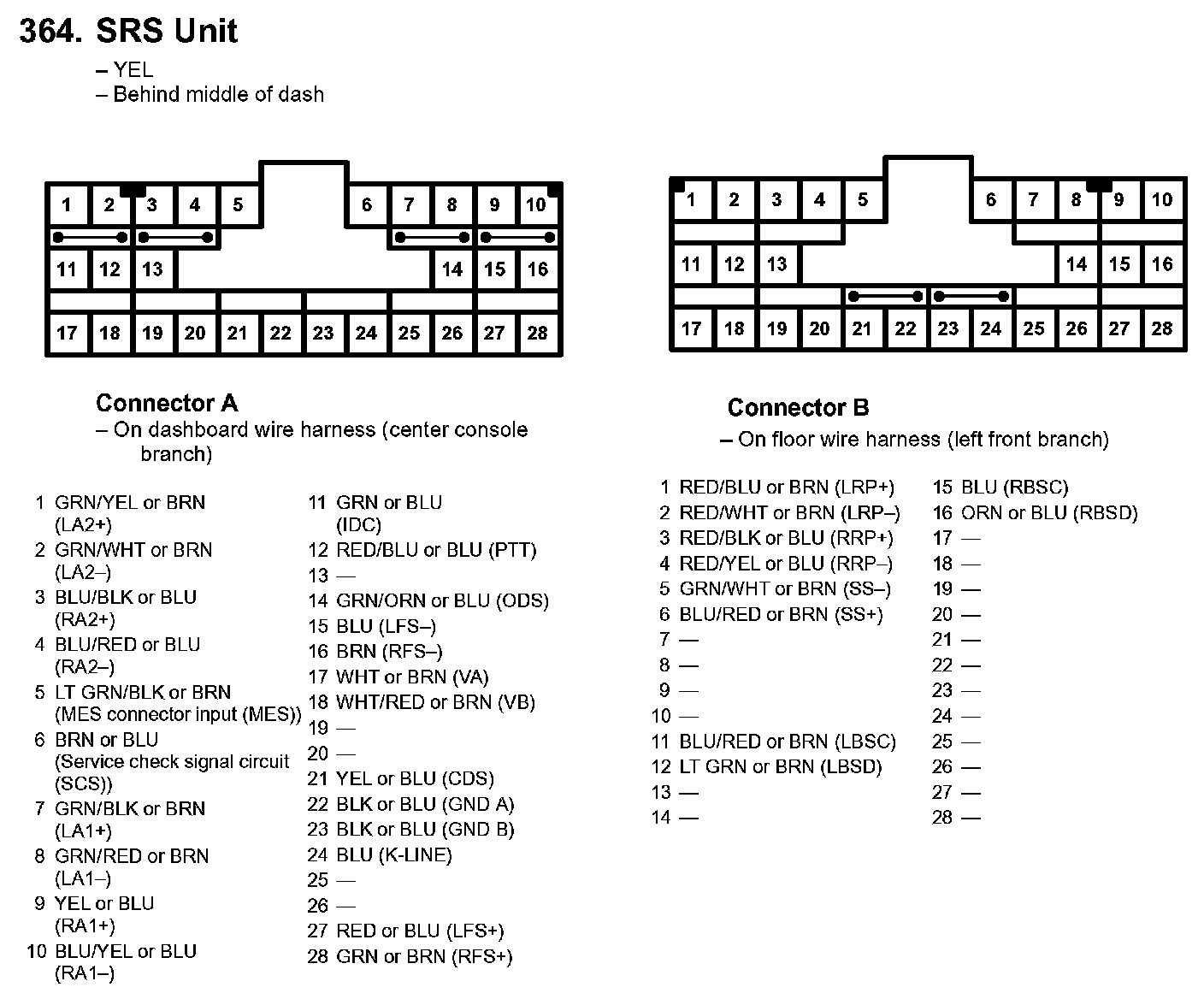

364. SRS Unit Part 1:

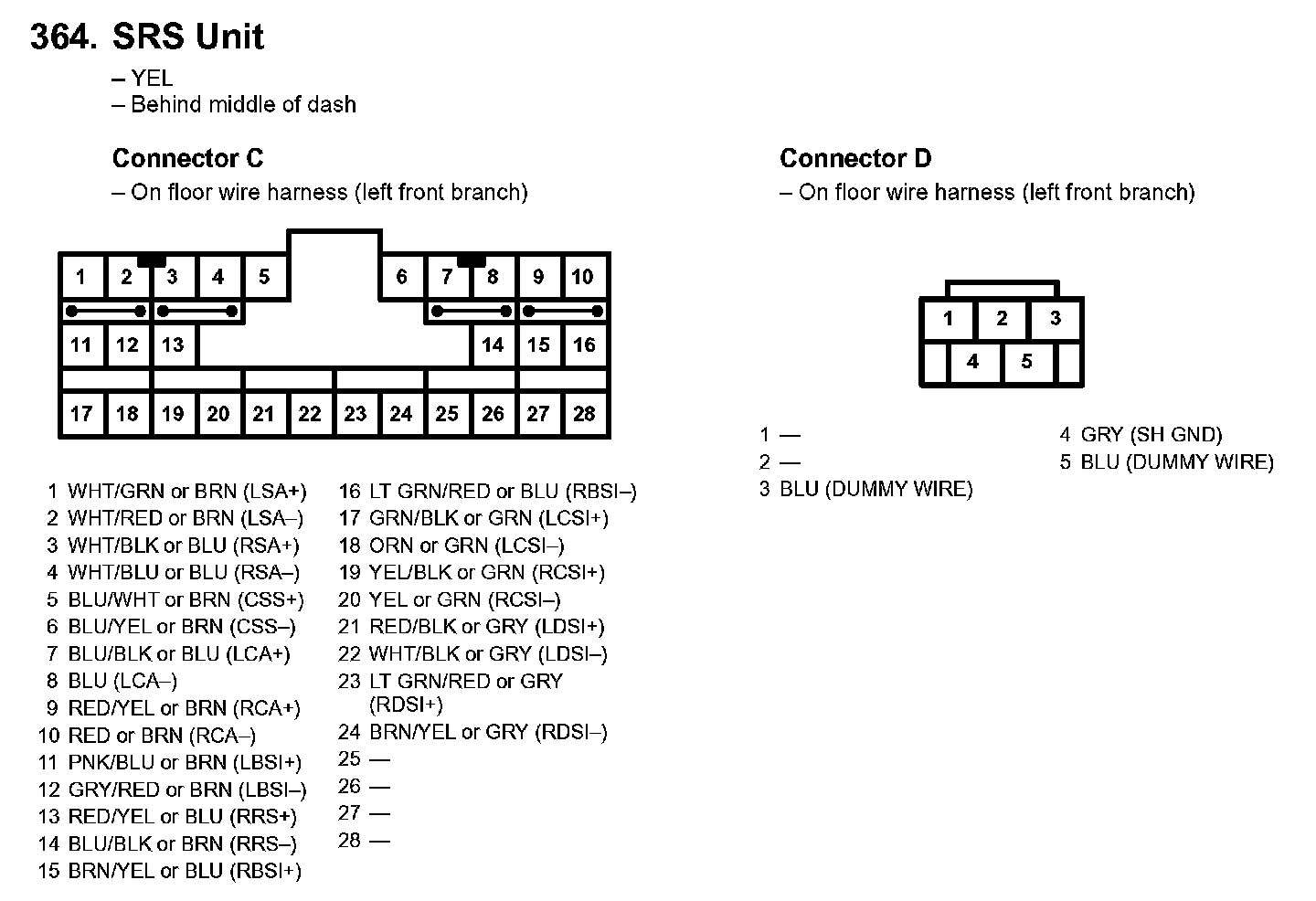

364. SRS Unit Part 2:
