Main Relay (Computer/Fuel System): Locations

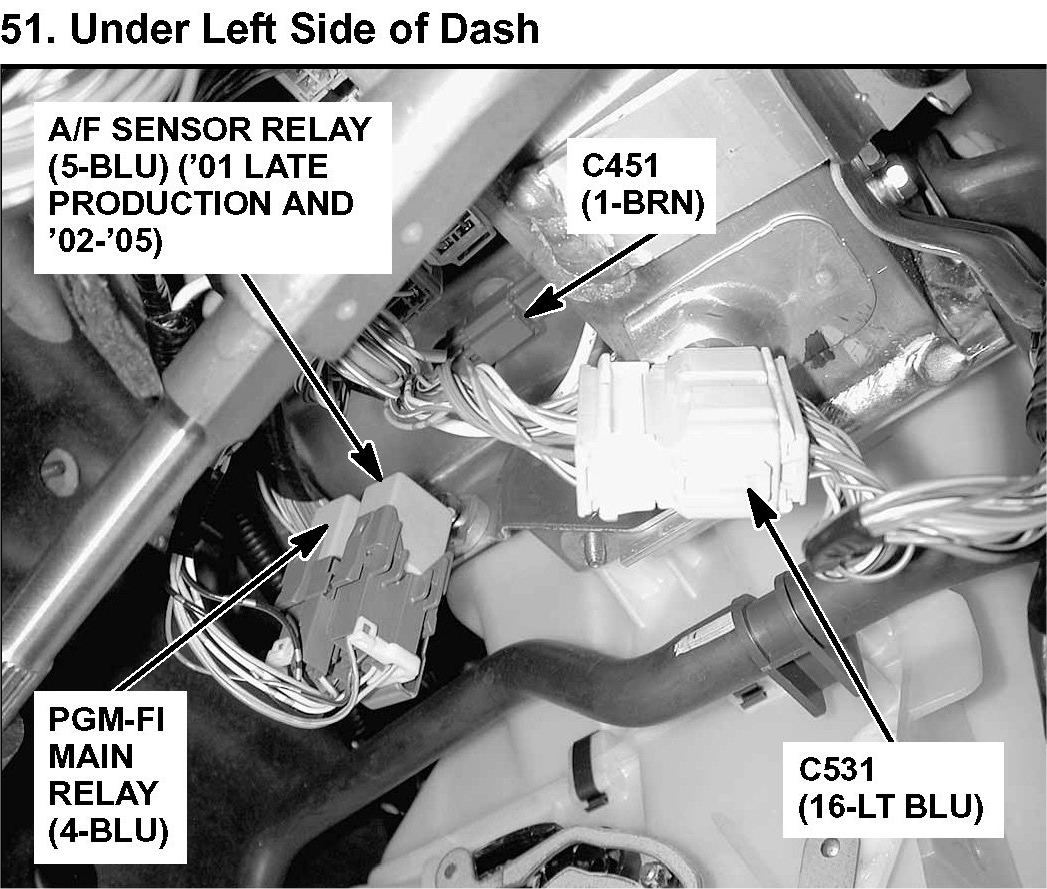

51. Under Left Side of Dash:
Component Location Index:
Component Location Index:

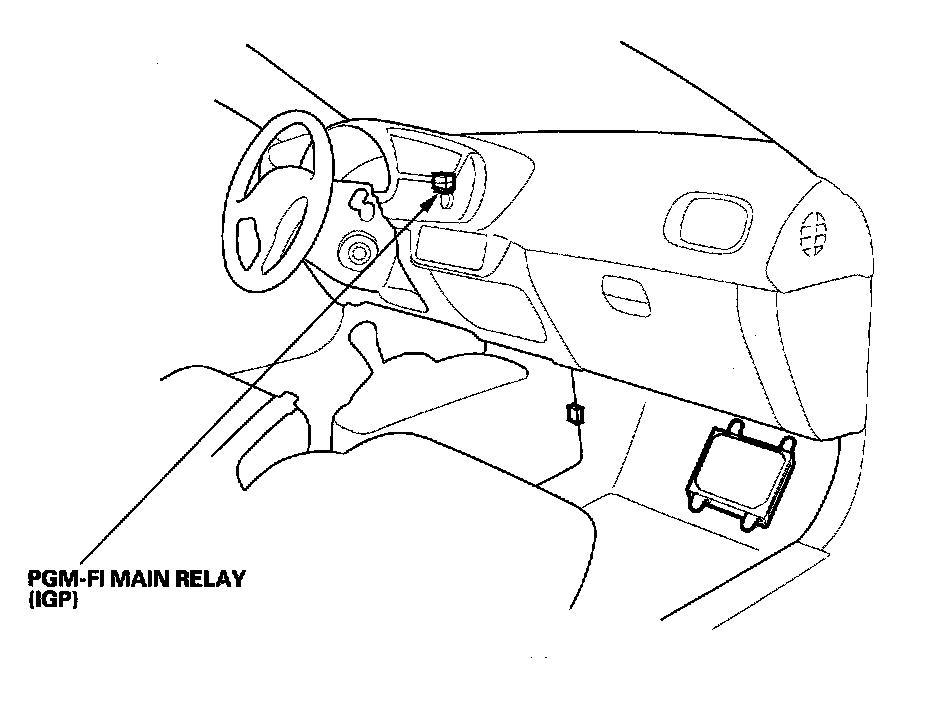

Relay And Control Unit Locations - Dashboard:
