Pinout Values and Diagnostic Parameters

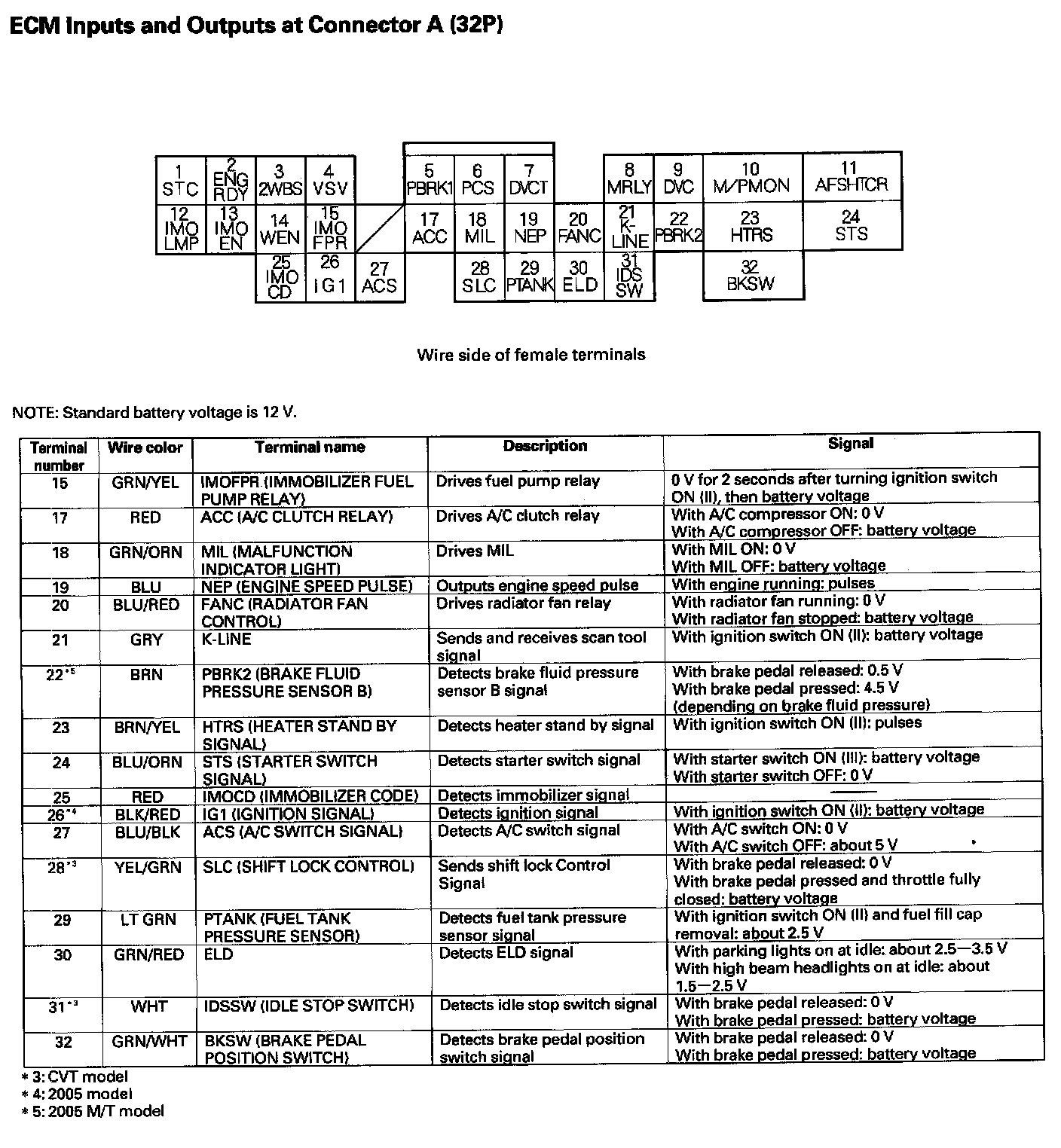

ECM Inputs And Outputs At Connector A (32P):

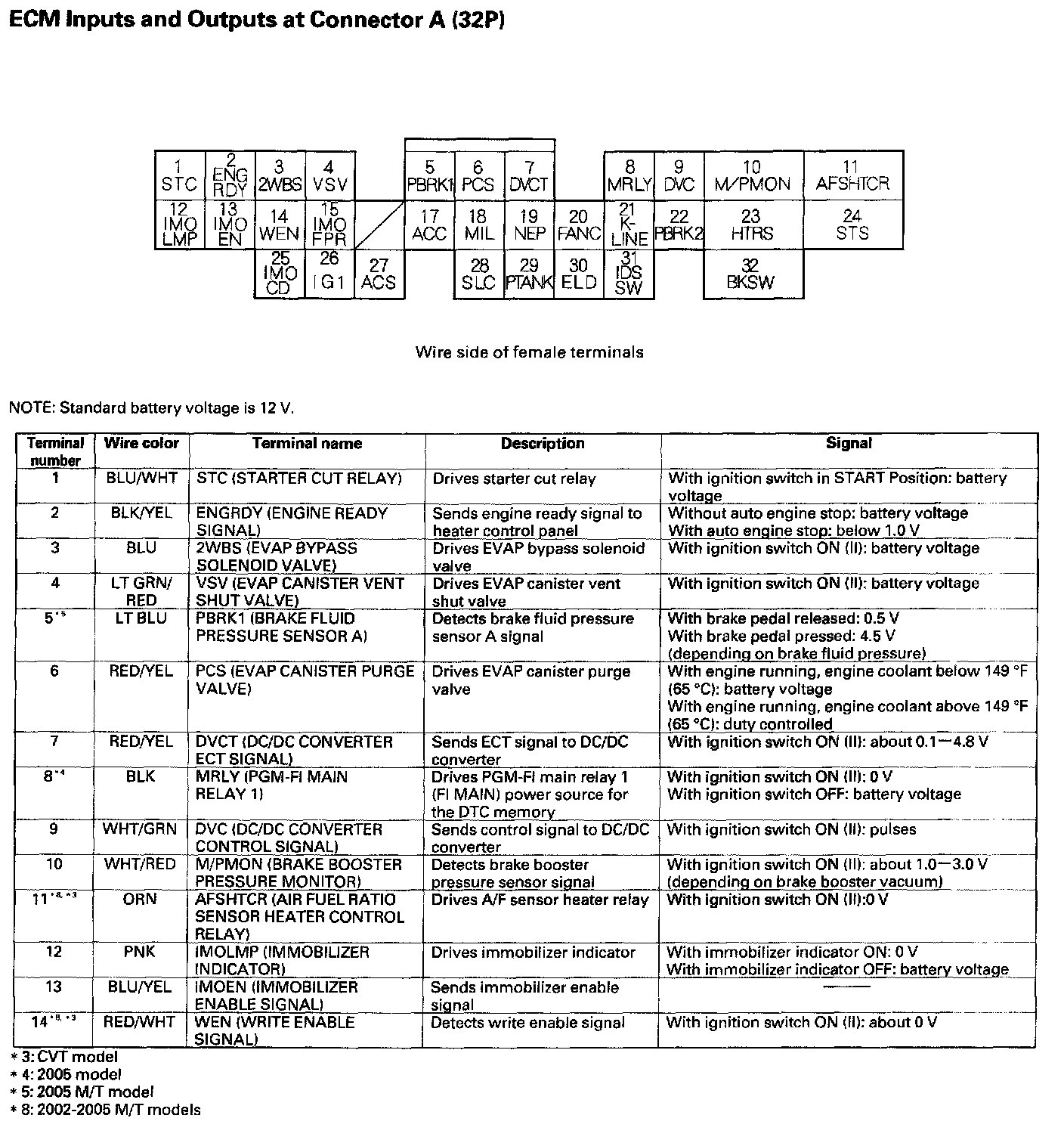

ECM Inputs And Outputs Connector A (32P) Part 2:

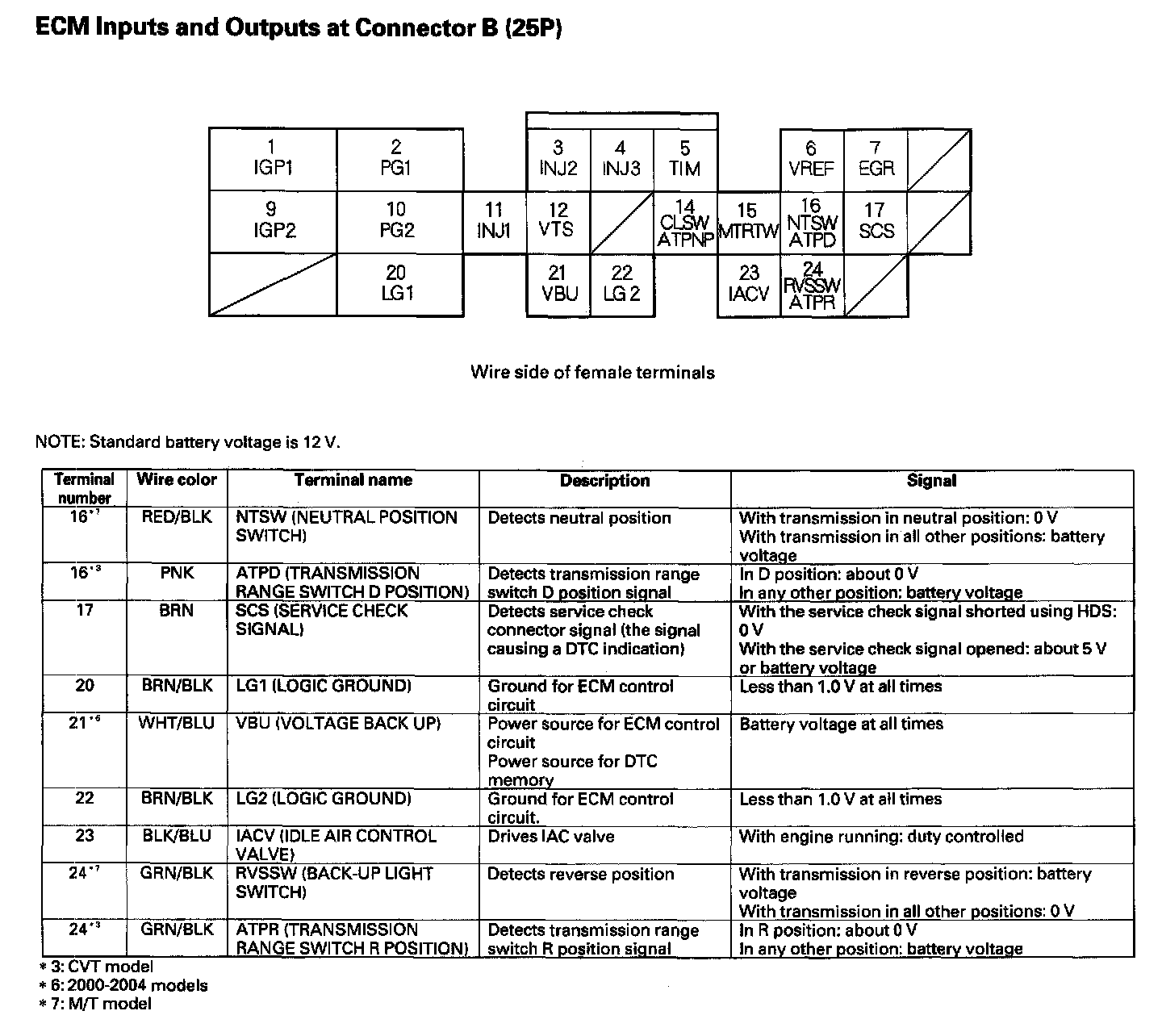

ECM Inputs And Outputs At Connector B (25P):

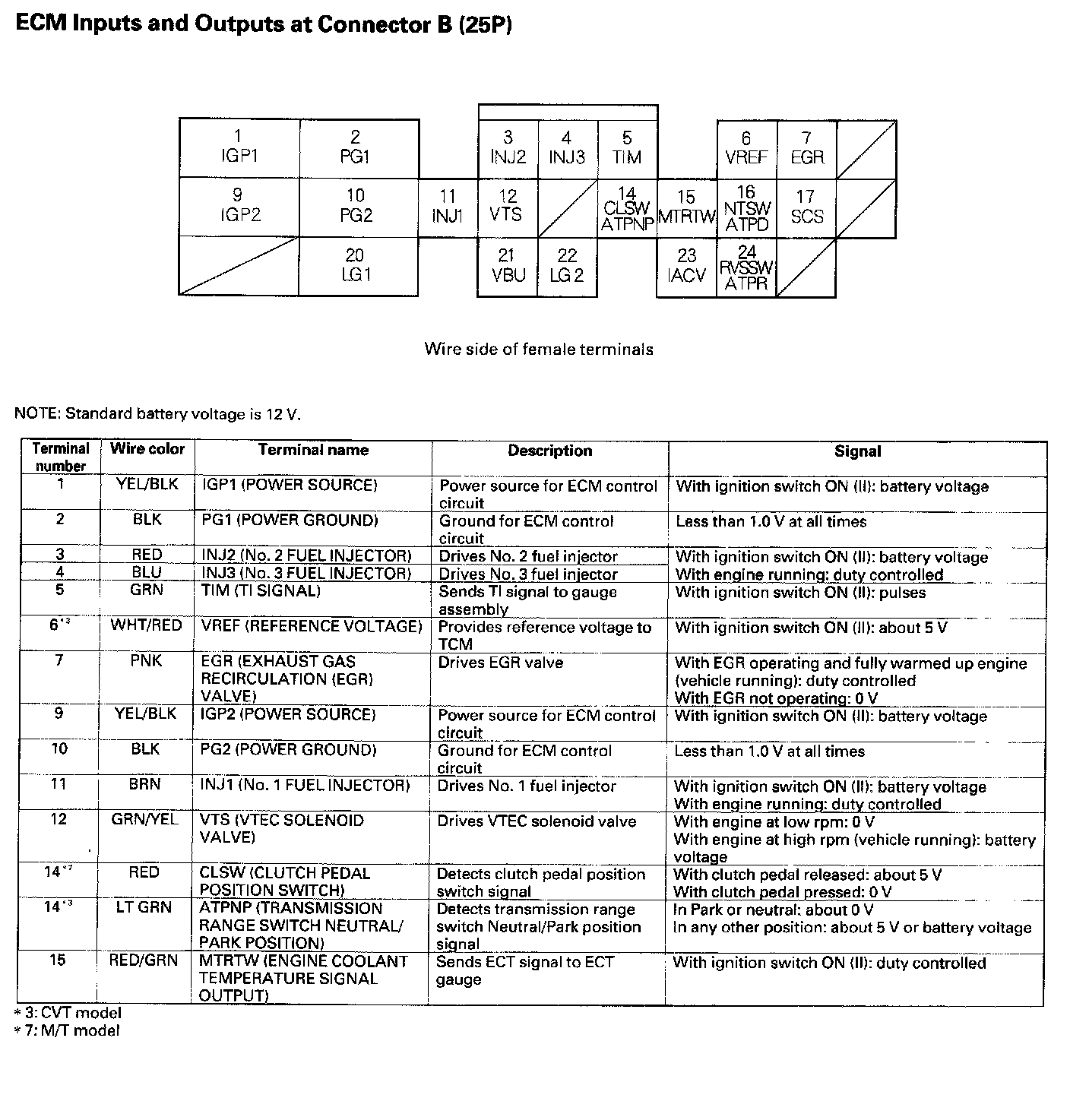

ECM Inputs Outputs At Connector B (25P):

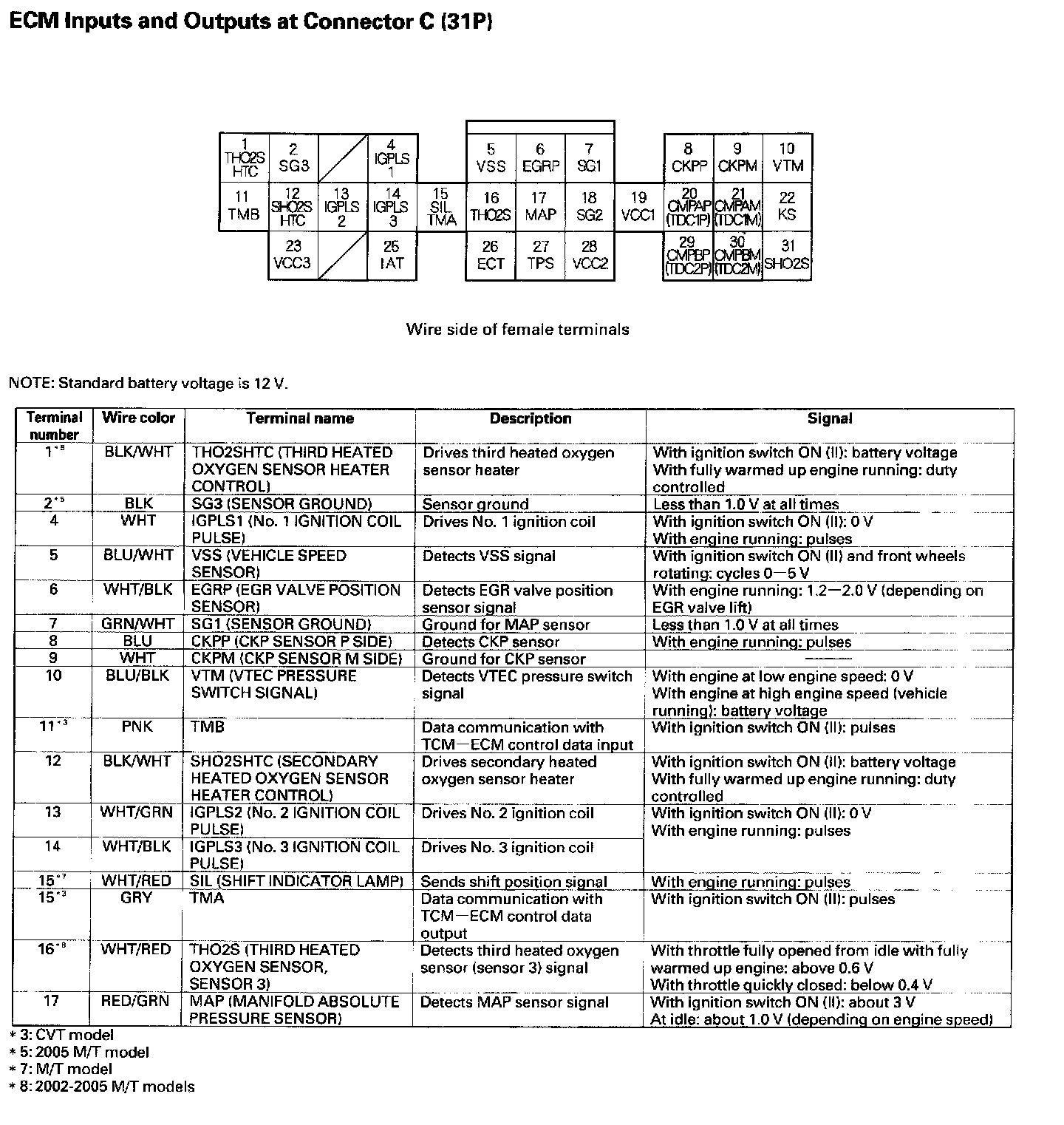

ECM Inputs And Outputs At Connector C (31P):

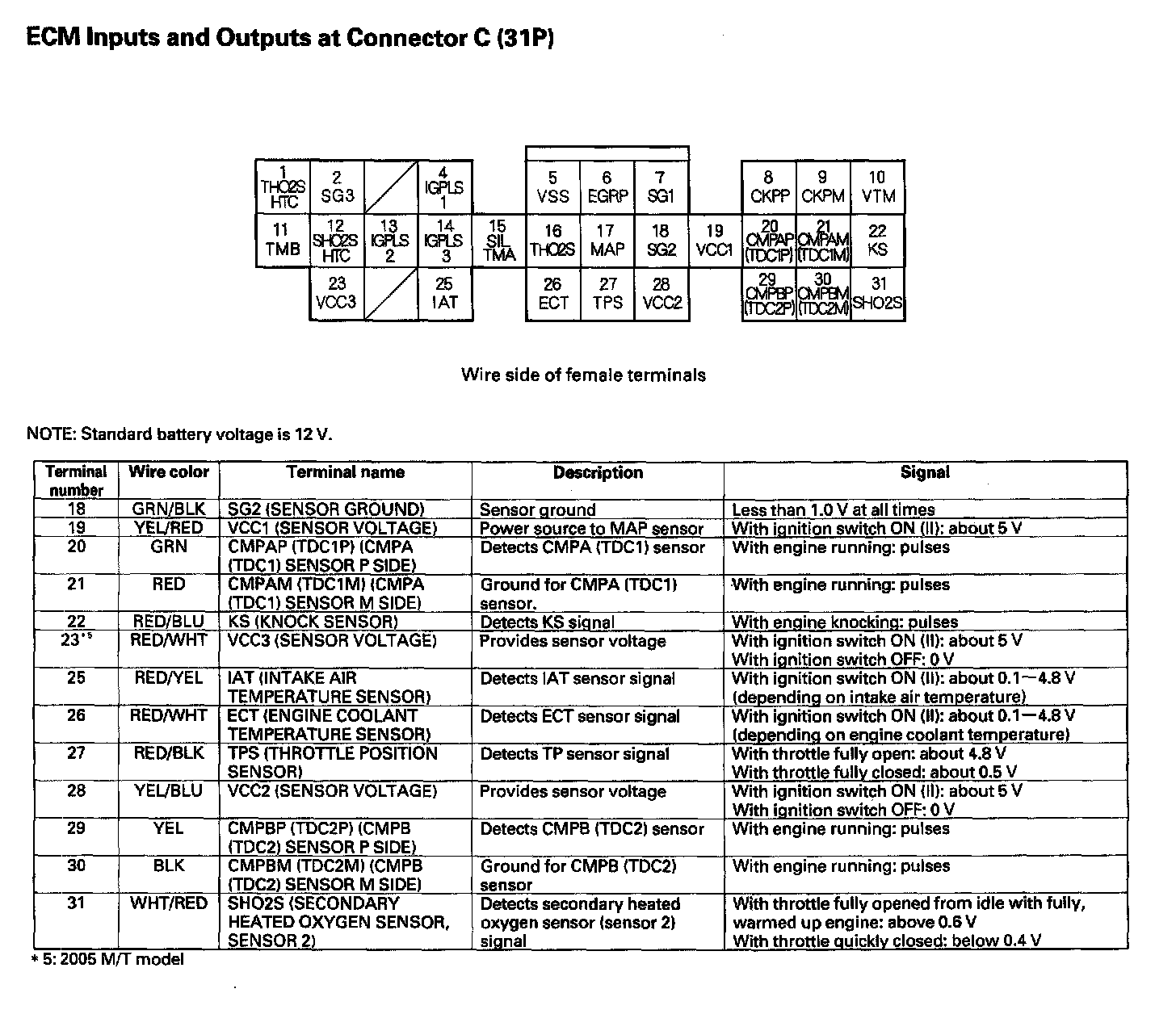

ECM Inputs And Outputs At Connecter C (31P):

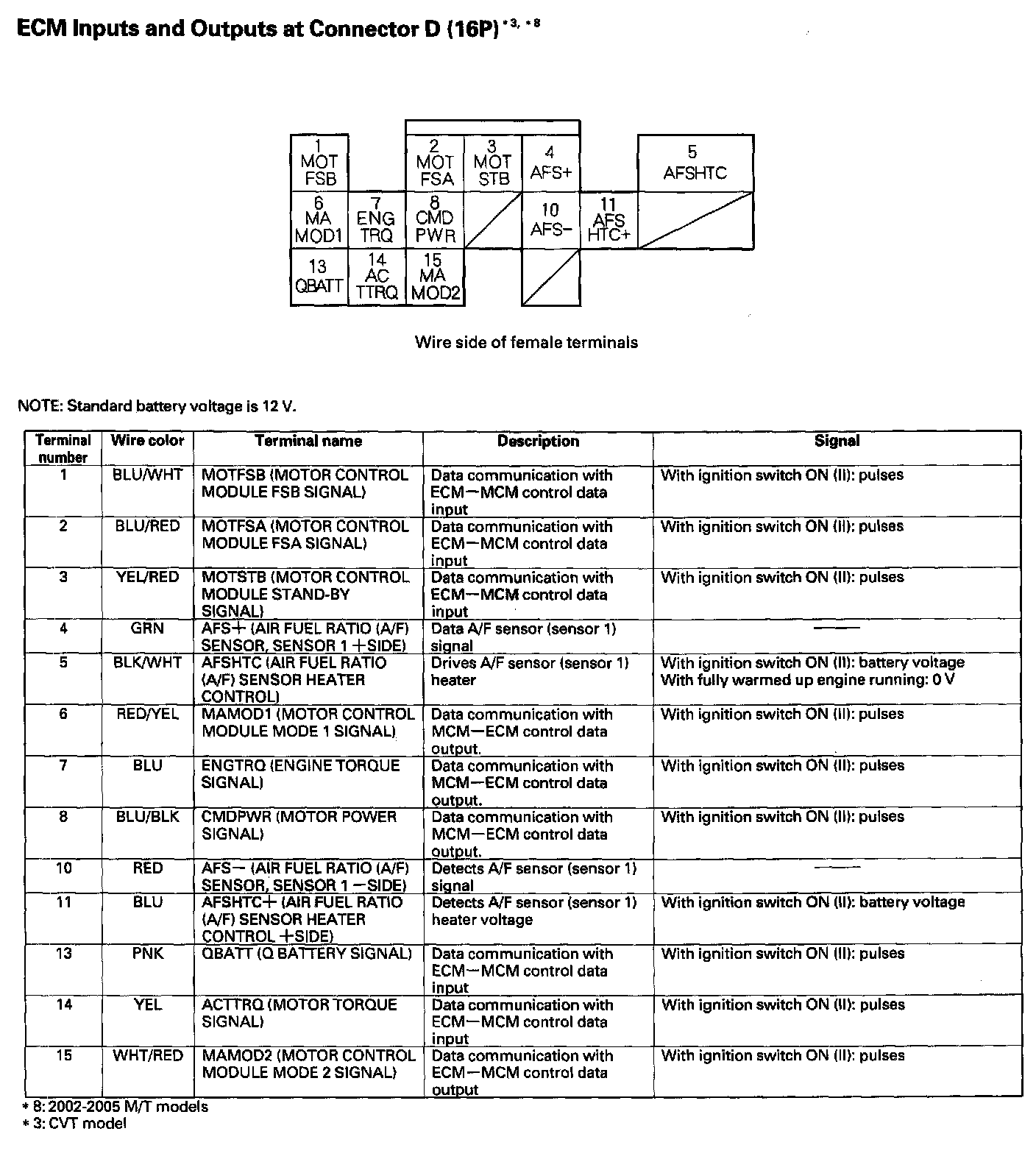

ECM Inputs And Outputs At Connector D (16P):

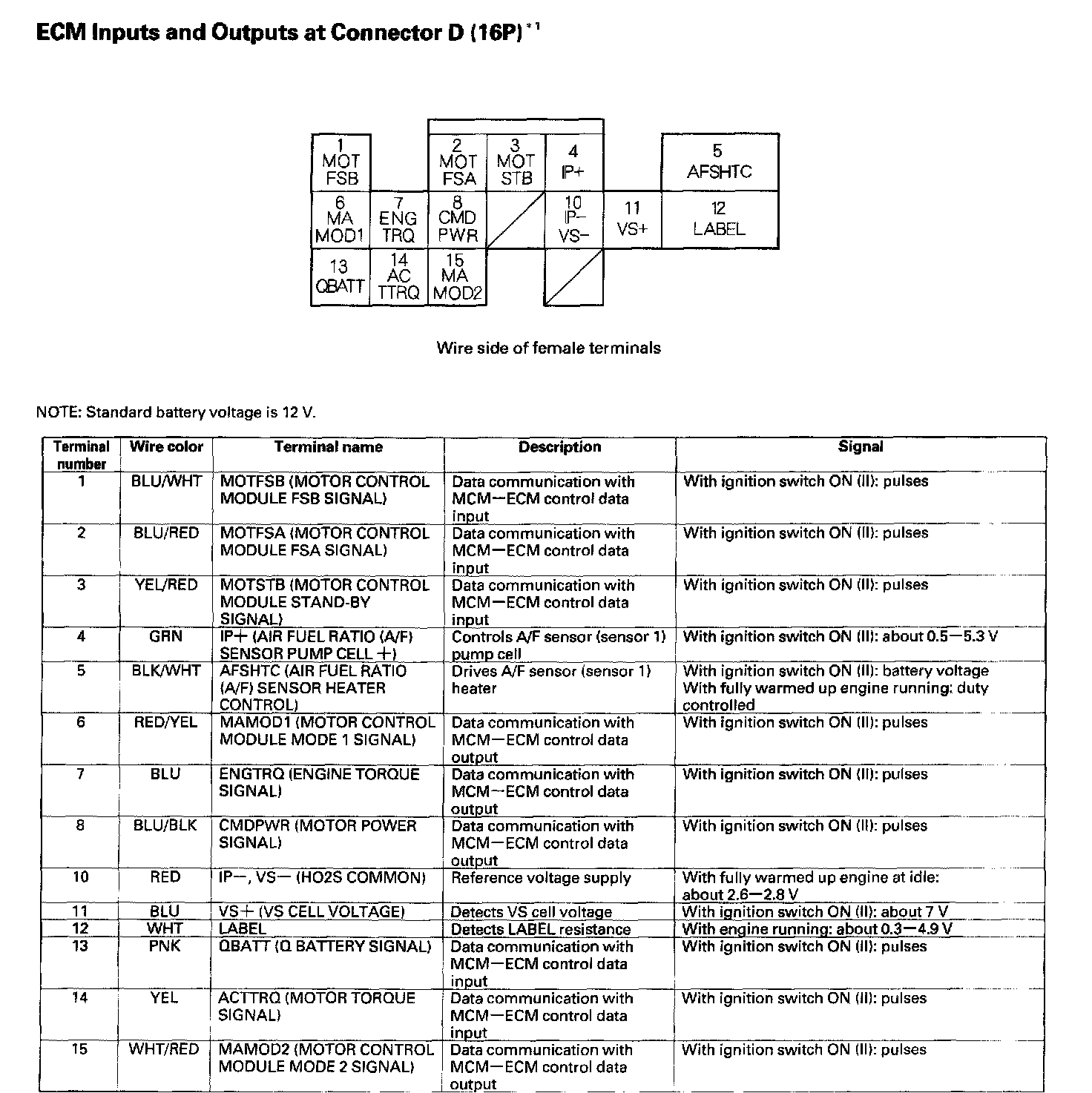

ECM Inputs And Outputs At Connector D (16P):
