Engine Control Module: Locations

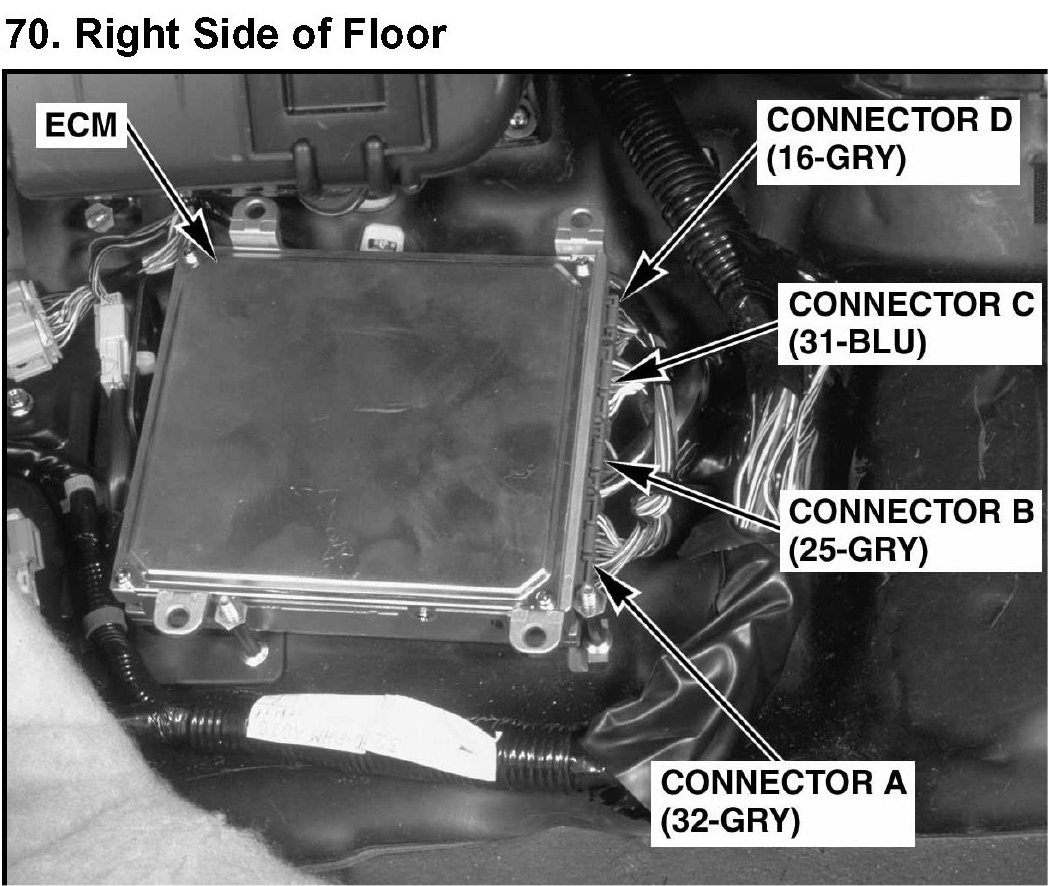

70. Right Side of Floor:

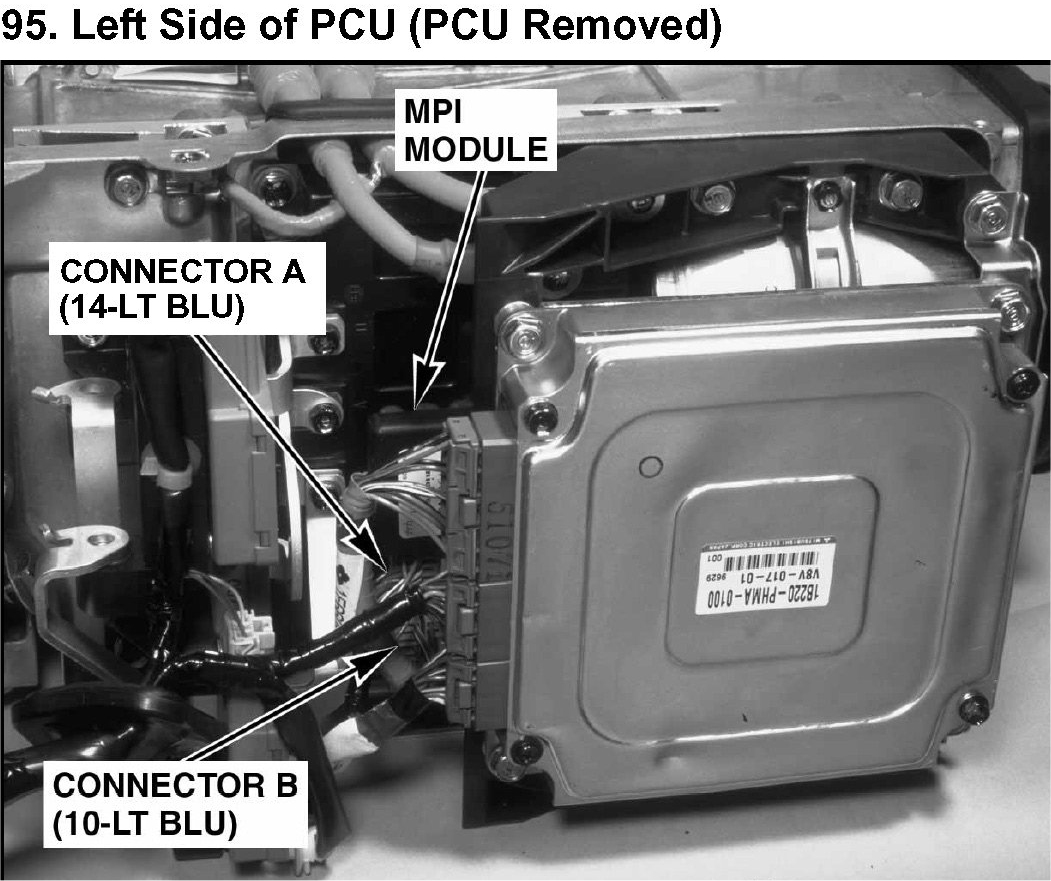

95. Left Side of PCU (PCU Removed):

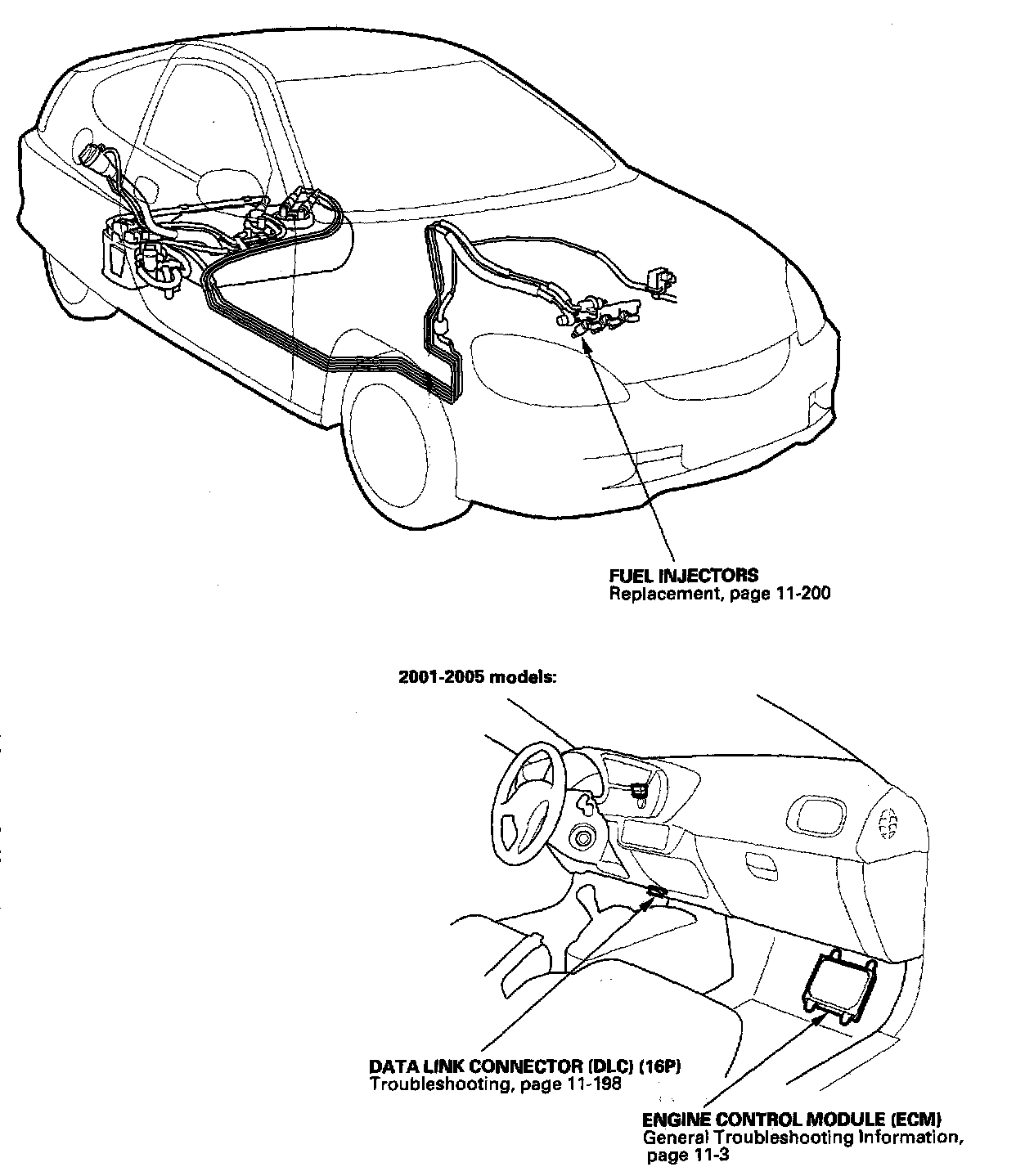

PGM-FI System - Component Location Index:

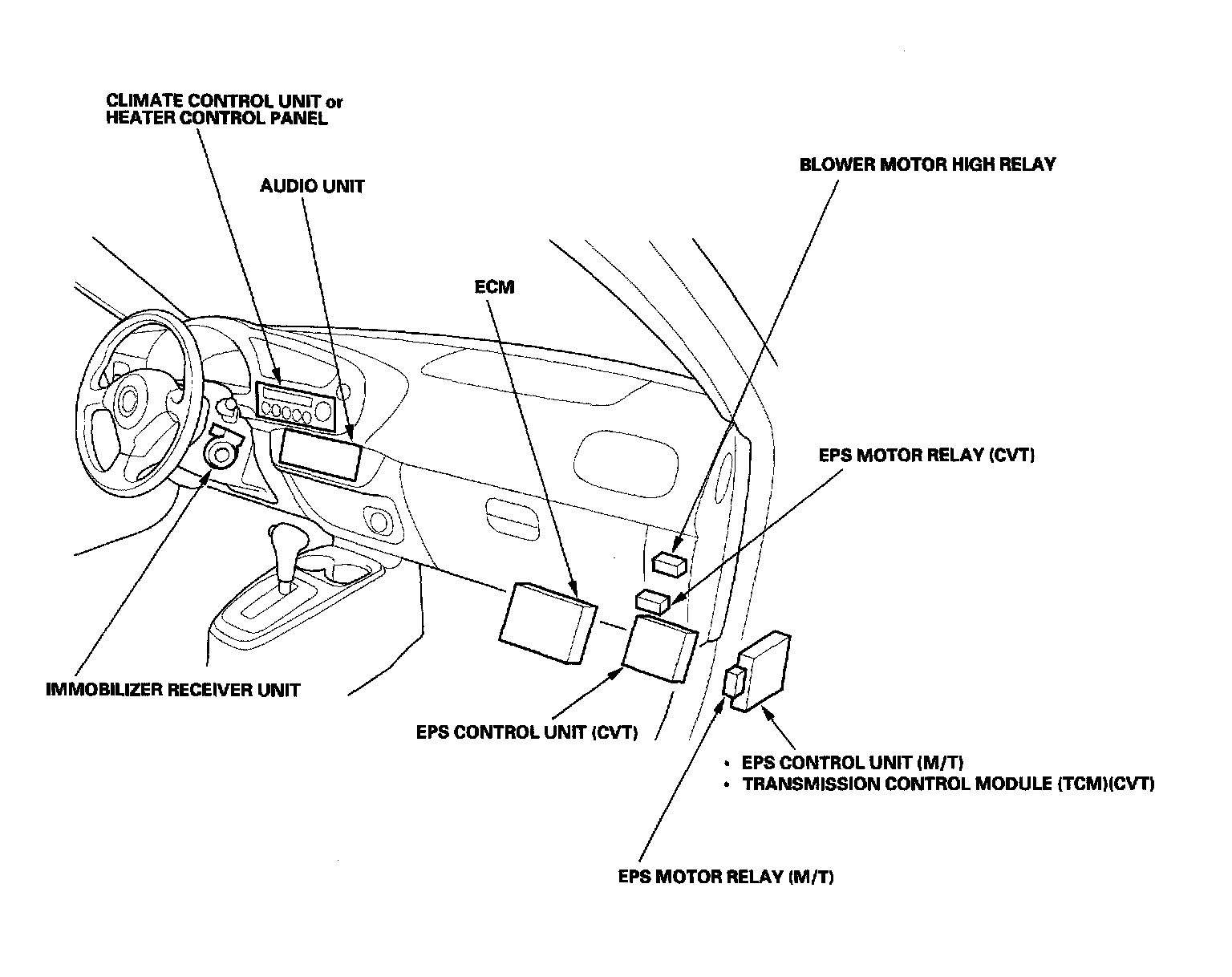

Relay And Control Unit Locations - Dashboard:
