Insight L3-1.0L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>

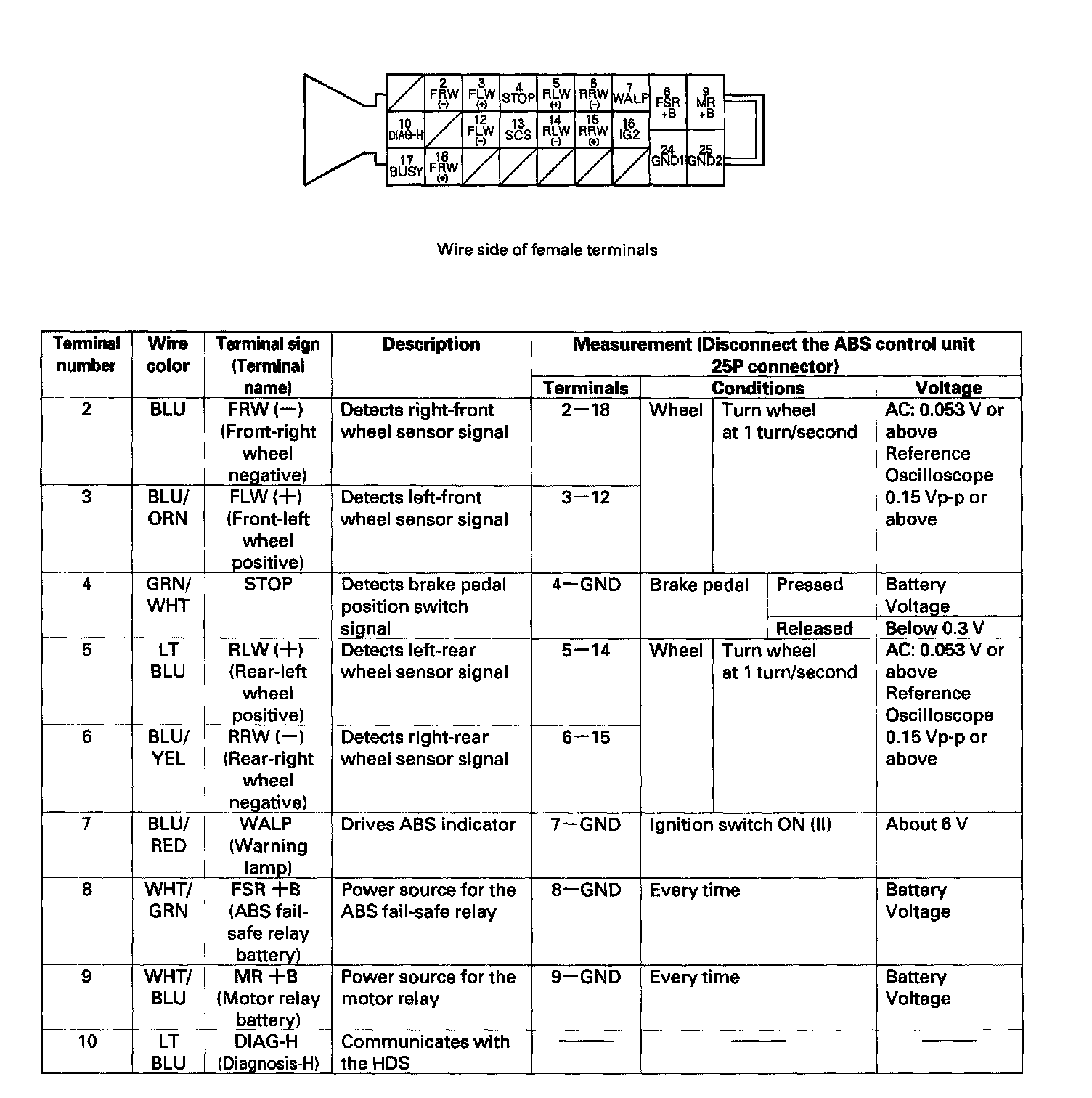

Control Module Pinout Values, ABS

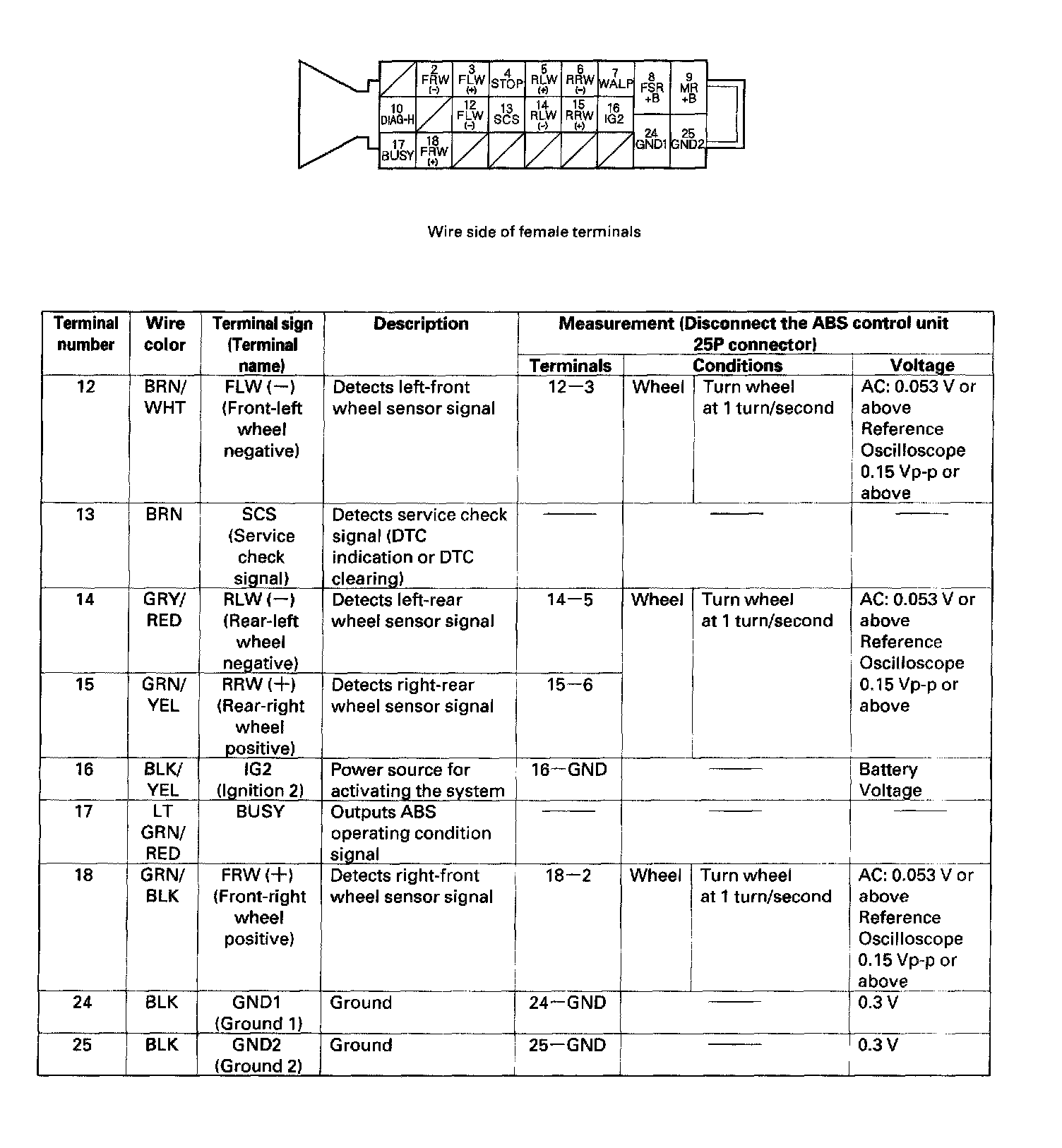

Control Module Pinout Values, ABS
Control Module:
Control Module:
