Home >> Honda >> 2005 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> ABS Modulator-Control Unit

ABS Modulator-Control Unit

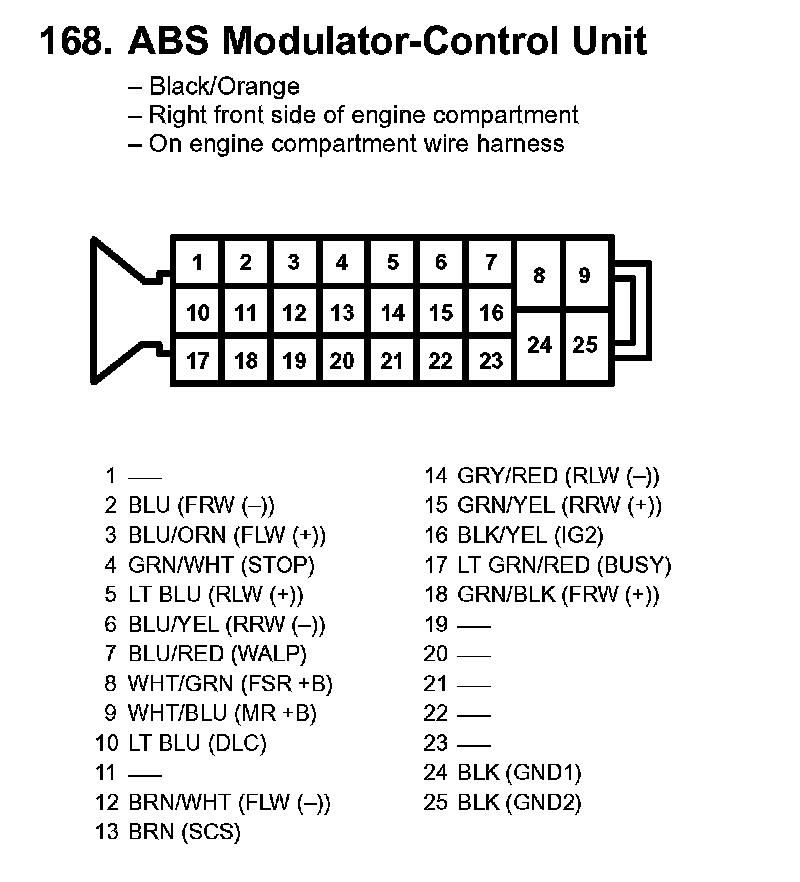

168. ABS Modulator-Control Unit:
