Home >> Honda >> 2005 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Relay >> Locations

Power Window Relay: Locations

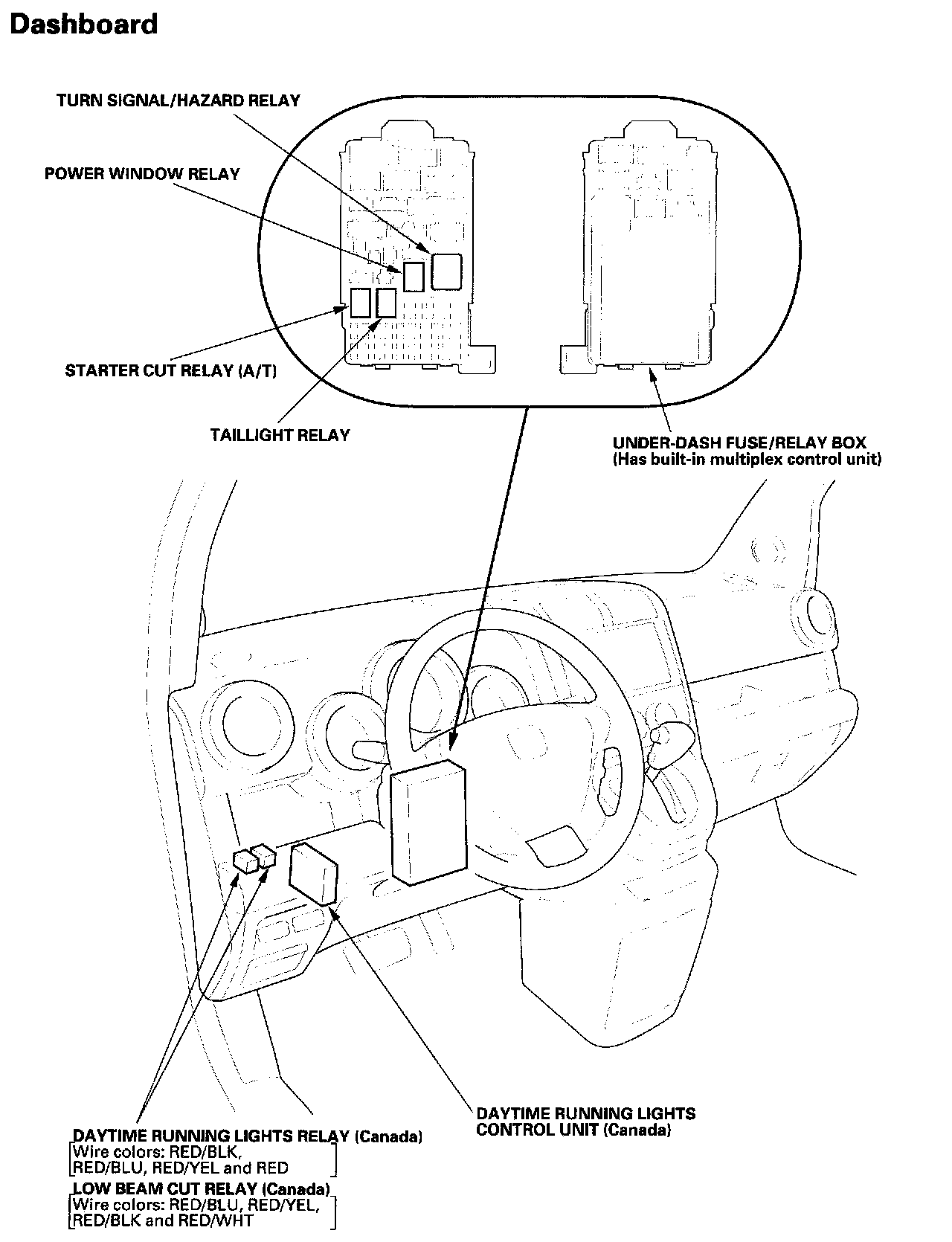

Relay And Control Unit Locations - Dashboard:

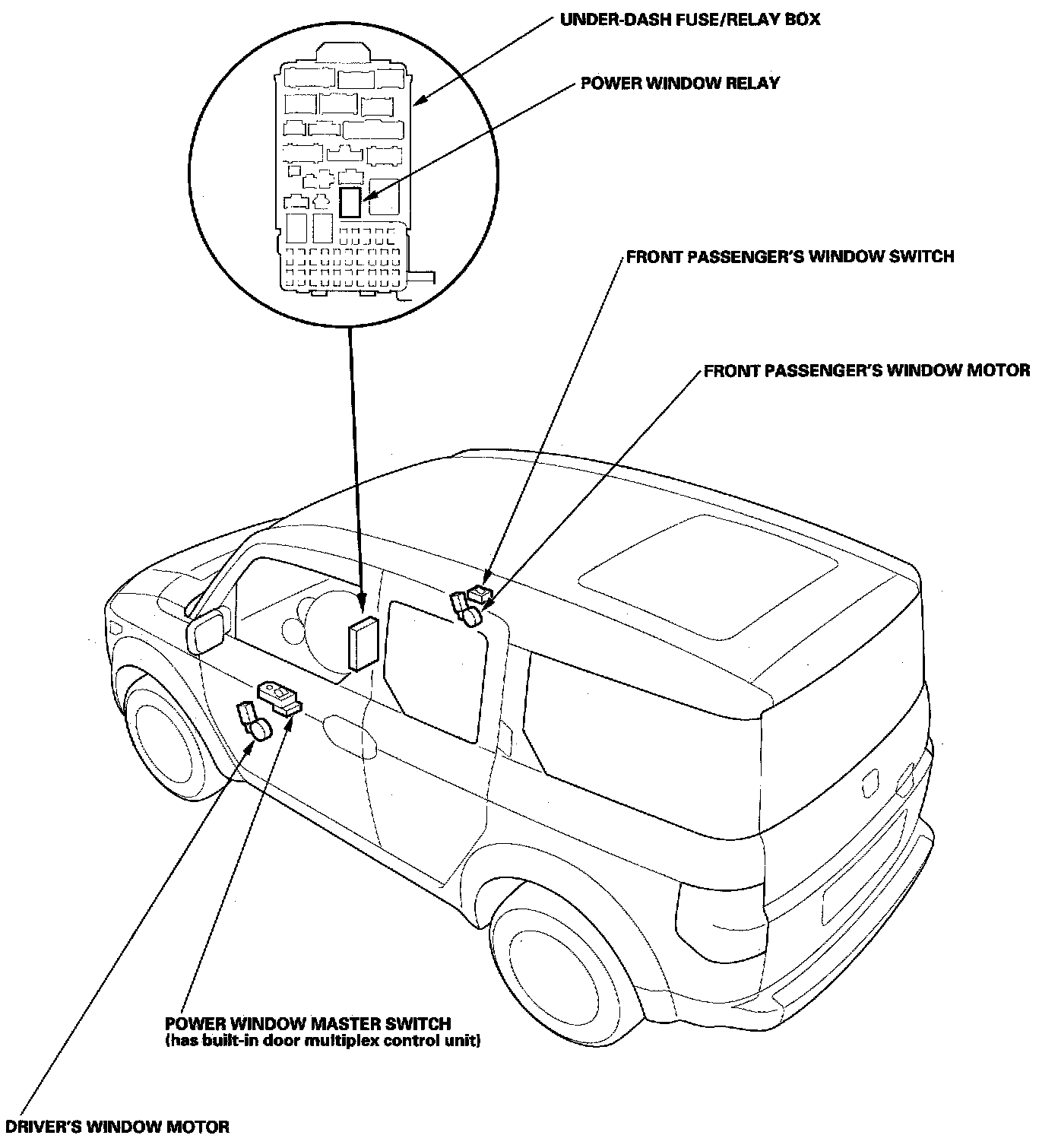

Power Windows - Component Location Index:
