Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

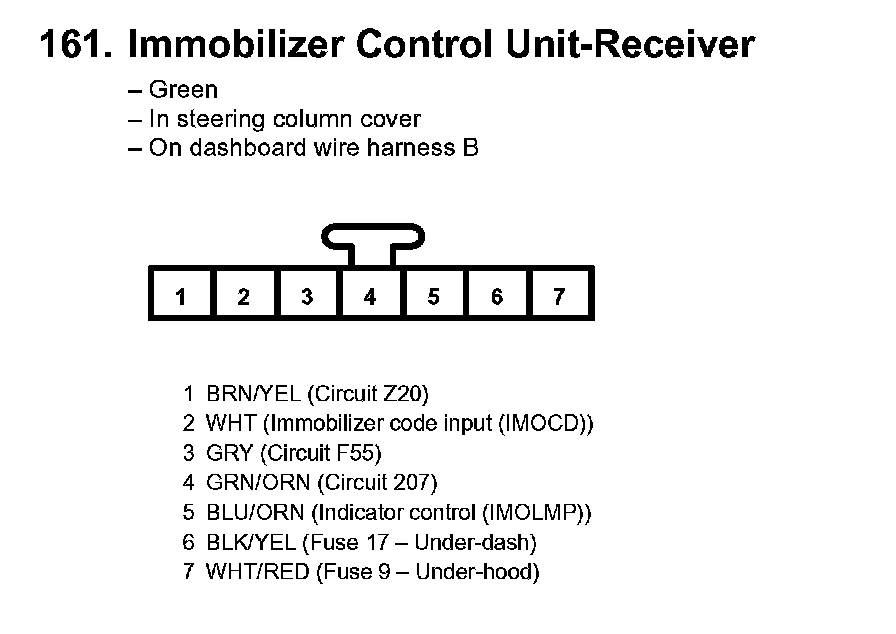

161. Immobilizer Control Unit-Receiver:

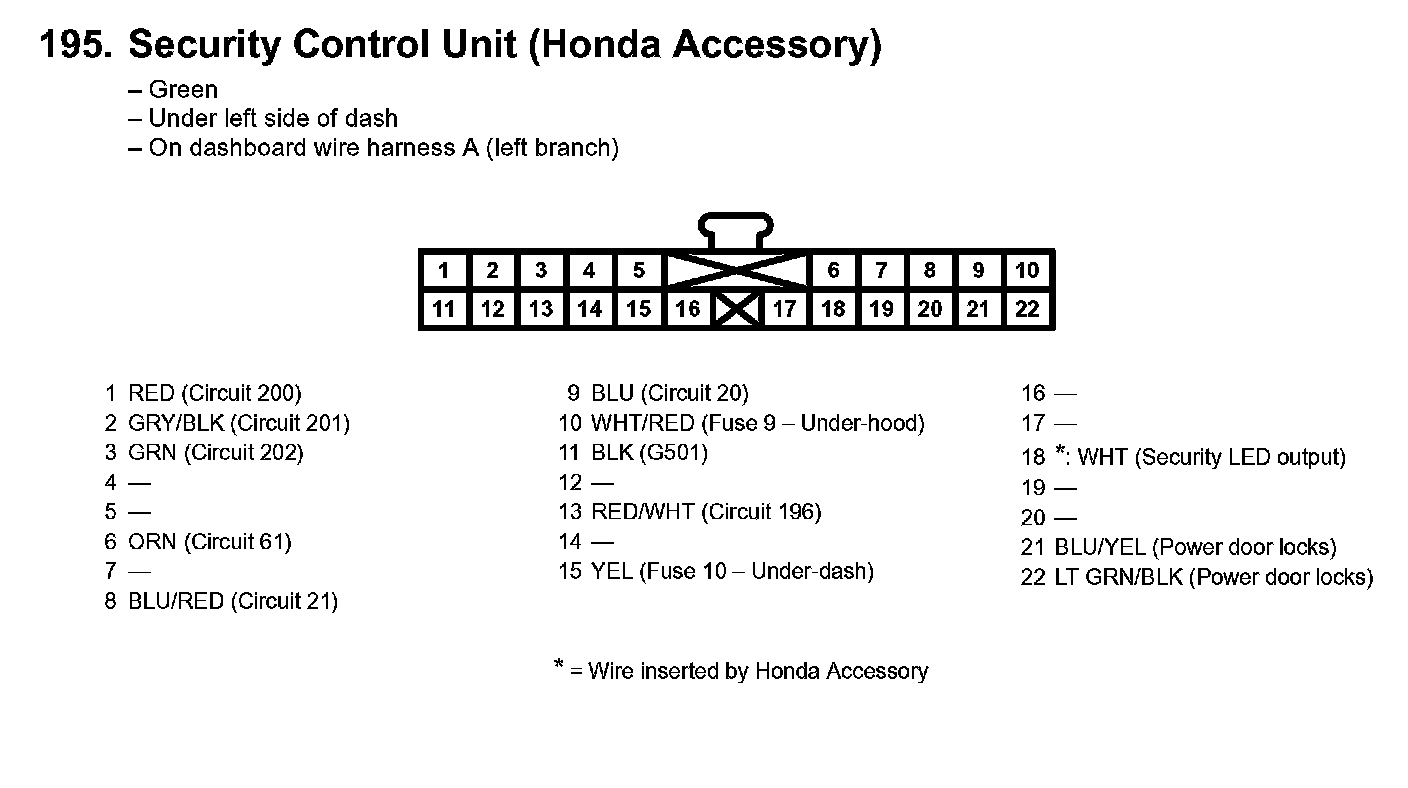

195. Security Control Unit (Honda Accessory):
