Home >> Honda >> 2005 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

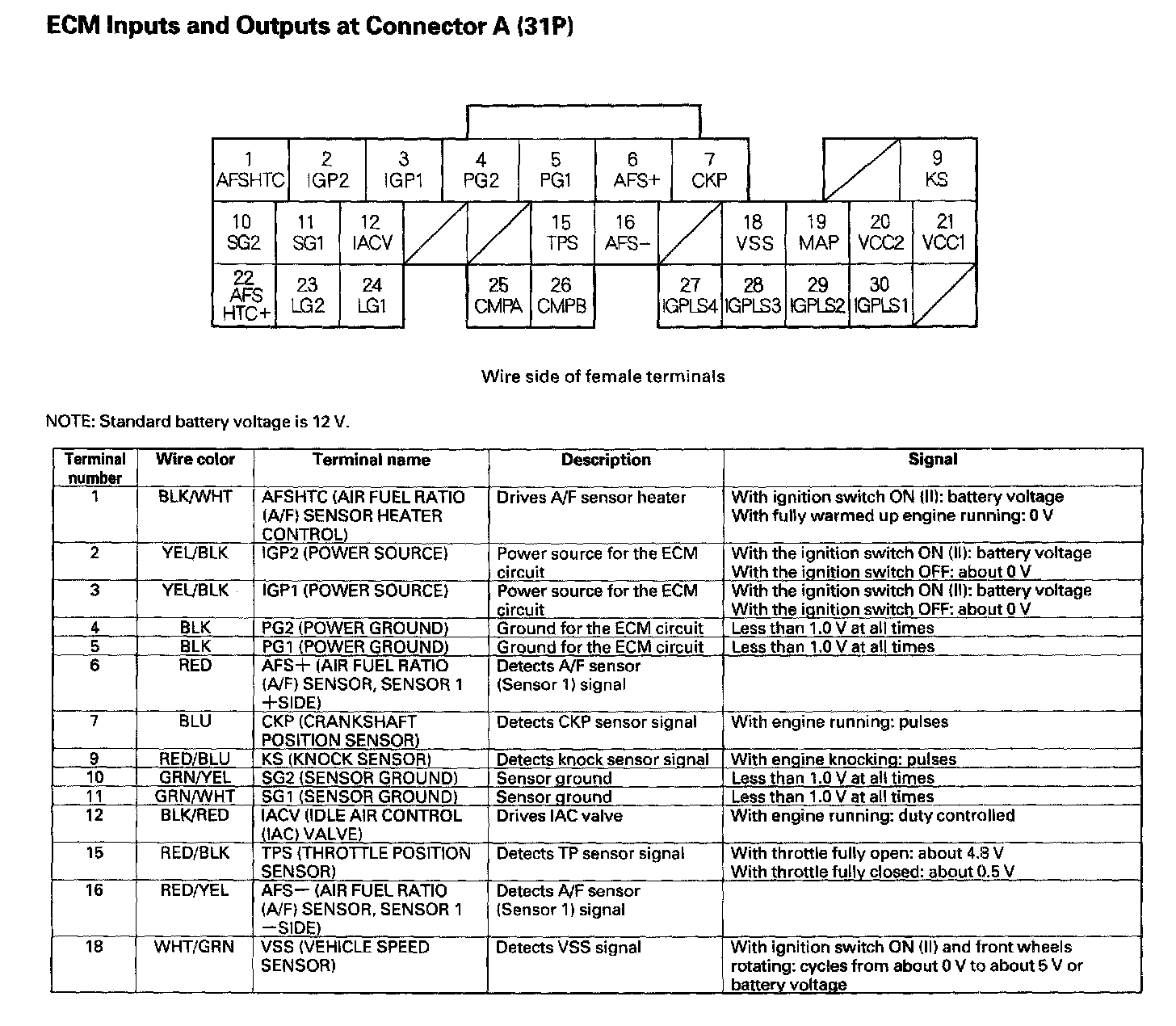

ECM Inputs And Outputs At Connector A (31P) Part 1:

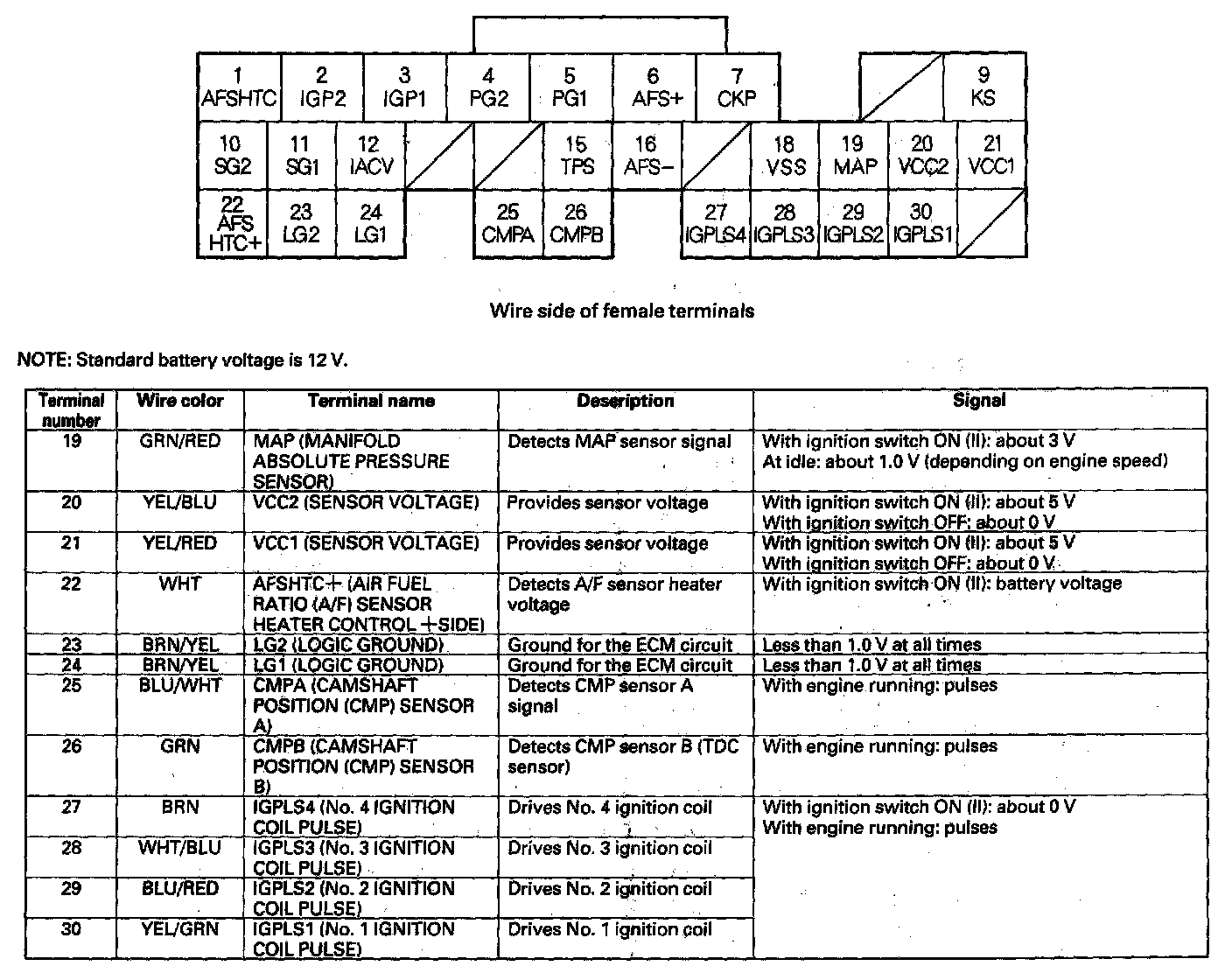

ECM Inputs And Outputs At Connector A (31P) Part 2:

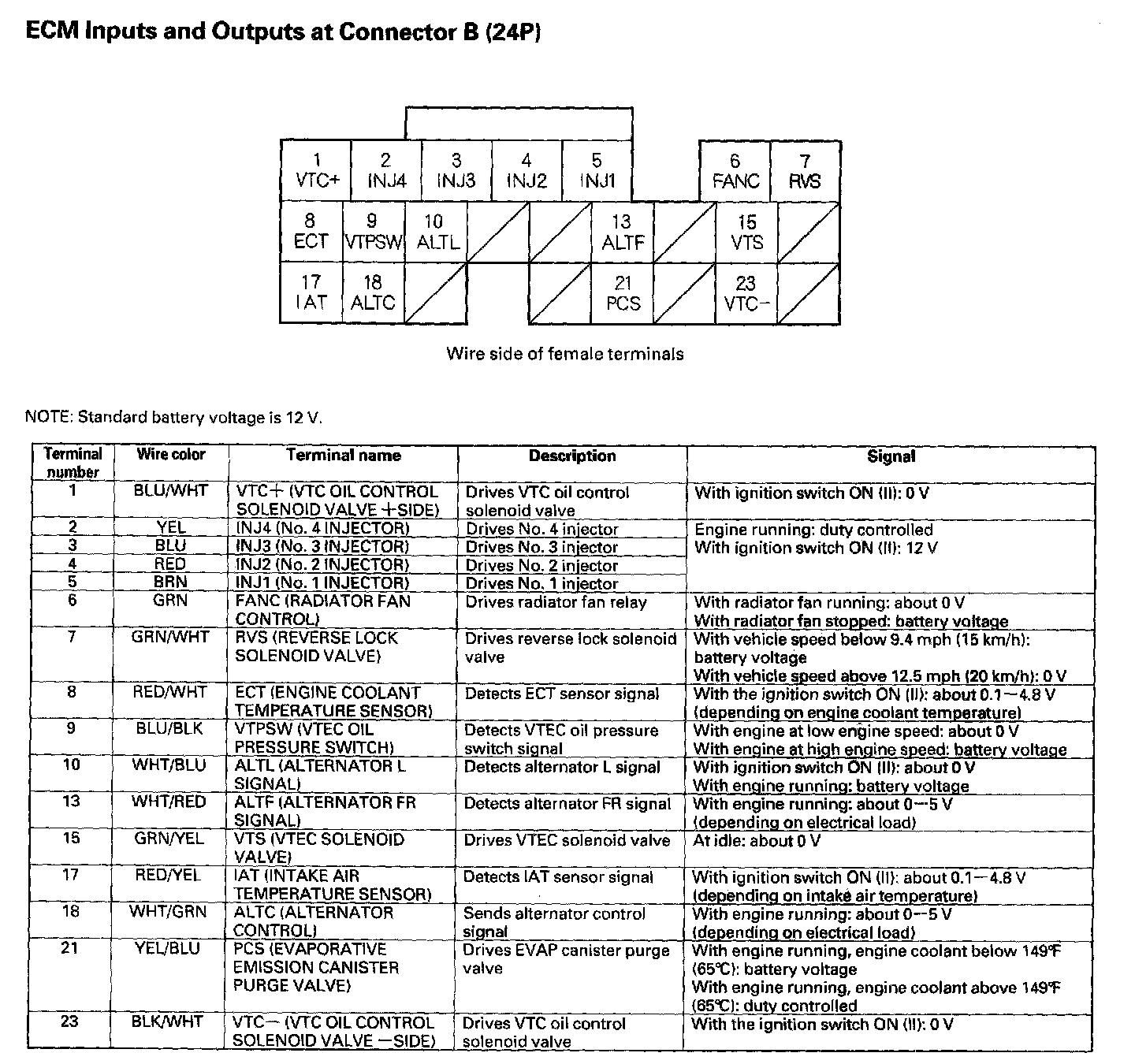

ECM Inputs And Outputs At Connector B (24P):

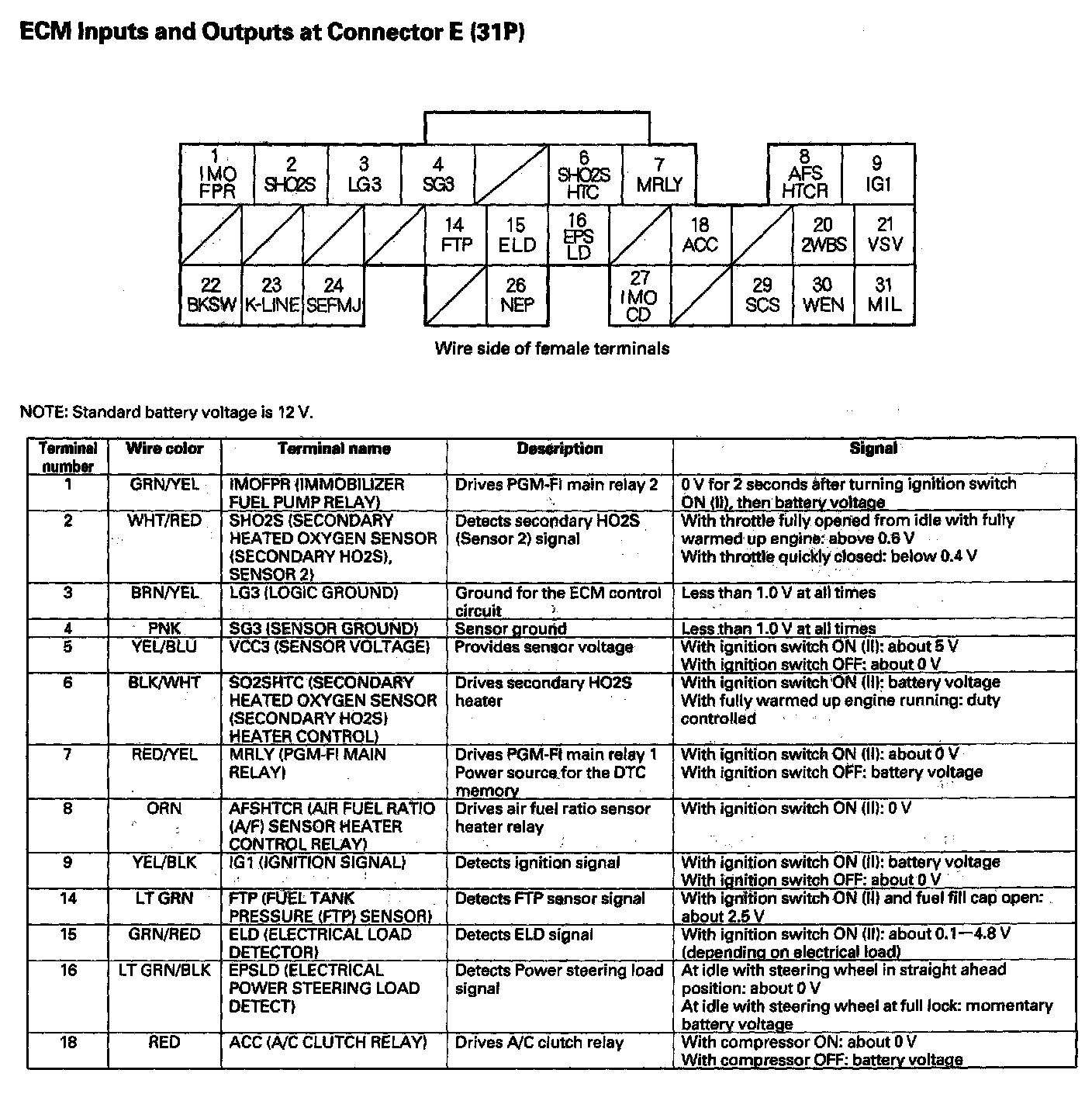

ECM Inputs And Outputs At Connector E (31P) Part 1:

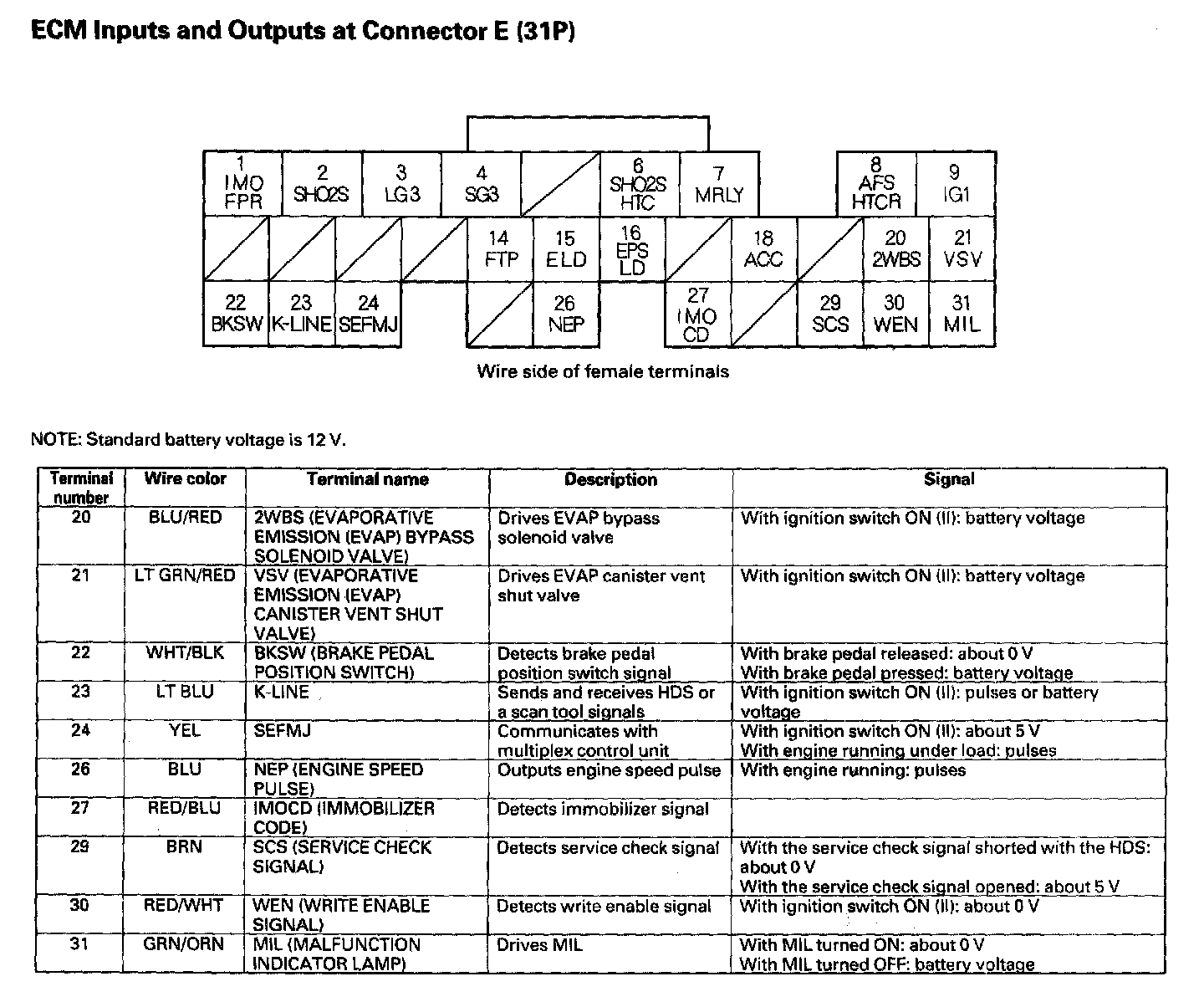

ECM Inputs And Outputs At Connector E (31P) Part 2:
