Home >> Honda >> 2005 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

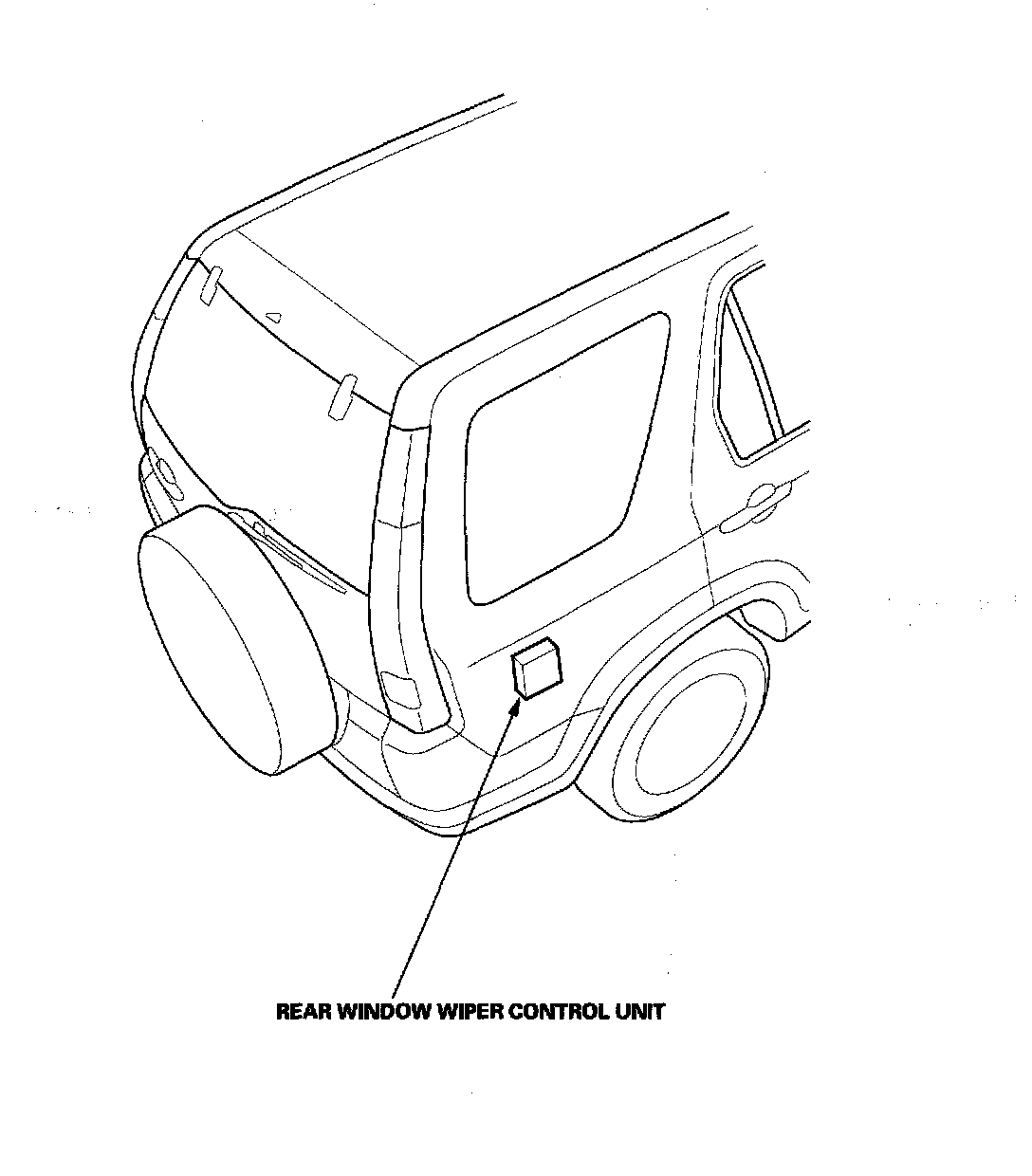

Relay And Control Unit Locations - Rear:

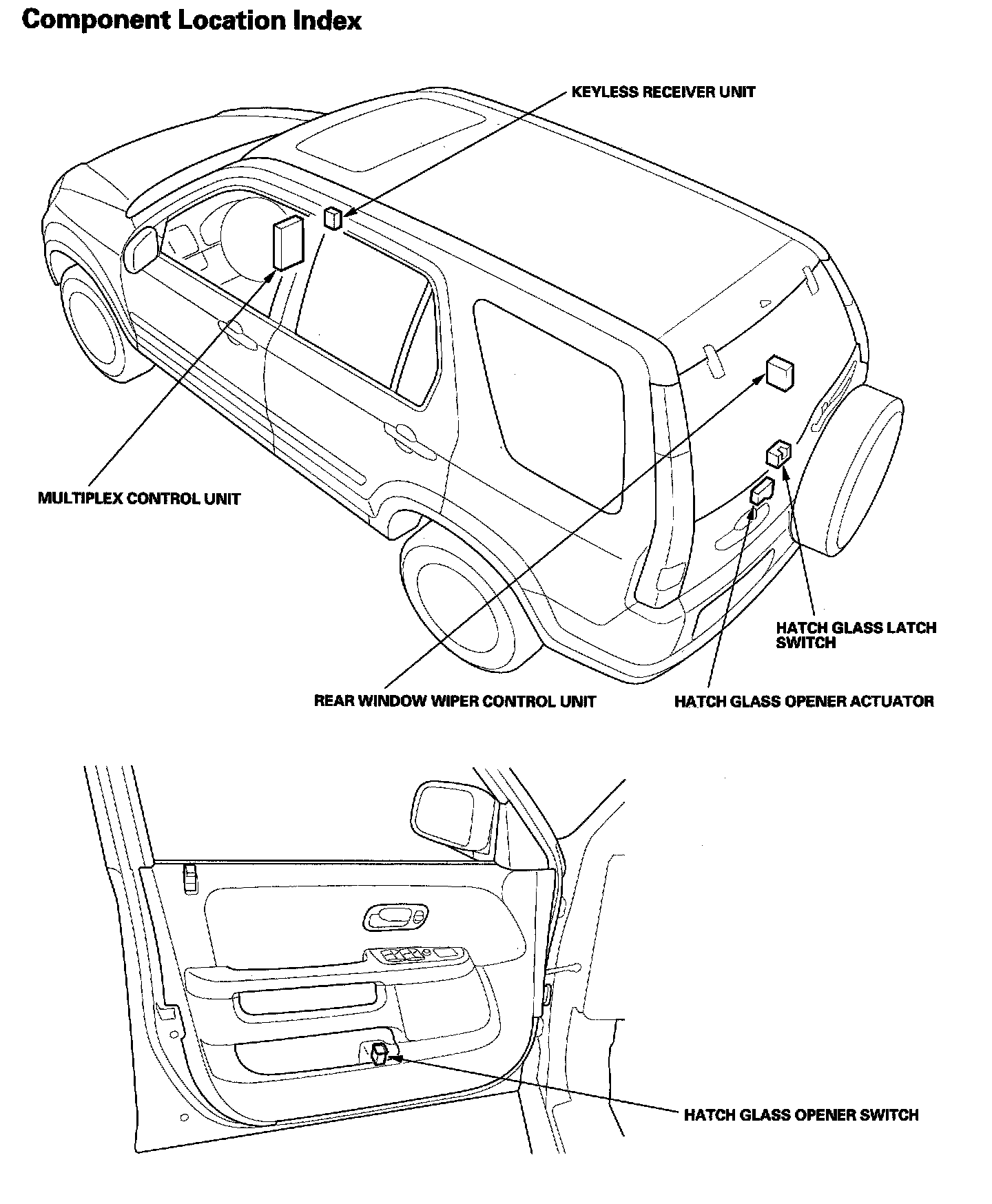

Hatch Glass Opener - Component Location Index:

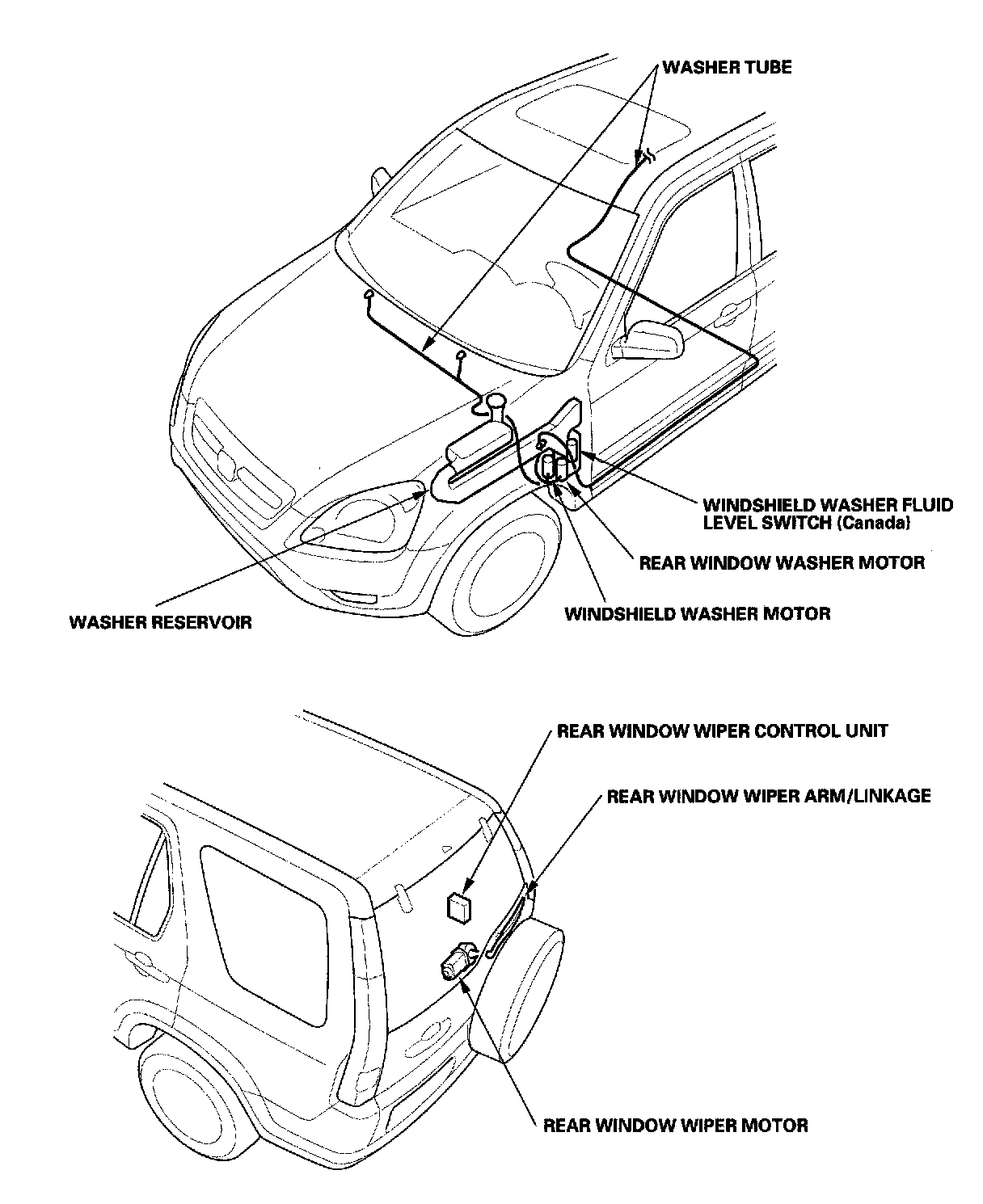

Wipers/Washers - Component Location Index:

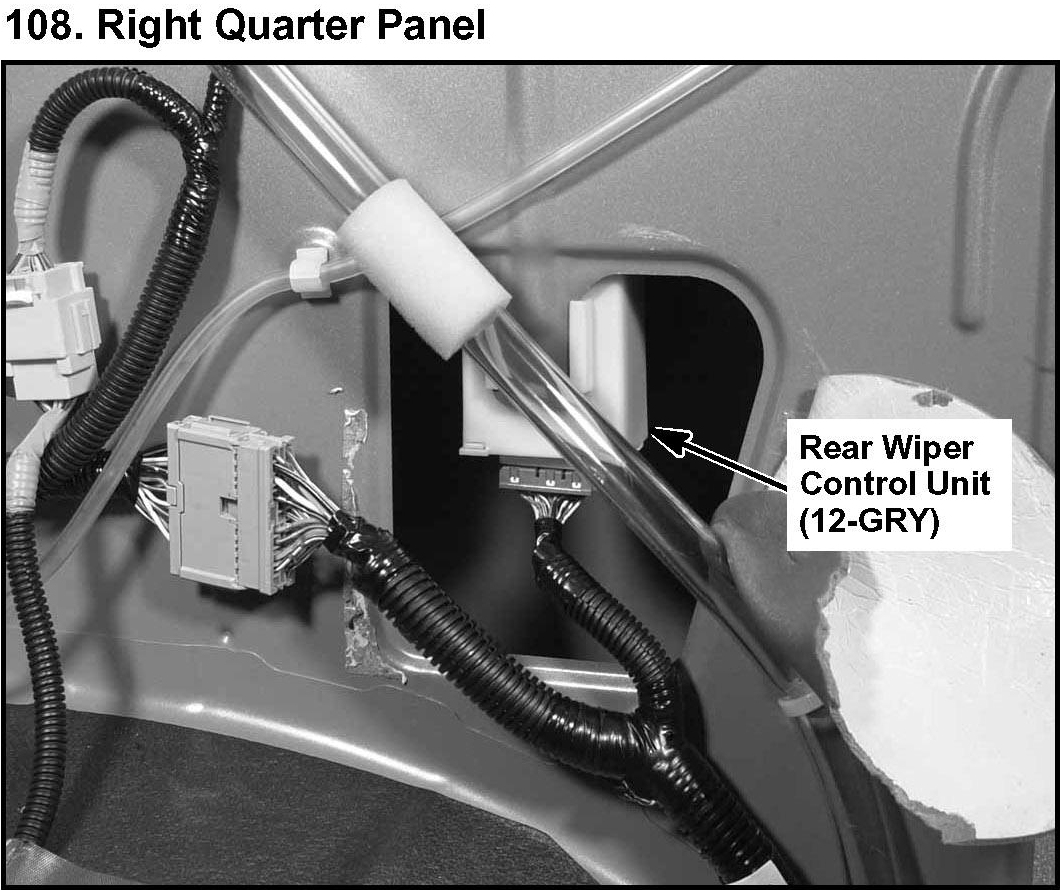

108. Right Quarter Panel:
