Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

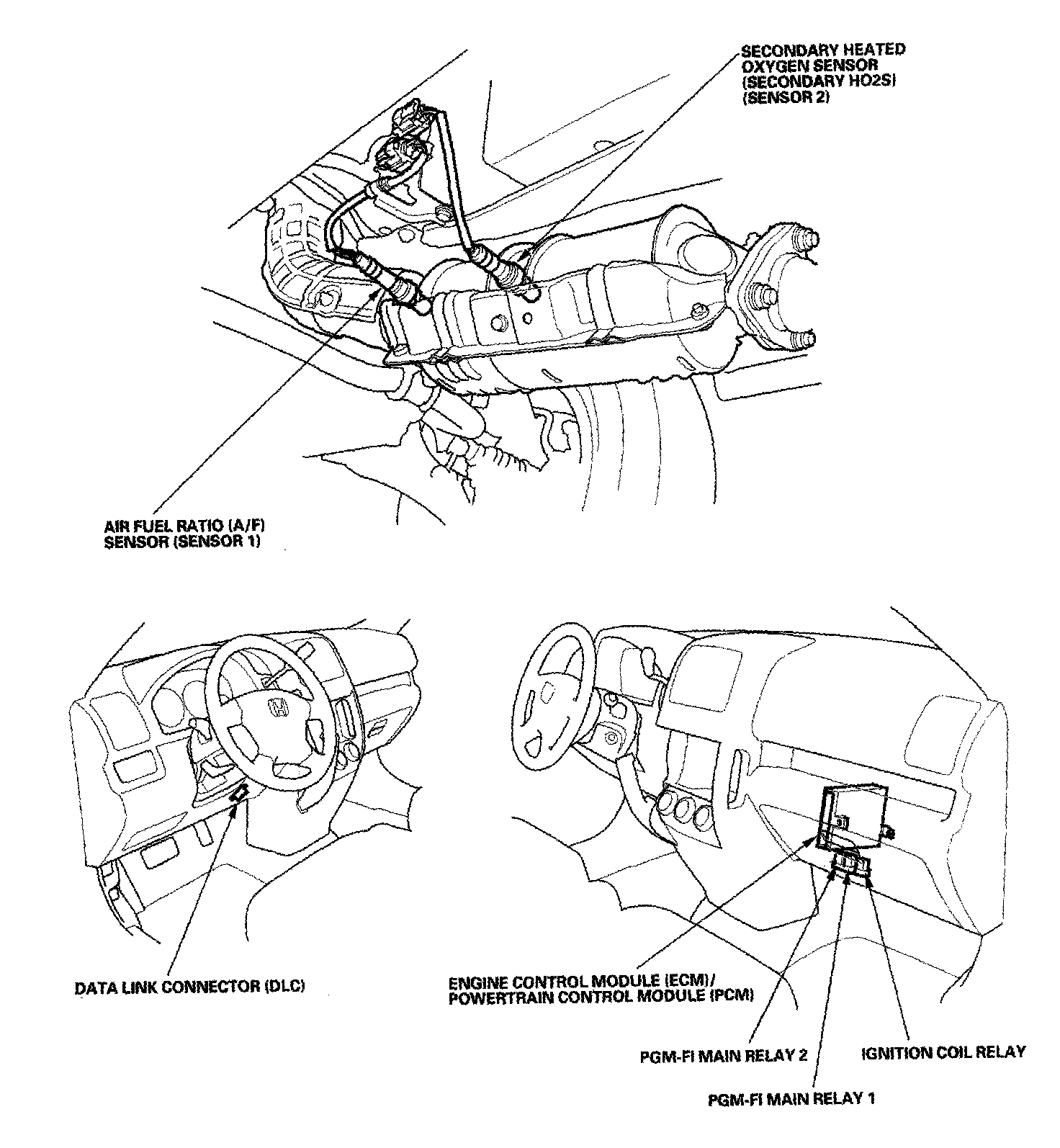

PGM-FI System - Component Location Index:

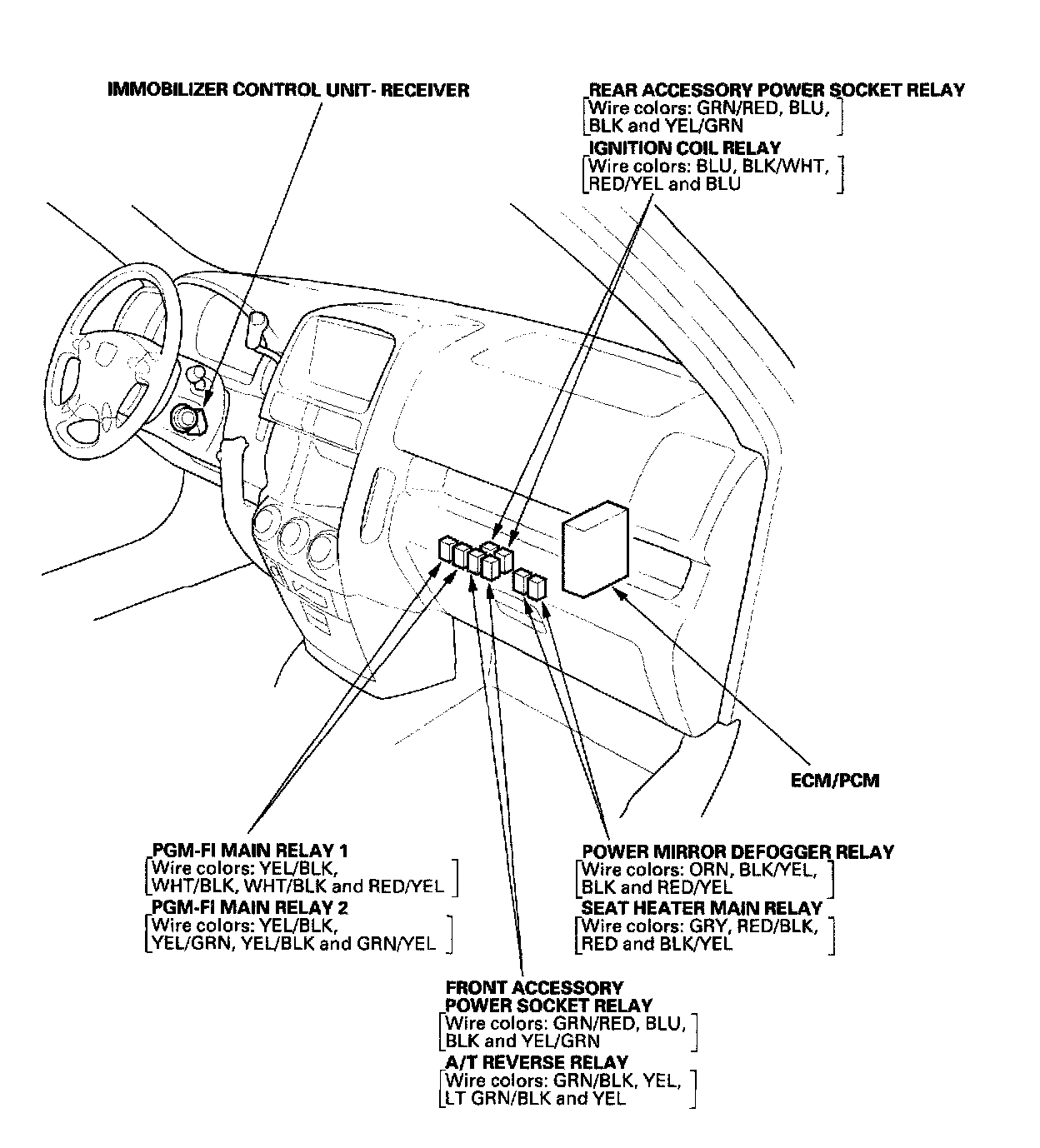

Relay And Control Unit Locations - Dashboard:

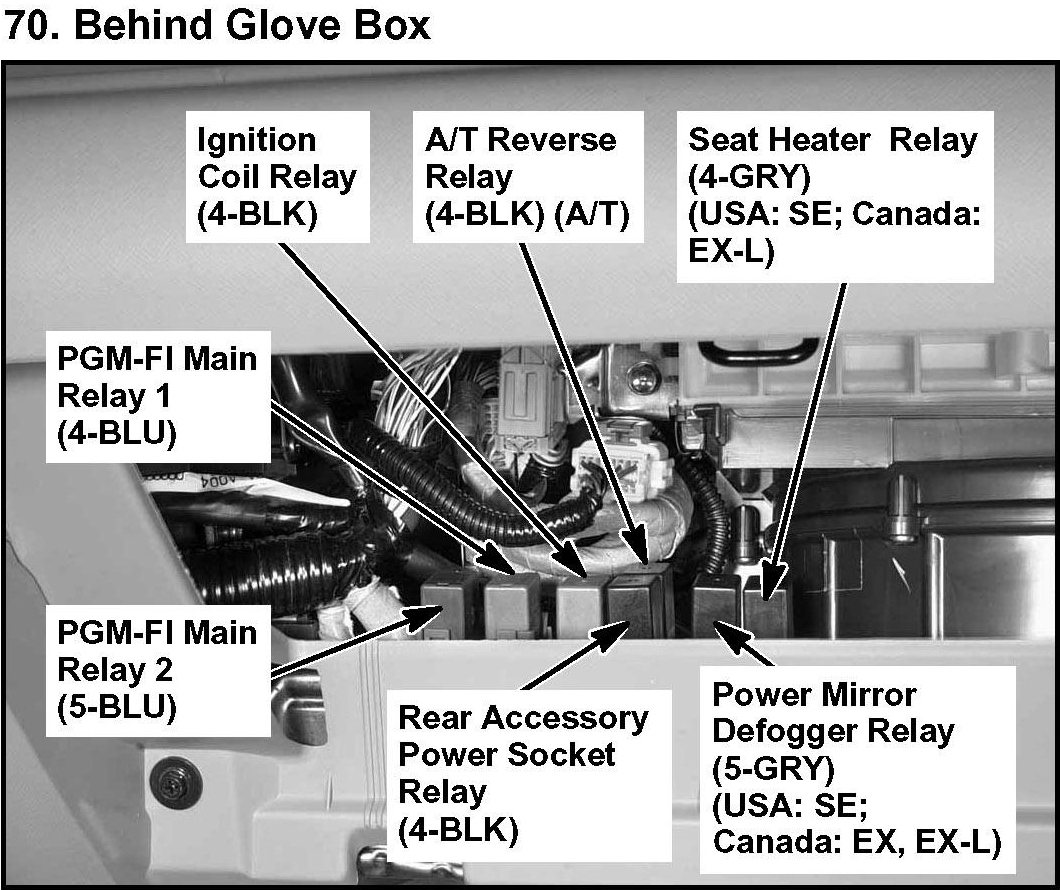

70. Behind Glove Box:
