Electronic Brake Control Module

Part 1:




Part 2:

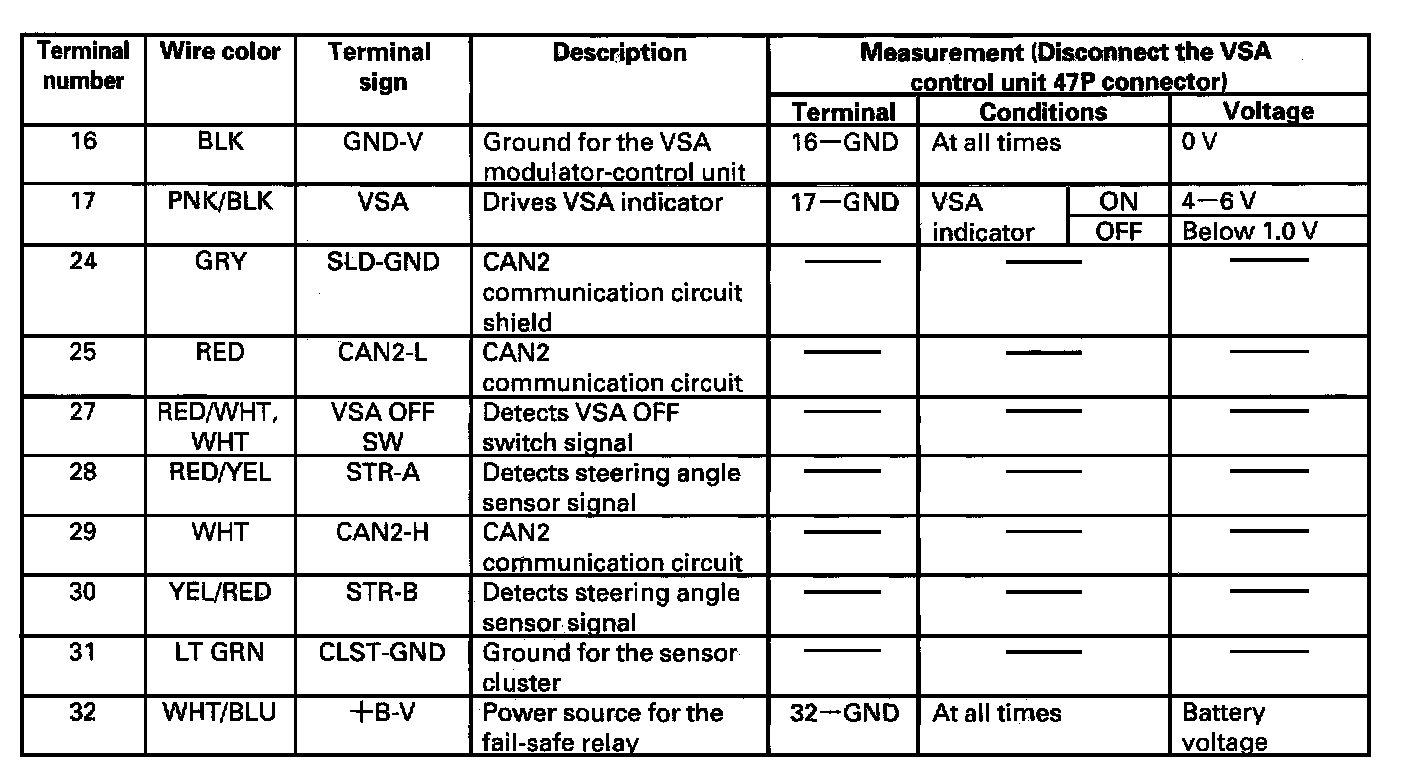

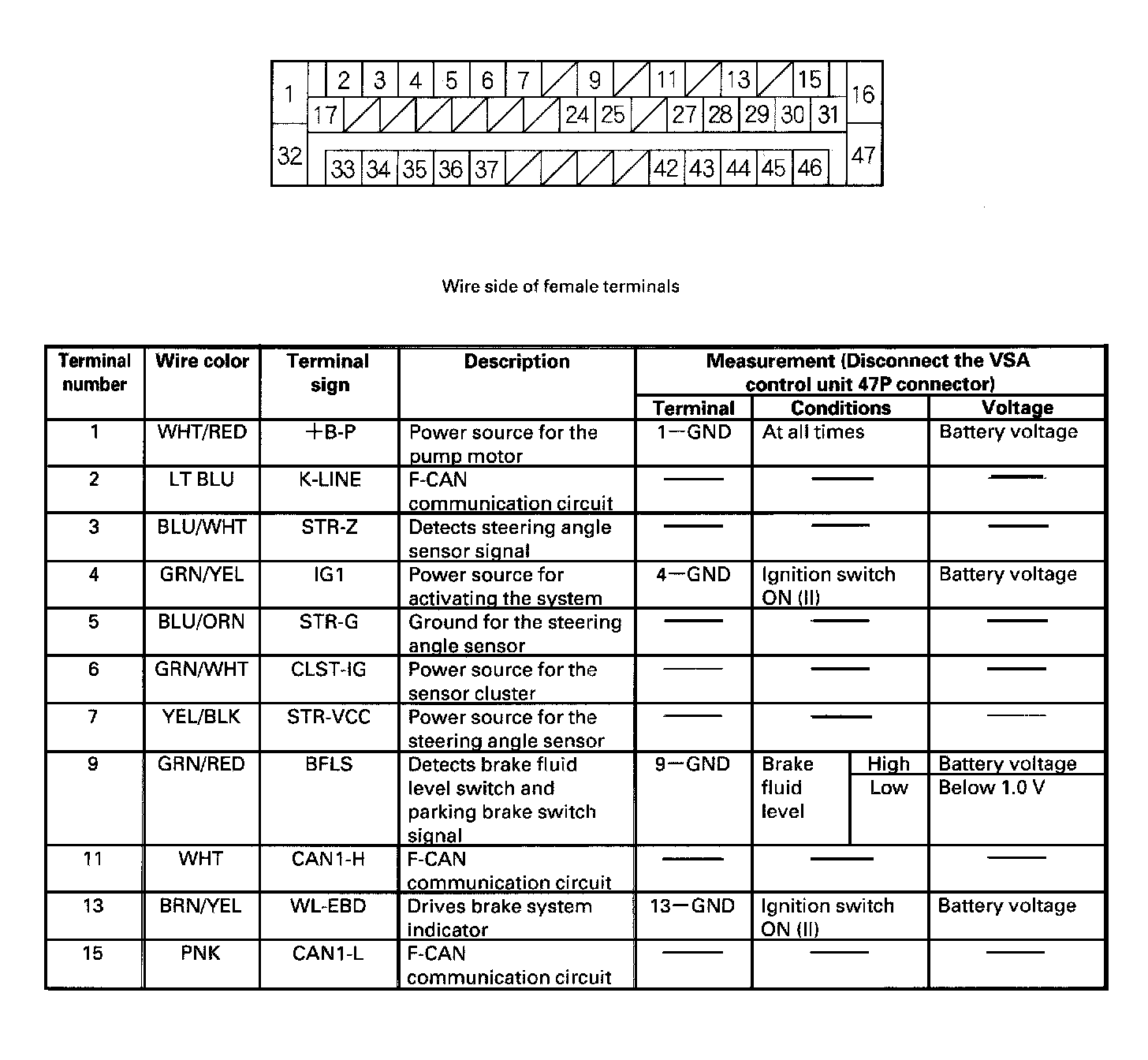

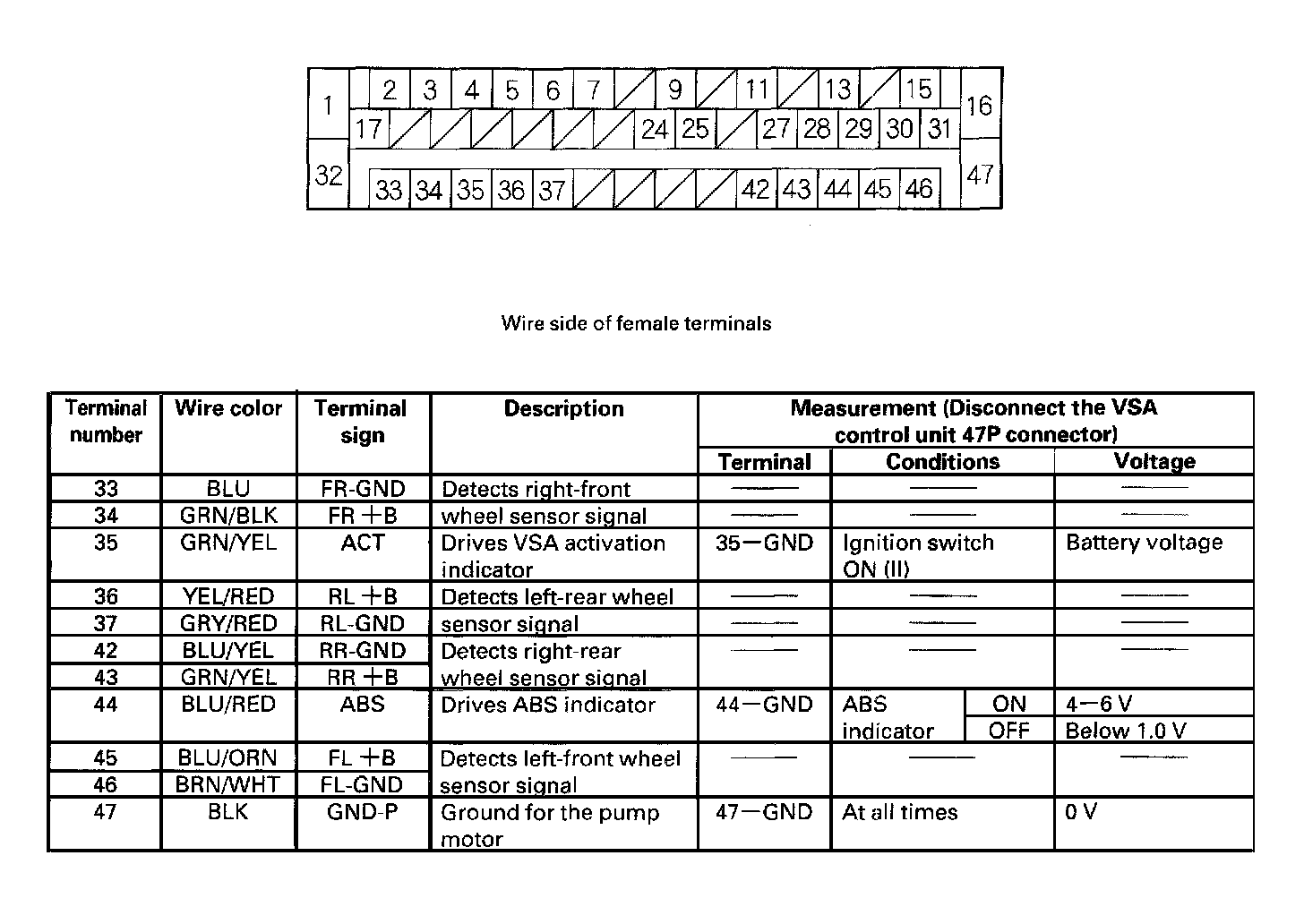

VSA Control Unit Inputs and Outputs for 47P Connector
