Frame: Specifications

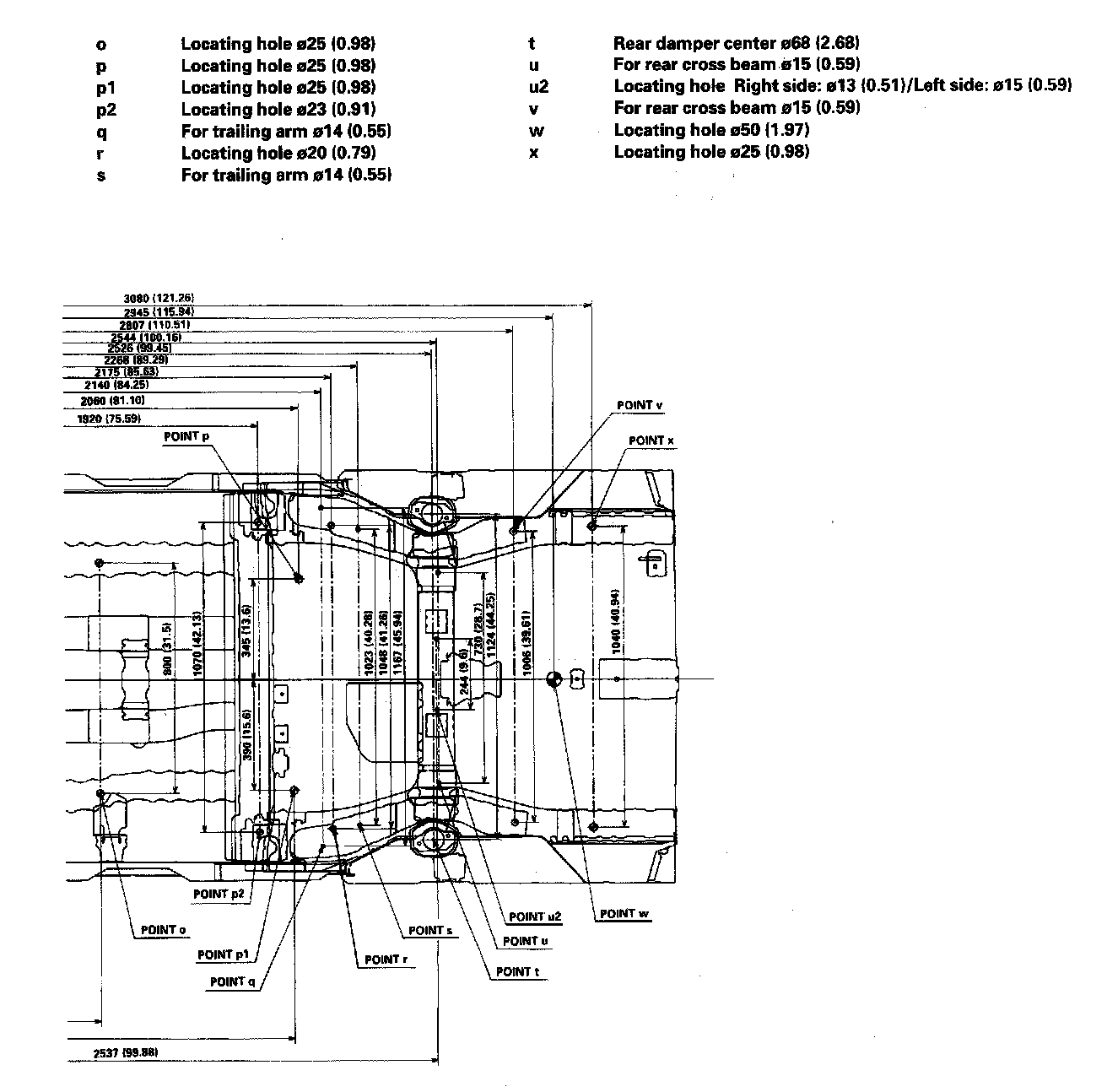

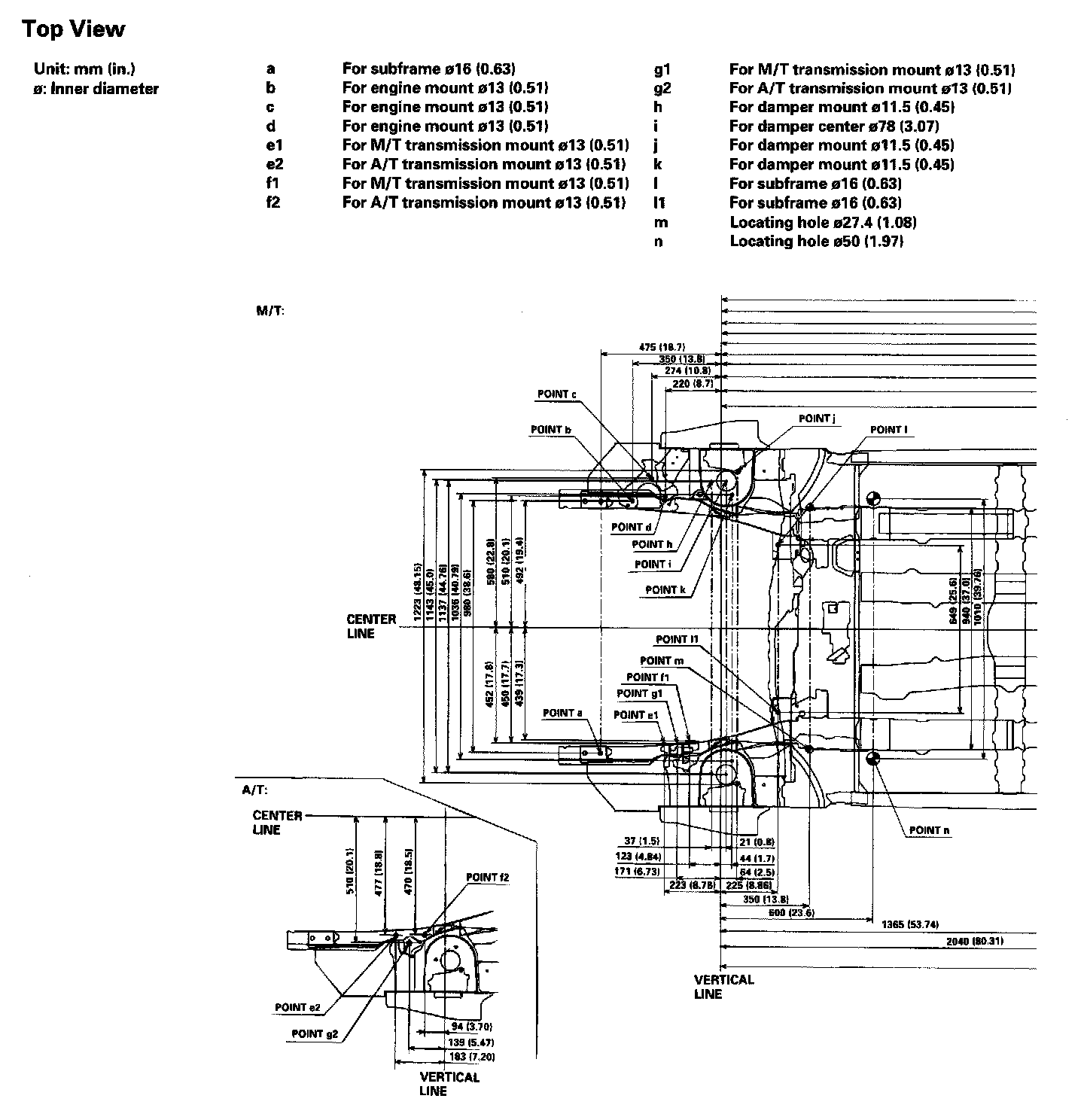

Frame Repair Chart - Top View (Part 1):
Frame Repair Chart - Top View (Part 2):

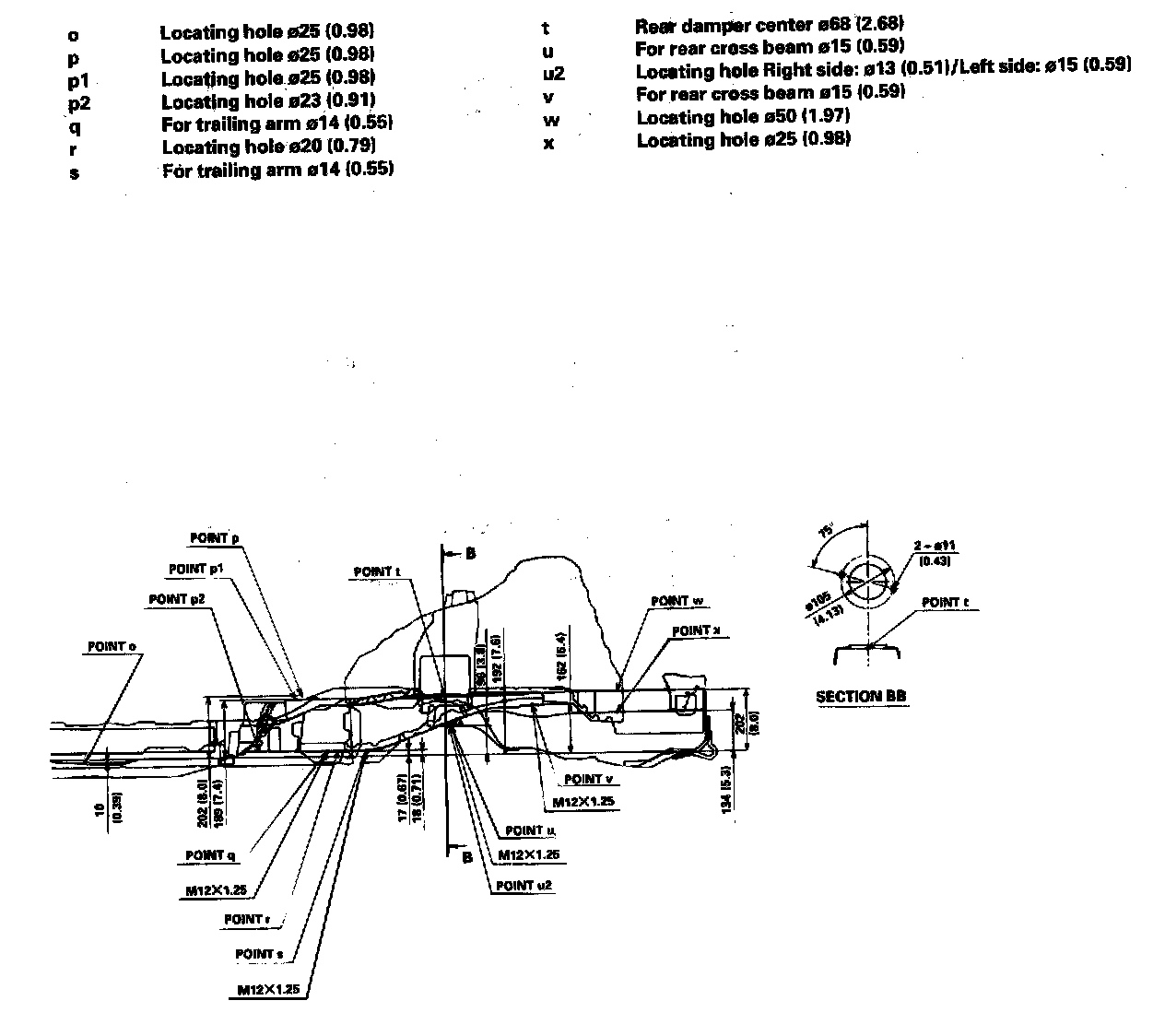

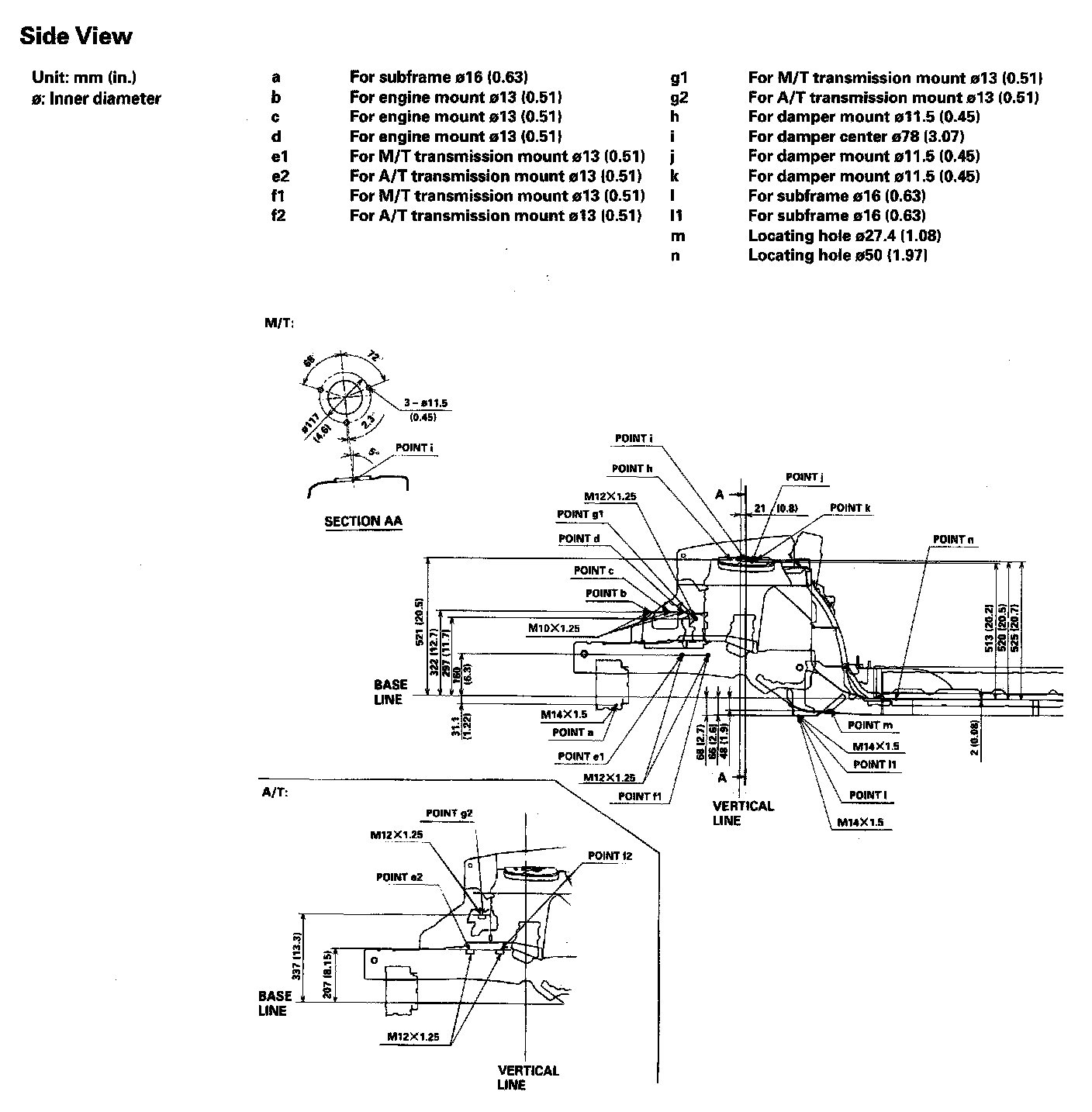

Frame Repair Chart - Side View (Part 1):
Frame Repair Chart - Side View (Part 2):
