Main Relay (Computer/Fuel System): Testing and Inspection

Power Relay Test

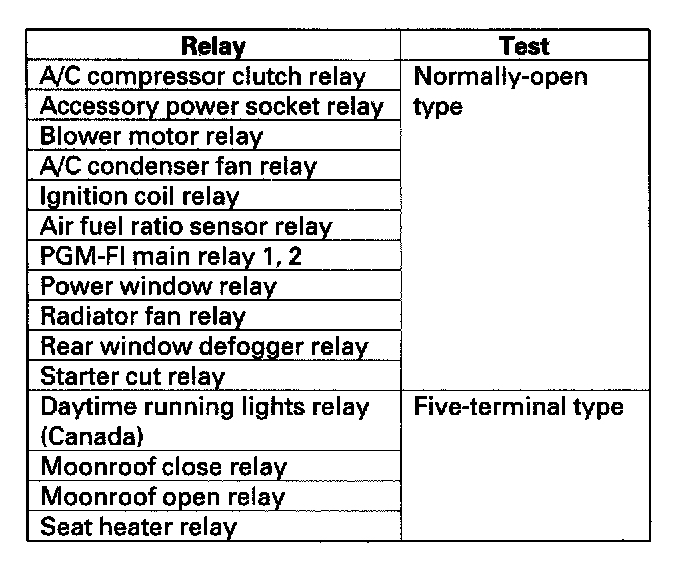

Use this chart to identify the type of relay, then do the test listed for it.

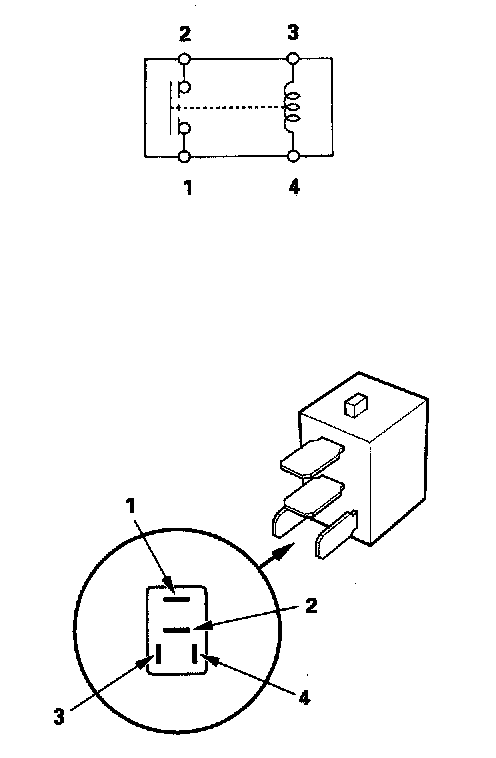

Normally-open type

Check for continuity between the terminals.

- There should be continuity between the No. 1 and No. 2 terminals when power and ground are connected to the No. Sand No. 4 terminals.
- There should be no continuity between the No. 1 and No. 2 terminals when power is disconnected.
