Scan Tool Testing and Procedures

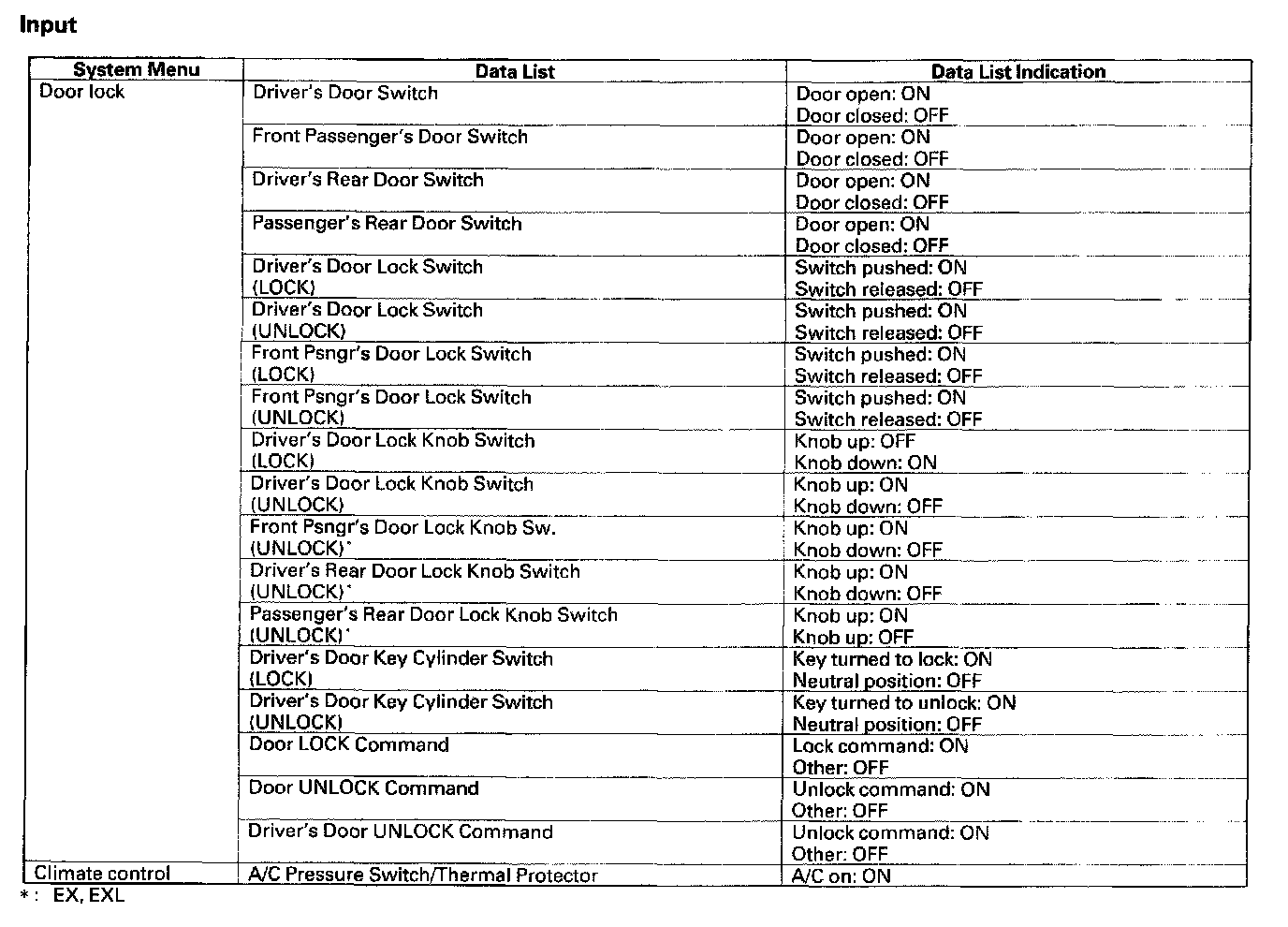

HDS Inputs And Commands - Input - Part 1:

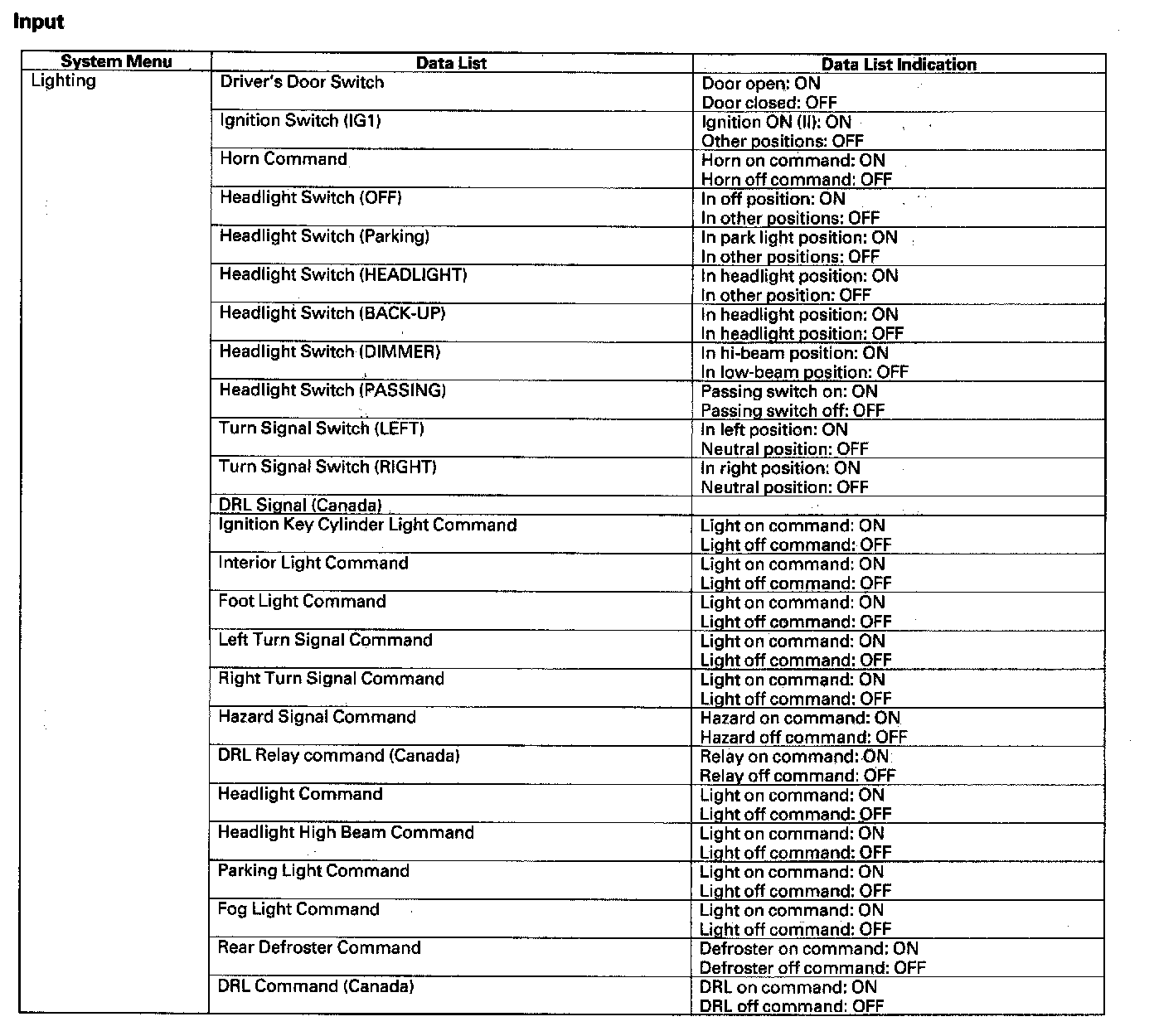

HDS Inputs And Commands - Input - Part 2:

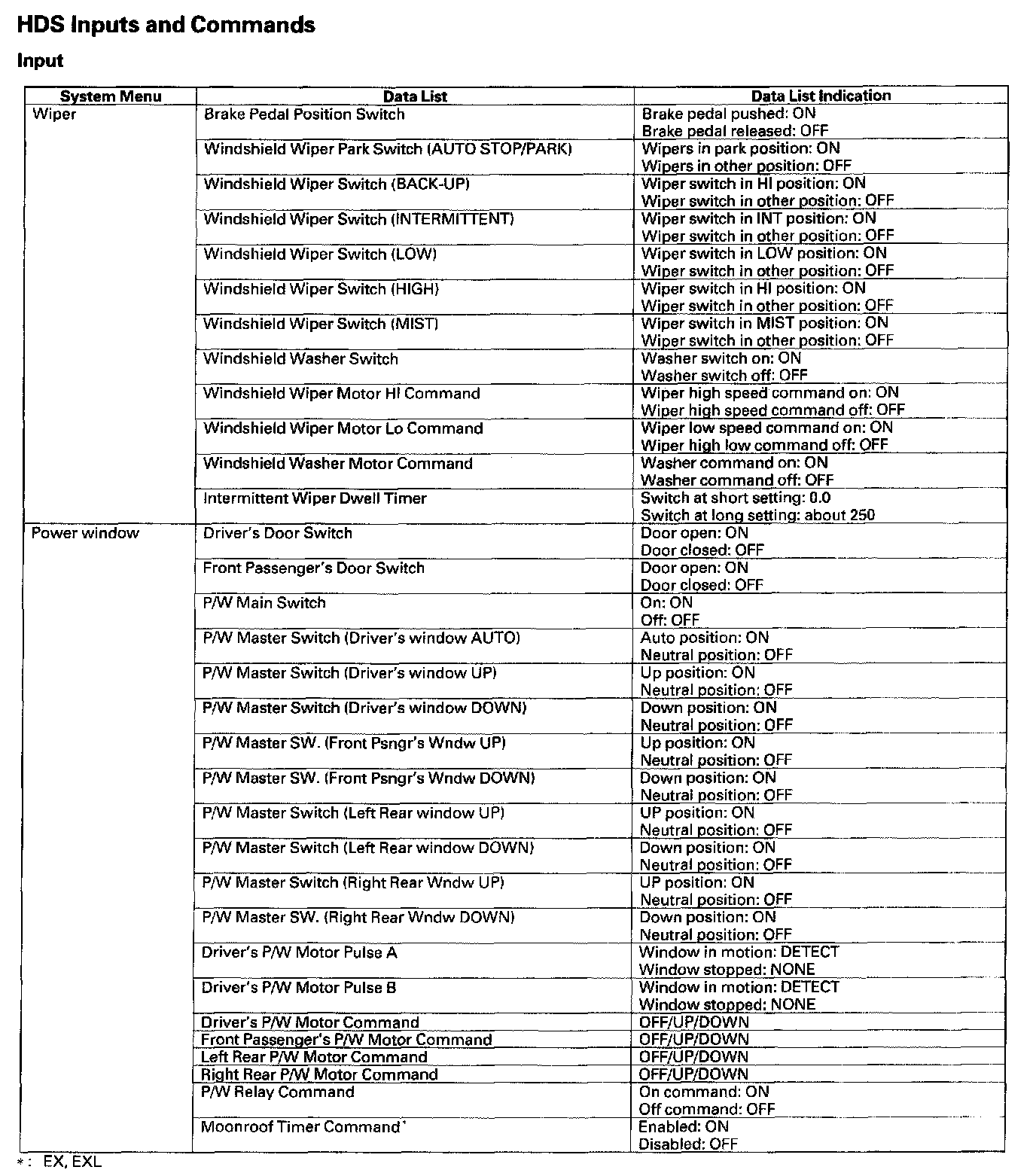

HDS Inputs And Commands - Input - Part 3:

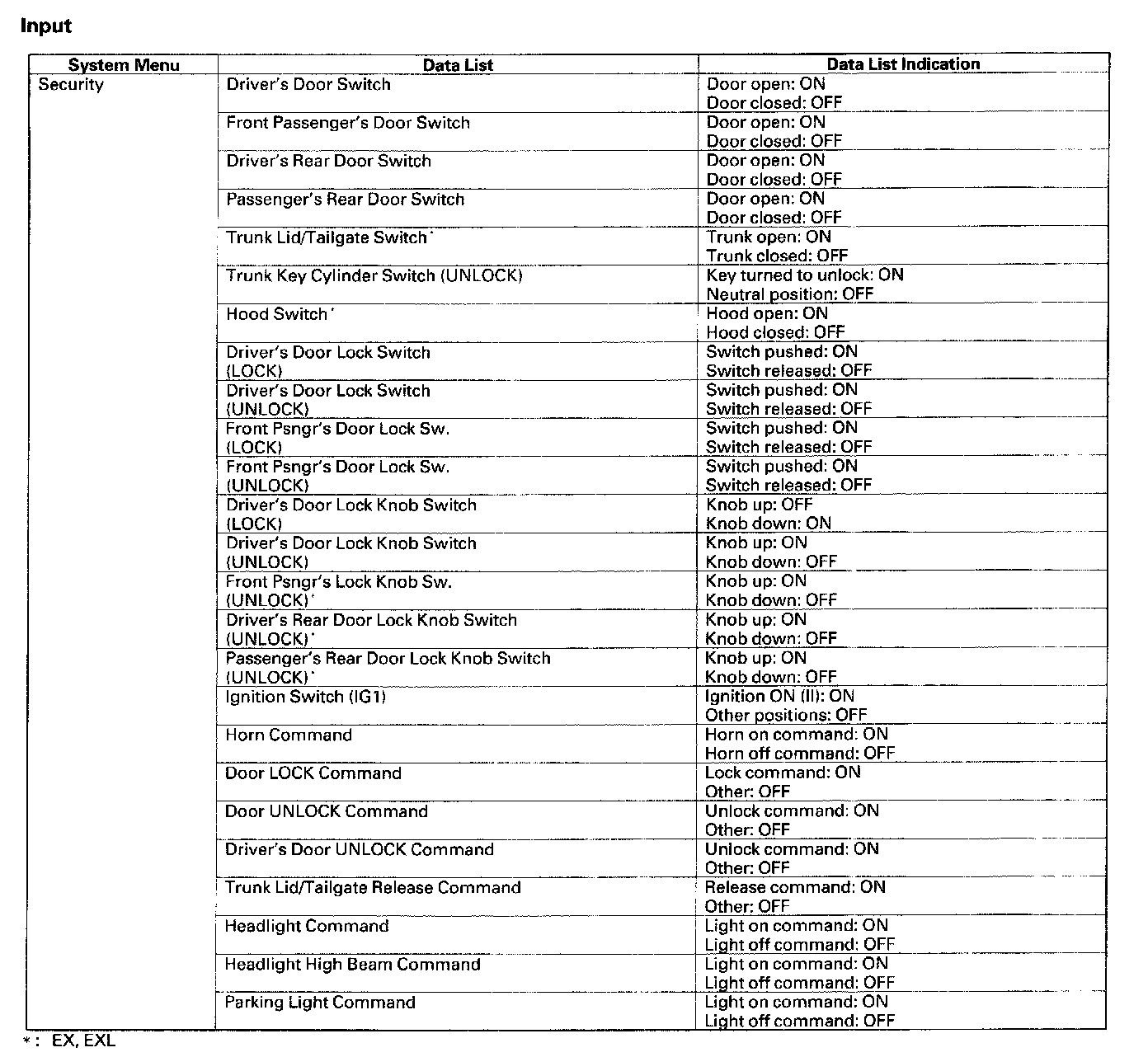

HDS Inputs And Commands - Input - Part 4:

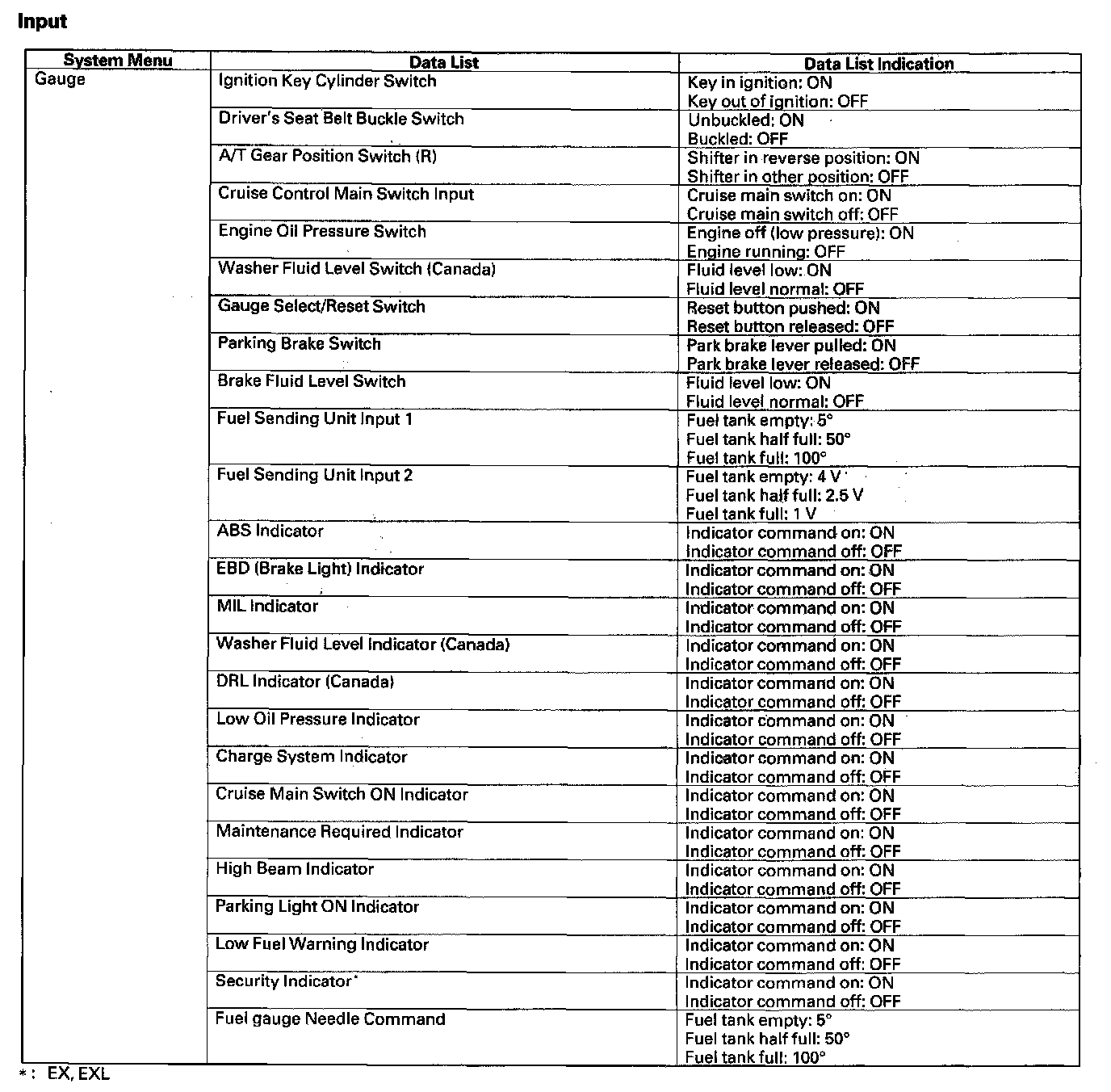

HDS Inputs And Commands - Input - Part 5:

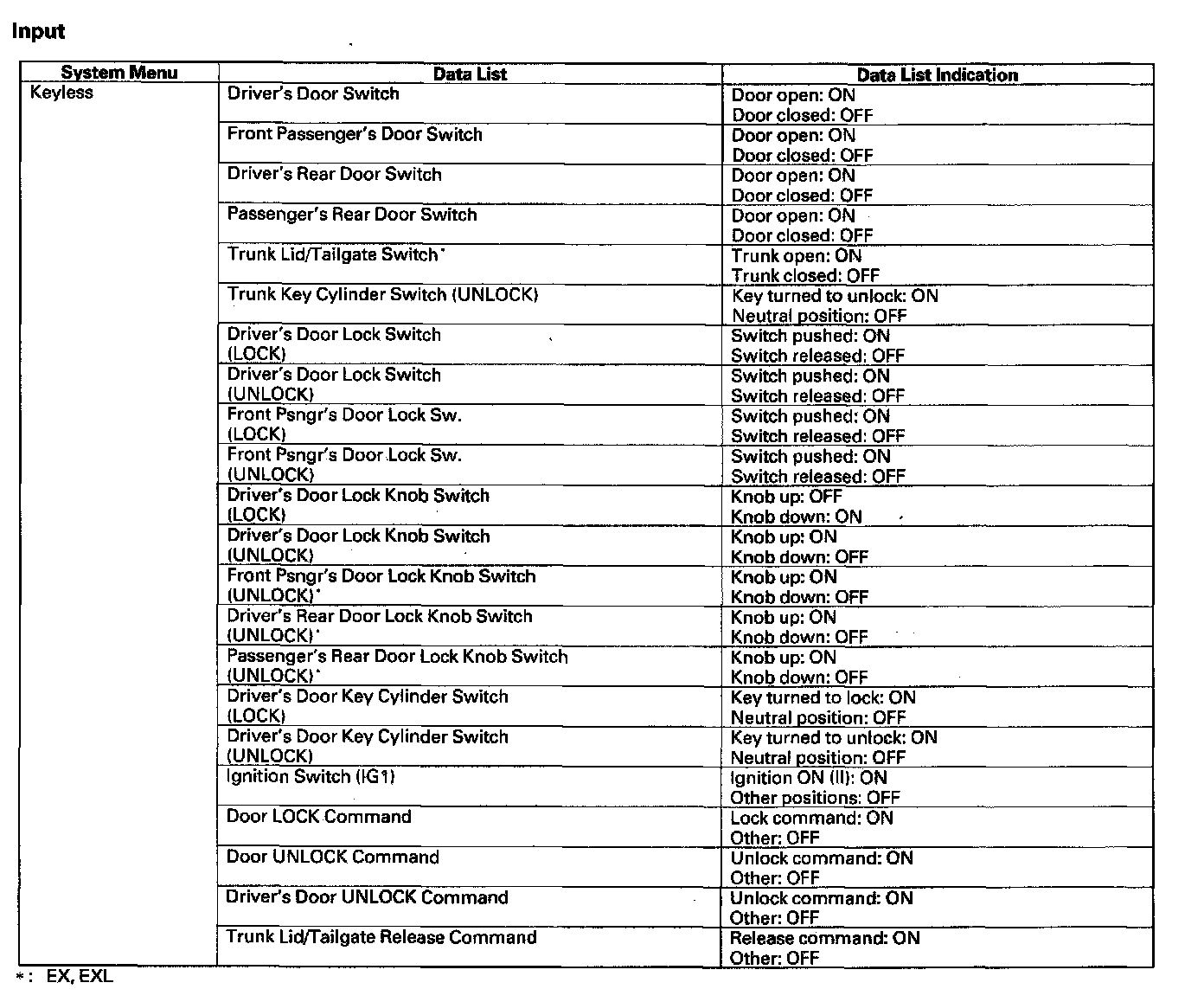

HDS Inputs And Commands - Input - Part 6:

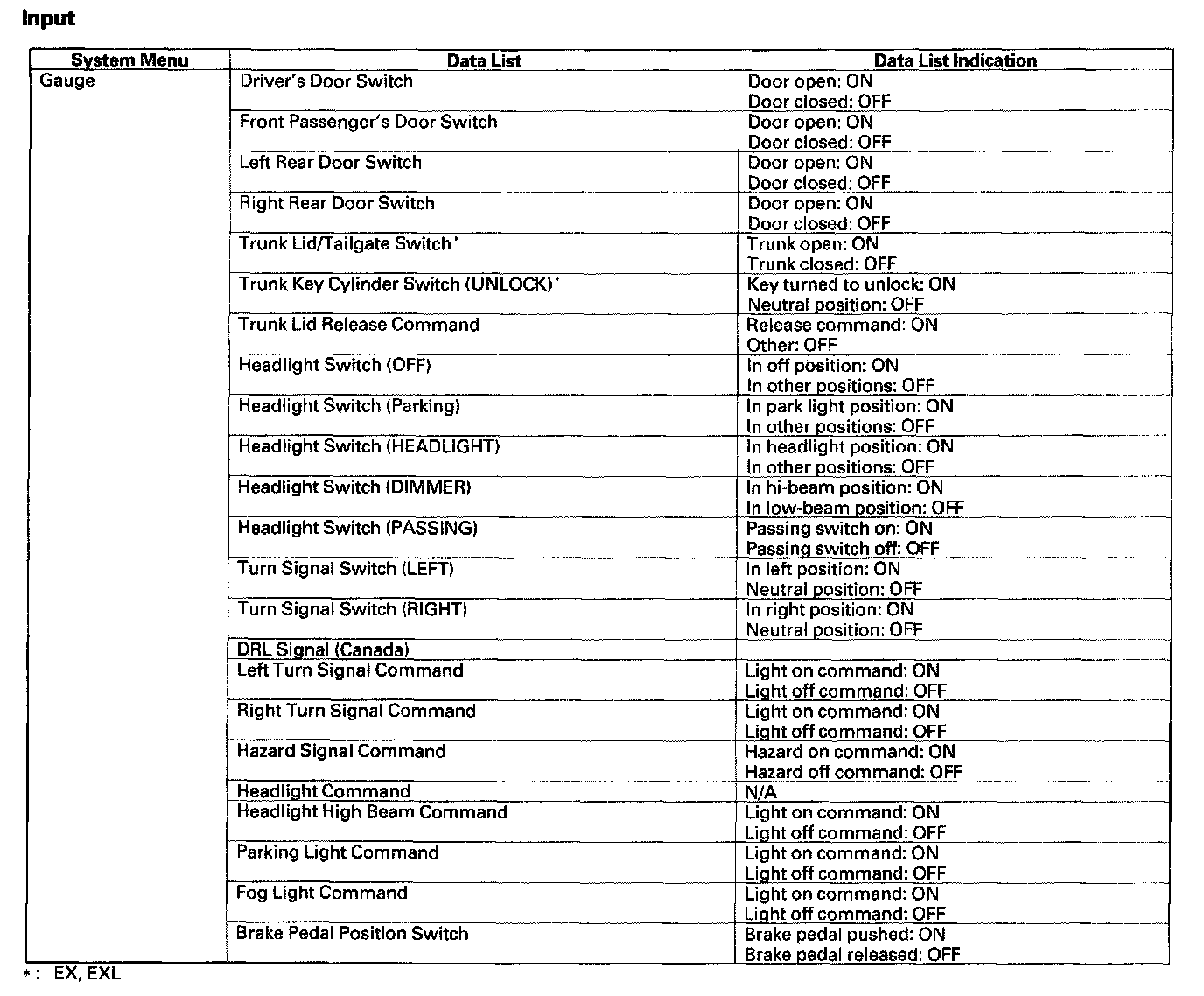

HDS Inputs And Commands - Input - Part 7:

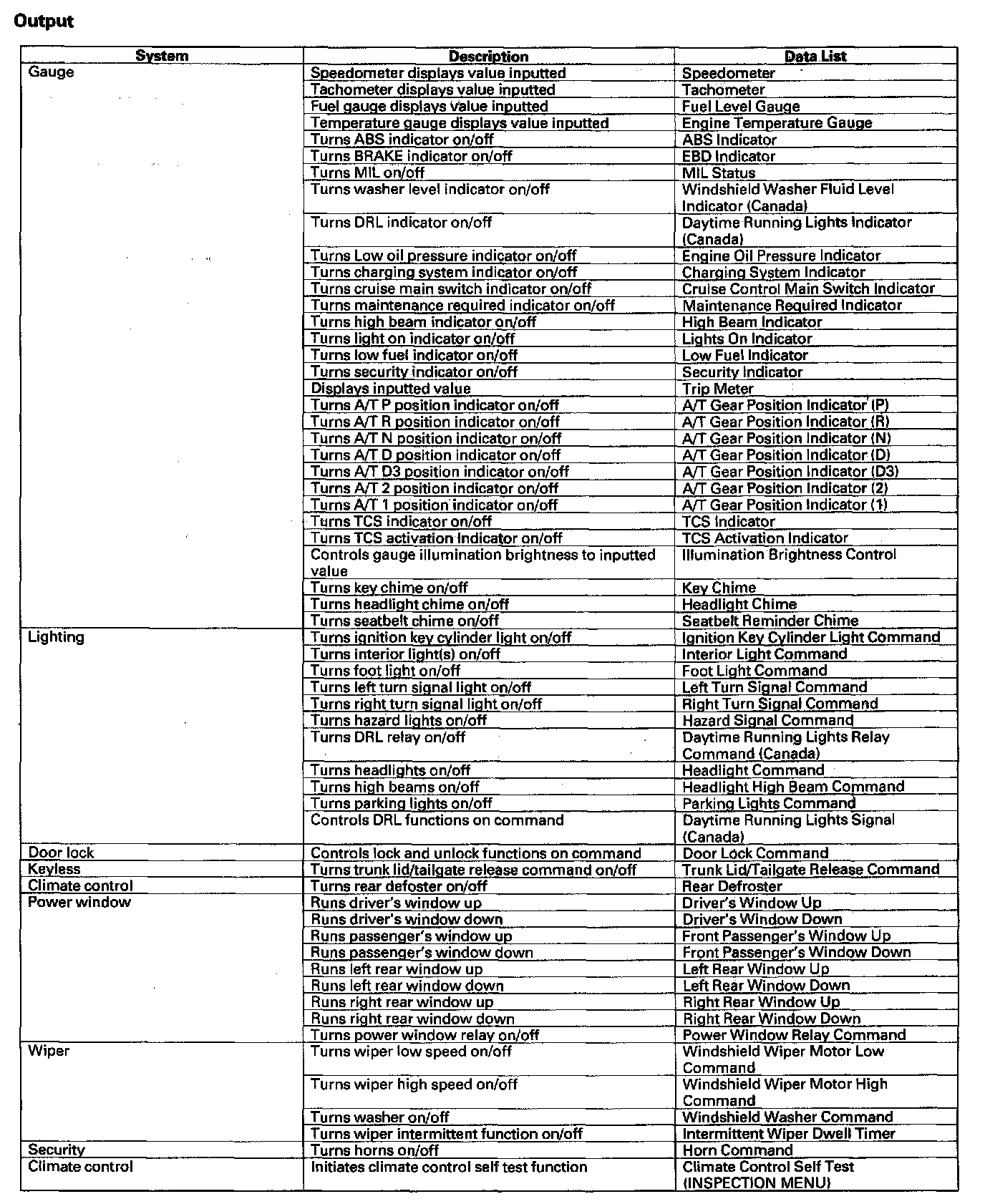

HDS Inputs And Commands - Output:
