Air Flow Meter/Sensor: Service and Repair

MAF/IAT Sensor Replacement

2003-2004 SULEV, LX-P models and 2005 model

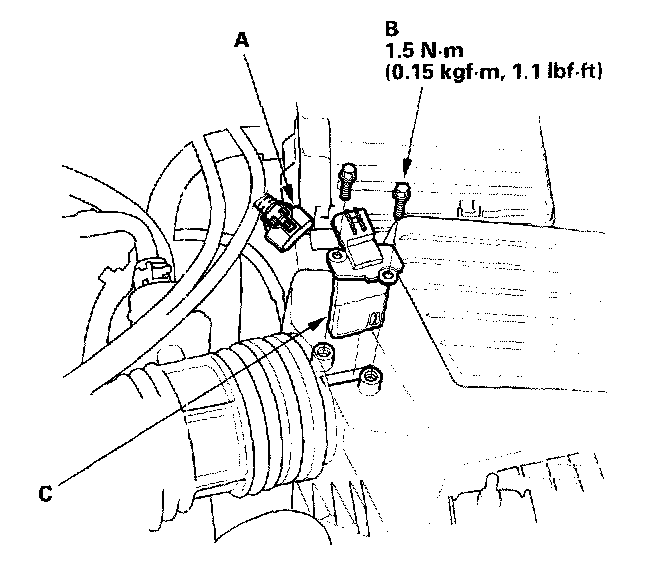

1. Disconnect the MAF/IAT sensor connector (A).
2. Remove the bolts (B).
3. Remove the MAF/IAT sensor (C).
4. Install the sensor in the reverse order of removal.
