Navigation Module: Locations

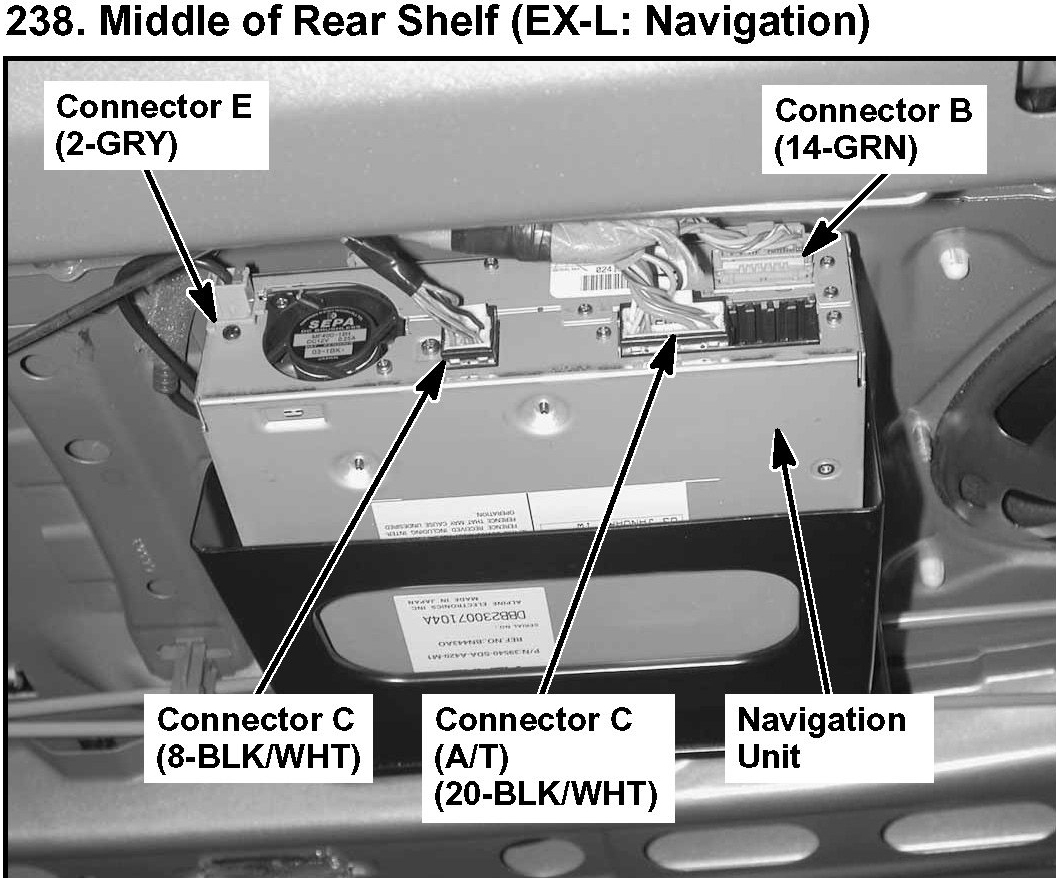

238. Middle Of Rear Shelf (EX-L: Navigation):

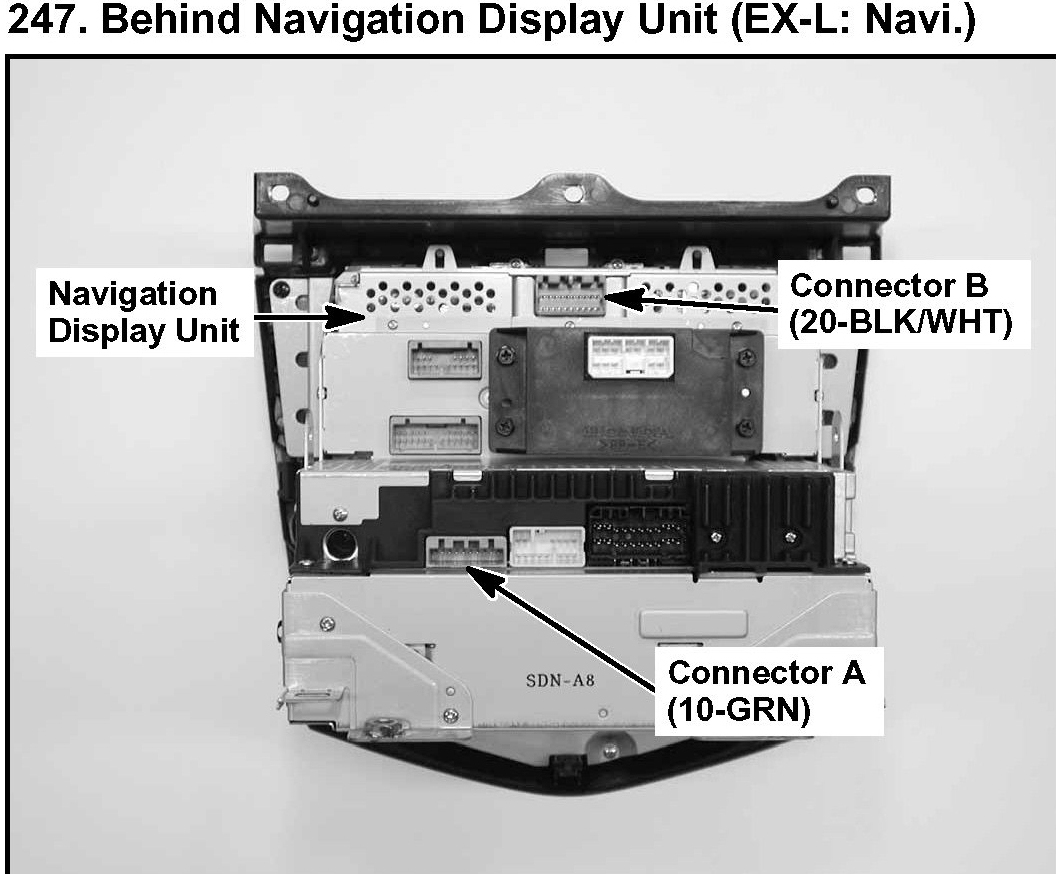

247. Behind Navigation Display Unit (EX-L: Navigation):

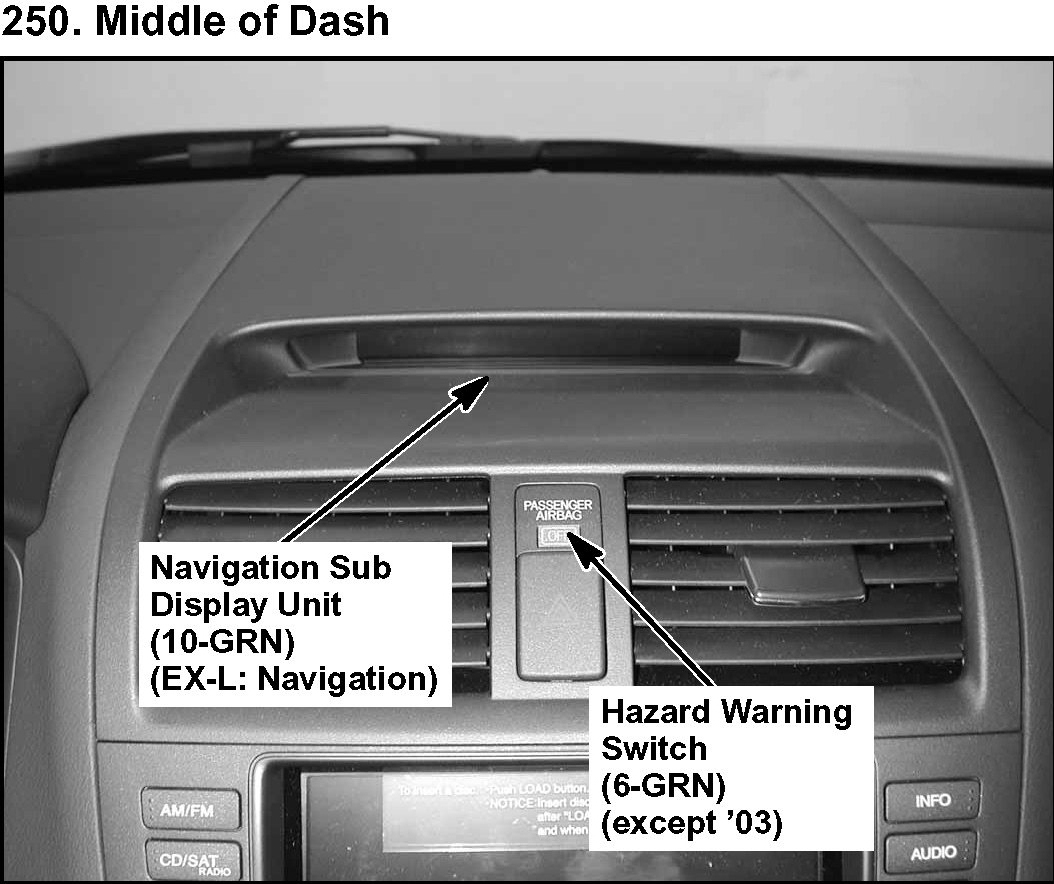

250. Middle Of Dash:

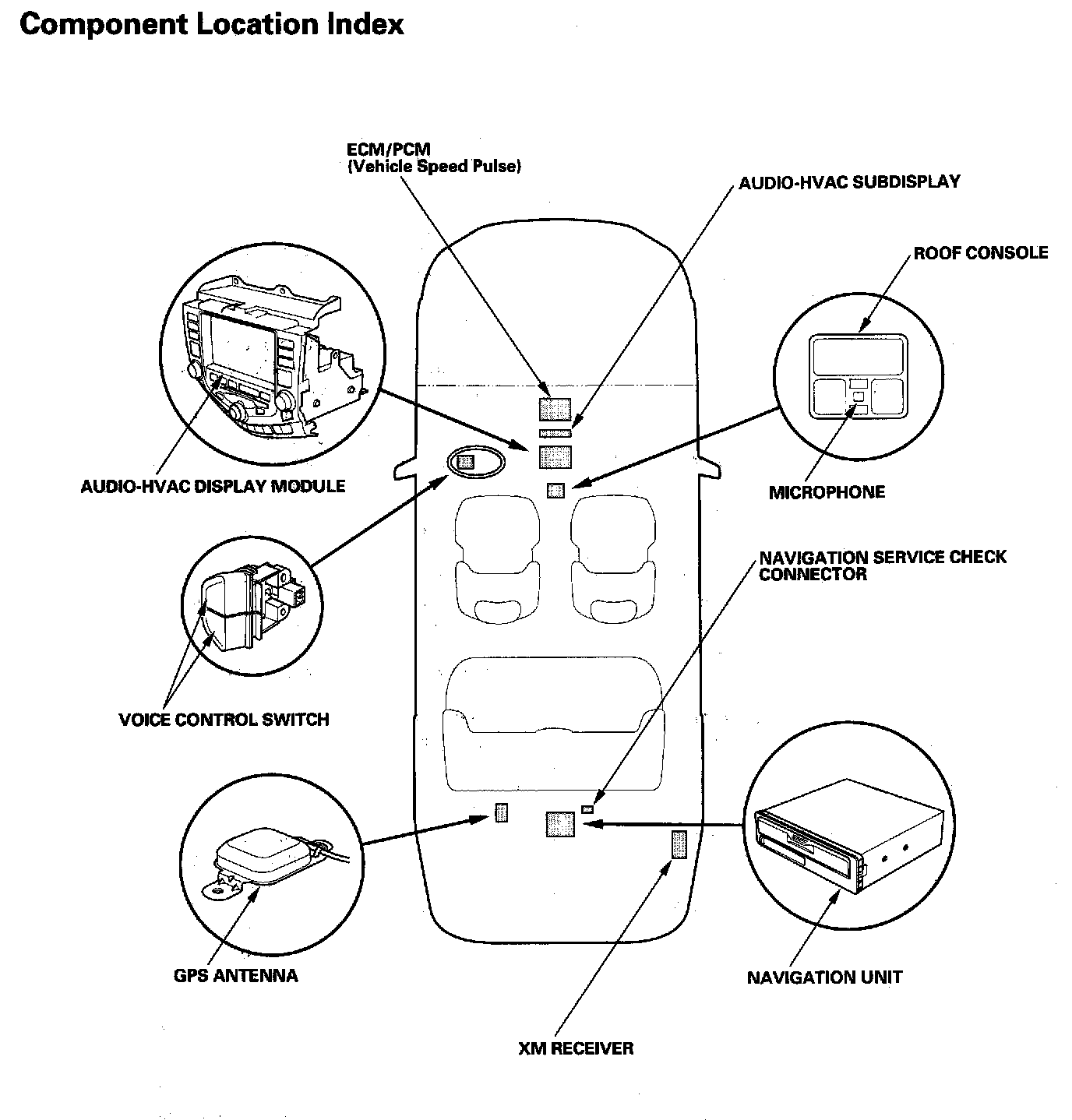

Navigation System - Component Location Index:
