Ignition Relay: Locations

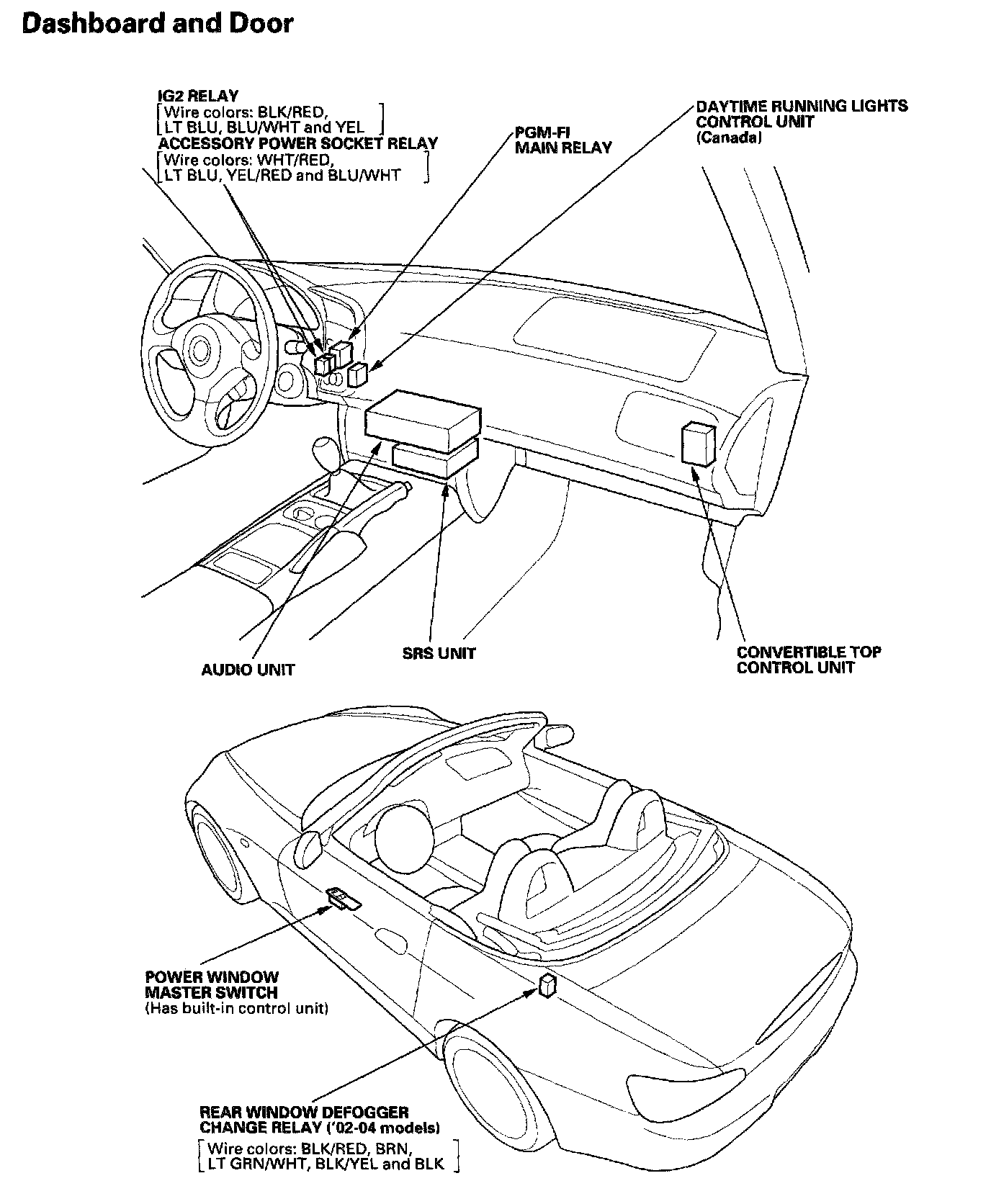

Relay And Engine Control Unit Locations - Dashboard And Door:
93. Driver's Door:

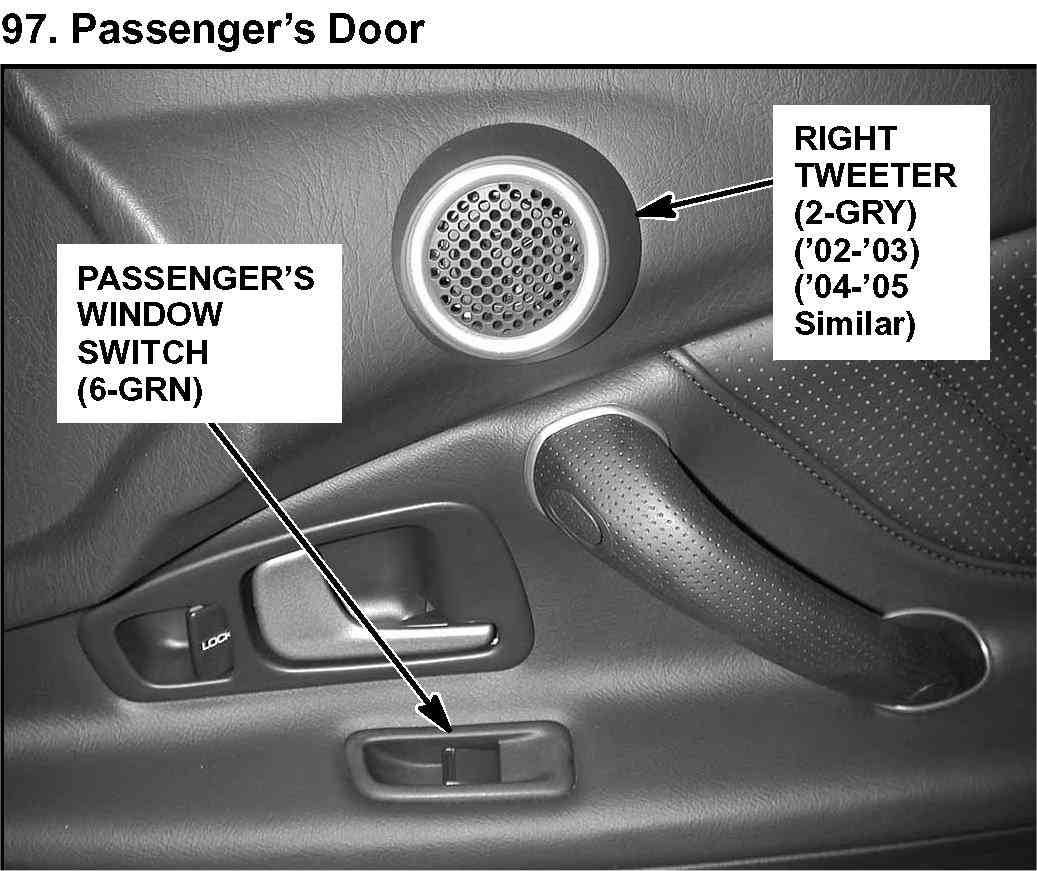

97. Passenger's Door:

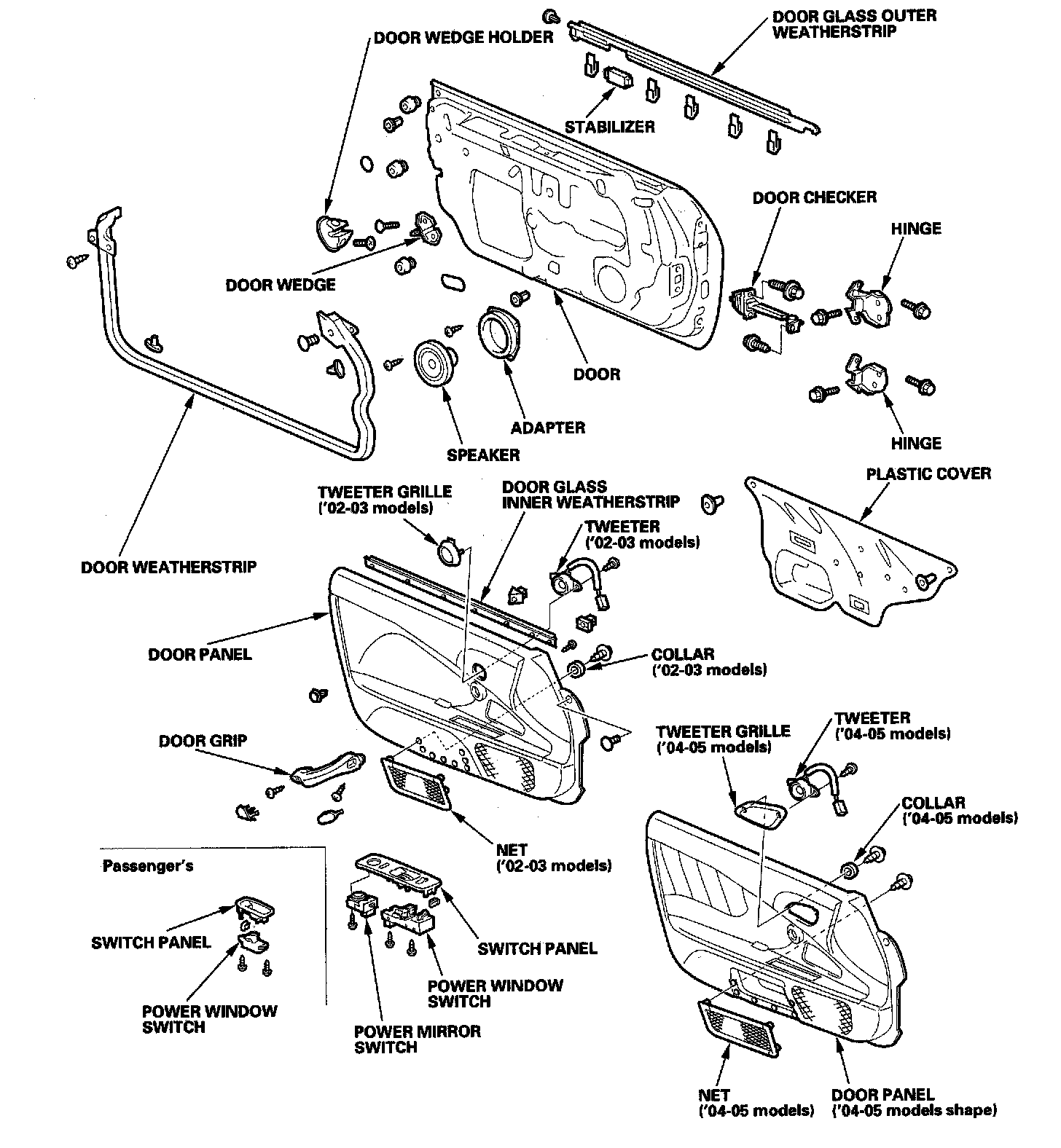

Doors - Component Location Index:
