Home >> Honda >> 2004 >> S2000 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Locations

Air Injection: Locations

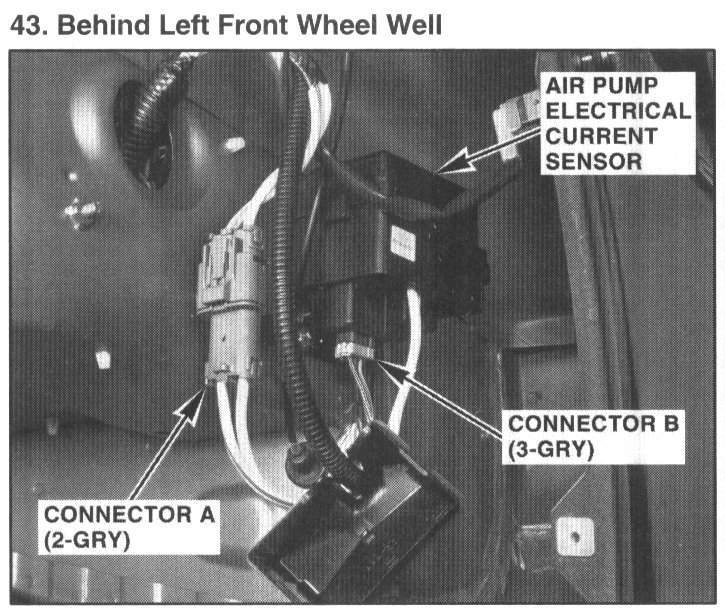

43. Behind Left Front Wheel Well:

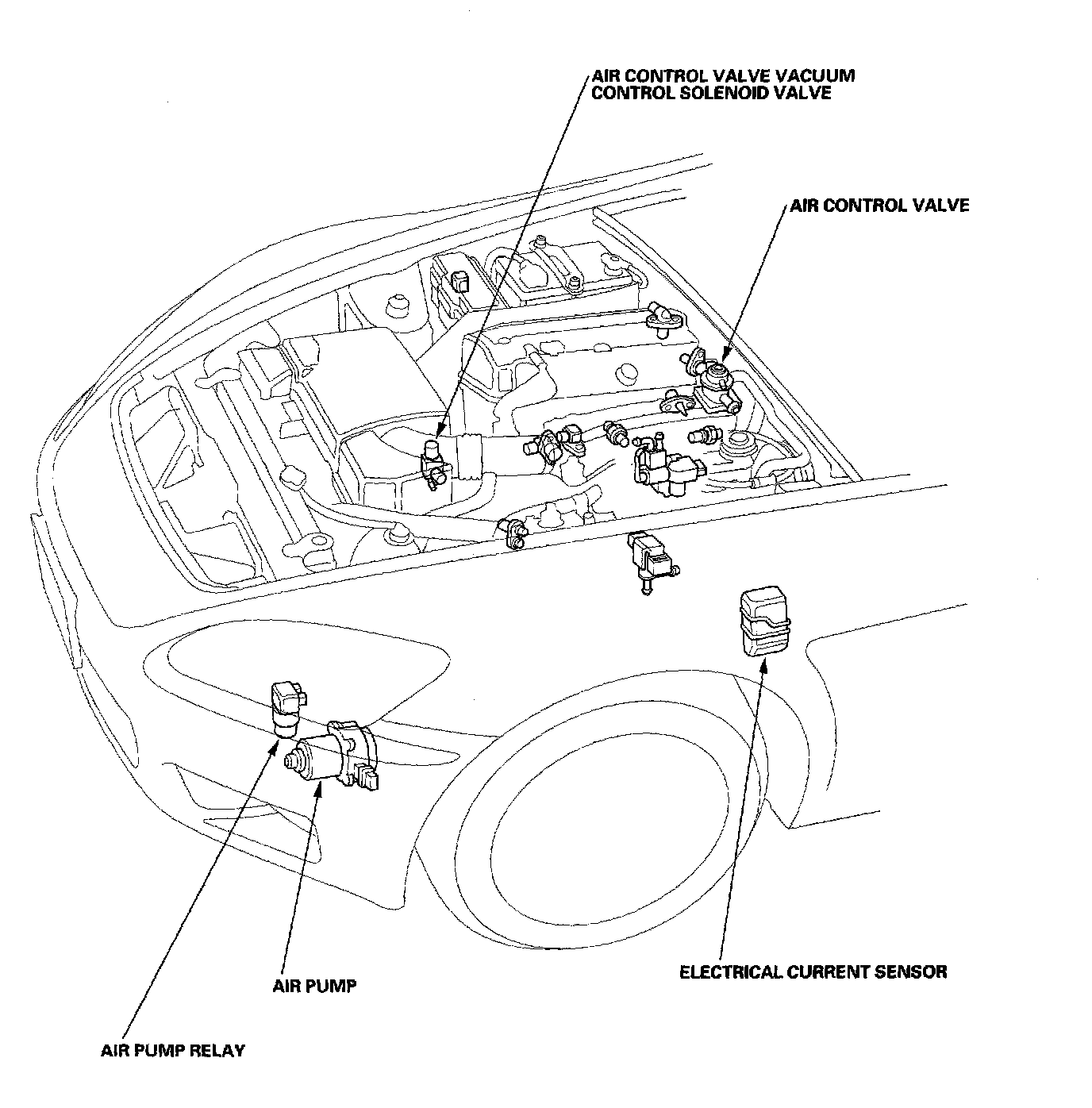

Pulsed Secondary Air Injection System - Component Location Index:
